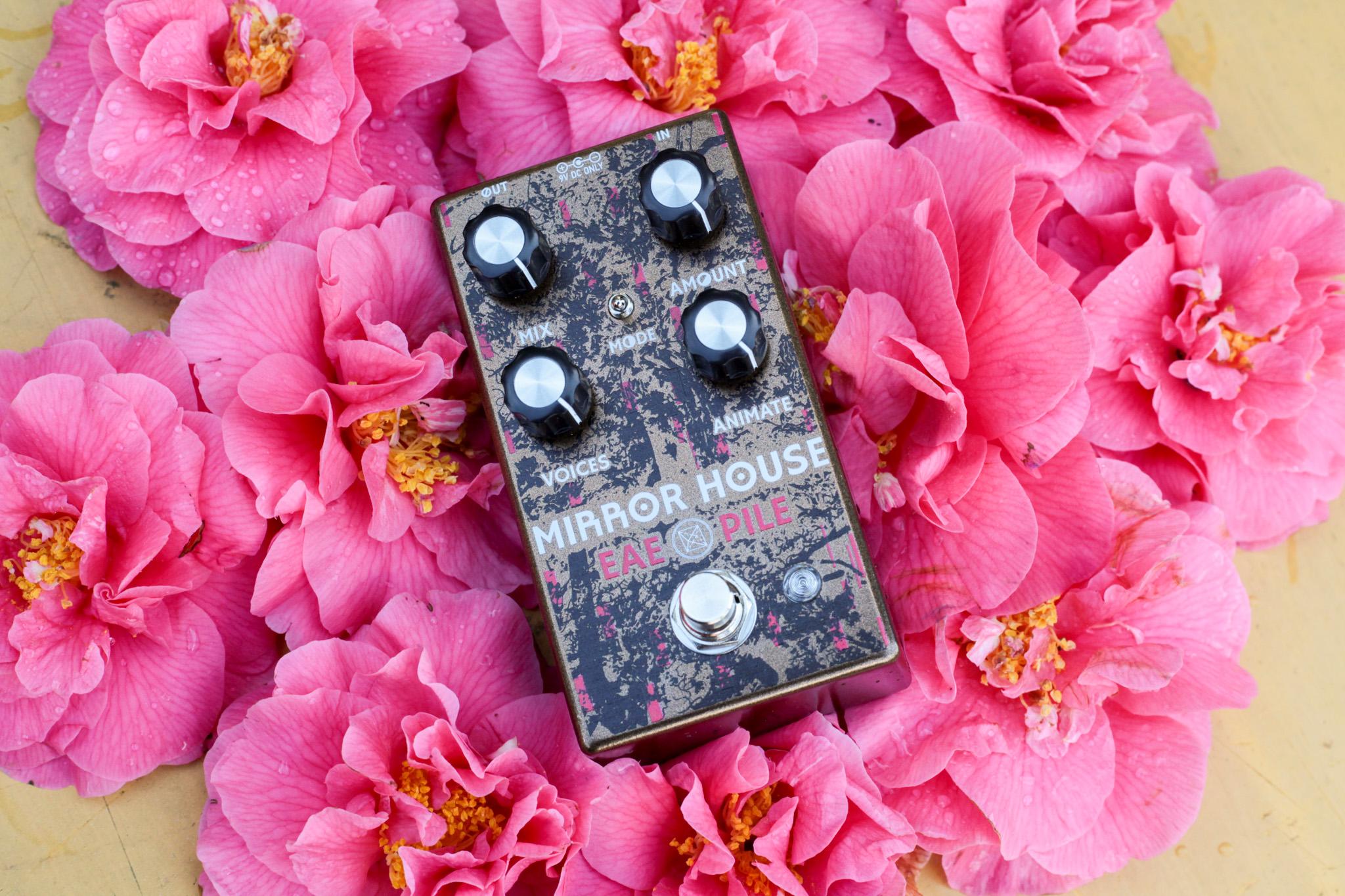

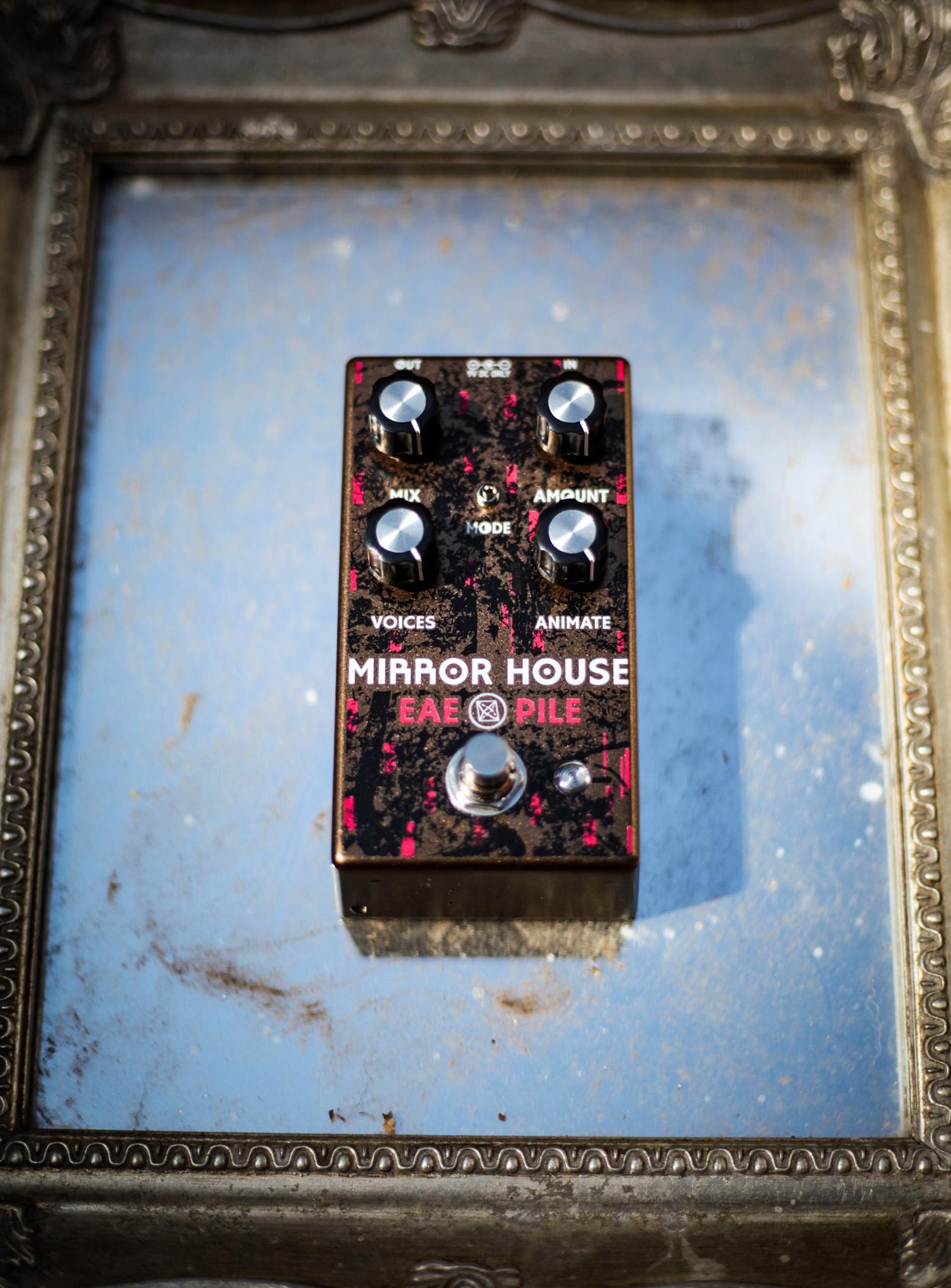

Electronic Audio Experiments Mirror House V2 Pitch Shifting Modulator Pedal
FREE UK Delivery
Earn 259 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: EA-MH2
You might also need
Product Description
Mirror House creates two pitch-shifted copies of an incoming signal which veer off into equal and opposite directions. This diametric approach to pitch shifting is capable of weird detuning, disorienting microtonal clusters, chords of parallel harmony, or ugly, strange dissonance. (It can also be a chorus.)
The two pitch voices can be shifted both statically and dynamically, with a selection of ranges and behaviors. Envelope control creates dynamic vibrato, glissando, and divebomb effects as the voices pull apart and return to the center. In Flutter mode, Animate controls a random LFO, for a tastefully off-kilter chorus and vibrato. Detune and Flutter modes each have a static range of a semitone, while Shift mode is quantized up to an octave in both directions. Depending on your harmonic proclivities, this particular array of features is perhaps an invitation, perhaps a provocation.
This pedal was originally developed in collaboration with our friends in the band Pile, and Version 2 is now available as a steady offering in our product catalog. This new version features the new Flutter mode, improved envelope tracking, and a reduced noise floor compared to Version 1.
Controls:
- Mix - relative level between the dry and effected signals. Turn clockwise to increase the amount of pitch-shifted signal. At maximum, no dry signal is present.
- Amount - amount of static pitch shifting. Turn clockwise to move the two voices symmetrically away from the original signal. The upper voice increases in pitch, while the lower voice decreases in pitch.
- Animate - additive modulation applied to the Amount control. Turn clockwise to increase the amount of modulation. In Shift and Detune modes, this is envelope-based. In Flutter mode, this is a random LFO.
- Voices - mix between higher and lower pitch voices. In the center position, this is an equal mix. Turn clockwise to focus on the higher voice, and turn counterclockwise to focus on the lower voice. This will also influence the directionality of envelope motion.
- Mode (toggle) - offers three modes:
* Shift (Up): the Amount knob sets the amount of pitch shifting, in quantized semitone steps up to an octave.
* Flutter (Middle): functions similarly to Detune mode, but the Animate knob controls a random LFO. Good for chorus and vibrato sounds.
* Detune (Down): the Amount knob shifts each voice from unison up to a semitone.
Specifications
- Power: 9V DC, center negative, 95ma current draw;
- Bypass: true bypass with soft-touch relay switching
- Input impedance: 500kΩ
- Output impedance: <1kΩ
- Footprint: 4.77” x 2.58”
- The artwork was illustrated by Nicole Rifkin.
Changelog: V2 (2025)
- Updated bypass to use a relay
- Improved envelope tracking for the Shift and Detune modes, with a more clearly defined threshold
- Reduced noise in DSP signal path
- Artwork updated
- Added Flutter mode
