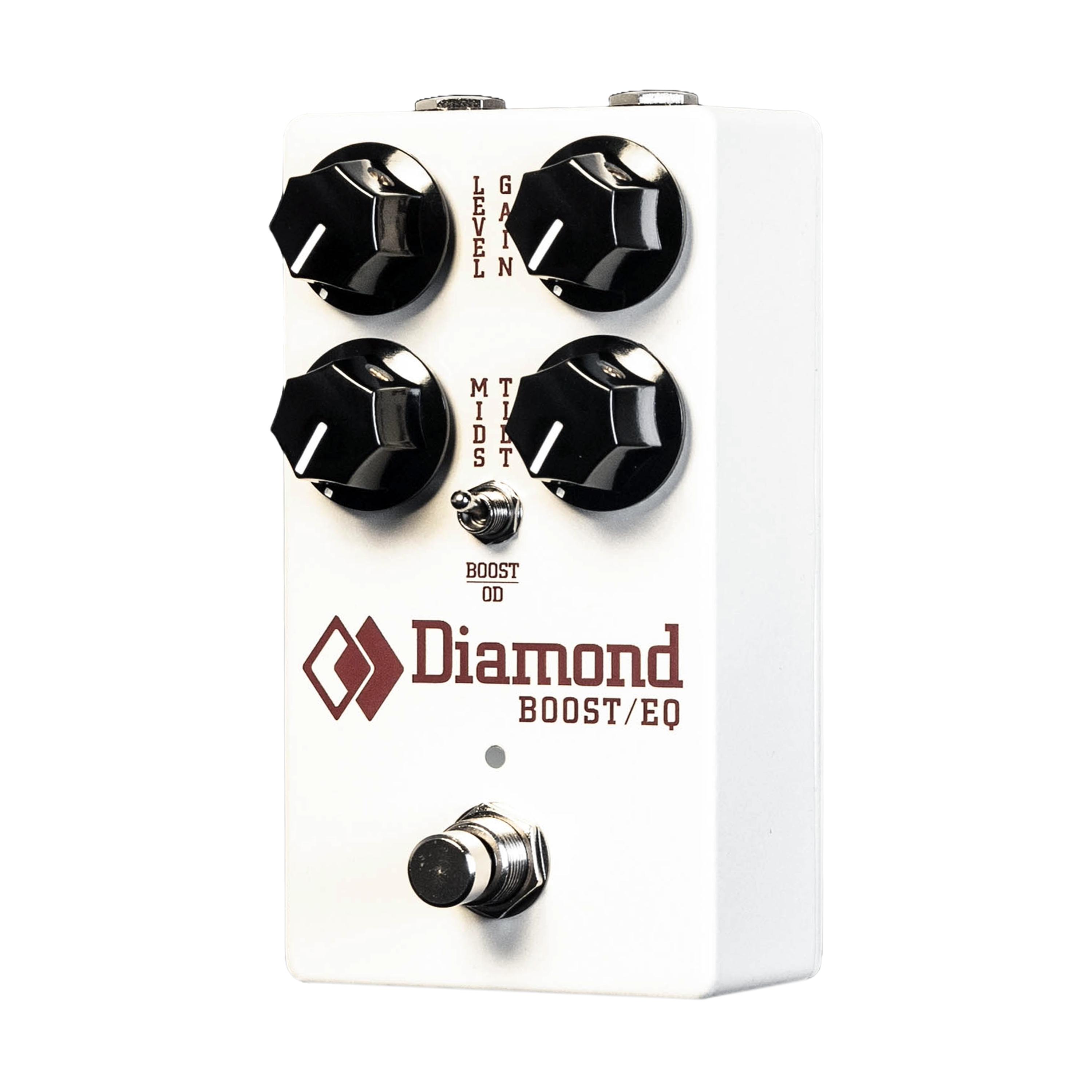

Diamond Boost/EQ Boost and Tilt EQ Pedal
Shape your ultimate tone with this versatile EQ, Boost and Low-Gain Overdrive pedal!
FREE UK Delivery
Earn 215 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: DM-BOOSTEQ
You might also need
Product Description
The concept for Diamond Pedals’ Boost/EQ began in the early 2000s, with a request for a ‘compression-less’ version of the famed Diamond Compressor - combining a clean boost circuit with the Compressor’s Tilt EQ.
Nearly 20 years after the resulting original pedal’s launch, we've re-imagined this idea on the same platform as the Comp/EQ. Introducing the next-generation Diamond Boost/EQ. This versatile, low-noise pedal delivers a punchy, dynamic sound that’s ideal for any set-up.
Key Features
- Clipping Options - Switch between a pure clean boost with up to +20 db of volume on tap (up position), or add a touch of light transparent soft clipping overdrive in the down position.
- Versatile EQ - With controls for the Tilt EQ (800 Hz +/- 6dB Tilt EQ Fulcrum Frequency) in partnership with a separate Mid frequency control (800 Hz +/- 10dB Mid EQ Centre Frequency), dialing in your perfect tone is quick and easy!
- Diamond Quality - The Boost/EQ is hand-made in Canada using high-quality parts and components.
Hands on
Taking the lively, high-fidelity gain stages of the Comp/EQ, the Boost/EQ offers plenty of punch while maintaining clarity and transparency. While the Tilt and Mid controls give you complete freedom to sculpt your tone. Need more sparkle? Dial it in with the Tilt knob. Looking for a midrange boost to cut through your solos? The Mid control has you covered. Want to make your Marshall tone a bit more Fender-esque? It’s all possible with Diamond’s Boost/EQ.
And a Low-Gain Drive
In addition, the Boost/EQ features a second mode that provides a low-gain overdrive - transparent, yet full of character. This makes the Boost/EQ the ultimate Swiss Army knife for your pedalboard, combining clean boost, tone shaping and overdrive, into one powerful and versatile pedal.
The Boost/EO offers 2 distinct modes of operation. The first is a clean boost mode designed to increase the output of your signal enabling you to beef-up low-output pickups, drive tube amps and dirt pedals for increased sustain and saturation or simply have your solos jump out in the mix.
Set to the OD mode, the gain structure of the pedal is modified and soft clipping diodes are added to the circuit. This provides smooth, transparent, musical distortion that ranges from just a touch of hair and harmonic overtones, to a nice low to mid gain overdrive.
Depending on where your Boost/EO is placed in your signal chain, it will either deliver an increase in volume or distortion/saturation. Place it at the end of your pedal chain or in an amp's series FX loop for a volume boost. Put it in front of your drives and fuzzes for more gain and distortion.
Specifications
- Top-mounted jacks and soft touch relay switching
- True Bypass
- Hand-made in Montreal, Canada
- Powered by a regular 9-18 V DC PSU (centre -, 2,1 mm, ~18 mA current draw)
