Product Description

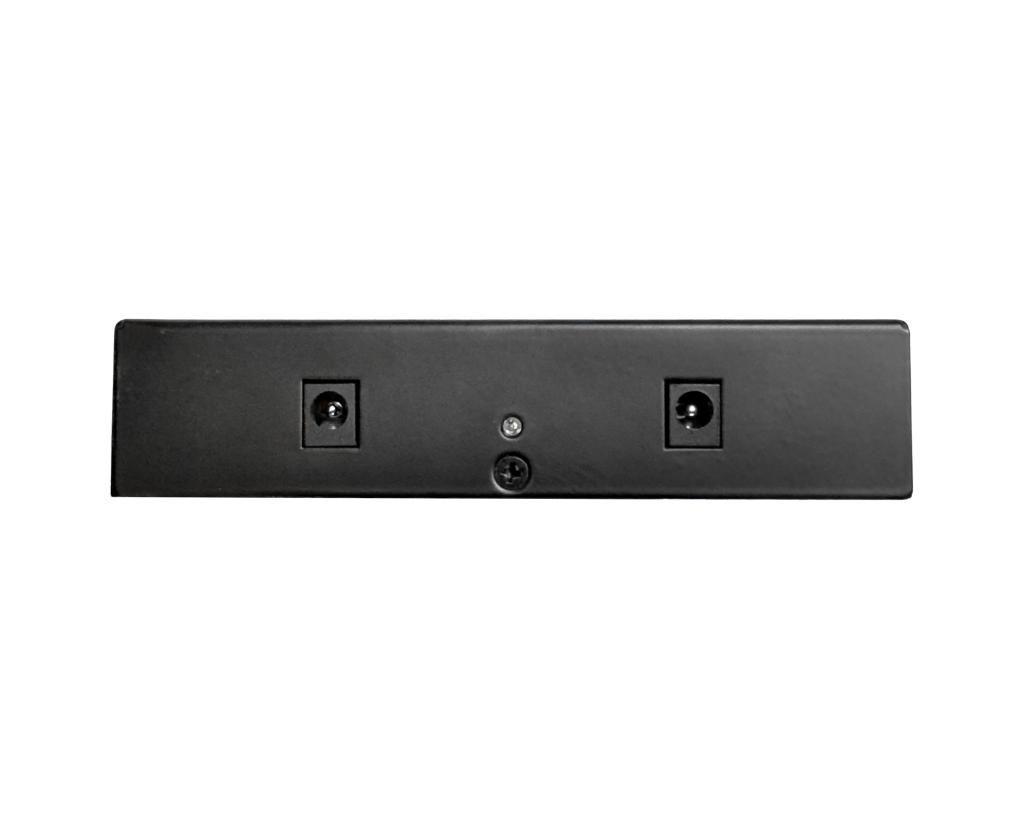

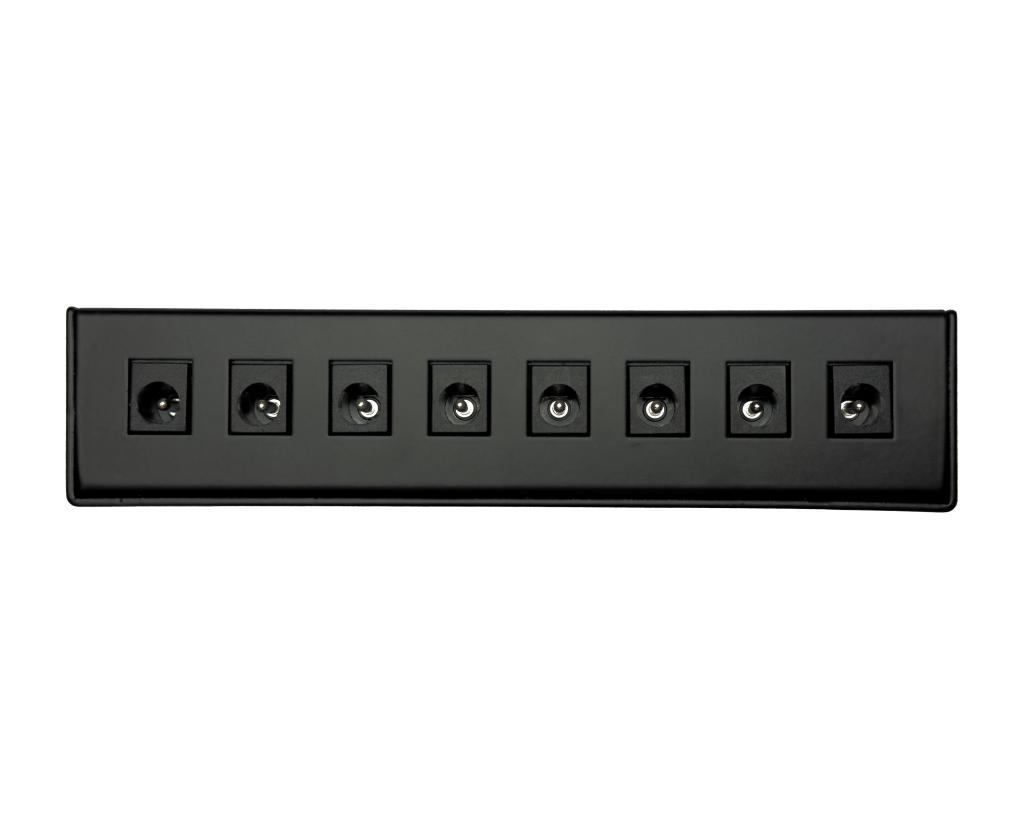

The 1 Spot Pro XP8-PS is just like the XP5-PS, except it has 8 outputs instead of 5. Each output provides 9Vdc of studio-clean power and can handle at least 500mA of current draw per output. Measuring 133x88x30mm (5.24x3.46x1.18”) and weighing only 459 grams (16.19oz or about 1lb), it can be easily attached to a pedalboard using only Vel-Cro. Because of its low profile, the XP8 can be mounted under most pedalboards, or be used as a pedal riser on top of a board. With 2 linked input jacks, you can power a second XP8 or XP5 by simply connecting a DC cable..
Specifications
- Dimensions: 133 x 88 x 30mm (5.24 x 3.46 x 1.18”); 488 grams (1.075 lbs.) - weight and dimensions of power supply only, not including cables or packaging.

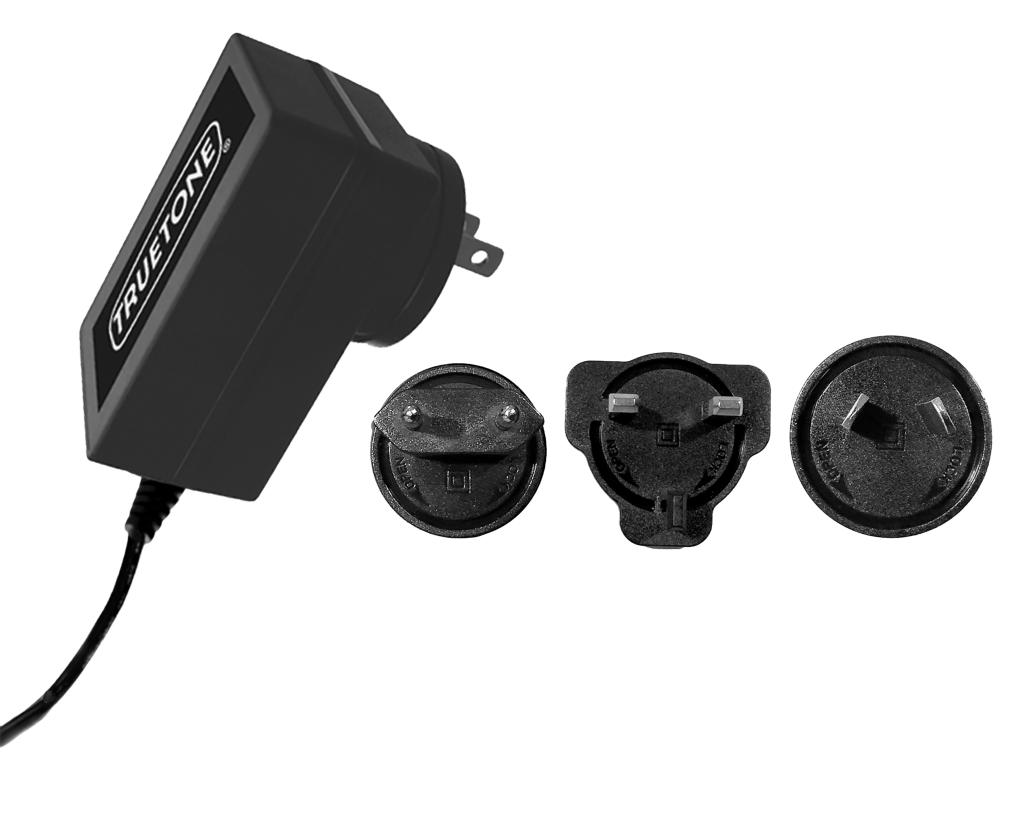

- Input Voltage: 12Vdc 4.0A. External power supply (included with XP8-PS) must have a 5.5x2.1mm barrel plug, center pin positive. The XP8 is also designed to be powered directly from the output on the back of a 1 SPOT Pro CS11, provided the total current load connected to the XP8 is 2.5A or less.
Power cables (all are center pin negative polarity):
- (2) DC26 (5.5x2.1mm barrel plugs; 26” (660mm) – Purple
- (4) DC18 (5.5x2.1mm barrel plugs; 18” (457mm) – White
- (2) DC12 (5.5x2.1mm barrel plugs; 12” (305mm) – Yellow
- Output Voltage: All outputs are 9Vdc, 500mA.
