Product Description

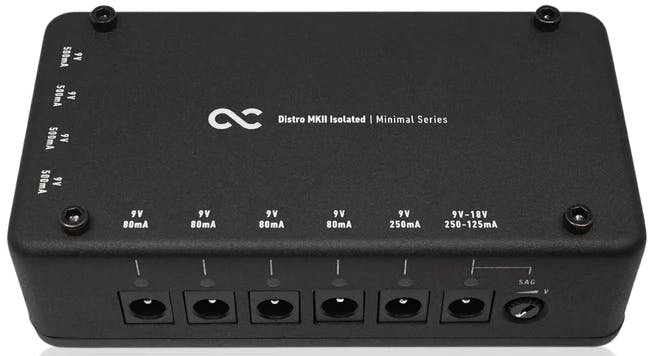

The MSDMKII is small, compact, and supplies power to many effects with confidence. One Control's Minimal Series Distro MKII has been created to be a reliable, isolated pedal power supply with 10 DC-outs — this powers a medium to large size pedalboard!
One of the key features is the four 9V/500mA outputs. Currently, it is common for multiple digital effects and multi-effects to be used on pedalboards. In order to work with the effects that require those large currents, One Control has equipped four large output terminals of 500mA. From these terminals, you can also use branch cables such as the One Control Daisy Chain Five to operate multiple compact pedals.
In addition, it is equipped with four 9V/80mA terminals that can connect low-current analogue effects (overdrive, distortion, fuzz, wah, etc.), and a 9V/250mA end that can connect effects with a large current consumption such as a compact reverb pedal. One of these can also increase the voltage in the range of 9-18V (125mA at 18V) by using the SAG knob.
Key Features
- Compact size isolated power supply — Provides reliable power, with a small footprint.
- 10 DC out terminals with large to small outputs — This gives flexibility for all your pedalboard designs.
- 4 large output 500mA terminals — Helps support digital effects
- 4 small output 80mA terminals — Operate analogue pedals optimally.
- 9-18V SAG terminal — Try this with your dirt pedals – higher voltage, higher headroom!
Specifications
- 10 DC cables (included)
- 4 x DC 9V/500mA terminal
- 4 x DC 9V/80mA terminal
- 1 x DC 9V/250mA terminal
- 1 x DC 9V / 250mA to 18V/125mA SAG terminal
- 1 x dedicated 12V/4A adapter
- 1 x Y-shaped cable
- Rubber feet
- Dimensions (W x D x H): 120 x 70 x 35 mm
- Weight: 393g
