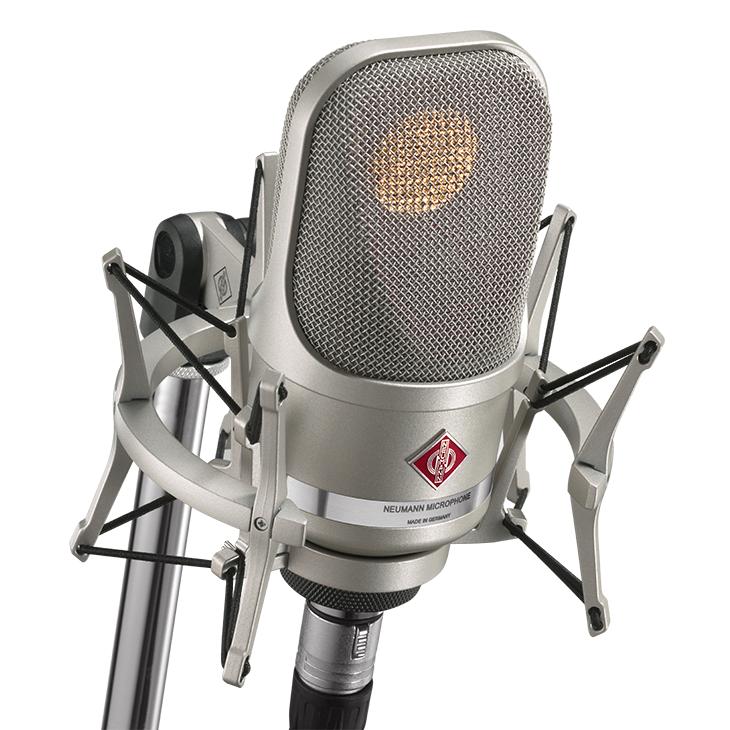

Neumann TLM107 STUDIO SET

The Neumann TLM 107 bk Studio Set is a state-of-the-art large diaphragm condenser microphone that redefines what’s possible in its class. Designed for studio professionals and ambitious creators alike, it delivers exceptional performance across a wide range of recording applications. Whether you’re capturing vocals, acoustic instruments or powerful drums, the TLM 107 handles it all with incredible clarity and precision. With five selectable polar patterns, variable pad and low cut options, and a custom-designed capsule, it adapts effortlessly to any recording scenario while retaining a remarkably balanced sound profile.

Engineered with transformerless circuitry, it offers clean and transparent audio reproduction with an impressively low self-noise level of just 10 dB-A. From subtle whispers to thunderous drum hits, the TLM 107 remains distortion-free, boasting a dynamic range of 131 dB. Its sleek, modern design is complemented by intuitive onboard controls, making it both aesthetically pleasing and functionally advanced. The TLM 107 is the ideal choice for discerning users seeking premium Neumann sound without the premium price tag.

Key Features:

• Versatile Polar Patterns:
  Choose from omni, wide cardioid, cardioid, hypercardioid and figure-8 for unmatched flexibility in any recording environment or source.
• Transformerless Circuitry:
  Ensures open, natural sound reproduction with extended bass response and low distortion, even at extreme sound pressure levels.
• Precision Capsule Design:
  Custom dual diaphragm capsule provides excellent transient response and consistent tonal balance across all pattern settings.

Flexible Recording Performance:

The TLM 107 adapts to your recording needs with ease, making it perfect for everything from vocals and voiceovers to classical instruments and aggressive percussion. Its variable pad settings (0, –6, –12 dB) and selectable low cut filters (linear, 40 Hz, 100 Hz) allow precise control over dynamics and low frequency build-up. Whether close-miking a guitar amp or capturing the nuances of a grand piano, the microphone’s flexibility ensures accurate, high-fidelity results every time.

Exceptional Sound Transparency:

Thanks to its transformerless design, the TLM 107 offers exceptional sonic clarity with no colouration. This makes it a go-to solution for engineers and producers who prefer capturing an unaltered sound source for maximum mixing flexibility. With a wide frequency response from 20 Hz to 20 kHz, it handles the full spectrum with authority, delivering professional-grade recordings free from artefacts, noise or tonal imbalances.

Modern Design with Intuitive Control:

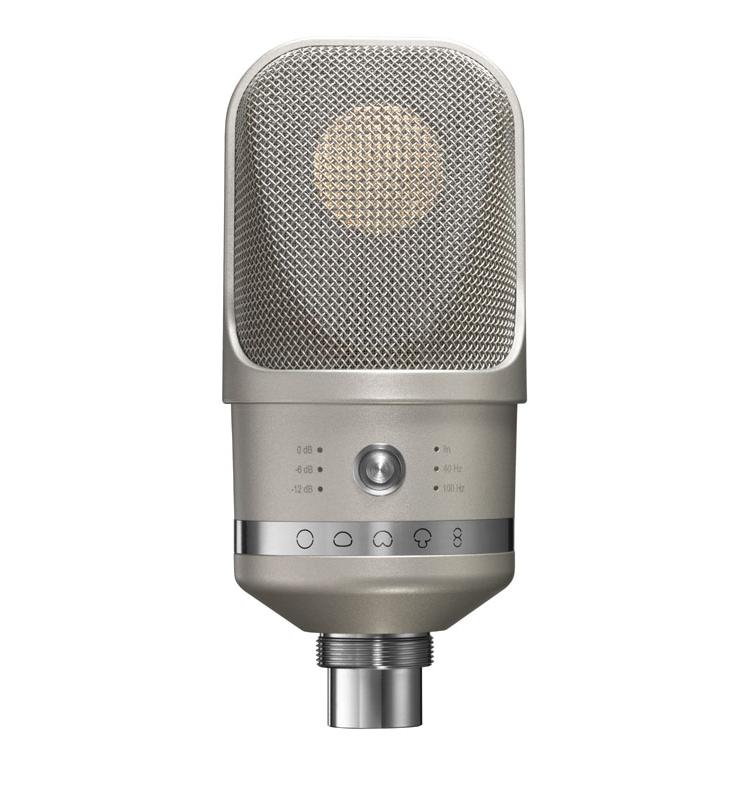

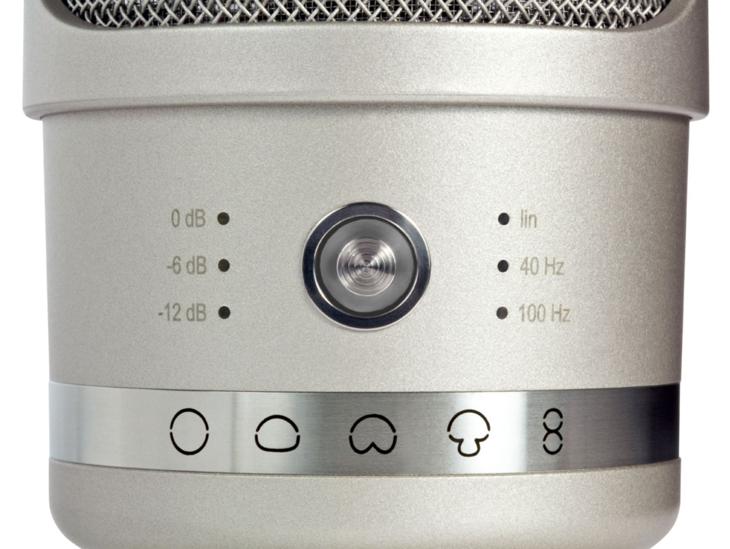

The TLM 107 combines classic Neumann heritage with forward-thinking engineering. Its large, tapered grille pays tribute to legendary microphones like the M 49, while the integrated navigation toggle on the rear panel puts all control functions at your fingertips. Adjust polar patterns, engage the pad or activate the low cut filter seamlessly without removing the mic from its position, a design built for workflow efficiency and studio aesthetics alike.

Specifications:

• Acoustical operating principle: Pressure gradient transducer
• Directional pattern: Omni, wide cardioid, cardioid, hypercardioid, figure-8
• Frequency range: 20 Hz to 20 kHz
• Sensitivity at 1 kHz into 1 kohm: 11 mV/Pa
• Rated impedance: 50 ohms
• Rated load impedance: 1000 ohms
• Equivalent noise level, CCIR: 22 dB
• Equivalent noise level, A-weighted: 10 dB-A
• Maximum SPL for THD 0.5%: 141 dB
• Maximum SPL with -6 dB pad: 147 dB
• Maximum SPL with -12 dB pad: 153 dB
• Signal-to-noise ratio, CCIR (re. 94 dB SPL): 72 dB
• Signal-to-noise ratio, A-weighted (re. 94 dB SPL): 84 dB
• Maximum output voltage: 10 dBu
• Supply voltage (P48, IEC 61938): 48 V ± 4 V
• Current consumption (P48, IEC 61938): 3.2 mA
• Matching connector: XLR 3 F
• Weight: 445 g
• Diameter: 64 mm
• Length: 145 mm
