Lynx Cat5E Cable Drum System 50M

£139.00
Preorder Now

UK delivery - from £4.99

Free & Next Day delivery to most UK locations when spending over £149

Earn 139 Loyalty Points

You'll get £1.39 to spend on your next order.
stock availability
0 at our Guildford Store
0 at our off-site Warehouse
Want to Click and Collect or try items at our Guildford Store?

The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.

The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.

Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.

If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.

Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.

If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.

Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.

SKU: ETHC5F50DRUMREAN

You might also need

Product Description

Here's What Custom Lynx say:

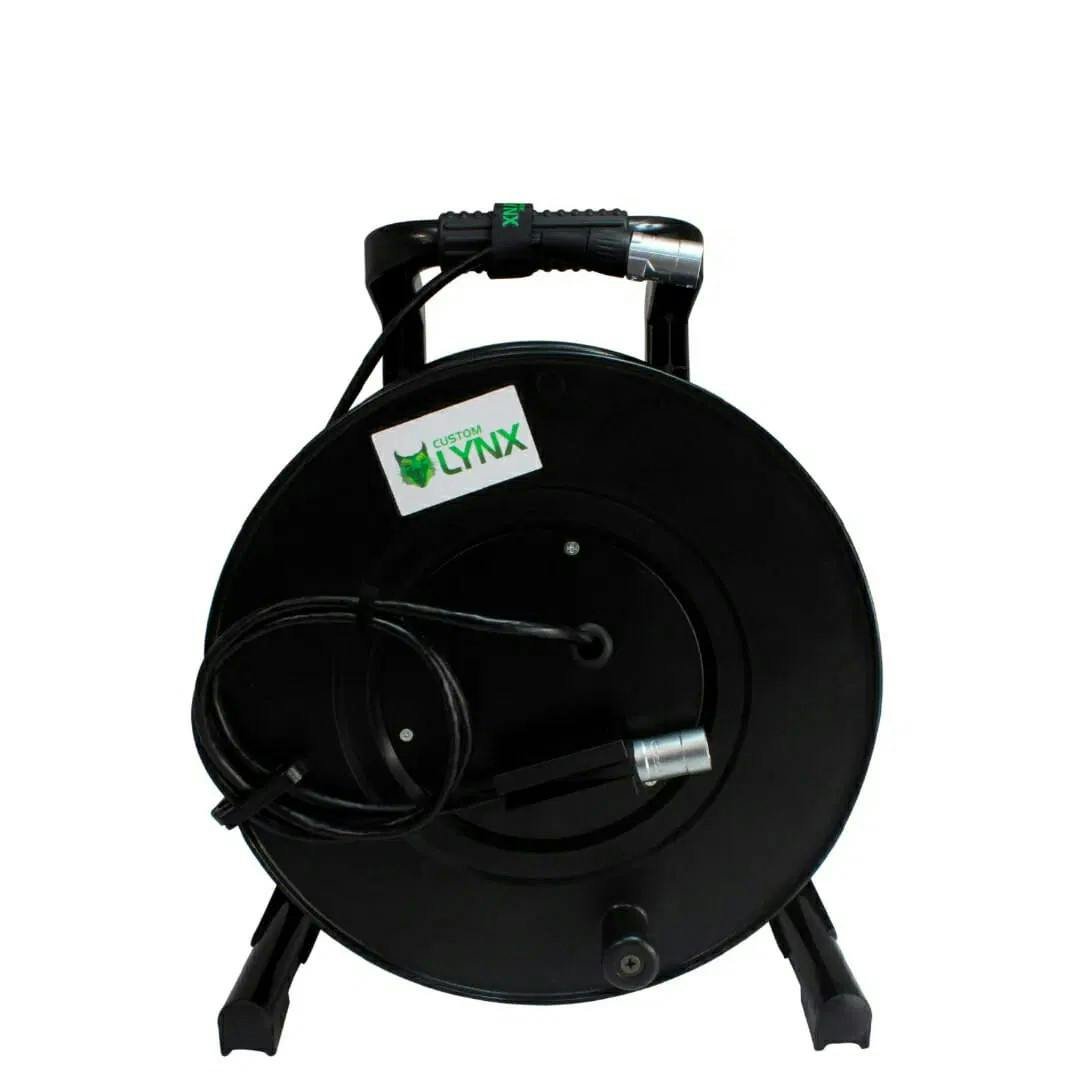

Flexible CAT5E Drum Mounted EtherCON cable’s constructed using black SFTP (Screened Foiled Twisted Pair) cable. Rean Neutrik EtherCON RJ45 Shell connectors are precision made and hold a trusted name. Shielded RJ45 plugs grounded to the shells of the EtherCON’s on both ends.

The drum itself is extremely solid, made with a hard solid plastic. It has a rubberised handle and brake feature on the back of the drum

The cable is very flexible and similar in feel to microphone cable making it particularly suitable for touring use.

This cable is jet black in colour, with nickel silver coloured shell connectors. Available in a range of set lengths

Features

  • Rean Neutrik CAT5E EtherCON Drum Mounted Cable
  • Rugged/Solid Plastic Drum With Brake
  • 1m Cable on the Front of Drum
  • Flexible STFP (Screened Foiled Twisted Pair) CAT5E Cable With Both Spiral and Foil shield – RJ45’s Grounded Both Ends
  • “Straight Through” Meaning Mapping of Connections Pin to Pin from 1 to 8 (1 to 1, 2 to 2 etc.)
  • Trusted Rean Neutrik Connectors – EtherCON Shell’s
  • Cable Come With A Velcro Straps – That Stays on the Cable
  • Set Lengths

Specifications

  • Conductor: 7 x 0.16 mm Oxygen Free Copper
  • Conductor size: 7 x 0.16 mm, 0.11.3 mm sq, 26AWG
  • Diameter: 0.94 ± 0.07 mm
  • Screen: Aluminium Foil + Spiral Screen
  • Jacket material: Flexible PVC Black
  • Overall diameter: 5.80 ± 0.20 mm
  • Conductor resistance: < 166 Ohms/km
  • Insulation Resistance: > 5 GOhm/km
