Product Description

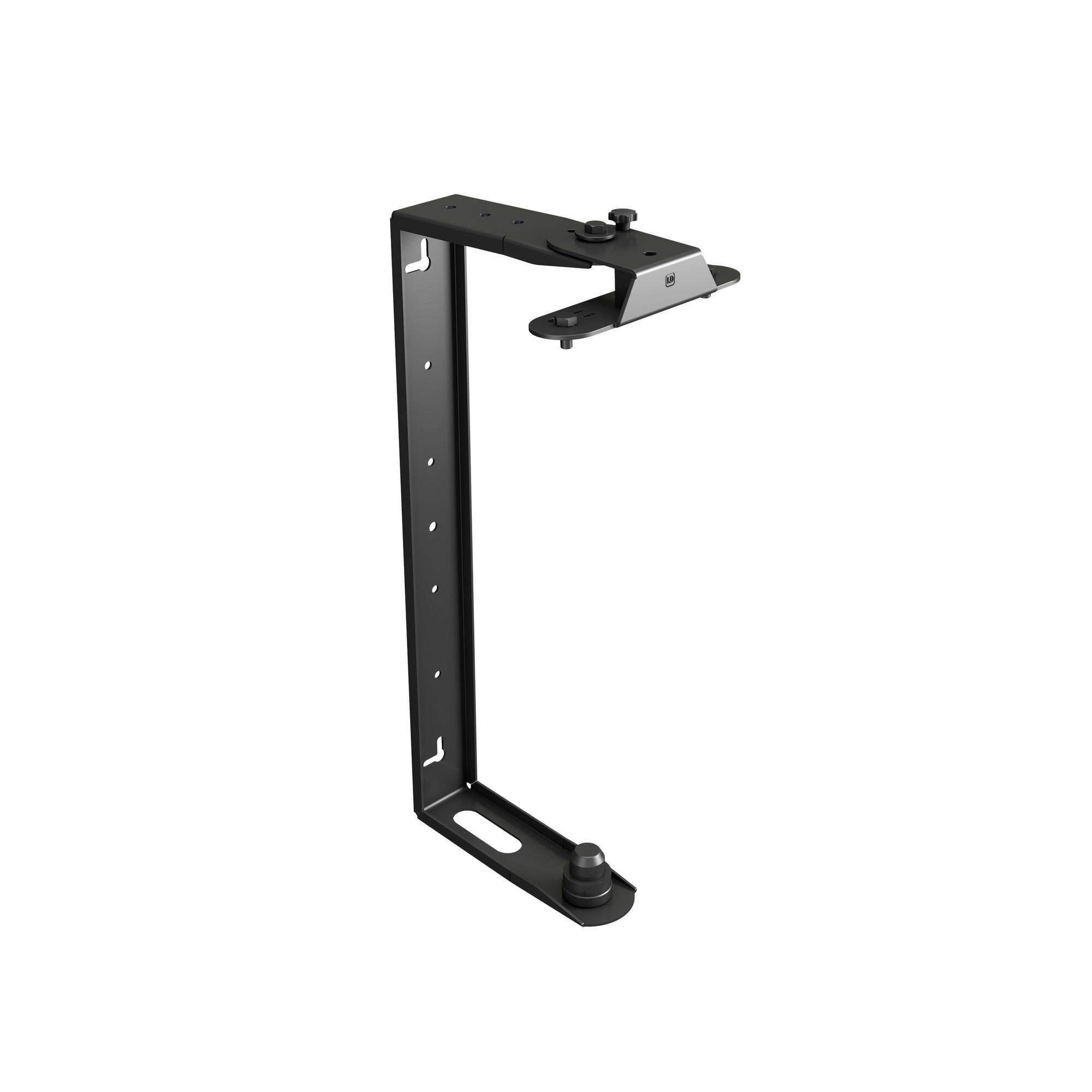

The freedom to achieve the sound you want is the concept behind the ICOA and its matching U-mounting bracket as well.
It gives you complete flexibility to mount the ICOA in different ways - to the wall, either horizontally or vertically, or to a truss using an optional clamping tool.
You can install the bracket on the wall with six screws and quickly and effortlessly "click" your ICOA into place with the Easy-Click system. All that's left to do is to fasten everything down with a safety screw. The U-bracket's cable feedthrough behind the ICOA keeps things looking neat and tidy. Once the ICOA is installed, you can freely swivel it around in 10° increments up to 180°. Enough flexibility to find your ideal angle.
Features
- Universal bracket for horizontal or vertical wall attachment
- Truss mounting with optionally available clamp
- Easy-Click System
- Rotatable in 10° increments up to 180° with scaling indicator
- Five holes for M10 screws
- Six holes for wall installation
- Cable feedthrough
- Load capacity up to 24 kg
Specifications
- Product type - PA Loudspeakers Accessories
- Type - Wall bracket
- Colour - Black
- Material - Steel
- Surface - Powder-coated
- Max. load - 24 kg
- Weight - 3,7 kg
