LD Systems U508 BPHH2 Wireless Headset System
with 2 Pocket Transmitters and 2 Beige Condenser Headsets
FREE UK Delivery
Earn 549 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: LDU508BPHH2
You might also need
Product Description
Here's what LD Systems say about the U508 BPHH2 Wireless Headset System:
The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.
Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.
High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.
The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.
Overview of frequency ranges of vocal sets:
- U505 // 584 - 608 MHz // 12 systems can be used simultaneously
- U506 // 655 - 679 MHz // 12 systems can be used simultaneously
- U508 // 823 - 832 MHz + 863 - 865 MHz // six systems can be used simultaneously
- U506 UK (Channel 38) // 606 – 614 MHz // six systems can be used simultaneously
- U518 // 1785 – 1800 MHz // four systems can be used simultaneousl
Specifications
- Product type: Wireless Microphone Systems
- Type: Headsets
- Transmission frequency range: 823 - 832 MHz, 863 - 865 MHz
- Weight: 5,8 kg

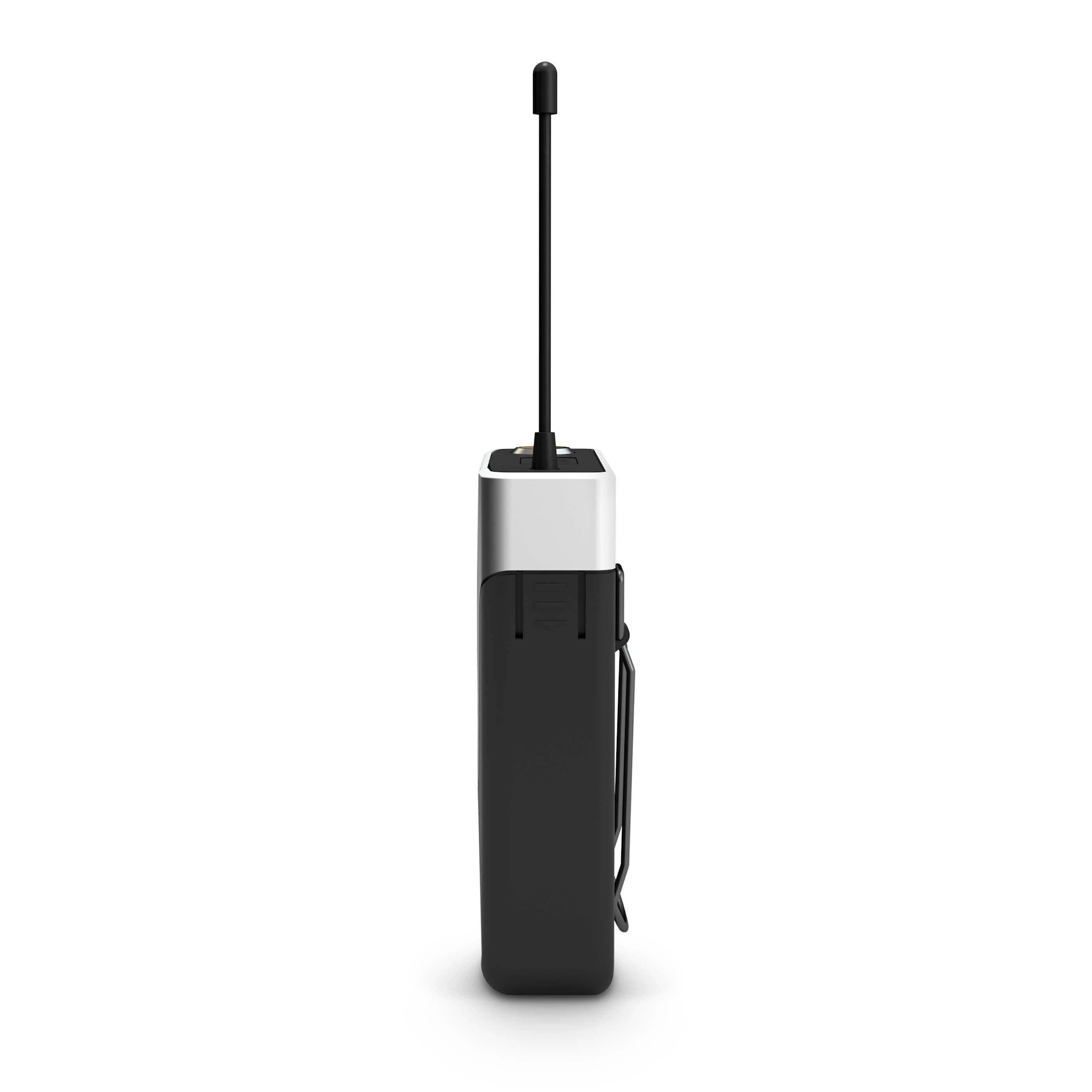

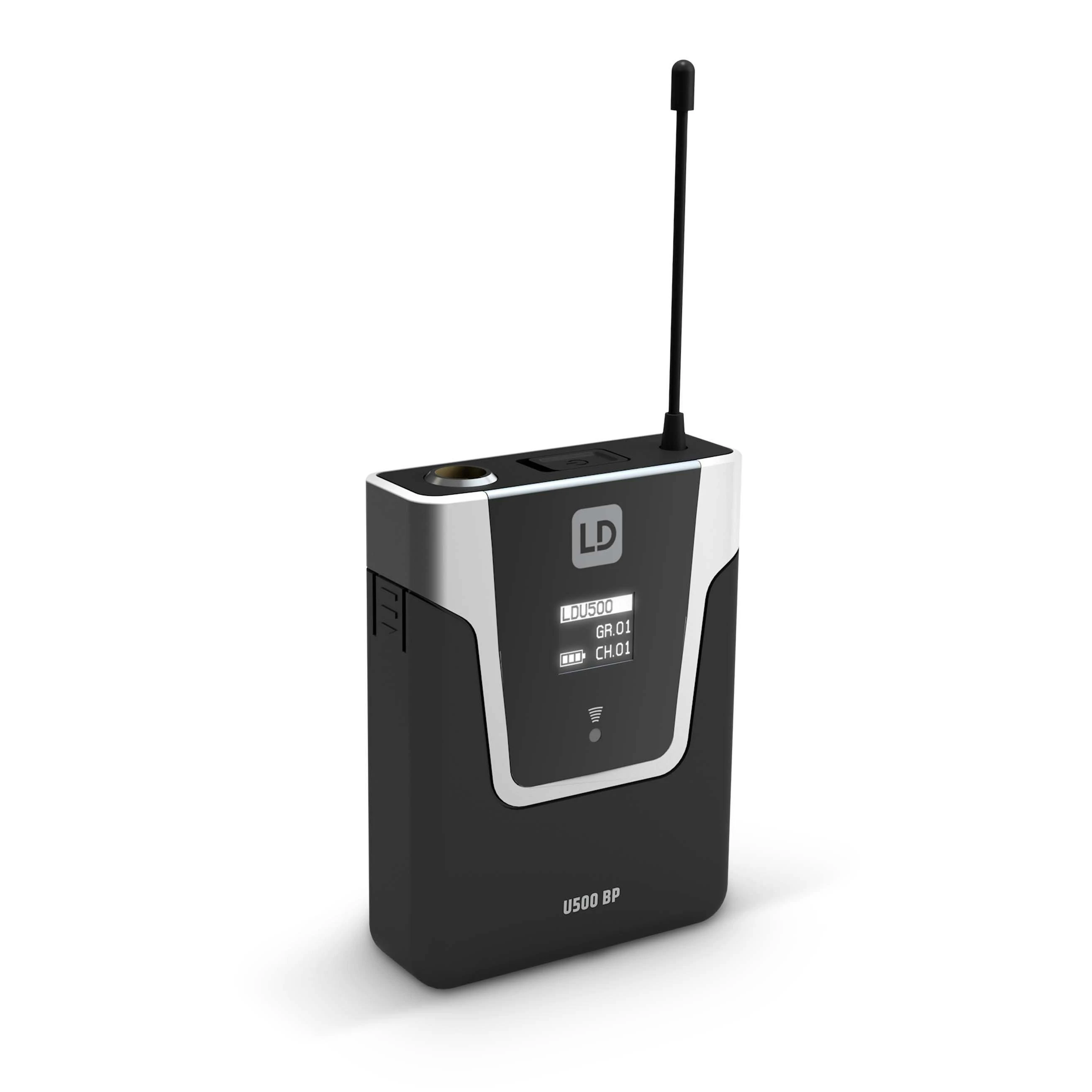

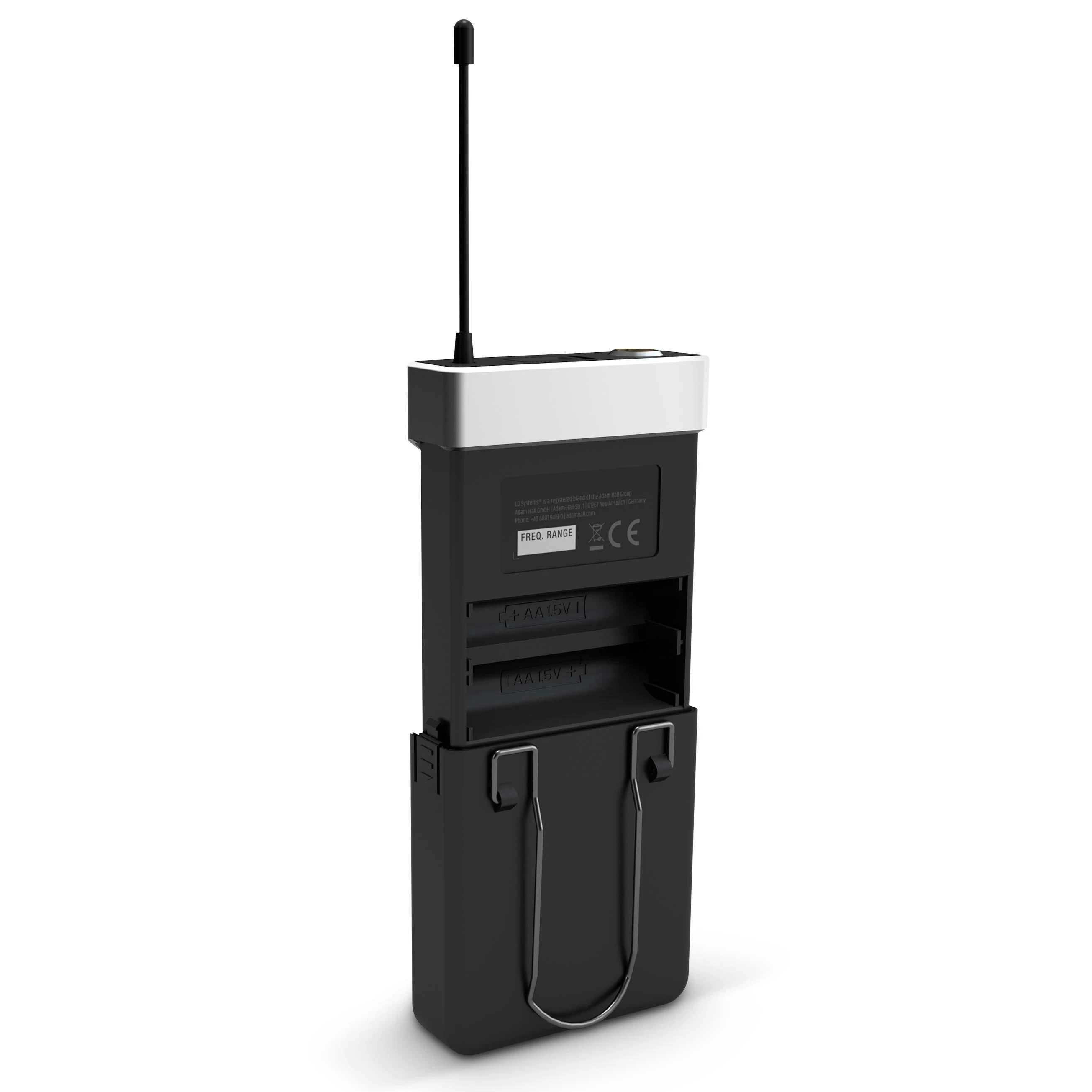

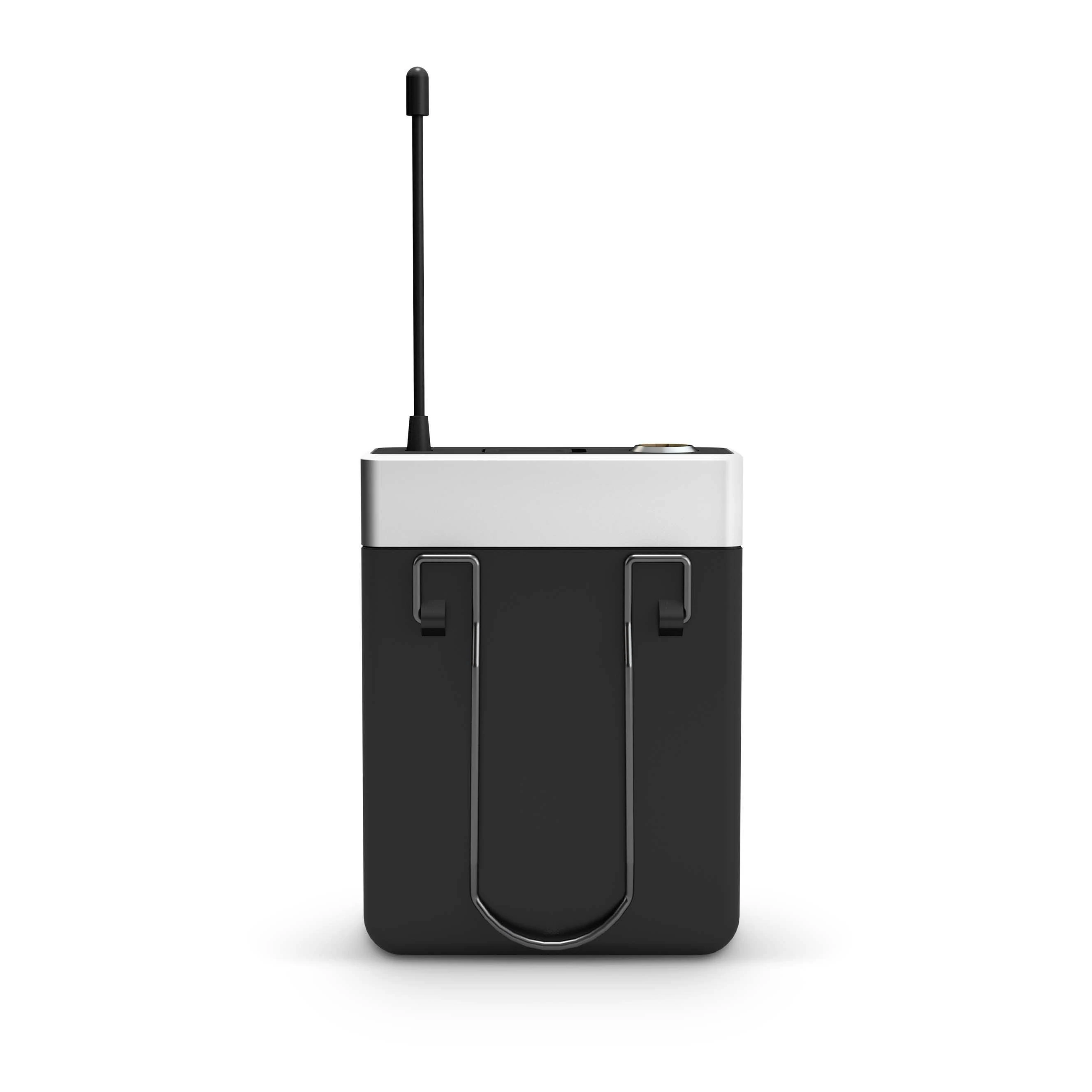

LDU508BP - U508 BP
- Product type: Wireless Microphone System Accessories
- Type: Bodypack
- Transmission frequency range: 823 - 832 MHz, 863 - 865 MHz
- Channels: 96 (8 groups of 12 channels)
- Groups: 8
- Inputs: Mini-XLR (3-pin)
- Frequency response: 30 - 16000 Hz
- Signal-to-noise ratio: >90 dB
- Rated HF output power: Variable (2mW, 10mW, 30mW)
- Controls: arrow keys (up/down value entry), Power On/Off, select
- Indicators: OLED Display
- Operating voltage: 2 x AA battery
- Operating time: >10 h (with alkaline batteries)
- Width: 65 mm
- Height: 86 mm
- Depth: 23 mm
- Weight: 0,09 kg
- Other features: detachable antenna, IR frequency synchronisation, Pilot tone squelch, switchable gain, switchable gain, switchable RF power
LDU508R2 - U508 R2
- Product type: Wireless Microphone System Accessories
- Type: Receivers
- Modulation Type: FM
- Transmission frequency range: 823 - 832 MHz, 863 - 865 MHz
- Channels: 2 x 96 (8 groups of 12 channels)
- Groups: 8
- Antenna inputs: 2
- Antenna connector: BNC
- Frequency response: 30 - 16000 Hz
- Noise reduction: Squelch
- Total Harmonic Distortion (THD): < 0.1 %
- Signal-to-noise ratio: > 100 dB
- Audio output, balanced: 2 x XLR
- Audio output, unbalanced: 2 x 6.3 mm TS
- Audio mix output, balanced: XLR
- Audio mix output, unbalanced: 2 x 6.3 mm TS
- Max. output level: +10 dBu
- Headphones ouput: 1
- Headphones outputs: 6.3 mm TRS
- Controls: 2 x volume, Down, Power On/Off, Up, volume
- Indicators: 2 x OLED Display
- Operating voltage: 12 V DC, 1000 mA
- Width: 484 mm
- Height: 44 mm
- Depth: 200 mm
- Weight: 2,24 kg
- Accessories (included): 2 x antenna, Audio cable, power adapter, Rack kit
- Other features: channel search function, IR frequency synchronisation, Pilot tone

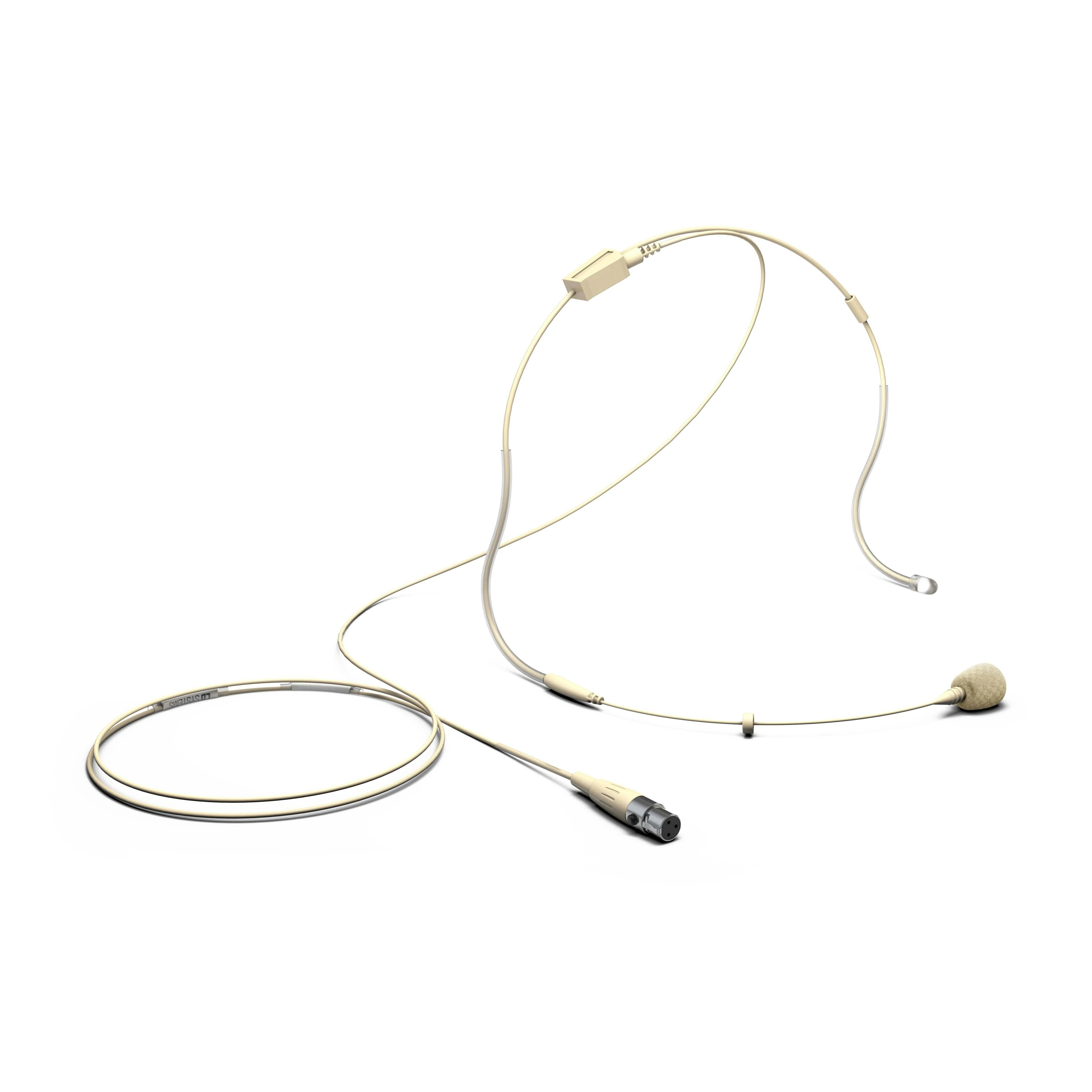

LDWS100MH3 - WS 100 Series
- Product type: Wireless Microphone System Accessories
- Type: Headsets
- Colour: beige
- Frequency response: 70 - 16.000 Hz
- Directivity: Cardioid
- Nominal impedance: 1400 Ohm(s)
- Max. SPL: 125 dB
- Phantom power requierements: 5 V
- Microphone input: Mini-XLR (3-pin, female)
- Accessories (included): Foam windscreen
- Weight: 0,2 kg
