Ibanez AAM50LCE-OLB Left-Handed Advanced Auditorium Electro Acoustic Guitar in Open Pore Light Brown Sunburst

The Ibanez AAM50LCE Advanced is an electro-acoustic guitar which is designed to deliver exceptional tone and effortless playability. Its Solid Sitka Spruce top and Sapele back and sides create a balanced sound with sparkling highs, warm mids, and rich lows. The Low Oval Okoume neck and Purpleheart fretboard provide a smooth, comfortable feel, letting you glide across the fretboard over long playing sessions.

Key Features

• Low Oval Grip Okoume neck - The Low Oval neck grip facilitates easy chord strumming.
• Purpleheart fretboard - The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this bass.
• Solid Sitka Spruce top - Solid Sitka Spruce top provides an enormous frequency range that offers wave after wave of shimmering highs along with tight mids and a full-bodied low end.
• Sapele back and sides - Sapele back and sides offer a full-bodied and warm mid-range and a bright tone.
• Ibanez T-bar Undersaddle pickup - The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.

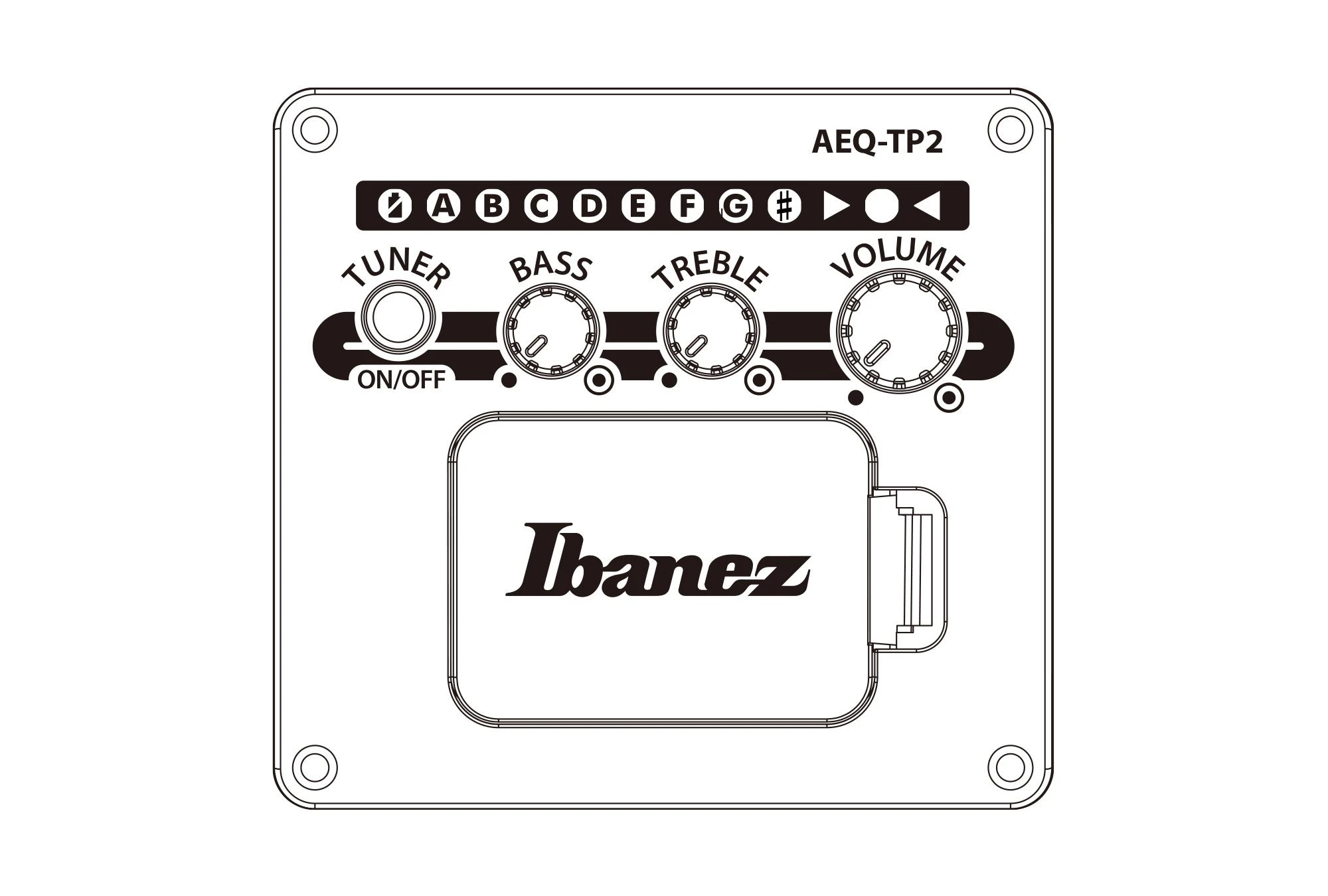

• Ibanez AEQ-TP2 preamp w/Onboard tuner - The Ibanez AEQ-TP2 preamp provides the extra punch of on-board EQ along with a convenient and easy-to-read digital tuner and 2-band EQ, located on the instrument’s upper bout.
• Purpleheart bridge - The Purpleheart bridge transfers string vibration directly to the body, delivering a natural and warm tone.
• Ibanez Advantage bridge pins - These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.

A.I.R.port

Through intensive research and development, we have designed the A.I.R.port with a unique internal structure that reflects sound waves and guides them to exit from a precisely positioned sound hole. As a result, players can monitor what they are playing more clearly, which enhances the overall playing experience.

Advanced Auditorium Body

With the concept of Advanced Acoustics - ''Reimagining Acoustic Experience'' in mind, we carefully designed the new body shape of the Advanced Auditorium, drawing on our research into the general Auditorium body shape. After many rounds of prototyping, the Advanced Auditorium body has a slightly wider waist, which has been moved slightly towards the neck. Thanks to these changes, this shape delivers a richer low mids and better body to weight balance, which conventional Auditorium bodies tend to lack.

X-M bracing for AAM series

After more than two years of trial and error, research, and prototyping, Ibanez developed its proprietary X-M bracing specifically for Advanced Auditorium guitar bodies to produce the ultimate sound for the stage and studio. The carefully designed scalloped X-M bracing, tone braces, and finger braces efficiently transmit string vibration from the bridge to the body. This bracing provides a wide dynamic range and excellent response. The mids are slightly scooped for better tonal balance, and the treble has the clarity of steel strings while retaining the warmth of nylon strings.

Functional Tapered Headstock

The newly designed headstock shape is the result of thorough research and investigation. Its tapered shape provides lighter weight, as well as a straight string alignment which enhances tuning stability and reduces any neck twisting effect

Advanced Access Cutaway

Its deep straight cutaway (from 18th fret) and shaved side enable amazing high fret access.

Specifications

• Neck Type: Low Oval Grip
• Neck Joint: Screw jointing
• Neck Joint Position: 14th fret joint
• Neck Material: Okoume
• Neck Finish: Open Pore Polyurethane
• Neck Thickness (1st fret, mm): 21
• Neck Thickness (7th fret, mm): 22
• Scale (inch): 25
• Scale (mm): 634
• Nut width (inch): 1.7
• Nut width (mm): 43
• End width (mm): 55 at 14F
• Number of frets: 20
• Fretboard: Purpleheart
• Fretboard Radius (inch): 15.75
• Fretboard Radius (mm): 400
• Inlay: White dot
• Body Shape (For Acoustic): Advanced Auditorium with Advanced Access Cutaway
• Body Top Material (For Acoustic/Hollow): Solid Sitka Spruce
• Body Sides Material (For Acoustic/Hollow): Sapele
• Body Back Material (For Acoustic/Hollow): Sapele
• Body Depth (For Hollow): 4.173
• Body Width (For Hollow): 15.354
• Body Length (For Hollow): 19.488
• Soundhole Rosette: Black & White multi
• Body Binding: Rounded body edge binding
• Bracing: X-M Bracing
• Body Depth At Joint: 90
• Body Depth At End: 106
• Body Finish: Open Pore Polyurethane
• Total Length (mm): 1025
• Body Thickness (mm): 106
• Body Length (mm): 495
• Body Width (mm): 390
• Bridge: Purpleheart
• Bridge Pins: Ibanez Advantage™
• Saddle Material: Plastic
• String Spacing (mm): 11
• Nut: Plastic
• Machine Head: Chrome Die-cast tuners (18:1 gear ratio)
• Other Pickup: Ibanez T-bar Undersaddle
• Preamp (for Acoustic): Ibanez AEQ-TP2 preamp w/Onboard tuner
• Controls, Pickup Selector: 1 Volume, Bass, Treble
• Other Switches: Tuner on/off switch

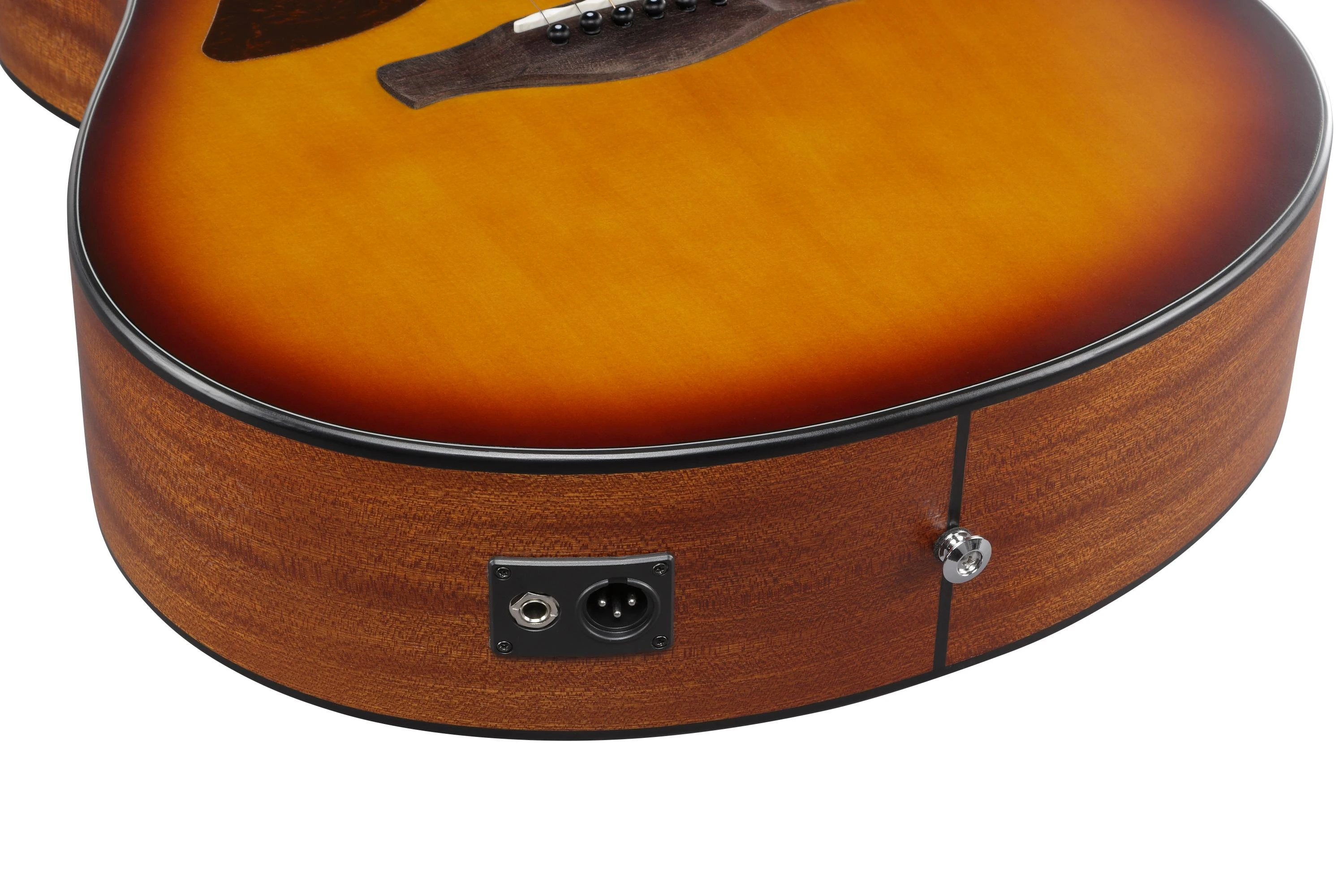

• Output Jack: Balanced XLR & 1/4" outputs
• String Gauges (Top To Bottom): .012/.016/.024/.032/.042/.053
• Special Strings: D'Addario® EXP16
• Tuning (Top To Bottom): 1E,2B,3G,4D,5A,6E
