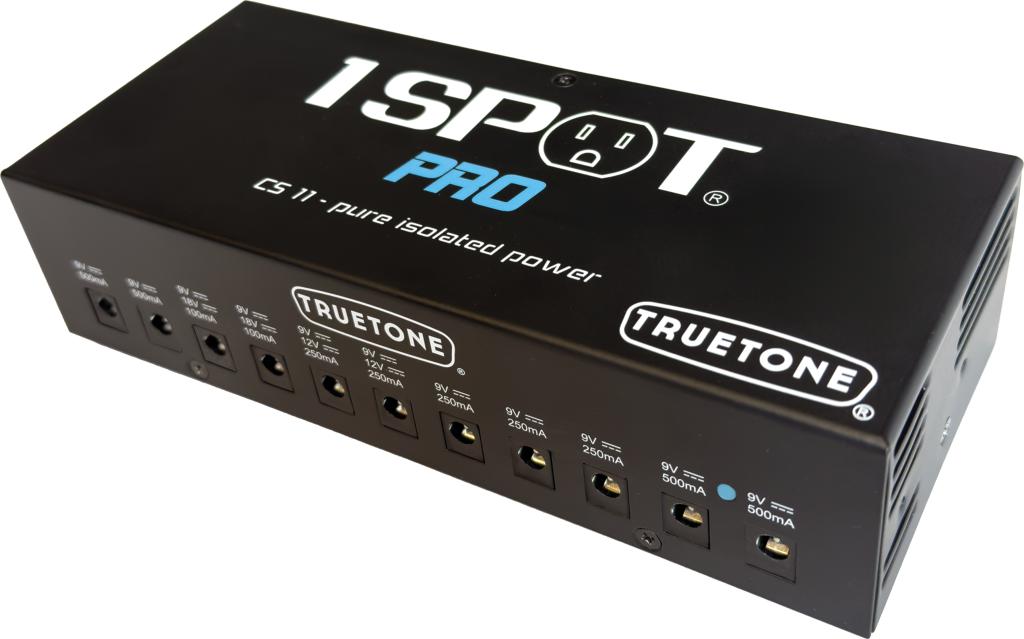

Truetone 1 Spot CS11 Power Block Supply
FREE UK Delivery
Earn 229 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: TT-CS11
You might also need
Product Description

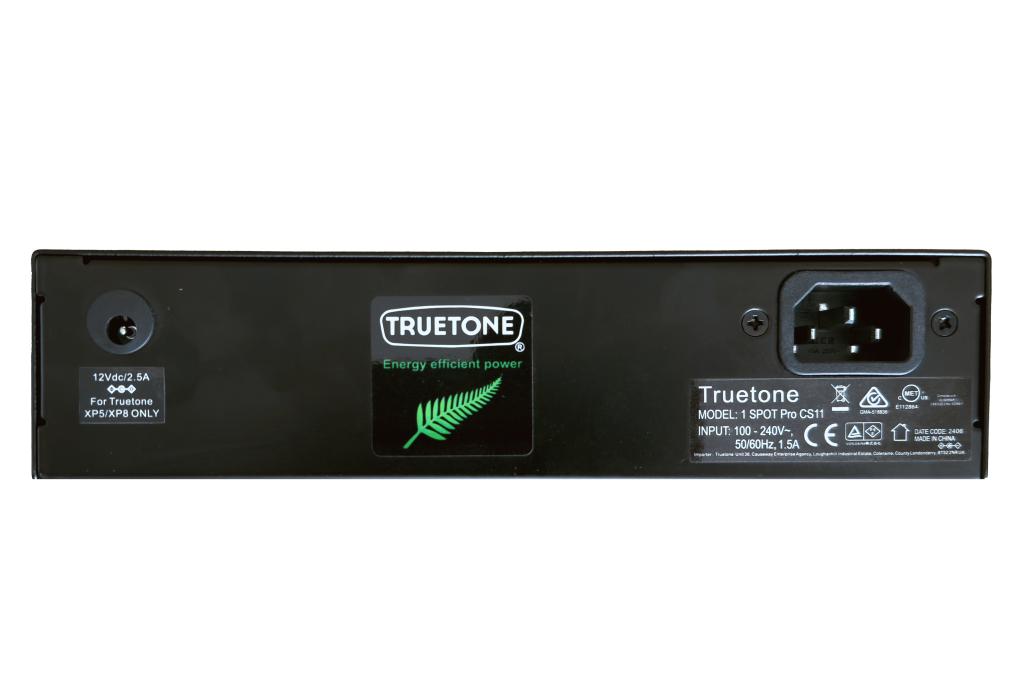

The 1 Spot Pro CS11 is the same size as the CS12, but with all new outputs and options. It doesn’t replace the CS12, but gives users more power and more available 9Vdc outputs. It also has “one more” output on the back, which allows users to connect the CS11 to Truetone’s new expansion boxes like the XP5 and XP8. It goes to 11… and so much more.
Specifications
- Dimensions: 205 x 86 x 50mm (8.07 x 3.38 x 1.97”); 971 grams (2.14 lbs.) - weight and dimensions of power supply only, not including cables or packaging.
- Input Voltage: The 1 SPOT Pro CS11 can be used anywhere in the world without the use of a step-up or step-down transformer. Like our 1 SPOT, it transforms wall voltage from 100-240Vac, and converts it into the stated voltages on the bottom of the unit.
Included Cables:
The 1 SPOT Pro CS11 includes a generous assortment of cables and converter plugs. The cables are of various lengths, color-coded for easy cable management and with right angle plugs on the pedal end.
Power cables (all are center pin negative polarity):
- (2) DC26 (5.5x2.1mm barrel plugs; 26” (660mm) – Purple
- (2) DC22 (5.5x2.1mm barrel plugs; 22” (559mm) – Blue
- (4) DC18 (5.5x2.1mm barrel plugs; 18” (457mm) – White
- (3) DC12 (5.5x2.1mm barrel plugs; 12” (305mm) – Yellow
- (1) MC2 Two 5.5x2.1mm barrel plugs with 5.5x2.1mm input socket.
Converter Plugs:
- (1) CL6 – (5.5x2.1mm barrel input, 5.5x2.5 barrel output; reverse polarity) Green – for Line 6 DL4/M9/etc. and some Eventide pedals.
- (1) CYR – (5.5x2.1mm barrel input, 5.5x2.1 barrel output; reverse polarity) Red – reverse polarity converter
- (1) C35 – (5.5x2.1mm barrel input, 3.5mm male output; tip positive) Black – 3.5mm (1/8”) plug converter
- (1) CBAT – (5.5x2.1mm barrel input, Black battery clip output) Connects to battery clip wires inside pedals that do not have DC jacks. Do NOT connect to a battery!
- (1) C2.5 – Gray – 5.5x2.5mm plug converter - can be used for Line 6 HX series and POD Go

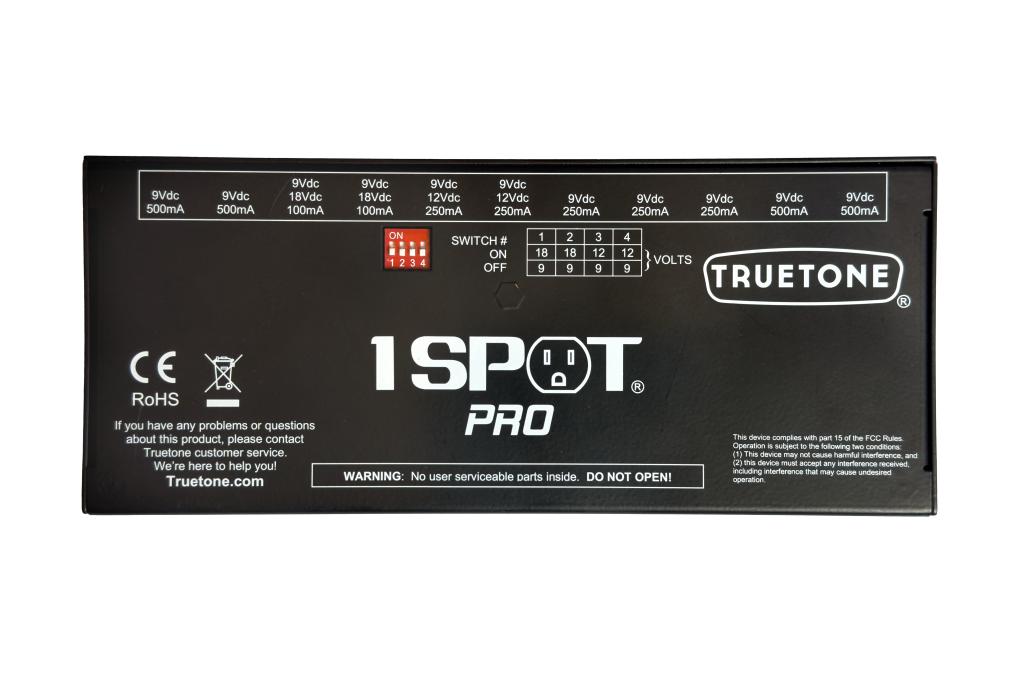

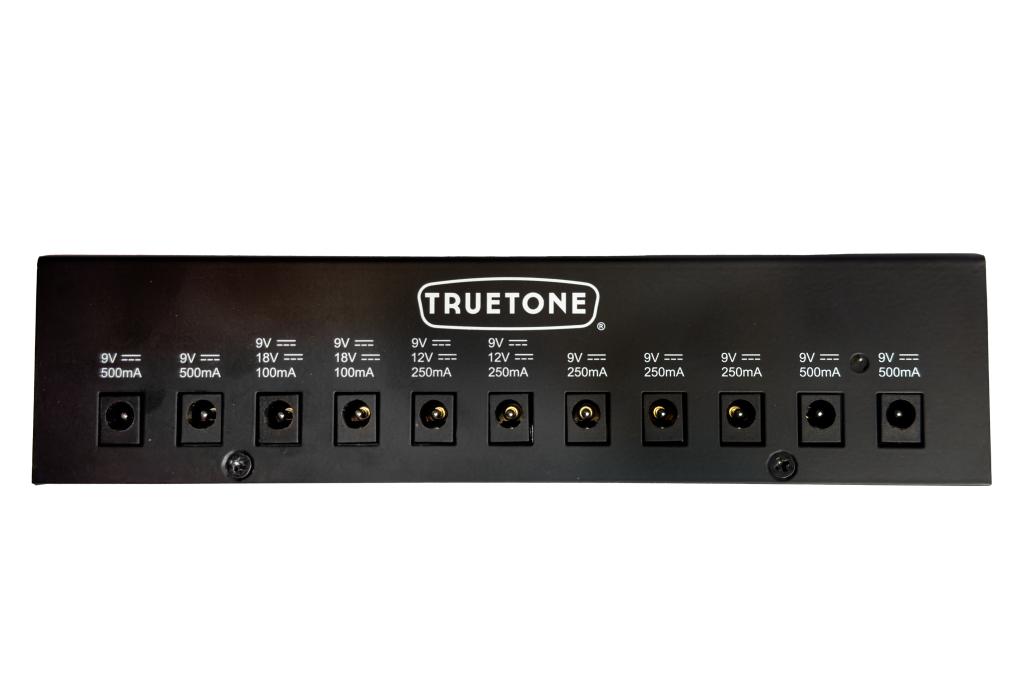

Availiable Output Volatages
- Outputs 1-2, 10-11: 9VDC (500mA)
- Outputs 3-4: 9VDC or 18VDC (100mA)
- Outputs 5-6: 9VDC or 12VDC (250mA)
- Outputs 7-9: 9VDC (250mA)
