Product Description
The BLX188/CVL Dual Channel Lavalier Wireless System is part of the BLX wireless systems family.
Shure BLX® Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.

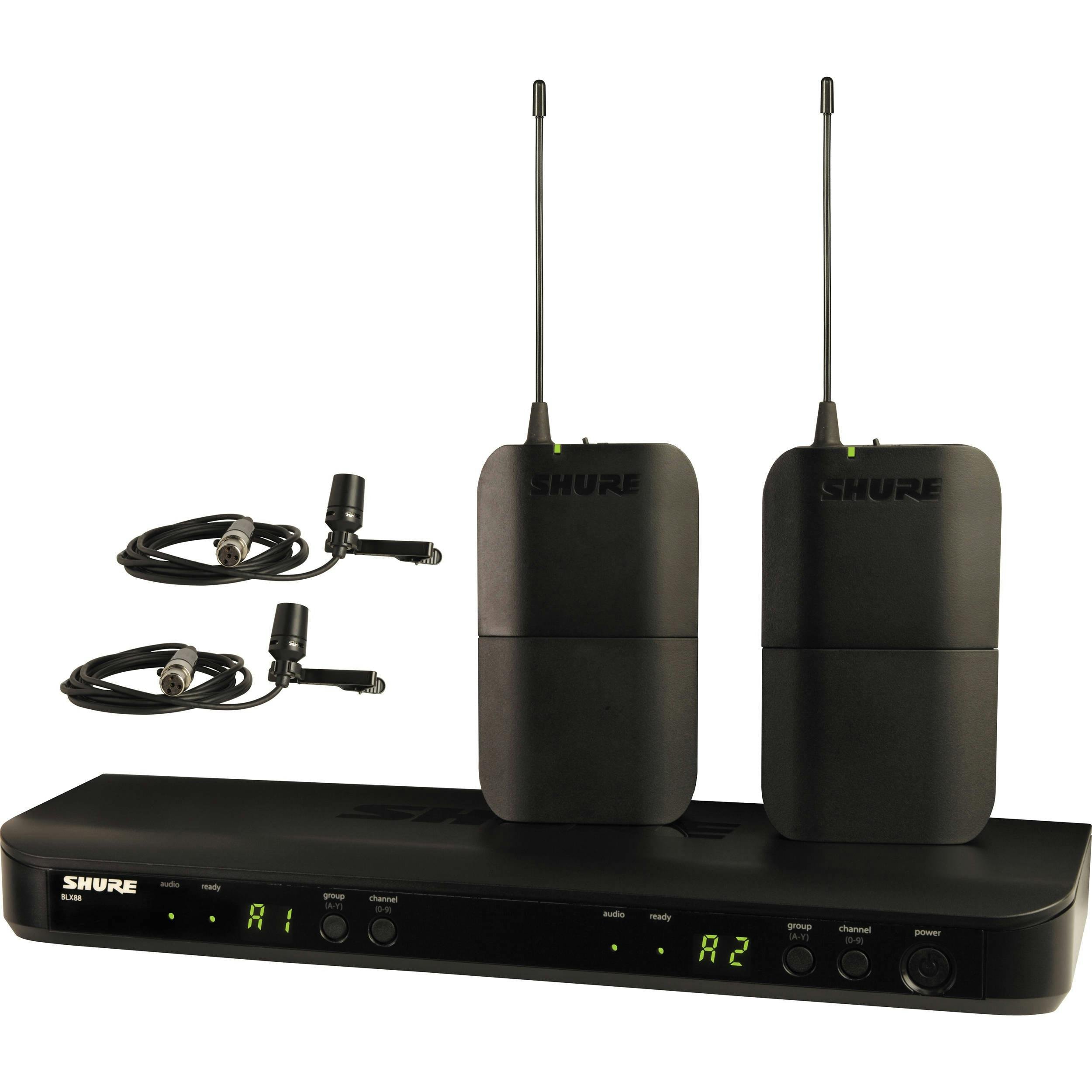

Includes BLX88 dual-channel receiver, 2 BLX1 bodypack transmitters, 2 CVL lavalier microphones, lavalier clip, windscreens, and user guide.
Specifications
- Operating Range: 91 m ( line of sight - actual range depends on RF signal absorption, reflection and interference)
- Available Frequencies: Between 524–865 MHz (available frequencies depend on applicable regulations in country where system used)
- Audio Range: 50–15,000 Hz (dependent on microphone type)
- Transmitter RF Output Power: 10 mW, typical (varies by region)
- Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4")
- Battery Life: Up to 14 hours
- Dynamic Range: 100 dB A-weighted
- System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
- Operating Temperature Range: -18°C (0°F) – +50°C (122°F)
- Power Requirements: BLX1, BLX2: 2 AA alkaline or rechargeable batteries
- BLX88: 12–18 V DC at 320 mA, supplied by external power supply
COMPONENT SPECIFICATIONS:
- BLX88 DUAL RECEIVER
- Output Impedance:
- - XLR connector: 200
- - 6.35 mm (1/4") connector: 50
- Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone:
- - XLR connector –27 dBV (into 100 k load)
- - 6.35 mm (1/4") connector –13 dBV (into 100 k load)
- RF Sensitivity: 105 dBm for 12 dB SINAD, typical
- Image Rejection: >50 dB, typical
- Dimensions: 40 mm X 388 mm X 116 mm (H x W x D)
- Weight: BLX88 429 g
- Housing: Molded ABS
- Power Requirements: 12–15 V DC @ 320 mA, supplied by external power supply (tip positive)
BLX1 BODYPACK TRANSMITTER
- Audio Input Level:
- - gain max: -16 dBV maximum
- - gain min (0 dB): +10 dBV maximum
- Gain Adjustment Range: 26 dB
- Input Impedance: 1 M
- RF Transmitter Output: 10 mW, typical, varies by region
- Dimensions: 110 mm x 64 mm x 21 mm (H x W x D)
- Weight: 75 g, without batteries
- Housing: Molded ABS
- Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
- Battery Life: up to 14 hours (alkaline)
