PreSonus NSB 16.8 Stage Box

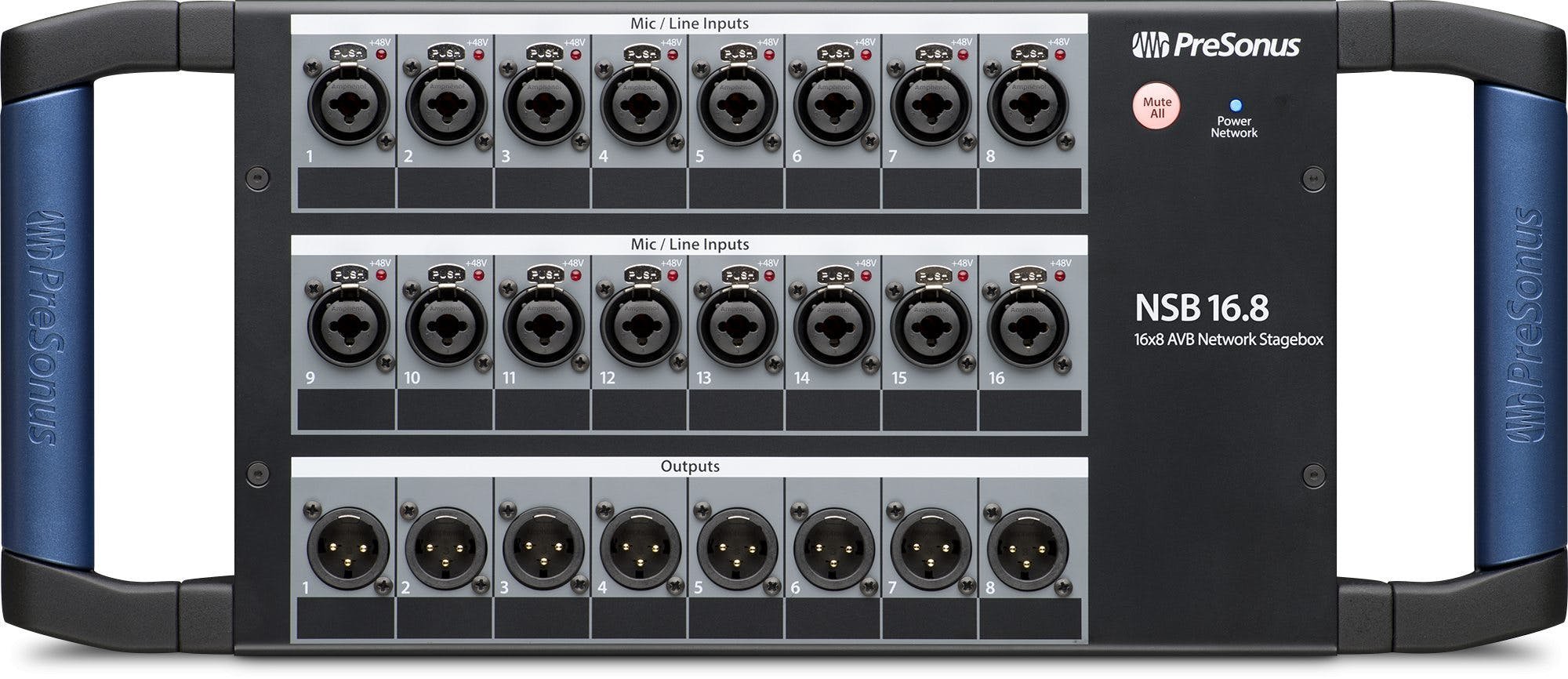

The PreSonus NSB 16.8 networked stage box is the perfect solution for integrating analog I/O with your StudioLive Series III digital mixer, offering flexible connectivity wherever you need it. This rugged stage box is equipped with 16 digitally controlled XMAX mic preamps, 16 balanced line level inputs, and 8 analog outputs, all of which are designed to seamlessly integrate with your StudioLive Series III mixer via a single Ethernet connection. Remote control of input trims, phantom power, and more can be easily managed directly from the mixer or UC Surface software, whether on a tablet or laptop.

Designed for both portability and ease of installation, the NSB 16.8 offers versatile locking combo jacks for mic or line level devices, providing ample connectivity options. The robust steel chassis with handles ensures durability, while the optional rackmount kit allows for permanent installation. The NSB 16.8 can be used standalone or combined with other NSB series stage boxes, expanding your system to accommodate larger, more complex audio setups. With built in AVB networking and gain compensation, it guarantees clear, individual control over every stream without affecting the front of house mix.

Key Features:

• 16x8 network stage box for StudioLive Series III mixers:
  The NSB 16.8 integrates perfectly with StudioLive Series III digital mixers, offering 16 inputs and 8 outputs for flexible audio routing.
• Versatile I/O connectivity with combo jacks:
  Locking combo jacks for both XLR microphones and balanced 1/4” TRS line level inputs ensure reliable connections for a wide range of devices.
• Rugged steel chassis and optional rackmounting:
  Constructed with durability in mind, the steel chassis with handles survives the demands of touring, and the optional rack ears provide installation flexibility.

Remote Control and Integration:

The NSB 16.8 allows for seamless remote control through StudioLive Series III mixers or UC Surface software. Whether you're adjusting input trims or activating phantom power, every function is easily accessible via your tablet or laptop. This ensures quick and precise control over your system, making it ideal for both live sound environments and studio setups. The remote capabilities eliminate the need for constant physical adjustments to the stage box, allowing for more efficient and dynamic mixing operations.

Flexible Networking and System Expansion:

Designed to grow with your needs, the NSB 16.8 can be used independently or as part of a larger system. With built in AVB networking and support for multiple devices, this stage box offers powerful, low latency connectivity for larger setups. Whether you’re working with a single StudioLive Series III mixer or a network of them, the NSB 16.8 allows you to scale your system without complications. The easy configuration and flexible networking options make it an ideal choice for any venue or production that requires reliable, high quality audio distribution.

Durable and Installation Friendly Design:

The PreSonus NSB 16.8 is built to withstand the rigours of the road. Its durable all metal chassis with sturdy handles is designed to protect the unit during transport and heavy use. For permanent installations, the optional rackmount kit allows for easy integration into your studio or live sound rig. Additionally, the NSB 16.8 is compatible with Ace Backstage stage pockets, further enhancing its suitability for permanent and semi permanent installations. The thoughtful design ensures that the NSB 16.8 is as flexible as it is tough.

Specifications:

• Microphone Preamplifier:
  - Input Type: XLR Female, balanced
  - Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
  - Input Impedance: 1 kΩ
  - THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
  - S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
  - Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
  - Gain Control Range (±1 dB): 0 dB to +60 dB
  - Maximum Input Level (unity gain): +12 dBu
  - Phantom Power (±2 VDC): 48 VDC, switchable per channel
• Line Inputs:
  - Type: 1/4” TRS Female, balanced
  - Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
  - Input Impedance: 10 kΩ
  - THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
  - S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
  - Maximum Input Level: +18 dBu
• XLR Outputs:
  - Type: XLR Male, balanced
  - Maximum Output Level: +24 dBu, ±0.5 dBu
  - Output Impedance: 100Ω
• Digital Audio:
  - ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
  - DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
  - AVB Audio Network Ports: Locking XLR Ethernet
  - Sampling Rate: 48 kHz, 44.1 kHz
• Power:
  - Connector: Locking IEC
  - Input-Voltage Range: 90 to 230 VAC (±10%)
• Physical:
  - Height: 7” (178 mm)
  - Width: 16.7” (424 mm)
  - Depth: 4.5” (114 mm)
  - Weight: 6.2 lbs. (2.8 kg)
