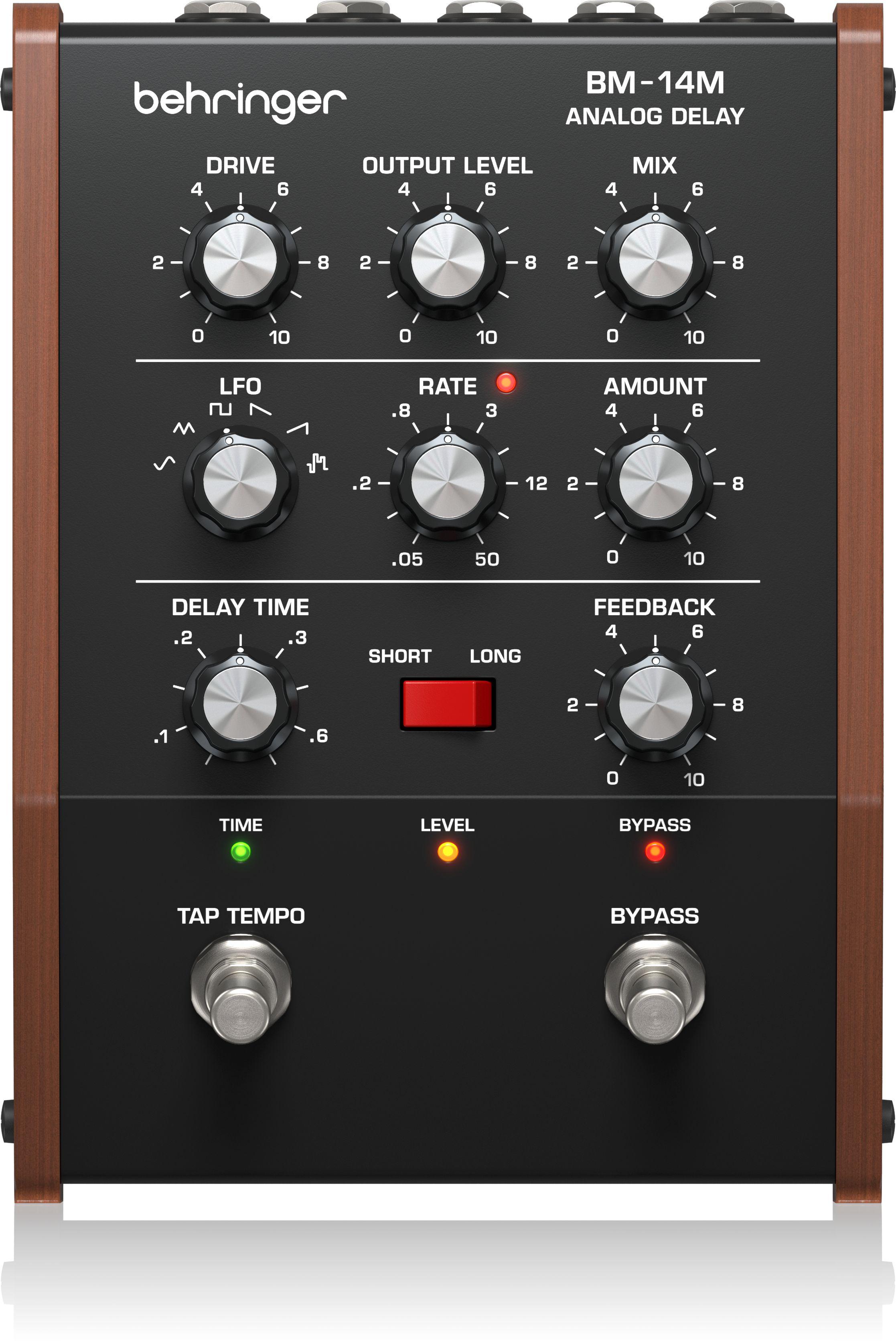

Behringer BM-14M Analog Delay Pedal
Behringers take on one of the most iconic and sought after analogue delay circuits of the early 2000s - built for guitar, synths and everything in-between!
UK Delivery - From £5.99
Earn 110 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: 0709-AKT86-001
You might also need
Product Description
Based on one of the most unique and creative Delay pedals of the early 2000s, the Behringer BM-14 is the ultimate tool for shaping your ultimate delay from subtle echo right through to ambient delay from another dimension. Its classic analogue sound in combination with its unique delay LFO control easily makes this one of the most versatile delays ever created. With 6 LFO shapes on tap, the modulated delay sounds can easily go from everything from chorus to vibrato and even pitch shifting. With its thought-out I/O, tap-tempo, switchable normal and spillover bypass, drive and output control and timeless aesthetic, the Behringer BM-14 is perfect for guitars, synths and everything in-between and is built ready for the road.
Key Features
- Analogue Circuitry - The Behringer BM-14 Analogue Delay is as close to an authentic recreation as possible, featuring analogue circuitry for a truly vintage voiced sound design workstation, built for the modern world.
- Classic Aesthetics - Constructed in a tried and tested roadworthy solid metal enclosure and beautifully finished with wooden side panels, the BM-14 is built to withstand life on the road.
- Modular Style I/O - This delay's versatile I/O allows you to push your creativity to the limits by controlling each of its parameters via an external expression pedal. Furthermore, the BM-14 can be combined with other CV pedals and devices or used with MIDI for nearly endless amounts of Delay possibilities. Its Mix and Delay outputs make any rig possible from straight in to complex wet/dry setups.
Specifications
Audio in
Audio Connections
- Connector: 1 x 1/4" TS, unbalanced
- Impedance: 1 MΩ
Mix out
- Connector: 1 x 1/4" TS, unbalanced
- Output impedance: 600 Ω
Delay out
- Connector: 1 x 1/4" TS, unbalanced
- Output impedance: 600 Ω
FB insert (send/return)
- Connector: 1 x 1/4" TRS, unbalanced
- Impedance: 440 Ω
- Input impedance: 140 kΩ
Control Connections
Feedback
- Connector: 1 x 1/4" TRS
- Impedance: 180 kΩ, unbalanced
- CV input range: 0 V to +5 V
Time
- Connector: 1 x 1/4" TRS
- Impedance: 34 kΩ, unbalanced
- CV input range: 0 V to +5 V
LFO rate
- Connector: 1 x 1/4" TRS
- Impedance: 34 kΩ, unbalanced
- CV input range: 0 V to +5 V
LFO amt
- Connector: 1 x 1/4" TRS
- Impedance: 34 kΩ, unbalanced
- CV input range: 0 V to +5 V
Mix
- Connector: 1 x 1/4" TRS
- Impedance: 180 kΩ, unbalanced
- CV input range: 0 V to +5 V
- MIDI in: 2 x 5-pin DIN, 16 channels
Controls
- Drive: 1 x rotary knob
- Output level: 1 x rotary knob
- Mix: 1 x rotary knob
- LFO: 1 x rotary knob
- Rate: 1 x rotary knob
- Amount: 1 x rotary knob
- Delay time: 1 x rotary knob
- Short/long: 1 x rocker switch
- Feedback: 1 x rotary knob
- Tap tempo: 1 x footswitch
- Bypass: 1 x footswitch
System
- Frequency response: 20 Hz to 20 kHz (+0 / -2 dB)
- Dynamic range: > 83 dB
- Signal-to-noise ratio: > 73 dB
- Overall gain: +33 Db
Power Supply / Voltage
- Power input: Standard 9 V DC, centre negative, > 400 mA (power supply not included)
- Power consumption: 1.8 W
Dimensions / Weight
- Dimensions (H x W x D): 85.9 x 147.6 x 196.9 mm (3.38 x 5.81 x 7.75")
- Weight: 1,100 g (38.8 oz)
