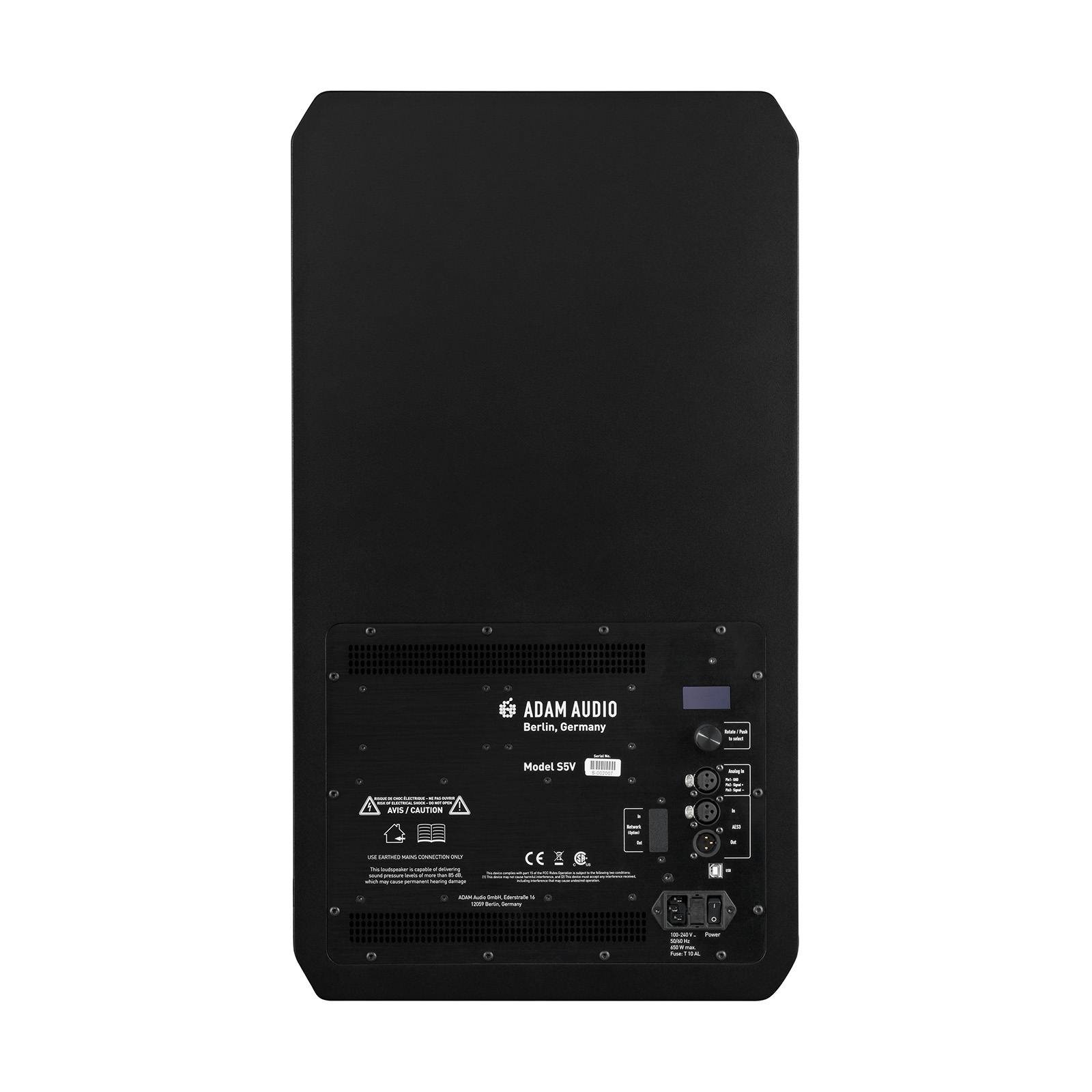

ADAM Audio S5V 12-Inch Three-Way Main Monitor
FREE UK Delivery
Earn 7299 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: S5V
You might also need
Product Description
Here's What ADAM Audio Say About the S5V
Designed for medium-sized and larger studio control rooms, the S5V main monitor offers all the raw power studio professionals would expect from a reference speaker of its class, but also reproduces full-bandwidth, high-resolution audio with complete accuracy and clarity.
Key Features
- German Handmade Precision S-ART Tweeter with HPS Waveguide
- 4" Dome / Cone Hybrid (Carbon Composite) with MPS Waveguide
- 12“ Woofer (Hexacone)
- Cumulated Amp. Power RMS: 1100 W
- Frequency Response: 25 Hz - 50 kHz
- Max. SPL Per Pair at 1 m: ≥128 dB
- AES3 Digital Inputs And Various Expansion Options
ADAM Audio’s Extended Linear Excursion (ELE) bass drivers and Symmetrical Magnet Assembly (SMA) technology were developed especially for the S Series, and the 12-inch bass driver on the S5V benefits from both concepts, offering a quality of reproduction without equal in terms of accuracy, dynamic range and freedom from coloration. The 4-inch DCH MF driver, with its unique hybrid dome/cone construction, handles the important mid-range information with extreme precision, while ADAM Audio’s S-ART folded-ribbon tweeter, handmade in Berlin to the tightest possible tolerances, produces breath-taking highs and ensures the soundfield is presented in all of its most delicate, filigree detail.
The off-axis responses of the treble and mid drivers remain extremely accurate thanks to the addition of high- and mid-frequency waveguides milled from solid aluminium: ADAM Audio’s newly developed Mid-range and High-frequency Propagation Systems (MPS and HPS). The resultant stable, wide-ranging dispersion ensures that teams of more than one person can work in the loudspeakers’ sweet spot simultaneously, as is often necessary in larger control rooms.
The S Series’ custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers’ DSP functions via a software front-end.
A Class D 700 W amplifier drives the S5V’s bass unit, with further Class D designs providing 300 W and 100 W to the DCH mid and S-ART treble drivers respectively.
Combining the legendary precision of ADAM Audio’s proprietary drivers with the power of the company’s amplification, the S5V is a reference monitor for truly discerning audio professionals at work in the most expansive listening environments.
Technical Data
Woofer
- Number: 1
- Basket Ø: 12“ (312 mm)
- Voice Coil Ø: 3" (76 mm)
- Cone Material: HexaCone
Mid-Range
- Number: 1
- Type: Dome / Cone Hybrid
- Basket Ø: 4" (100 mm)
- Voice Coil Ø: 2.4" (60 mm)
- Cone Material: Carbon Composite
- Waveguide MPS
Tweeter
- Number: 1
- Type: S-ART
- Diaphragm Area: 4 inch² (2420 mm²)
- Equiv. Diaphragm Ø: 2" (56 mm)
- Velocity Transform Ratio: 4:1
- Diaphragm Weight: 0.17 g
- Waveguide: HPS
Built-In Amplifiers
- Number: 3
- Woofer: 1
- Type: PWM
- Amp. Power RMS: 700 W
- Tweeter: 1
- Type: PWM
- Amp. Power RMS: 300 W
- Tweeter: 1
- Type: PWM
- Amp. Power RMS: 100 W
Control Options
- Input Sensitivity: Adjustable
- Parametric EQs: 6
- Room Compensation High-Shelf EQ: 1
- Room Compensation Low-Shelf EQ: 1
- Preset Memories: 5
- Delay: 0 ms to 5 ms
Input Connectors
- Analog: XLR
- Input Impedance: 48 kOhm
- Max. Input Level: +24 dBu
- Digital: AES3
General Data
- Panel: Rear
- Frequency Response: 25 Hz - 50 kHz
- THD > 100 Hz: ≤0.3 %
- Max. SPL per pair at 1 m: ≥128 dB
- Crossover Frequencies: 250 Hz / 3 kHz
- Max. Power Consumption: 650 W
- Weight: 114.5 lb (25.0 kg)
- Height x Width x Depth: 27.5" (698 mm) x 15.4" (390 mm) x 20.5“ (520 mm)
- Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
- Delivery Contents: Power cord, Manual
