LD Systems U508 IEM HP In-Ear Monitoring System with Earphones
863 - 865 MHz + 823 - 832 MHz
FREE UK Delivery
Earn 448 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: LDU508IEMHP
You might also need
Product Description
Here's what LD Systems say about the U508 IEM HP In-Ear Monitoring System with Earphones
Move freely on stage while the perfect monitor mix is delivered directly to your ears: the amazing performance and reliability of the U500® In-Ear Monitoring Systems will surpass your expectations for certain. Designed with the pro user in mind, they feature advanced technology, contemporary looks and straightforward operation. U500® In-Ear Systems provide a selection of 96 channels and 2, 10 or 30 mW RF output power for a transmission range greater than 100 m. For quick and trouble-free setup, they allow for convenient infrared synchronisation of transmitter and receiver. U500® In-Ears sport high-contrast OLED displays and allow for individual user name assignment. In addition, you can save 10 custom presets.
Included in the Box
- LDIEHP2 - LD Systems U508 IEM HP Professional In-Ear Headphones
- LDU508IEMT - LD Systems U508 IEM HP Transmitter
Specifications
General
- Product type In-ear Monitoring
- Type Set
- Weight 0,755 kg
LDIEHP2 - LD Systems U508 IEM HP Professional In-Ear Headphones
- Product type Headphones
- Type Stereo-In-Ear Headphones
- Converter principle Dynamic
- Impedance 32 Ohm(s)
- Connection type 3.5 mm TRS
- Frequency response 20 - 18000 Hz
- Cable length 1.55 m
- Weight 0,022 kg
- Accessories (included) Transport case
LDU508IEMT - LD Systems U508 IEM HP Transmitter
- Product type In-ear Monitoring Accessories
- Type Transmitters
- Modes of operation focus/mono/stereo
- Rated HF output power 30 mW
- Total Harmonic Distortion (THD) 0.3 %
- Dynamic range 88 dB
- Inputs 2
- Input connectors XLR (balanced)
- Input impedance (kOhms) 12 kOhm
- Antenna connector BNC
- Controls volume headphones
- Operating voltage 12 - 18 V DC
- Width 212 mm
- Height 43 mm
- Depth 123 mm
- Weight 0,641 kg
- Accessories (included) power adapter

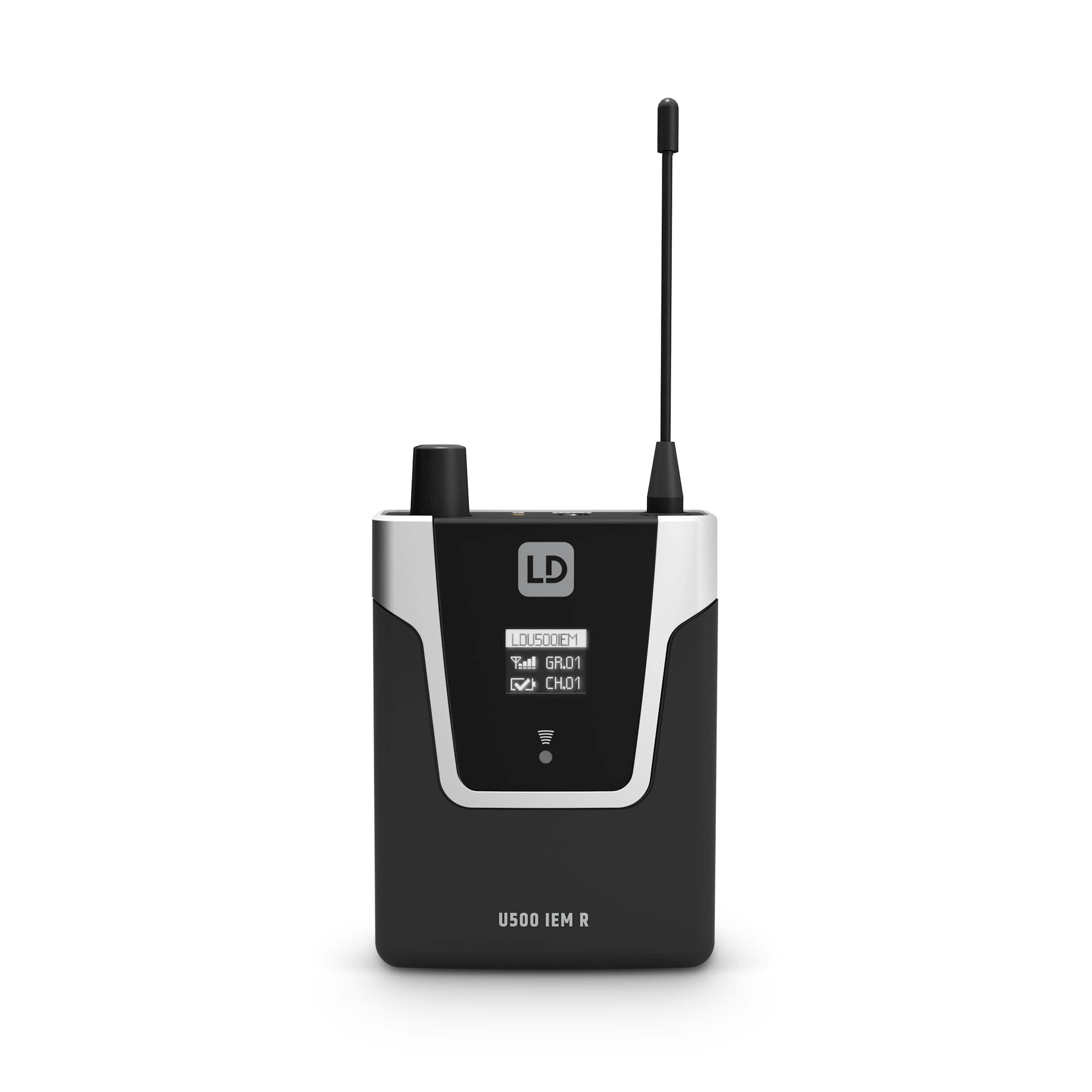

LDU508IEMR - LD Systems U508 IEM HP Receiver
- Transmission frequency range 863 - 865 MHz
- Type Receivers
- Channels 96 (8 groups of 12 channels)
- Transmission method FM, mono/stereo
- Frequency response 40 - 16000 Hz
- Audio output 3.5 mm TRS
- Max. audio output level 80 mW @ 33 Ohm mW
- Indicators RF (LED)
- Operating time < 10 hours
- Controls volume
- Operating voltage 2 x 1.5 V AA
- Width 64 mm
- Features battery status LED
- Height 100 mm
- Depth 24 mm
- Weight 0,095 kg
- Accessories (included) Antenna
