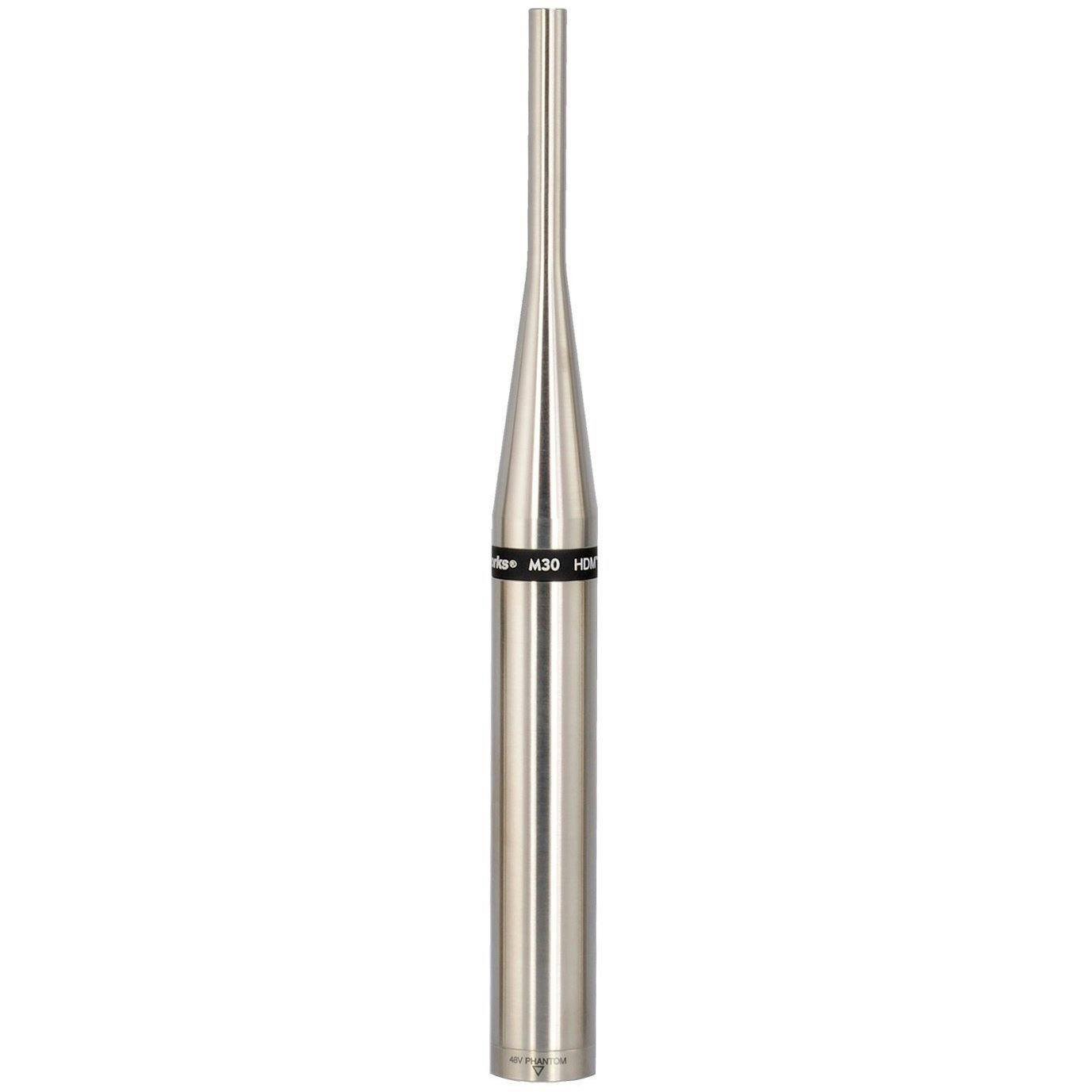

Earthworks M30 Omni Measurement Microphone
FREE UK Delivery
Earn 699 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: M30
You might also need
Product Description
The M30 is not just any old mic; it's an omni measurement mic. It offers a serious level of accuracy in both frequency response and the time domain. It manages to remain stable even during changes in atmosphere and temperature conditions. Add in an extremely quick impulse performance (granting precise wide-band response) and low handling noise, and you've got yourself an excellent piece of engineering.
Unrivalled Utilities
A flat frequency response ensures that the omnidirectional polar pattern can remain incredibly consistent. An 140dB SPL rating ensures it can operate without any distortion too. A linear phase response and speedy impulse response make the mic work well with audio system measurement applications like SIM, SMART, REW etc. You can even use it for loudspeaker design and the aligning of your PA system.
Meticulous Design & Build Process
Before finding its way to you, every M30 is tested and tuned by hand; it will also come with a dedicated frequency response chart that's unique to the microphone.
Features
- The mic should be recalibrated every five years if possible.
- 30kHz frequency response.
- Designed for acoustic based measurements (e.g. sound system configuration, room acoustics, loudspeaker construction etc).
- Omnidirectional polar pattern.
- Flat frequency response.
- Quick impulse response.
- Superior polar characteristics.
- Includes a unique calibration chart with individually measured open-circuit sensitivity/frequency response curve.
Specifications
- Frequency Response: 3Hz to 30kHz ±1/-3dB
- Polar Pattern: Omnidirectional
- Sensitivity: 34mV/Pa (-29dBV/Pa)
- Power Requirements: 24 – 48V Phantom, 10mA
- Max Acoustic Input: 140dB SPL
- Output: XLR (pin 2+)
- Output Impedance: 65Ω balanced (between pins 2 & 3)
- Min Output Load: 600Ω between pins 2 & 3
- Noise: 20dB SPL equivalent (A weighted)
- Dimensions L x D: 229mm x 22mm (9 x .860 inches)
- Weight: .5 lb. (225g)
