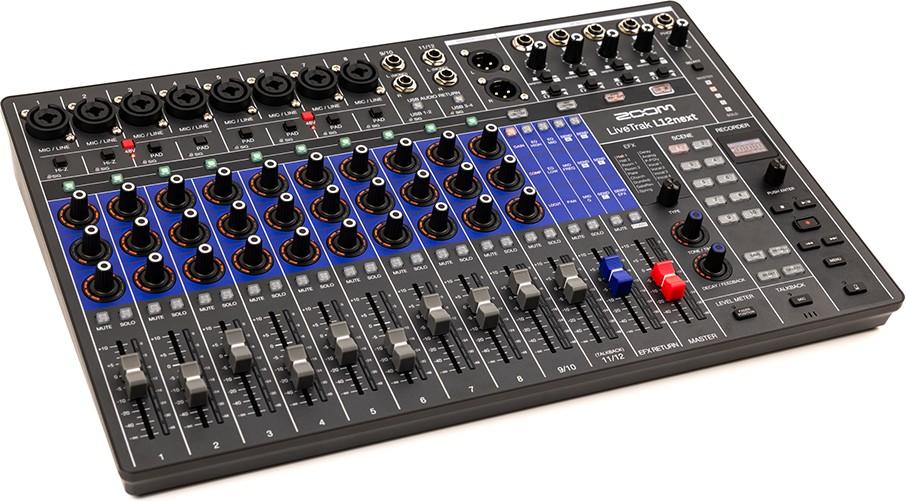

Zoom LiveTrak L12next - Digital Mixer & Recorder

The Zoom LiveTrak L12next is a powerful all-in-one digital mixer, multitrack recorder and USB audio interface designed to streamline live sound, studio sessions, podcasts and streaming. With upgraded low-noise preamps, hands-on analogue-style controls, five independent monitor mixes and advanced onboard recording, it gives you everything you need to capture, mix and produce professional audio without relying on a computer.

Each of the 12 channels offers tactile control over gain, EQ, compression, panning and sends, so you can mix instinctively without menu-diving. At the same time, the L12next records up to 14 tracks directly to SD card at up to 24-bit/96 kHz, while also working as a 14-in/4-out USB interface for your DAW. Whether you are running a full band, producing a podcast with multiple guests or managing a hybrid live and streaming setup, the L12next keeps everything under your fingertips.

Zoom have significantly upgraded the LiveTrak platform with cleaner, more powerful preamps, a crisp OLED display and enhanced recording tools such as overdub, auto punch in/out and 32-bit float master recording. Scene memories, talkback, built-in effects and optional wireless control round out a feature set that lets you handle complex shows and sessions with confidence.

Analogue-Style Control, Digital Power

The L12next is built around a familiar mixer layout, with 60 mm faders and three multi-function encoder knobs on every channel. A simple function selector lets you decide whether those knobs control EQ, gain, compression, panning or sends, so you can shape sounds quickly without scrolling through layers of menus. LED metering and encoder position indicators make it easy to see what is happening at a glance, even on dark stages.

Flexible Inputs for Bands, Creators and Studios

Eight XLR/TRS combo inputs handle microphones and line sources, with switchable Hi-Z on channels 1 and 2 for plugging guitars or basses straight in. Two additional stereo TS line inputs are ideal for keyboards, drum machines or playback devices. With PAD, Hi-Z and +48 V phantom power options, the L12next adapts to a wide range of sources, from dynamic mics and condensers to instruments and external gear.

Advanced Multitrack Recording and Audio Interface

The built-in recorder captures up to 14 tracks simultaneously to SD card, with individual channels at up to 24-bit/96 kHz and a dedicated stereo master track that can be recorded in up to 32-bit float for clip-free mixes. Overdub and auto punch in/out functions make it easy to build layered productions and fix mistakes without starting again. Connected via USB, the L12next becomes a 14-in/4-out audio interface for Mac, Windows and compatible mobile devices, allowing simultaneous SD and computer recording and DAW control.

Personal Monitoring and Scene Recall

Five powered monitor outputs provide individual mixes for performers, whether on headphones, in-ears or stage wedges. Each musician can hear exactly what they need without compromising the front-of-house sound. Up to ten scenes can be stored and recalled, saving fader positions, EQ, pan, mutes and effects, so you can instantly switch between setups for different bands, songs or shows. A dedicated Fader Position button helps you quickly match physical faders to saved scenes.

• Hands-On Digital Mixing - Three multi-function encoder knobs per channel, 60 mm faders and a clear function selector give you immediate access to EQ, gain, compression, panning and sends. This analogue-style workflow lets you react quickly during live shows and sessions while still enjoying the flexibility of digital mixing.
• Upgraded Low-Noise Preamps - The L12next features improved mic preamps with up to +70 dB of clean gain and an equivalent input noise of approximately −128 dBu EIN. Combined with PAD, Hi-Z and +48 V phantom power, these preamps deliver clear, detailed sound from a wide variety of microphones and instruments, even in demanding recording environments.
• Multitrack SD Recording and USB Interface - Record up to 14 tracks directly to SD card at up to 24-bit/96 kHz while simultaneously using the L12next as a 14-in/4-out USB audio interface. Overdub and auto punch in/out functions, plus 32-bit float master recording, give you studio-style control and headroom whether you are tracking live or building songs in layers.
• Five Independent Monitor Mixes - With five dedicated monitor outputs, each performer can have a personalised mix tailored to their needs. This reduces monitoring conflicts, improves performances and makes the L12next equally at home in rehearsal rooms, studios and live venues where clear communication and comfort are essential.

Inputs and Outputs

• Mono inputs (mic/line): 8
• Stereo line inputs: 2
• Master outputs: 1 pair
• Monitor outputs: 5

Mono Mic/Line Inputs

• Connector type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
• Input gain (PAD off): +16 dB to +60 dB
• Input gain (PAD on): −10 dB to +34 dB
• Input gain (Hi-Z on): 0 dB to +44 dB (when gain boost off)
• Input impedance (XLR): 4.6 kΩ or more
• Input impedance (TRS): 4.6 kΩ / 1 MΩ (when Hi-Z on)
• Maximum input level (PAD off): −2 dBu (at 0 dBFS)
• Maximum input level (PAD on): +24 dBu (at 0 dBFS)
• Phantom power: +48 V
• Hi-Z: Available on channels 1 and 2

Stereo Line Inputs

• Connector type: TS phone jacks (unbalanced)
• Maximum input level: +14 dBu

Master Outputs

• Connector type: XLR jacks (balanced)
• Maximum output level: +14.5 dBu
• Output impedance: 200 Ω

Monitor Outputs

• Connector type: Standard stereo phone jacks
• Maximum output level: 42 mW + 42 mW at 60 Ω
• Output impedance: 55 Ω

Buses

• Master bus: 1
• Monitor buses: 5
• Send EFX bus: 1

Channel Strip Processing

• Compressor: Per channel
• Low cut filter: 40 Hz to 600 Hz, 12 dB/oct
• EQ high: 10 kHz, ±15 dB, shelving
• EQ mid: 100 Hz to 8 kHz, ±15 dB, peaking
• EQ low: 100 Hz, ±15 dB, shelving
• Phase: Switchable
• Level meters: 8 segments per channel

Effects

• Send effects: 16 types
• Effect types: Delay, reverb and more
• Effect parameters: Fully adjustable

Recorder

• Maximum simultaneous recording tracks: 14
• Maximum simultaneous playback tracks: 12
• Recording formats (individual tracks): 44.1 / 48 / 96 kHz, 16-bit or 24-bit, mono or stereo WAV
• Recording formats (master track): 44.1 / 48 / 96 kHz, 16-bit, 24-bit or 32-bit float, mono or stereo WAV
• Recording media (SDHC): 4 GB to 32 GB, class 10 or higher
• Recording media (SDXC): 64 GB to 1 TB, class 10 or higher

Audio Interface

• USB type: USB 2.0
• Input channels (recording): 14
• Output channels (playback): 4
• Sampling frequencies: 44.1 / 48 / 96 kHz
• Bit depths: 24-bit, 32-bit float

Card Reader

• Interface: USB 2.0 High Speed (mass storage class)
• Sample rates: 44.1 / 48 / 96 kHz

Audio Performance

• Frequency response (44.1 kHz): −1.0 dB, 20 Hz to 20 kHz
• Frequency response (96 kHz): −3.0 dB, 20 Hz to 40 kHz
• Equivalent input noise: Approximately −128 dB EIN (IHF-A) at +60 dB / 150 Ω input

Display and Controls

• Display: 128 × 64 OLED
• Scene memories: Up to 10
• Fader length: 60 mm

Power

• AC adapter: Zoom AD-19 (DC 12 V / 2 A)
• Power consumption: 16 W maximum

Physical

• Dimensions (W × D × H): 445 mm × 285 mm × 73 mm
• Weight (main unit only): 2.40 kg
