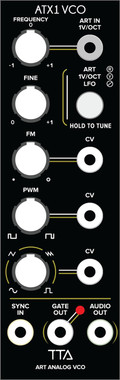

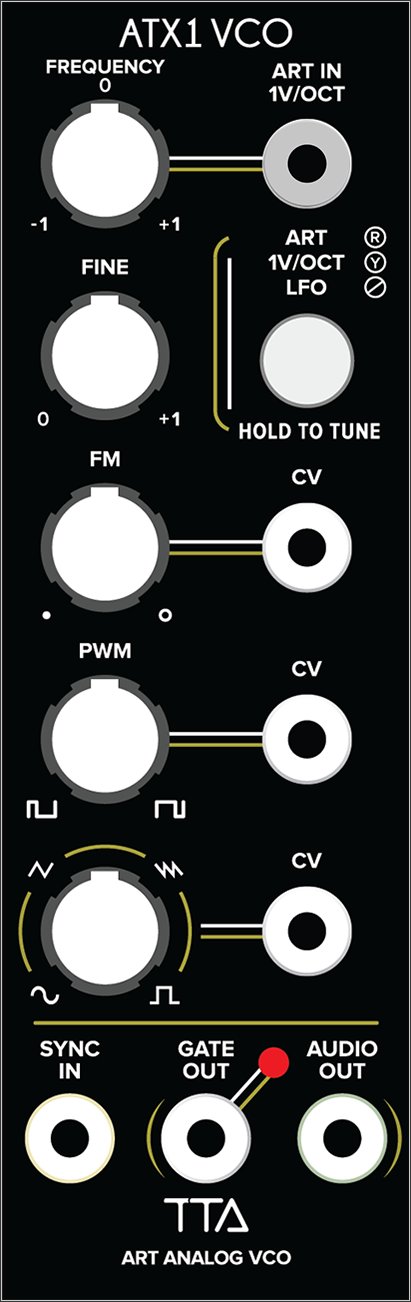

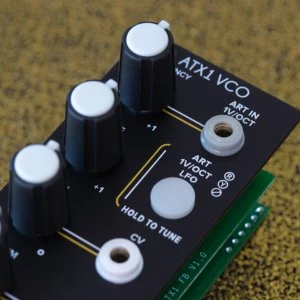

TipTop ART ATX1 - ART Analog VCO

A classic all Analog Saw VCO Core with 3 Switchable Modes

£165.00 £175.00
Save £10.00!
5 In Stock

UK Delivery - From £2.99

Free & Next Day delivery to most UK locations when spending over £199

Earn 165 Loyalty Points

Earn one point for every £1 you spend.
stock availability
0 at our Guildford Store
5 at our off-site Warehouse
Want to Click and Collect or try items at our Guildford Store?

The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.

The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.

Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.

If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.

Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.

If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.

Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.

SKU: TT-ATX1

You might also need

Product Description

Here’s what TipTop Audio have to say:

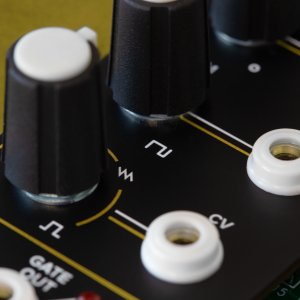

A classic all analog saw VCO core with 3 switchable modes, ART, 1V/Oct, LFO and is recommended as the basic building block for ART systems. It is designed for patching analog polyphonic synths from discrete modules or multi-mono patches in ART mode. When using ART the ATX1 takes care of the tuning including accounting for temperature changes. In 1V/Oct mode the ATX1 runs as a standard old school modular VCO. LFO mode drops the frequency range and is great for patching vibrato to other ATX1s among other things. The ATX1 outputs variable waveshapes with manual or CV control. Classic FM, PWM and hard sync are provided. A dedicated Gate Out in ART mode manages the voice envelopes, or any modulation synced to that voice. We consider the ATX1 the best sounding analog VCO we ever created.

Specifications

Size

  • 8HP

Depth

  • 40mm

Power

  • +12V 105mA / -12V 33mA
