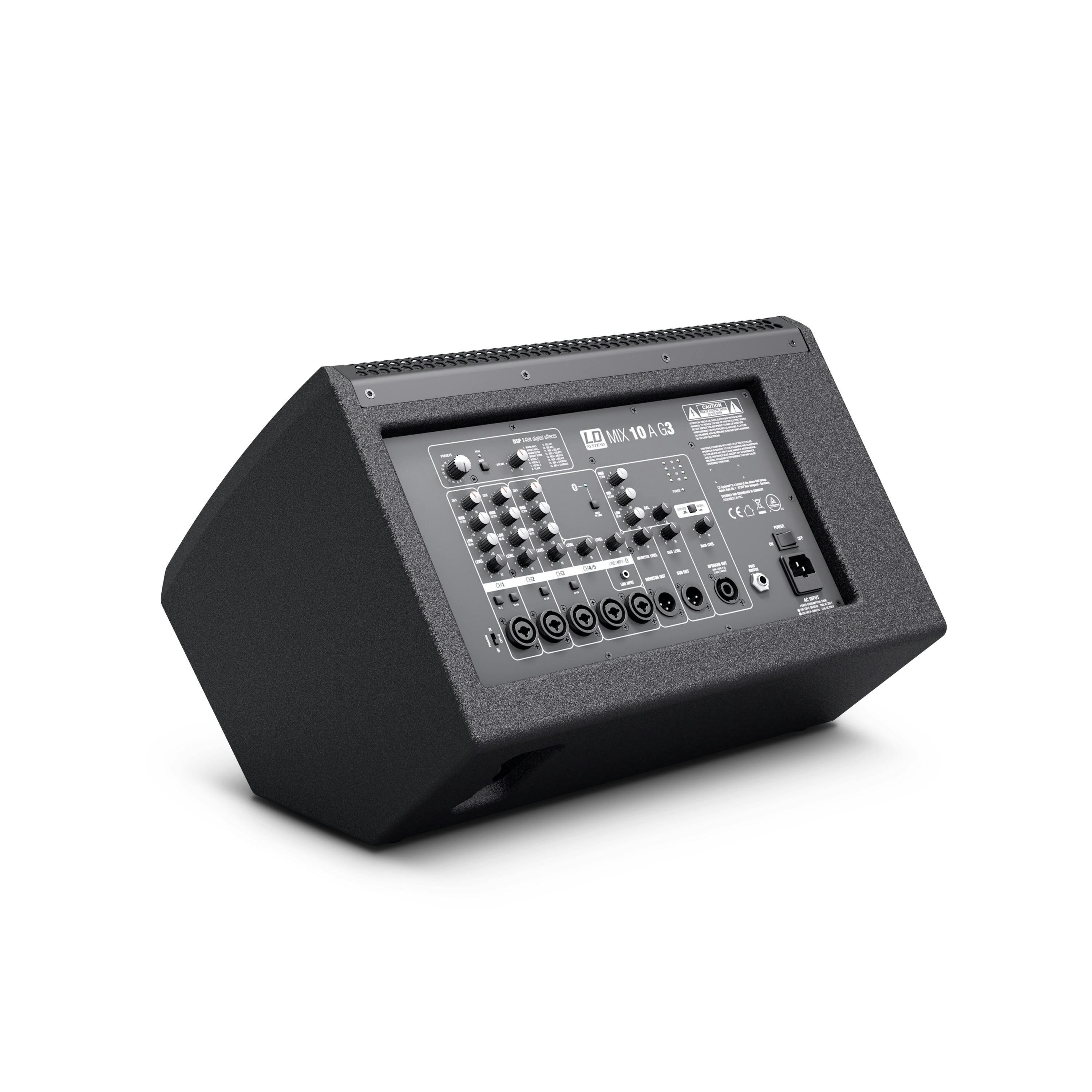

LD Systems Mix 10 A G3 Active Speaker
Integrated Seven-Channel Mixer
FREE UK Delivery
Earn 422 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: LDMIX102AG3
You might also need
Product Description
Here's what LD Systems say about the Mix 10 A G3:
The ideal choice for small-scale PA and personal monitoring applications, the active LD MIX 10 A G3 integrates a 7-channel mixer and Class D amplification with 2 x 400 watts peak power. The compact bass reflex loudspeaker features a 10" custom woofer and 1" Celestion HF driver complement, 65 Hz to 20 kHz frequency response and 90° x 60° dispersion delivering crystal clear sound with punch and detail.

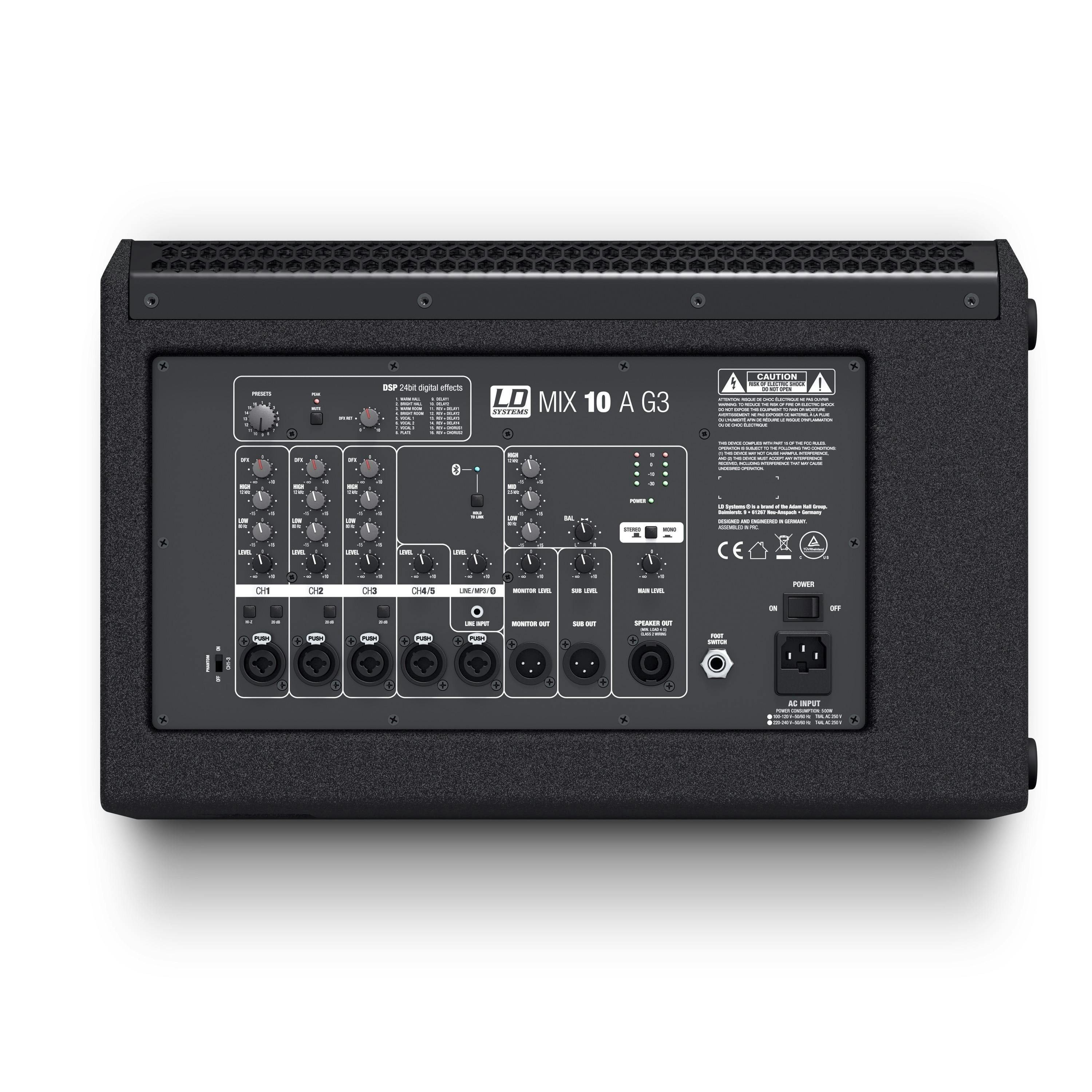

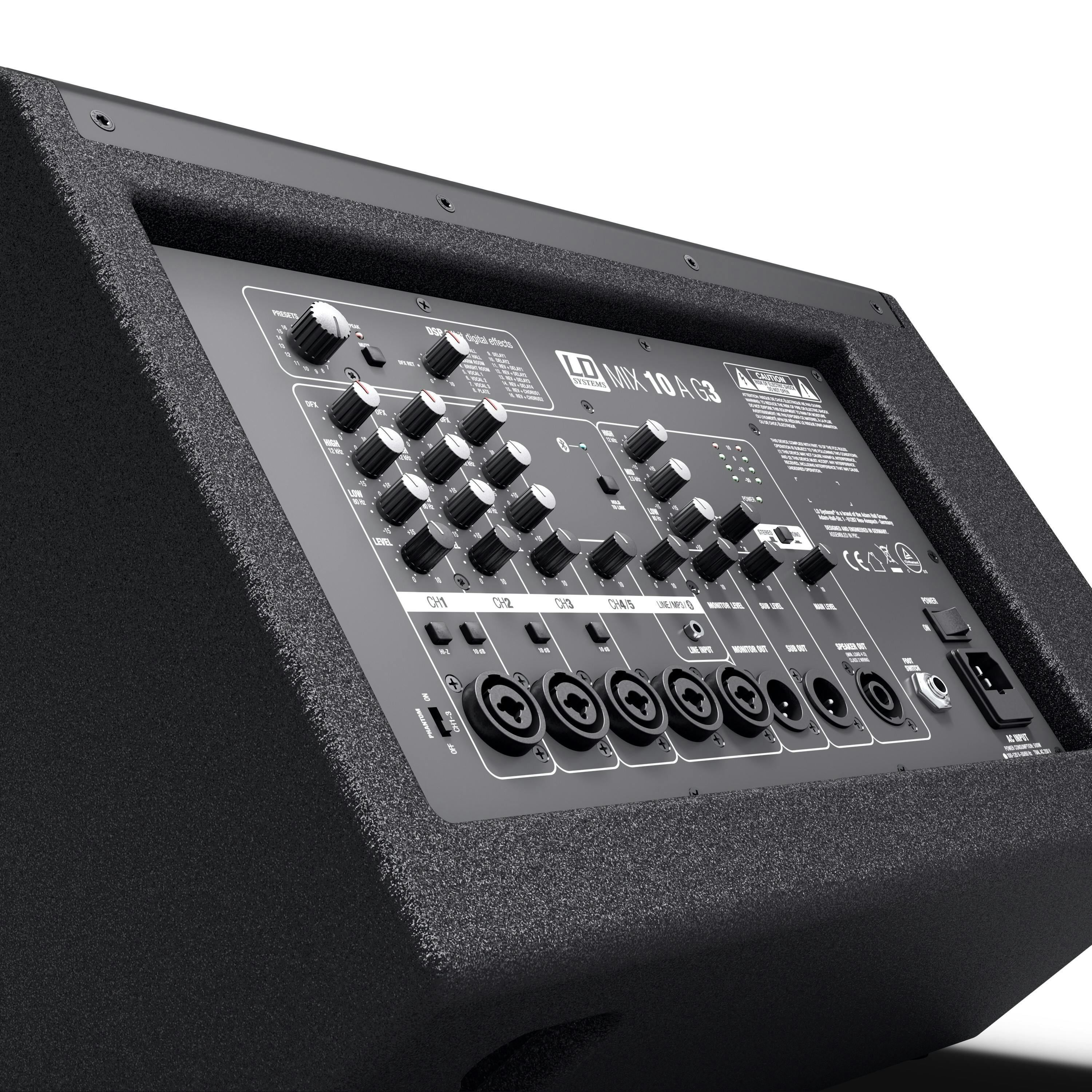

Accommodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players, the built-in mixer provides 3 microphone channels with 2-band EQ, 48 V phantom power plus switchable hi-Z input (CH1) and stereo line channel. The output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering and XLR monitor and subwoofer outputs. In addition, the LD MIX 10 A G3 sports a DSP with 16 effects presets, limiter and overcurrent, overload, short circuit and thermal protection. A speakON output allows powering the passive LD MIX 10 G3 to easily create a stereo setup.
The rigid enclosure is constructed with tough plywood featuring a 50° monitor angle and Dual-Tilt pole receptacle for 0° or 5° mounting angles. On its own or in tandem with the passive unit, the LD MIX 10 A G3 provides amazing performance and versatility in a lightweight, easily portable package.
Specifications
- Product type: PA loudspeaker
- Type: active
- Woofer dimensions: 10"
- Woofer size: 254mm
- Woofer brand: Custom-made
- Tweeter dimensions: 1"
- Tweeter dimensions (mm): 25.4mm
- Tweeter brand: Celestion
- Dispersion (H x V): 80 x 70°
- Frequency response: 65 - 20.000Hz
- Amplifier: Class D
- Amplifier output (RMS): 2 x 200W
- Amplifier output (peak): 2 x 400W
- Max. SPL: 124dB
- Protection circuits: overload, thermal overload, limiter, over-current, short circuit
Mixer
- Channels: 7
- Mic inputs: 3, XLR, 6.3 mm jack
- Controls for Mic Inputs: EQ Low, level, DFX Send, EQ Hi, Hi-Z Switch (channel 1 only), + 10 dB switch
- Line inputs: 2
- Line input connectors: 2 x XLR, 3.5mm TRS
- Controls Line Inputs: level
- Hi-Z inputs: 1
- Hi-Z input connectors: 6.3 mm jack
- Input Impedance Hi-Z Input Connectors: 1000kOhm
- Monitor Line Outputs: 2
- Connector Type Monitor Line Output: XLR
- Controls for Monitor Line Output: Sub level, Monitor Volume
- Max Output Level Line Output Monitor: 17dBu
- Record Outputs: 1
- Increased power main output (at 4 ohm): 200W
- DSP Digital Effects Unit
- DSP Number of Programs: 16
- DSP Controls: Mute switch, footswitch, DFX Return, presets
- DSP Display Elements: Peak LED
Main Section
- Main section controls: Master Volume, mono/stereo, Power On/Off, EQ Hi, EQ Mid, switch operating voltage, Phantom Power, Balance, EQ Low
- Main section indicators: power LED, 4-segment Level Meter
- Phantom power: 48 V
- Mains connector: IEC socket
- Operating voltage: SMPS, 110 - 120 V ~ 50/60 Hz or 220 - 240 V ~ 50/60 Hz, automatic switching
- Power consumption: 500W
Cabinet
- Cabinet construction: vented
- Cabinet material: 16 mm Plywood
- Cabinet surface: texture paint
- Cabinet colour: Black
- Width: 315mm
- Height: 489mm
- Depth: 307mm
- Weight: 12,3kg
- Other features: Ergonomic handle, Bluetooth, dual-tilt flange (0°/5°)
