Product Description
The Universal Audio Volt 2 Max is a compact, bus-powered USB audio interface that puts record-ready sound right on your desk. With two Tone Shaping Preamps, onboard Max compression, a full-colour Smart Display and pristine 32-bit / 192 kHz conversion, it is built to take your tracks from demo to release with minimal fuss. Add in Auto-Gain, Clip Protection, built-in talkback and a huge bundle of UAD plug-ins plus the LUNA DAW, and you have a powerful, modern studio hub for music production, content creation, podcasting and livestreaming.
Designed by the same team behind UA’s flagship Apollo range, Volt 2 Max gives you inspiring analogue-style character at the push of a button. Three distinct preamp modes let you dial in Tube, Solid State or British Class-A flavour on the way in, while Max processing delivers punchy, mix-ready compression tailored for vocals, guitar and bass. With best-in-class 32-bit converters, you hear every nuance of your performance, from first idea to final master.
Connectivity is equally flexible. Dual mic / line / Hi-Z inputs handle everything from studio condensers to electric guitars, while MIDI I/O and ADAT or S/PDIF expansion mean Volt 2 Max can grow with your setup. The bright Smart Display keeps levels and settings clear at a glance, Auto-Gain and Clip Protection safeguard your takes, and bus power lets you record anywhere with a compatible Mac, PC or iOS device.
To round it off, Volt 2 Max ships with an impressive UAD software bundle and LUNA, giving you access to classic UA compressors, EQs, tape machines, reverbs, synths and guitar amps used on countless hit records. Whether you are tracking songs, streaming, or building a compact production rig, Volt 2 Max delivers professional results in a rugged, desktop-friendly package.
Tone Shaping Preamps with Three Character Modes
Volt 2 Max features two Tone Shaping Preamps with three harmonic modes: Warmth, Focus and Shine. These capture the vibe of classic tube, solid-state and British Class-A preamps, letting you add weight, clarity or presence at the source. Instead of relying on plug-ins later, you can commit to a characterful sound as you record, helping your mixes come together faster.
Max Processing for Instant, Mix-Ready Compression
With Max processing on each preamp, Volt 2 Max gives you six push-button compressor presets inspired by UA’s legendary LA-2A and 1176 units. From tight rap vocals to jangly acoustic guitars, you can add punch, control and polish in realtime without extra hardware. Combined with the three preamp modes, you get over 18 noise-free tonal combinations ready for any session.
32-bit / 192 kHz Conversion and Smart Monitoring
Volt 2 Max records and plays back at up to 32-bit / 192 kHz, preserving every detail of your performance. High-headroom monitor outputs and two studio-quality headphone outs provide clear, confident monitoring, while the full-colour Smart Display shows levels, gain reduction and key settings at a glance. Auto-Gain and Clip Protection keep your signals in the sweet spot, so you can focus on the music instead of the meters.
Expandable, Bus-Powered Studio Hub with UAD Software
Despite its compact footprint, Volt 2 Max offers 10-in / 4-out I/O, including ADAT or S/PDIF optical input for up to eight extra channels, MIDI In and Out, and an onboard USB hub for peripherals. It is bus-powered over USB, class-compliant with Mac, Windows and iOS, and integrates tightly with the UAD Console app and LUNA. The included UAD Volt Studio Bundle and additional third-party software give you a complete toolkit for producing, mixing and mastering straight out of the box.
Features
- Two Tone Shaping Preamps - Dual mic preamps with 60 dB of gain and three harmonic character modes let you capture vocals, instruments and voiceovers with the rich sound of classic analogue hardware, right at the recording stage.
- Max Compression with Six Presets - Onboard Max processing provides realtime compression with six musical presets tuned for vocals, guitar and bass, giving you punchy, controlled tracks without extra outboard gear or latency.
- 32-bit / 192 kHz Audio and Smart Display - High-resolution 32-bit converters and a bright full-colour Smart Display ensure you hear every detail and see your levels clearly, while Auto-Gain and Clip Protection help you avoid ruined takes.
- 10-in / 4-out Connectivity with ADAT and MIDI - With dual mic / line / Hi-Z inputs, ADAT or S/PDIF expansion, MIDI I/O, dual headphone outs and an onboard USB hub, Volt 2 Max serves as a flexible, expandable centrepiece for music production, streaming and content creation.
Specifications
General
- Product: Universal Audio Volt 2 Max
- Type: Desktop USB audio interface
- Simultaneous I/O: 10-in / 4-out
- Conversion: 32-bit / 192 kHz
- Bus-powered: Yes
- On / Off Switch: Rear panel
Analogue Inputs
- Mic Preamps: 2 with Tone Shaping, Harmonic Saturation and Max Compression
- Available Gain: 60 dB (digitally controlled)
- Mic Inputs: 2 x XLR combo jacks (pin 2 positive)
- Mic Input Frequency Response: 20 Hz to 20 kHz ±0.08 dB
- Mic Dynamic Range (A weighted): 119 dB
- Mic THD + Noise (1 kHz @ -1 dBFS): -110 dB (0.0003%)
- Mic Maximum Input Level: 14 dBu
- Mic Input Impedance: 2 Kilohms
- Phantom Power: +48V, switchable per channel
- Line Inputs: 2 x ¼ inch combo (TRS balanced or TS unbalanced)
- Line Input Frequency Response: 20 Hz to 20 kHz ±0.05 dB
- Line Dynamic Range (A weighted): 119 dB
- Line THD + Noise (1 kHz @ -1 dBFS): -108 dB (0.0004%)
- Line Maximum Input Level: 22 dBu
- Line Input Impedance: 10 Kilohms
- Instrument Inputs: 2 x ¼ inch TS unbalanced (front panel)
- Instrument Frequency Response: 20 Hz to 20 kHz ±0.02 dB
- Instrument Dynamic Range (A weighted): 116 dB
- Instrument THD + Noise (1 kHz @ -1 dBFS): -108 dB (0.0004%)
- Instrument Maximum Input Level: 13 dBu
- Instrument Input Impedance: 1 Megohm
Analogue Outputs
- Monitor Outputs: 1 x stereo pair ¼ inch TRS balanced (DC coupled)
- Monitor Frequency Response: 20 Hz to 20 kHz ±0.05 dB
- Monitor Dynamic Range (A weighted): 126 dB
- Monitor THD + Noise (1 kHz @ -1 dBFS): -112 dB (0.0003%)
- Monitor Maximum Output Level: 20.2 dBu
- Monitor Output Impedance: 200 Ohms
- Headphone Outputs: 2 x stereo (¼ inch and ⅛ inch TRS, DC coupled)
- Headphone Frequency Response: 20 Hz to 20 kHz ±0.08 dB
- Headphone Dynamic Range (A weighted): 116 dB
- Headphone THD + Noise (1 kHz @ -1 dBFS into 300 Ohms): -103 dB (0.0007%)
- Maximum Output Power into 32 Ohms: 45 mW
- Maximum Output Power into 300 Ohms: 24 mW
- Headphone Cue Mix: One shared cue mix

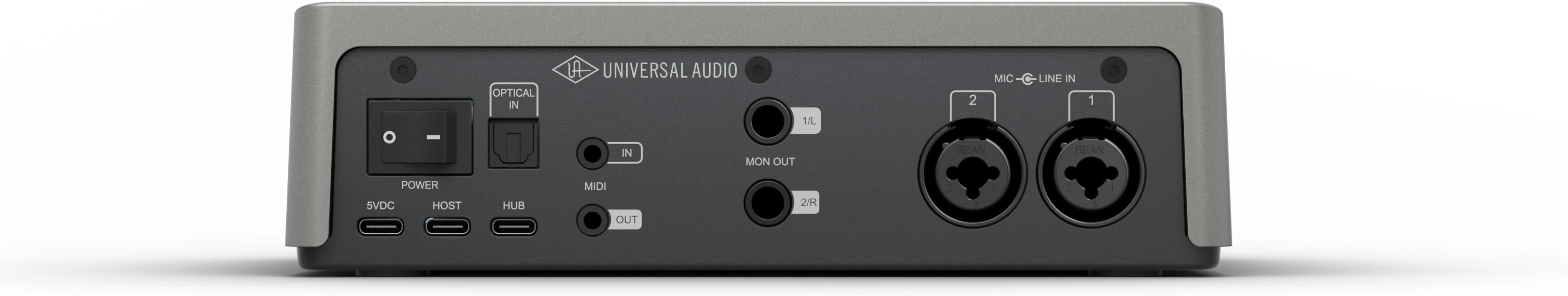

Digital I/O and Connectivity
- USB: 1 x USB 2.0 host port (USB Type-C)
- USB Hub Port: 1 x USB hub port for peripherals (5 VDC @ 0.5 A max)
- USB External Power Input: 1 x USB power input (5 VDC @ 1 A minimum)
- Digital Optical Input: ADAT or S/PDIF optical
- ADAT In: 8 channels at 44.1 / 48 kHz, 4 channels at 96 kHz, 2 channels at 192 kHz (S/MUX capable)
- S/PDIF In: 2 channels at all supported sample rates
- MIDI: In and Out, ⅛ inch TRS mini-jack, MIDI Type A
- Built-in Talkback: Integrated microphone
- Loopback: Built-in for podcasting, streaming and content creation
Performance and Audio
- Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
- Bit Depth: 32-bit
- Auto-Gain: Yes
- Clip Protection: Yes
- Full-colour Smart Display: Input, level and gain-reduction metering
Power
- Power Source: USB bus-powered
- Power Consumption (@ 5 VDC): 4.1 W typical, 5.7 W maximum
Software and Compatibility
- Included DAW: LUNA Digital Audio Workstation
- Included UAD Volt Studio Bundle: Over 15 UAD plug-ins and instruments
- Additional Software: Melodyne Essential, Ampeg SVT-VR Classic Bass Bundle, Virtual Drummer DEEP, Virtual Bassist DANDY, Splice INSTRUMENT, Prisma Producer Lab, FL Studio Producer Edition (3 months)
- Integration: UAD Console app and LUNA with session recall and low-latency cue mixes
- DAW Compatibility: All major DAWs including Ableton Live, FL Studio, GarageBand, Logic Pro, Pro Tools and more
System Requirements
- macOS: macOS 12 Monterey or newer, available USB 2.0 (or higher) port, internet connection for software downloads
- Windows: Windows 10 64-bit or newer, Intel, AMD or Apple silicon processor, available USB 2.0 (or higher) port, internet connection for software downloads
- iPad & iPhone: iPadOS / iOS 16 or newer
- Class Compliance: USB class-compliant with Mac, Windows, iPad and iPhone
- Additional iOS Requirement: Apple Lightning to USB Camera Adapter for compatible devices
