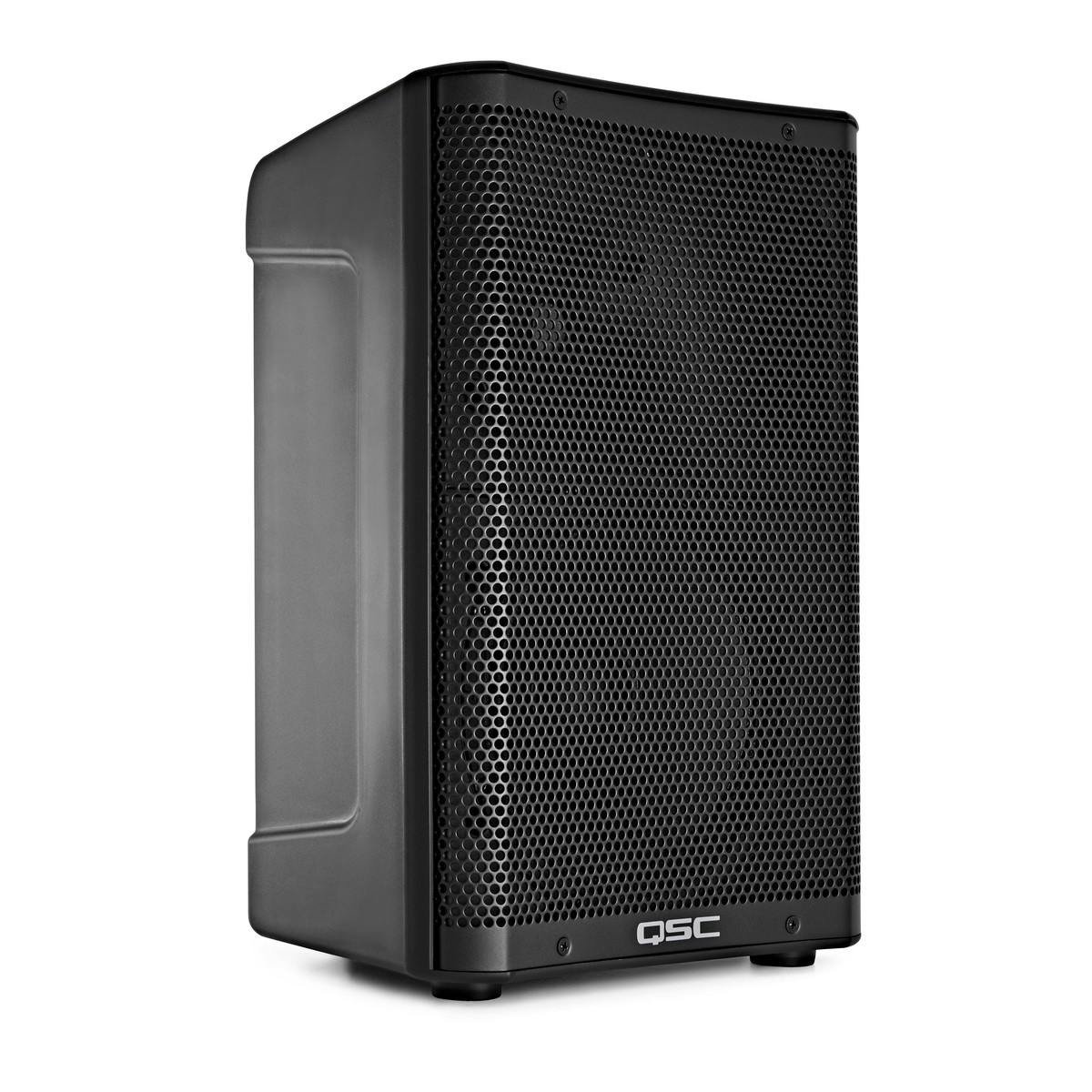

QSC Audio CP8 1000W 8" Active Loudspeaker

The QSC CP8 is a compact 1000W active loudspeaker that delivers big, professional sound from a small, easy to handle box. With powerful onboard DSP, flexible connectivity and rugged construction, it is a superb choice for solo performers, small bands, DJs and venues that need reliable, great sounding PA in a highly portable format.

Driven by a 1000W Class D amplifier and a precise two-way design, the CP8 offers impressive volume with clarity and control. QSCs advanced DMT coverage and Intrinsic Correction processing work together behind the scenes to give you an even, natural sound across the room, whether you are reinforcing vocals, acoustic instruments, backing tracks or full band mixes.

Compact Powerhouse for Real-World Gigs

The CP8 is designed to give you serious output without taking over the stage or the boot of your car. The 8 inch woofer and 1.4 inch compression driver are powered by a 1000W peak Class D amplifier, giving you up to 124 dB of maximum SPL in a cabinet that is easy to lift and position. This makes it ideal for smaller venues, rehearsals, acoustic sets, presentations and as part of a compact front of house or monitor rig.

Clear, Consistent Sound for Every Seat

QSCs Directivity Matched Transition design provides a 90 degree axisymmetric coverage pattern, helping your mix sound balanced and intelligible across the listening area. Intrinsic Correction processing uses data from thousands of loudspeaker measurements to optimise the response of the CP8, smoothing out peaks and dips so you get a clear, accurate sound without needing to dive into complex EQ.

Flexible DSP Presets and Simple Controls

Onboard DSP gives you a choice of contour presets via a 6-way selection switch, so you can quickly tailor the CP8 for different applications such as main PA, floor monitoring or music playback. Combined with independent gain controls, a mic boost switch and clear status LEDs, it is straightforward to dial in a reliable sound for each gig and easily recall your preferred settings.

Rugged, Lightweight Build with Long-Term Confidence

The CP8 uses a tough polypropylene enclosure and a robust 18 gauge powder coated steel grille, giving you a loudspeaker that can handle the demands of regular transport and live use. Despite its durable build, it remains lightweight at just 11.4 kg, making load-ins and quick setups much easier. QSCs reputation for reliability and their extended warranty (on registration) underline the confidence they have in the CP Series.

• 1000W Class D Amplifier - The powerful 1000W peak Class D amplifier delivers up to 124 dB of maximum SPL, giving you plenty of headroom for clear, punchy sound in small to medium spaces while keeping weight and heat to a minimum.
• Advanced DMT and Intrinsic Correction - Directivity Matched Transition coverage and Intrinsic Correction processing work together to provide smooth, even sound across the audience area, reducing the need for extensive EQ and helping vocals and instruments sit naturally in the mix.
• Versatile DSP Contours and I/O - With a 6-way contour switch, dual XLR/TRS combo inputs for mic or line sources, a 3.5 mm stereo input and an XLR mix output, the CP8 adapts easily to different roles from main PA and monitors to playback and speech reinforcement.
• Compact, Durable Enclosure - The lightweight polypropylene cabinet and 18 gauge steel grille offer a strong, road-ready build in a compact footprint, making the CP8 easy to transport, set up and integrate into tight stage spaces.

General

• Configuration: Two-way active loudspeaker
• Amplifier Type: Class D
• Amplifier Power: 1000 W peak

Drivers

• Low Frequency Driver: 8 inch cone woofer
• High Frequency Driver: 1.4 inch compression driver

Performance

• Frequency Response: 56 Hz to 20 kHz, -6 dB
• Frequency Range: 53 Hz to 20 kHz, -10 dB
• Maximum SPL: 124 dB
• Nominal Coverage: 90 degree axisymmetric

Inputs and Outputs

• Input Connectors: 2 x XLR/TRS combo (line and mic/line), 1 x 3.5 mm TRS stereo
• Output Connector: 1 x XLR (mix output)

Controls and Indicators

• Controls: Power switch, 2 x gain controls, mic boost push switch, 6-way contour selection switch
• Indicators: Power LED, 2 x input signal LEDs, Input B MIC selected LED, limiter active LED

Power

• Power Supply: 100 V to 240 V, 50 Hz / 60 Hz

Construction

• Enclosure Material: Polypropylene
• Grille: 18 gauge powder coated steel

Dimensions and Weight

• Dimensions (H x W x D): 411 mm x 273 mm x 256 mm
• Dimensions (H x W x D): 16.2 inch x 10.7 inch x 10.1 inch
• Weight: 11.4 kg
• Weight: 25.5 lb
