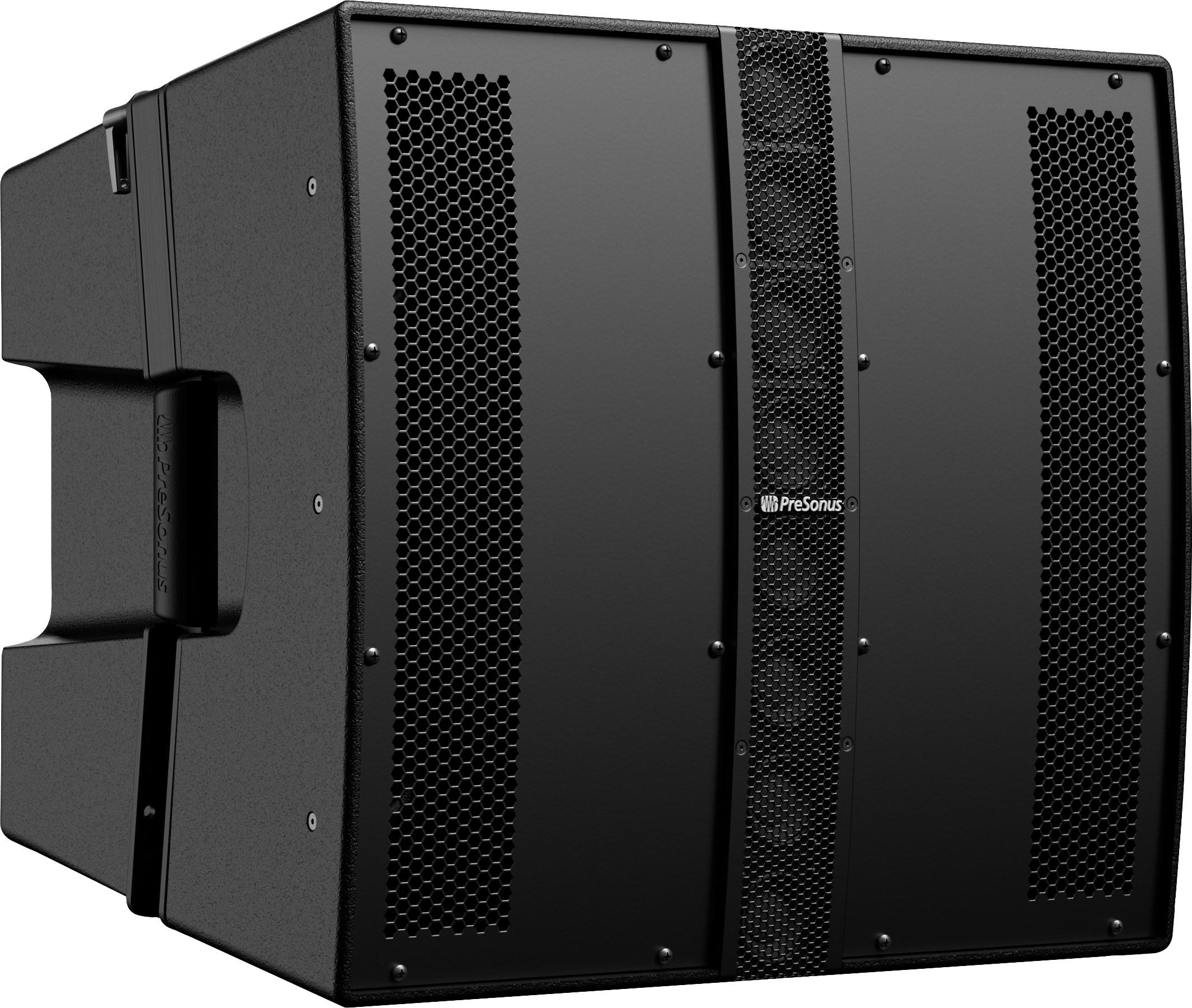

PreSonus CDL12P Constant Directivity Sound Reinforcement Loudspeaker
Loudspeaker For Venues With Line Array Ability For Larger Shows
FREE UK Delivery
Earn 879 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: 2779104202
You Might Also Like
Product Description
The CDL12P Constant Directivity Sound Reinforcement Loudspeaker brings professional-grade audio to mobile DJs, touring bands, and installed applications. Building on the acclaimed CDL12 series, the CDL12P delivers a unique hybrid point-source and line-array design, providing highly focused sound with consistent SPL both on- and off-axis. Its patent-pending driver configuration ensures articulate speech intelligibility and natural music reproduction, making it perfect for venues of all sizes. The lightweight design improves portability without compromising sonic performance, and integrated rigging hardware simplifies setup for arrays of up to six units. With a dual-angle pole mount, users can deploy one or two enclosures easily, while the onboard Class D power amplifier offers 500 watts per channel with DSP presets for array and subwoofer configurations. Rugged, tour-ready construction combines a durable lightweight plastic enclosure with a 1.2 mm steel grille, ensuring the CDL12P withstands the rigours of touring while delivering precise, high SPL output.
Features
- Constant Directivity Sound:
Provides consistent SPL and clear, focused audio coverage both on- and off-axis, ideal for speech and music in a wide range of venues. - Integrated Amplifier and DSP:
Features a 500 x 500 watt Class D amplifier with onboard DSP presets, simplifying array configuration and subwoofer integration for professional performance. - Portable and Rig-Ready Design:
Lightweight enclosure with integrated flyware, dual-angle pole mount, and rugged construction ensures easy setup, transport, and long-term durability.
Precision Audio Performance:
The CDL12P’s eight 2-inch cone high-frequency drivers and 12-inch long-throw low-frequency transducer provide exceptional clarity and articulation. A low 420 Hz crossover minimises comb filtering and enhances line array intelligibility, delivering consistent sound across the listening area. With a horizontal dispersion of 120 degrees and vertical coverage of 15 degrees, which can be extended when arrayed, the CDL12P maintains tonal balance at every angle, making it perfect for both mobile and fixed installations. Total harmonic distortion remains under 0.05 per cent across the full frequency range, preserving the natural character of music and speech alike.
Flexible Array and Mounting Options:

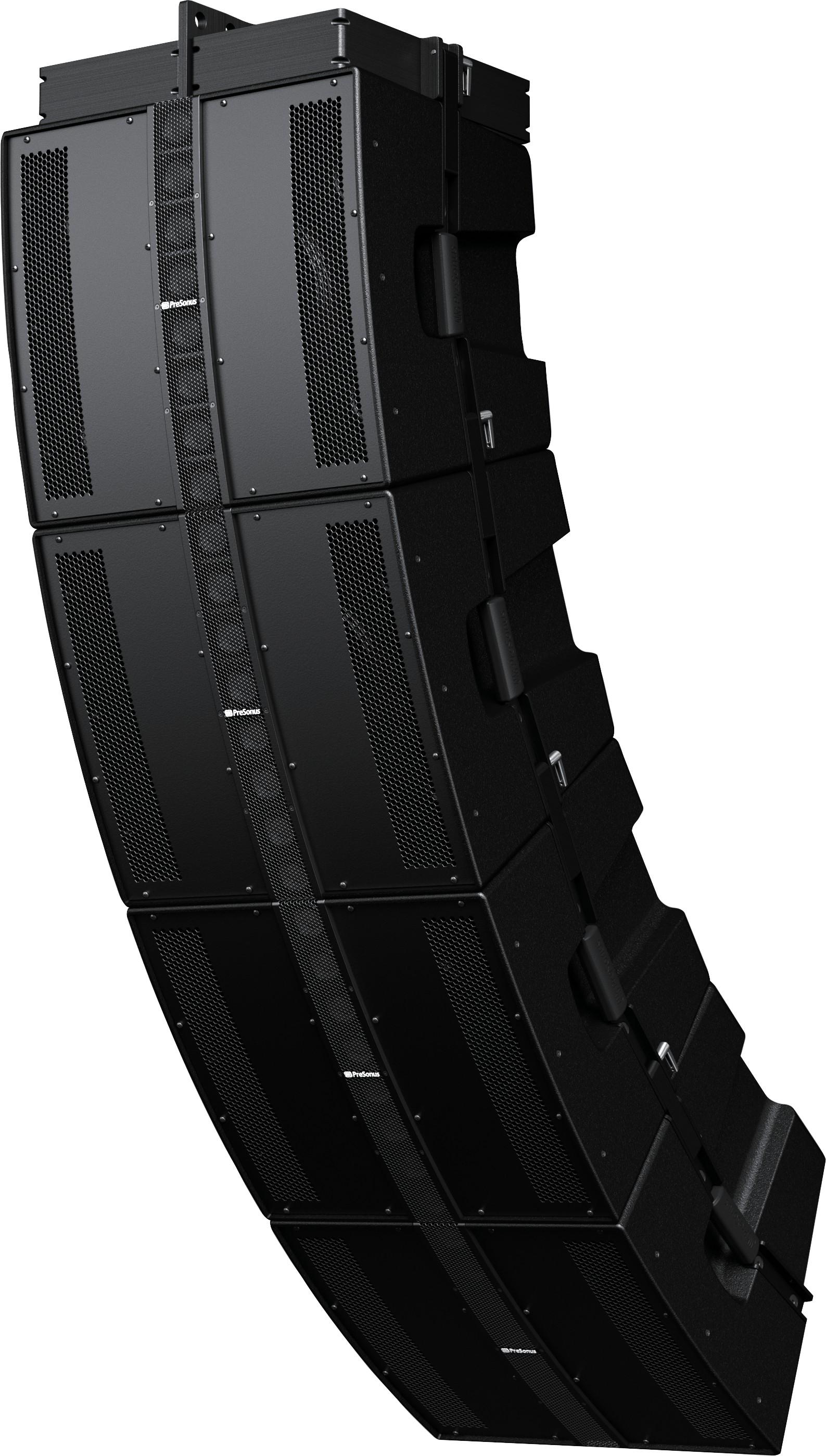

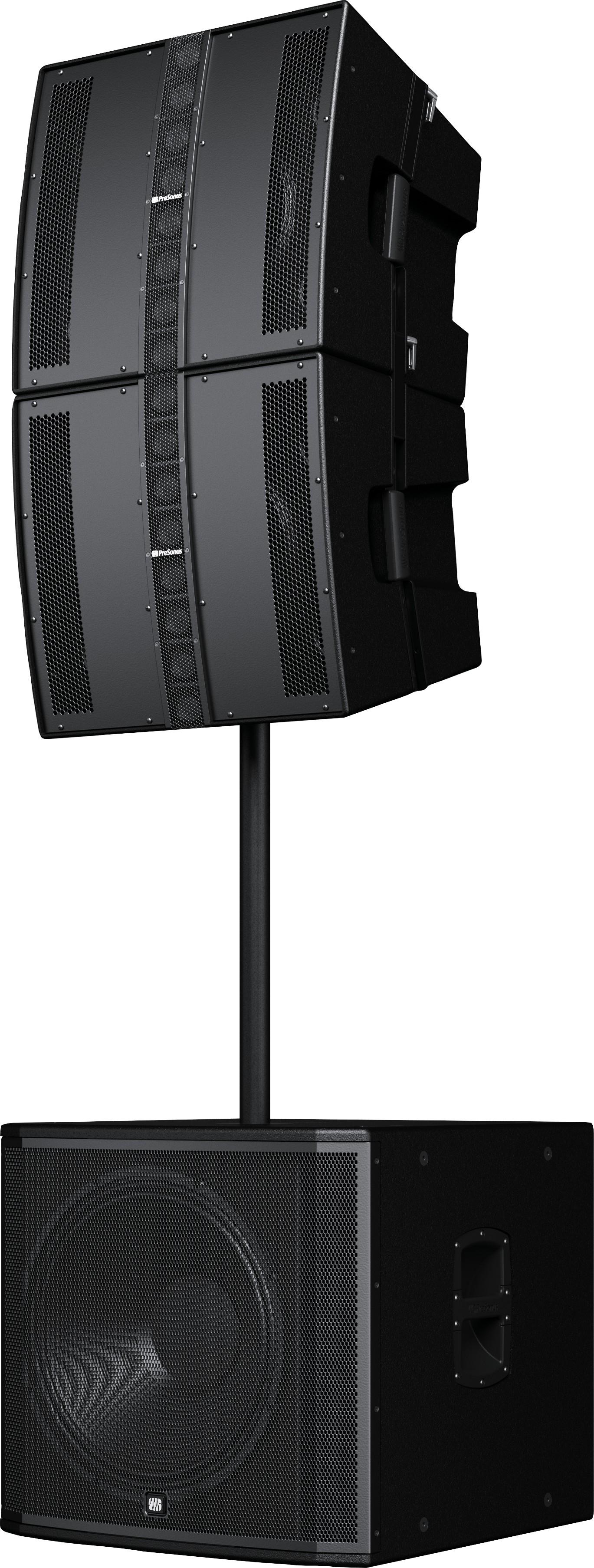

Designed for ease of deployment, the CDL12P supports integrated rigging to create arrays of up to six loudspeakers. The dual-position pole mount allows one or two enclosures to be mounted on a tripod or atop compatible subwoofers. Onboard presets accommodate up to six arrayed boxes and multiple subwoofer configurations, streamlining setup in diverse environments. Free air convection ensures reliable cooling while maintaining consistent high-output performance, making it suitable for both touring and permanent installations.
Rugged Construction for Touring:
Constructed with lightweight plastic and a 1.2mm steel grille, the CDL12P is built to withstand the demands of touring and mobile applications. Side handles enhance portability, while locking AC power connections and onboard protections for over-current, voltage, temperature, and transducer limiting ensure reliable operation. This combination of robust design and professional-grade performance provides confidence in even the most challenging live sound environments.
Specifications
- Amplifier Type: Class D
- HF Transducers: 8 x 2” (1” Voice Coil)
- LF Transducer: 12” (2.5” Voice Coil)
- HF Power: 1000W Peak, 500W Program, 250W RMS
- LF Power: 1000W Peak, 500W Program, 250W RMS
- Coverage Pattern: 120° Horizontal x 15° Vertical
- Crossover Frequency: 420 Hz
- Peak SPL: 130 dB
- Total Harmonic Distortion: <0.05% (20 Hz - 20 kHz)
- Inputs: 1 x XLR
- Line Out: Direct Line Out (XLR)
- Voltage Requirements: 100-240 VAC, 50-60 Hz
- Power Consumption: 4.2A
- Enclosure Material: 15 mm Eucalyptus Plywood
- Grille Material: Powder-Coated Steel
- Pole Socket: Dual-position, 0° and 7.5° tilt
- Integrated Rigging: Supports arrays of up to six boxes
- Handles: 2 Side
- Cooling: Free Air Convection
- Protections: Amplifier and transducer protection, limiter
