Elektron Outbox 8 - Eight Channel Audio/CV Beakout Box
Versatile eight - channel audio/cv breakout box and usb host/device designed to expand your connectivity.
FREE UK Delivery
Earn 259 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose Click and Collect as your delivery option online or, during store opening hours, call our sales team on 01483 456777 for assistance with placing your order.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that stock availability can change quickly both online and in-store, so we would always recommend placing your Click and Collect order as soon as possible to reserve your item.
SKU: 127001
You Might Also Like
Ask anything about this product
Product Description

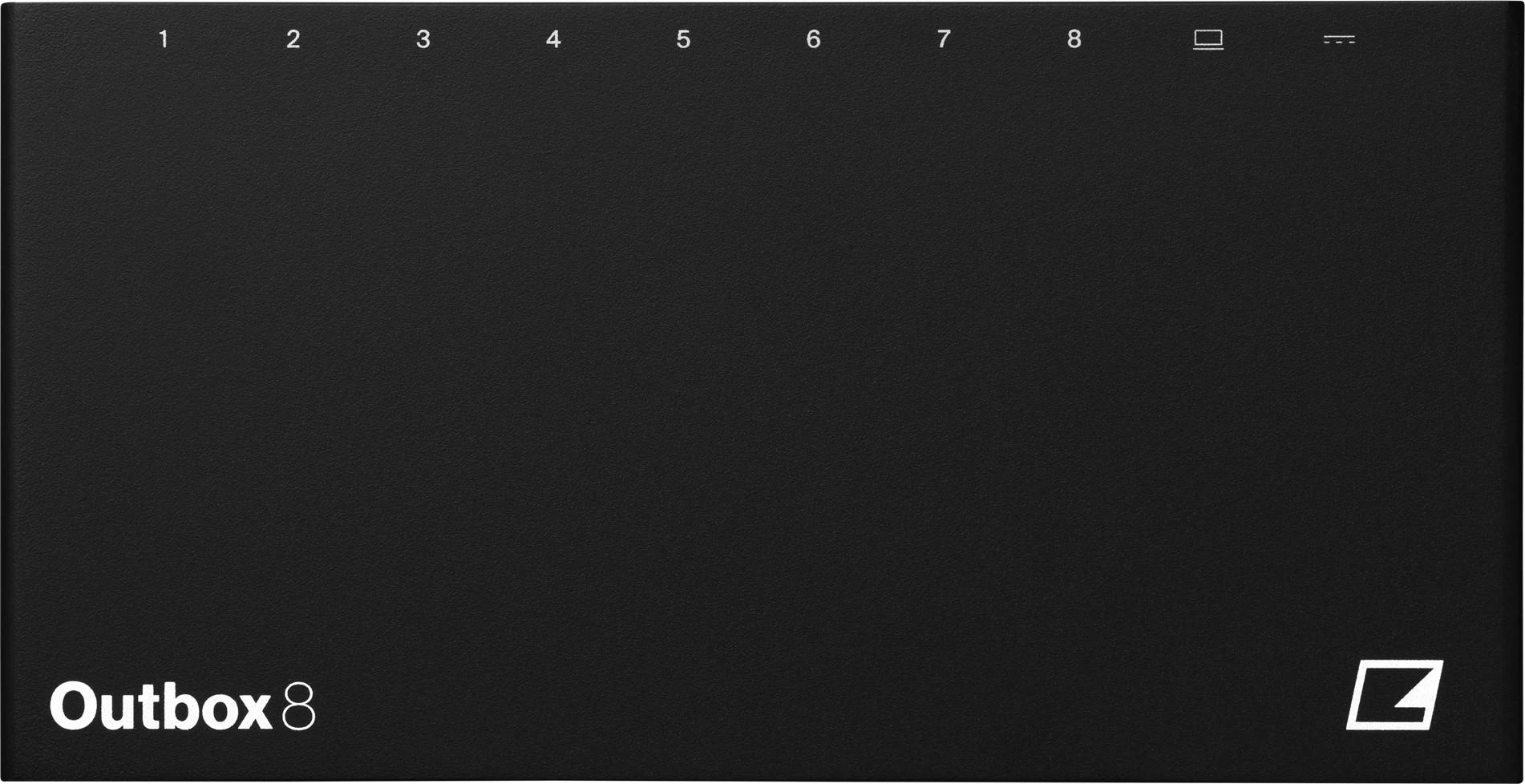

Outbox 8 is a versatile eight-channel audio and CV breakout box that expands the connectivity of your Elektron setup, modular system, computer or other compatible USB device. With eight configurable physical outputs, it can handle audio and CV in a wide range of combinations, giving you plenty of flexibility for both studio and performance setups.
Use Outbox 8 to send individual tracks or submixes from compatible Elektron Overbridge-enabled machines to mixers, effects processors and other external equipment. Its configurable outputs can also generate CV signals for pitch, gate, trigger, clock and other control duties, making it easy to integrate modular equipment with your existing setup.
Outbox 8 can also function as a dedicated USB MIDI to CV interface, allowing MIDI controllers and compatible Elektron devices to play, sequence and control CV-capable instruments. Connected to a computer, tablet or phone, it provides eight outputs of USB audio for routing DAW channels to external hardware. With DC-coupled outputs and 32-bit conversion at 48 kHz, Outbox 8 is a compact and highly adaptable addition to modern electronic music setups.
Features
- Eight Configurable Audio and CV Outputs - Route audio, pitch, gate, trigger, clock and other CV signals to external equipment through eight versatile outputs.
- MIDI to CV Conversion - Turn USB MIDI from compatible devices into CV signals for controlling modular synthesizers and other CV-capable instruments.
- Eight Output USB Audio Interface - Connect to a computer, tablet or phone and send separate DAW channels to mixers, effects, monitors or external hardware.
Flexible Audio Routing:
Outbox 8 gives you eight physical outputs for expanding the routing possibilities of compatible Elektron equipment and computer-based setups. Individual tracks or submixes can be sent directly to mixers, effects processors, monitors and other external hardware, making it easy to introduce analogue processing or separate channels for live performance. The outputs are DC coupled, allowing them to handle both audio and control voltage signals. With 32-bit D/A conversion operating at 48 kHz, Outbox 8 provides a capable and flexible connection between your digital equipment and the rest of your studio. Its compact format also makes it easy to integrate into crowded desktop, modular and performance setups.
CV and Modular Control:
Outbox 8 provides a straightforward way to bring modular and other CV-controlled equipment into a modern electronic music setup. Its eight outputs can be configured for a range of CV duties, including pitch in both V/Oct and Hz/V formats, linear value control, triggers, gates and clock signals. This makes it possible to use compatible Elektron equipment or USB MIDI controllers to play, sequence and synchronise modular instruments and other external devices. Whether you need dedicated pitch and gate outputs for a synthesizer voice or clock and trigger signals for synchronisation, Outbox 8 provides the physical connections needed to integrate your gear.
USB Connectivity and MIDI:
Outbox 8 supports USB class-compliant MIDI devices and many USB class-compliant audio devices, providing broad compatibility across modern music production equipment. It can operate as a dedicated USB MIDI to CV interface, allowing MIDI controllers to directly control compatible CV equipment. When connected to a computer, tablet or phone, Outbox 8 can also provide eight outputs of USB audio, giving your DAW separate physical outputs for mixers, effects, monitors and other hardware. It supports USB Power Delivery alongside dual-role data and power functionality, while compatibility with Elektron Overbridge-enabled units makes it particularly useful for expanding an Elektron-based workflow.
Specifications
- Eight 1/4 inch impedance balanced, DC-coupled audio/CV outputs
- 48 kHz, 32-bit D/A converters
- CV output range: +/-5 V
- CV signal types: Grounded, Pitch V/Oct, Pitch Hz/V, Value Lin, Trig, Gate and Clock
- USB Type-C power input
- USB 2.0 High Speed Type-C data port
- USB Power Delivery support
- Dual-role data and dual-role power support
- Status LED
- Power requirement: 5 V / 0.5 A / 2.5 W or higher
- Dimensions: W 176 x D 90 x H 28 mm, including feet
- Weight: approximately 0.35 kg
