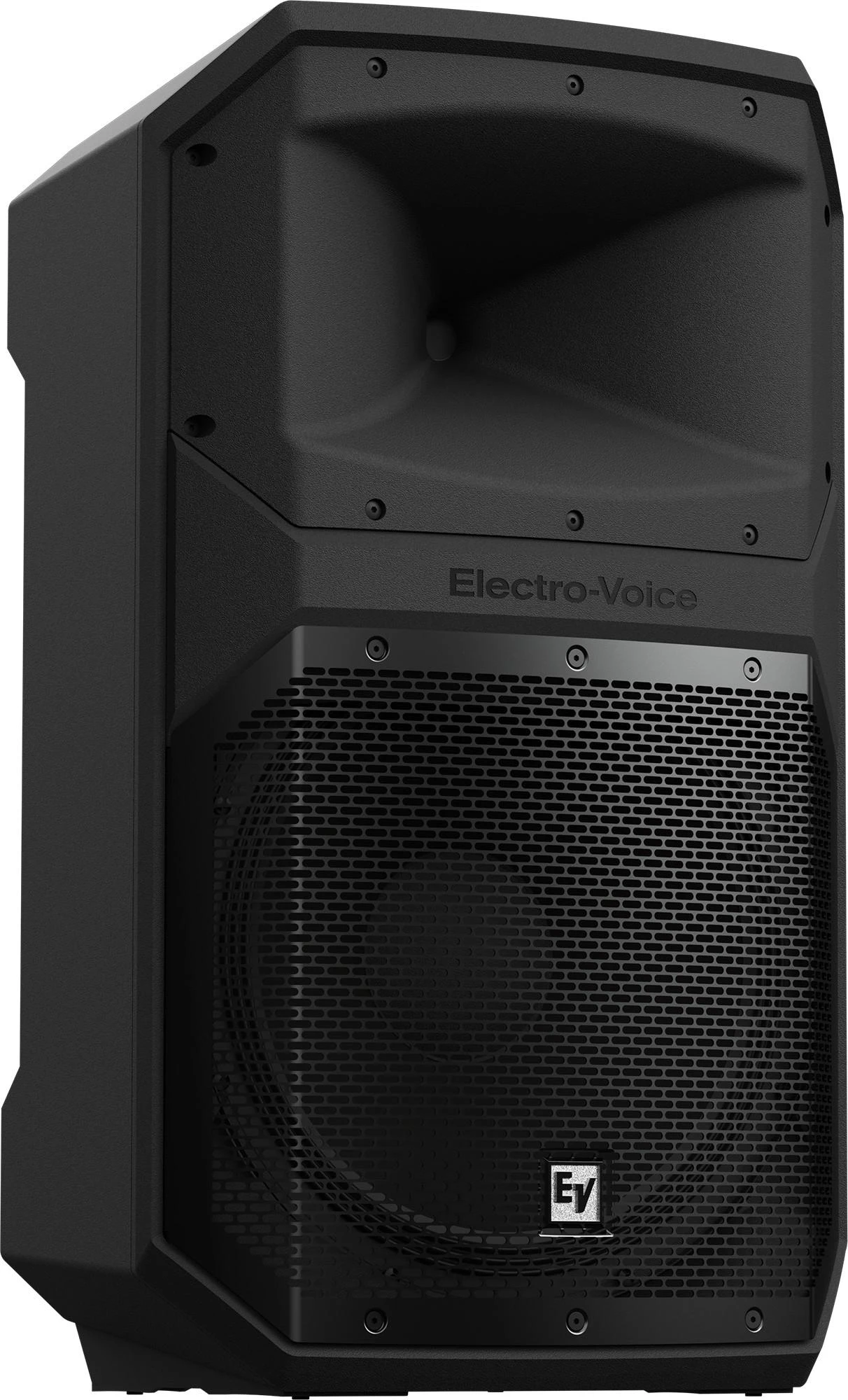

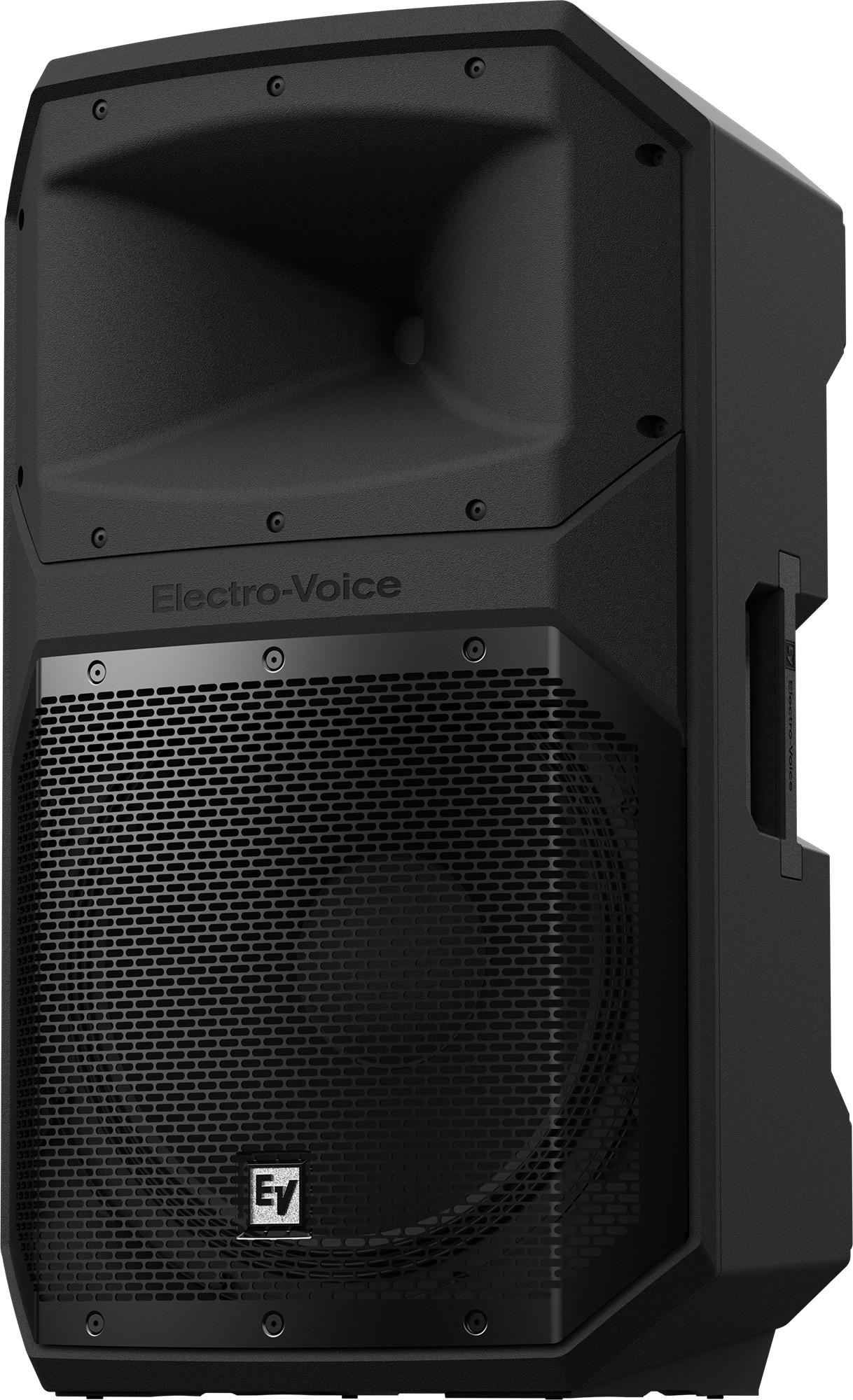

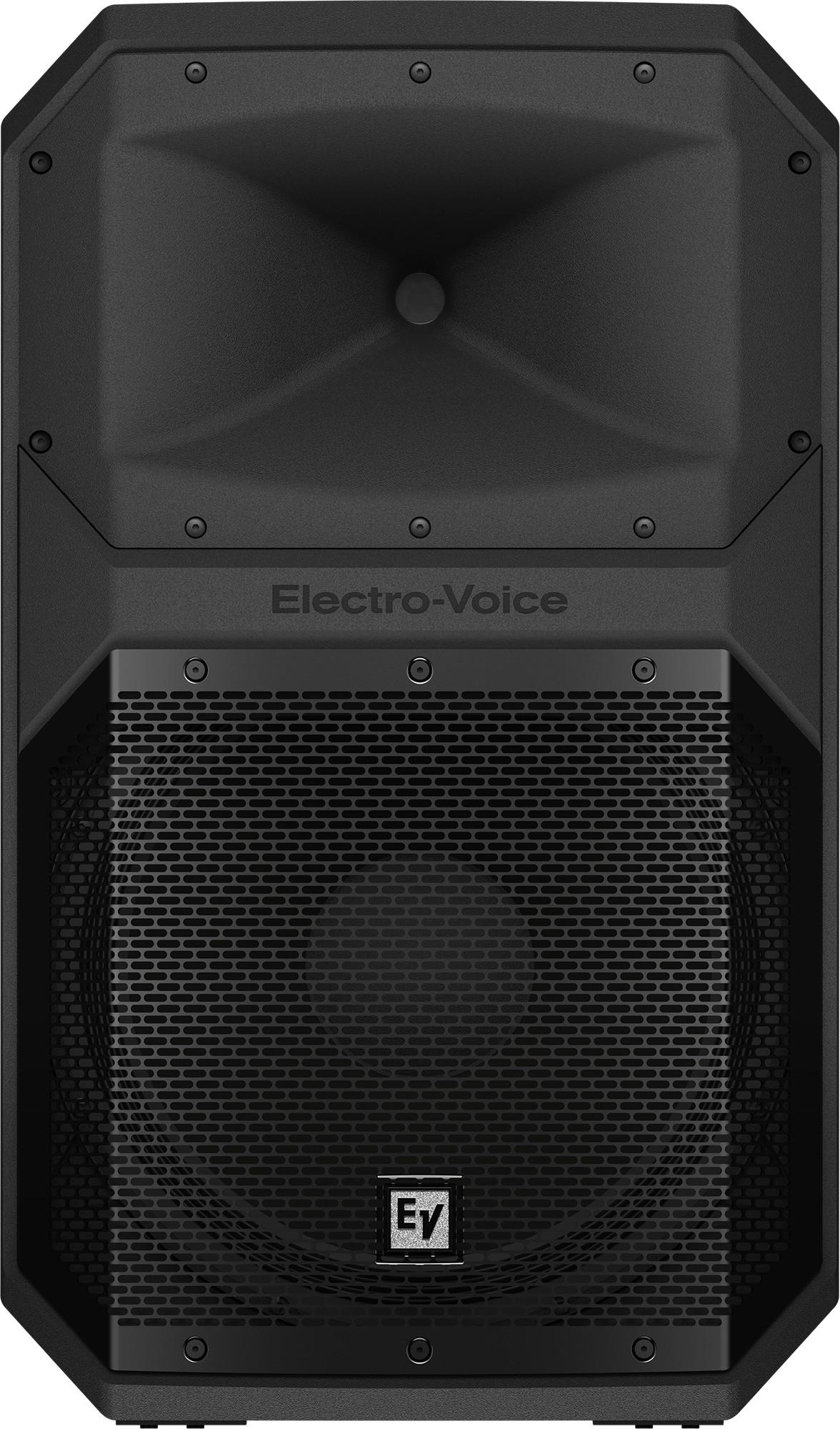

Electro Voice EVIVA 15P Active PA Speaker

The Electro Voice EVIVA 15P is a portable 15 inch powered loudspeaker designed to deliver signature Electro Voice sound quality in a compact, easy to deploy package. With a 1000 watt amplifier, 126 dB maximum SPL and Bluetooth audio streaming, it is a powerful all in one solution for aspiring musicians, DJs and small venues who need reliable performance night after night.

Balancing punchy output with user friendly operation, EVIVA 15P combines flexible connectivity, intuitive controls and a lightweight composite enclosure to make single person setup straightforward. Whether you are running backing tracks over Bluetooth, plugging in microphones and instruments, or expanding into a larger EVIVA system, this speaker is built to keep your sound clear, consistent and controlled.

Performance Focused Portable Sound

EVIVA 15P has been engineered to offer best in class performance in a portable powered loudspeaker. A 1000 watt amplifier drives a 15 inch woofer and 1 inch high frequency compression driver to deliver a frequency range of 45 Hz to 20 kHz and a maximum SPL of 126 dB. The result is a full range sound that comfortably fills small venues and event spaces while retaining clarity and headroom.

Signature Electro Voice Clarity

To achieve the sonic quality associated with Electro Voice, EVIVA 15P features the company’s patented SST (Signal Synchronized Transducers) technology alongside a custom designed, high energy neodymium high frequency compression driver. This combination helps provide a smooth, coherent response across the 90 degree x 60 degree coverage pattern, so your audience hears a balanced mix whether they are front and centre or off to the side.

Simple, Flexible Connectivity

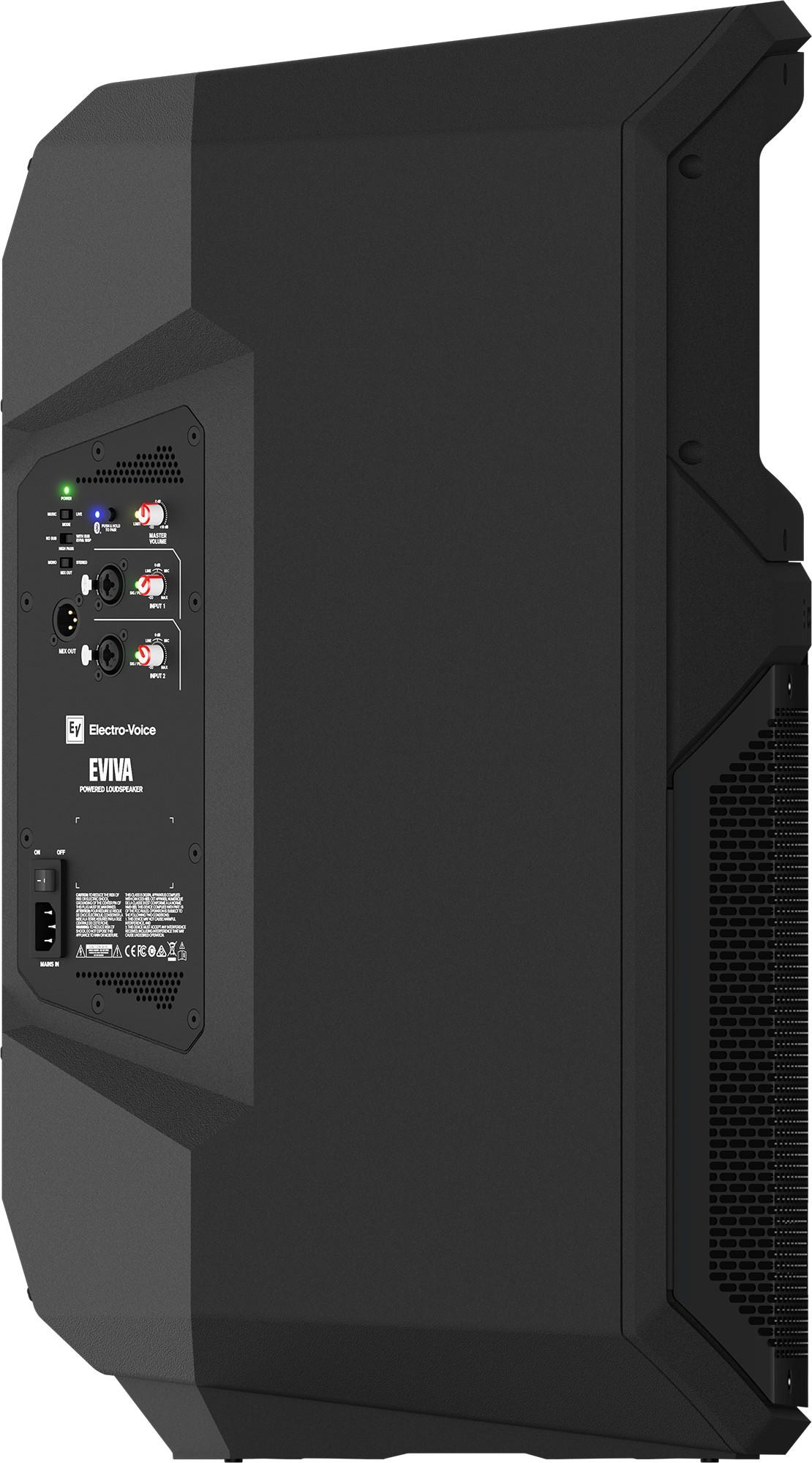

The rear panel is designed to get you up and running quickly. Two XLR combo mic/line inputs handle microphones, mixers and instruments, while an XLR mix output lets you daisy chain to another speaker or feed a recording or front of house system. Bluetooth audio streaming adds convenient wireless playback from phones, tablets and laptops, and a switchable mono or stereo mix output helps you configure your system for different setups.

Fast Setup and Easy Handling

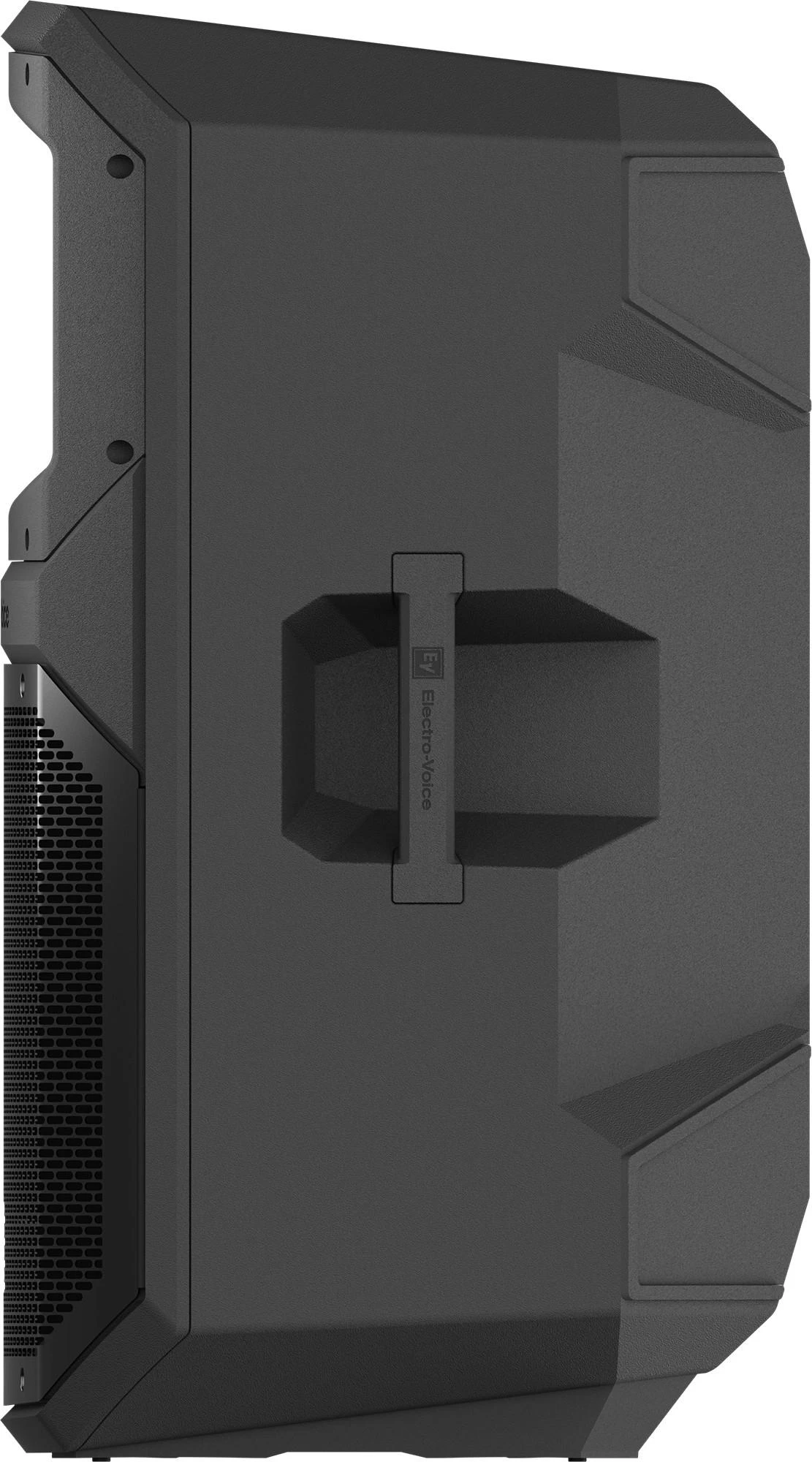

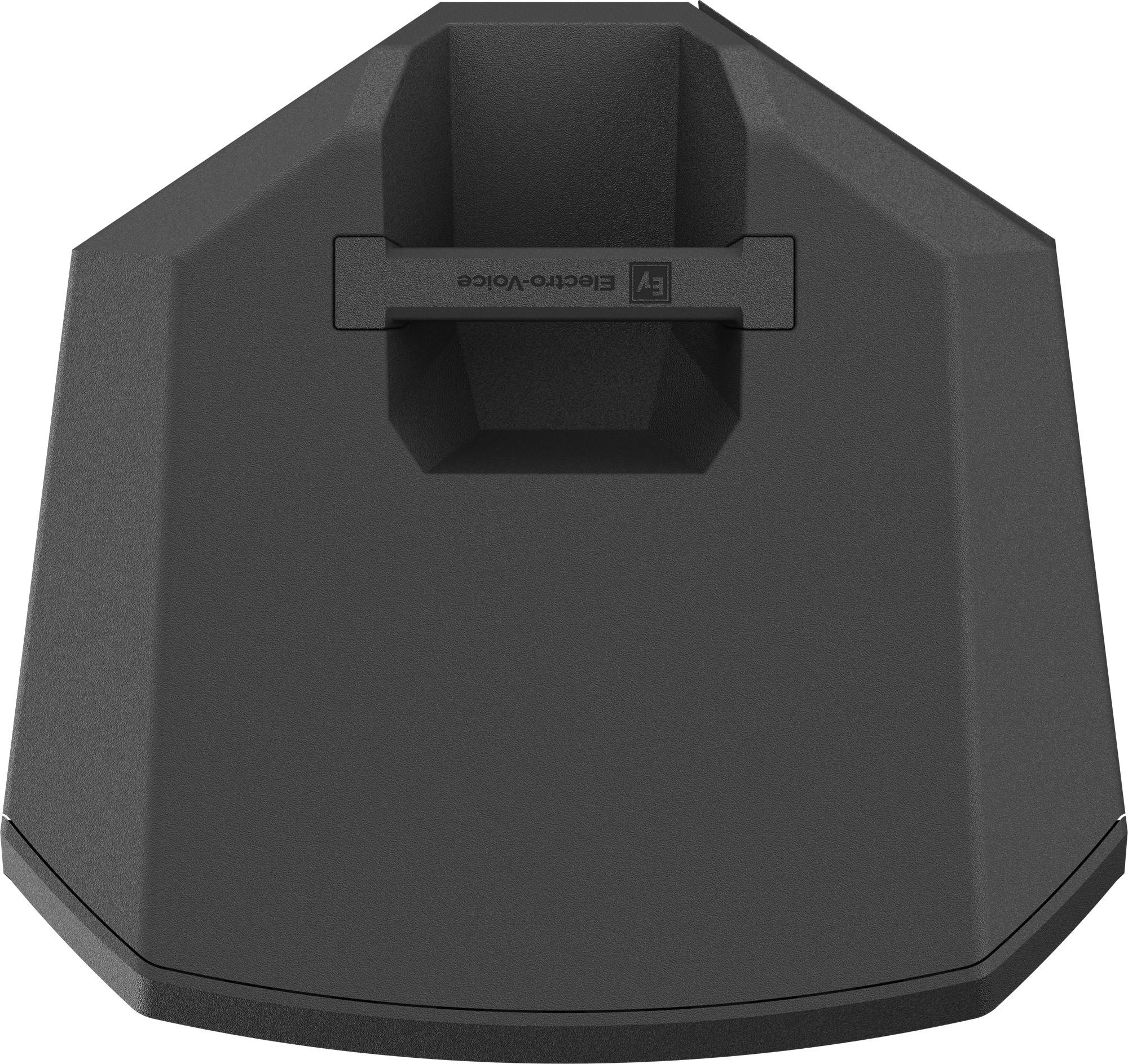

Weighing just 14.6 kg, EVIVA 15P is light enough for one person to move and position. Side and top handles, a bottom grab pocket and anti skid bottom feet make loading in and out more manageable, while the robust composite enclosure and half face powder coated steel grille provide protection where it is needed most. The control panel includes a single knob level adjustment with dual colour input metering and peak detection, plus switches for MUSIC or LIVE mode and for matching the high pass filter to use with or without an EVIVA 18SP subwoofer.

• 1000 Watt Power with 126 dB Max SPL - The built in amplifier delivers up to 1000 watts of power, giving EVIVA 15P enough output to handle demanding live situations. With a maximum SPL of 126 dB, it provides strong, punchy sound that can comfortably cover small venues and events without straining the system.
• Signature Electro Voice Sound with SST - Electro Voice’s patented SST (Signal Synchronized Transducers) and the custom neodymium high frequency compression driver work together to produce a smooth, articulate sound. This helps vocals sit clearly in the mix and ensures instruments retain detail across the 45 Hz to 20 kHz frequency range.
• Versatile Inputs and Bluetooth Streaming - Two XLR combo mic/line inputs, an XLR mix output and Bluetooth audio streaming give you multiple ways to connect. Whether you are running a simple vocal and backing track setup or linking several speakers together, EVIVA 15P adapts quickly so you can focus on the performance.
• Lightweight, Road Ready Design - The 14.6 kg composite enclosure, ergonomic handles, bottom grab pocket and anti skid feet make transport and positioning straightforward. Combined with the half face powder coated grille and universal 100 V to 240 V auto switching power input, EVIVA 15P is built to travel and perform reliably in a wide range of environments.

General

• Model: EVIVA 15P
• Type: 2 way full range powered portable loudspeaker
• Enclosure: Composite
• Colour: Black

Acoustic Performance

• Frequency response (minus 3 dB): 56 Hz to 17,000 Hz
• Frequency range (minus 10 dB): 45 Hz to 20,000 Hz
• Maximum SPL (1 m): 126 dB
• Crossover frequency: 1.9 kHz
• Coverage angle (H x V): 90 degree x 60 degree

Amplifier and Power

• Amplifier rating: 1000 W
• Power consumption: 100 to 240 V~, 50 to 60 Hz, 1.0 to 0.5 A
• Power input: IEC mains with auto switching universal voltage

Transducers

• LF transducer size: 15 inch
• LF transducer type: WECA2154H woofer
• LF transducer magnet material: Ferrite
• HF transducer size: 1 inch
• HF transducer type: DENA2504H compression driver
• HF transducer diaphragm material: Titanium coated PEI
• HF transducer magnet material: Neodymium

Connectivity and Controls

• Inputs: 2 x XLR combo mic/line inputs
• Outputs: 1 x XLR mix output
• Bluetooth: Audio streaming with switchable mono or stereo mix output
• Controls: Level adjustment knob with dual colour input signal metering and peak detection
• Modes: MUSIC / LIVE selection, high pass filter NO SUB / WITH SUB EVIVA 18SP

Physical

• Dimensions (H x W x D): 725 mm x 426 mm x 402 mm
• Dimensions (H x W x D) in inches: 28.54 in x 16.77 in x 15.83 in
• Weight: 14.6 kg
• Weight in pounds: 32.2 lb
• Shipping dimensions (H x W x D): 762 mm x 485 mm x 455 mm
• Shipping dimensions (H x W x D) in inches: 30.00 in x 19.10 in x 17.91 in
• Shipping weight: 19.5 kg
• Shipping weight in pounds: 43.0 lb
• Grille material: Powder coated steel, half face design
• Handles: Side and top handles, bottom grab pocket
• Feet: Anti skid bottom feet
