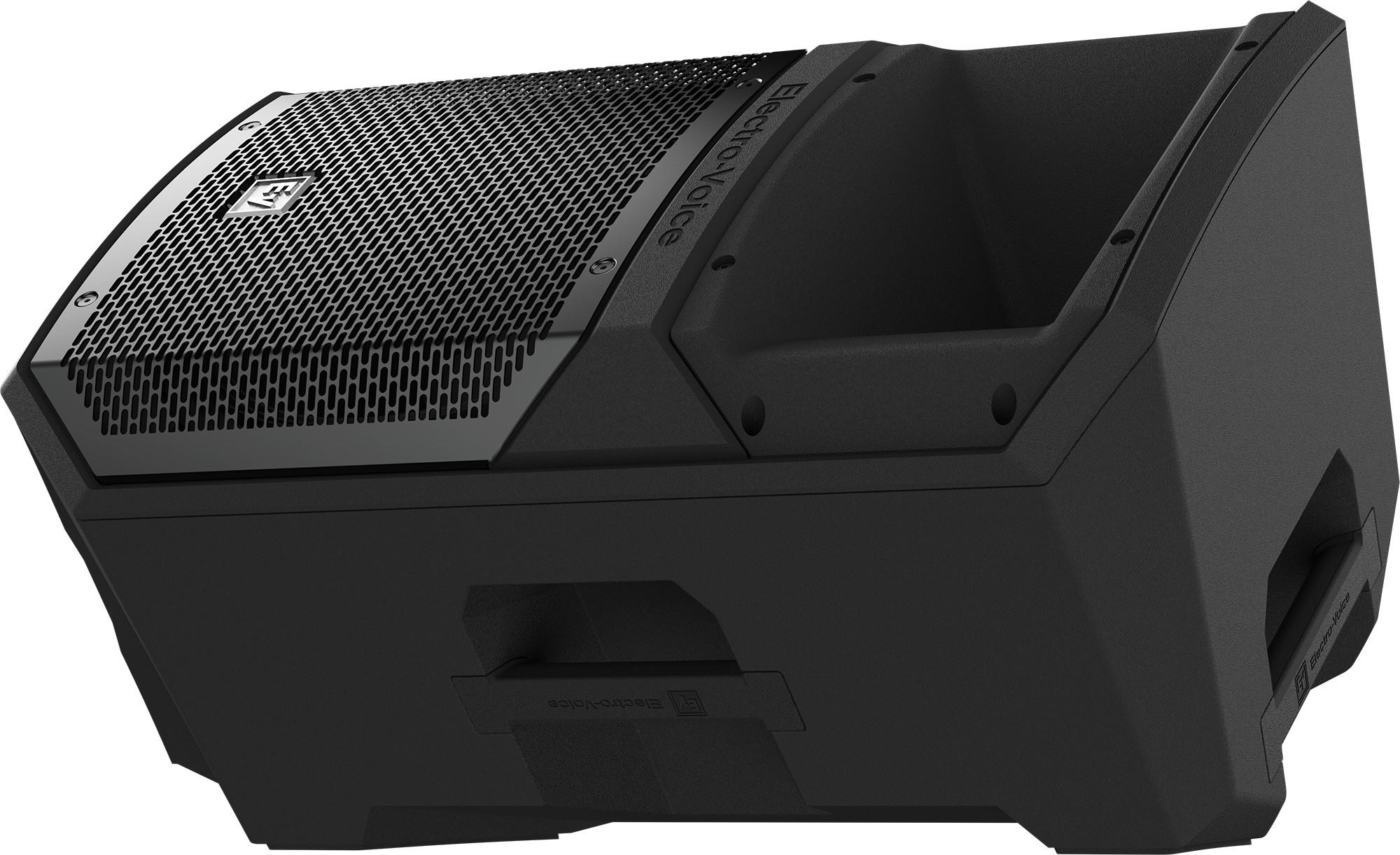

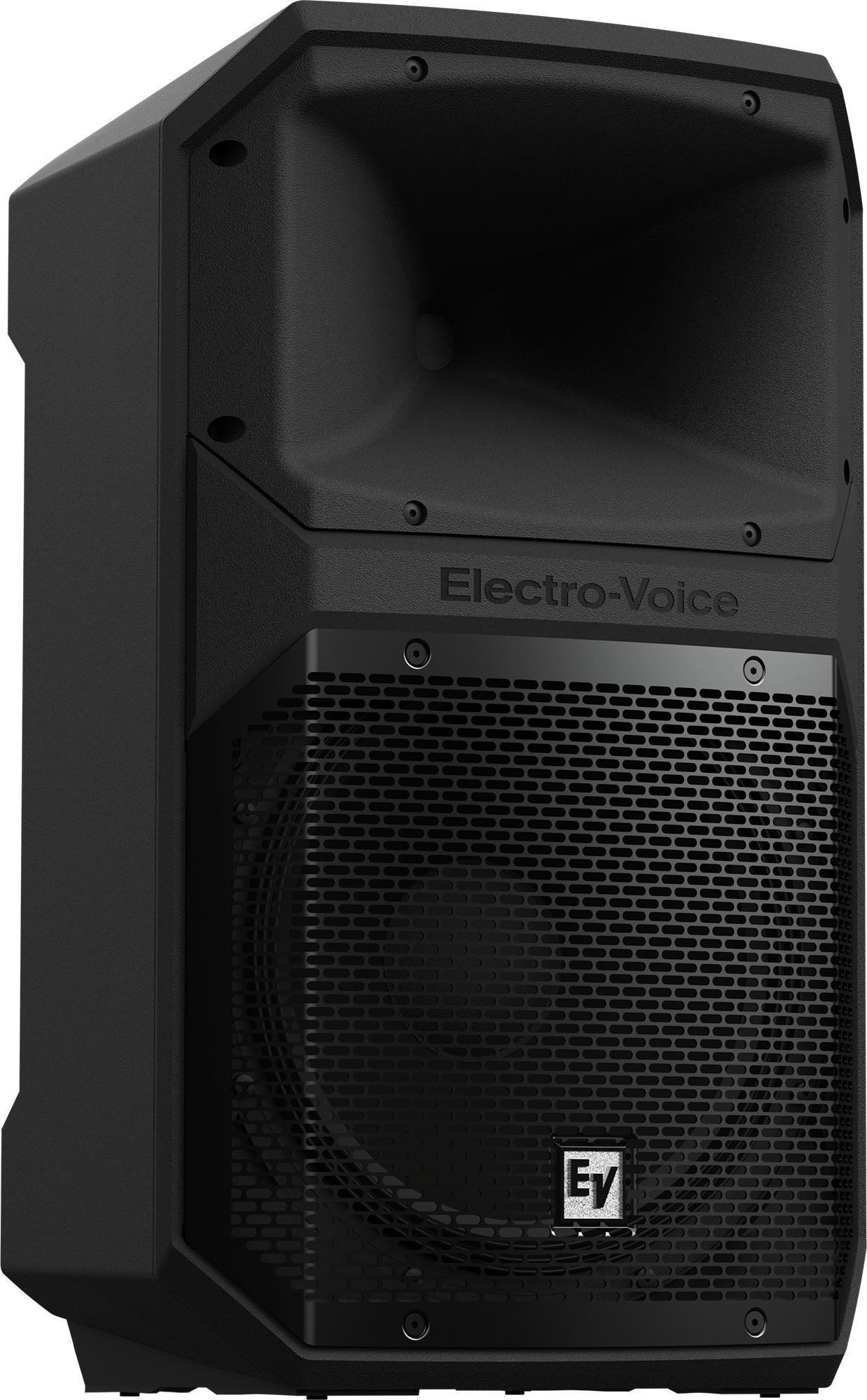

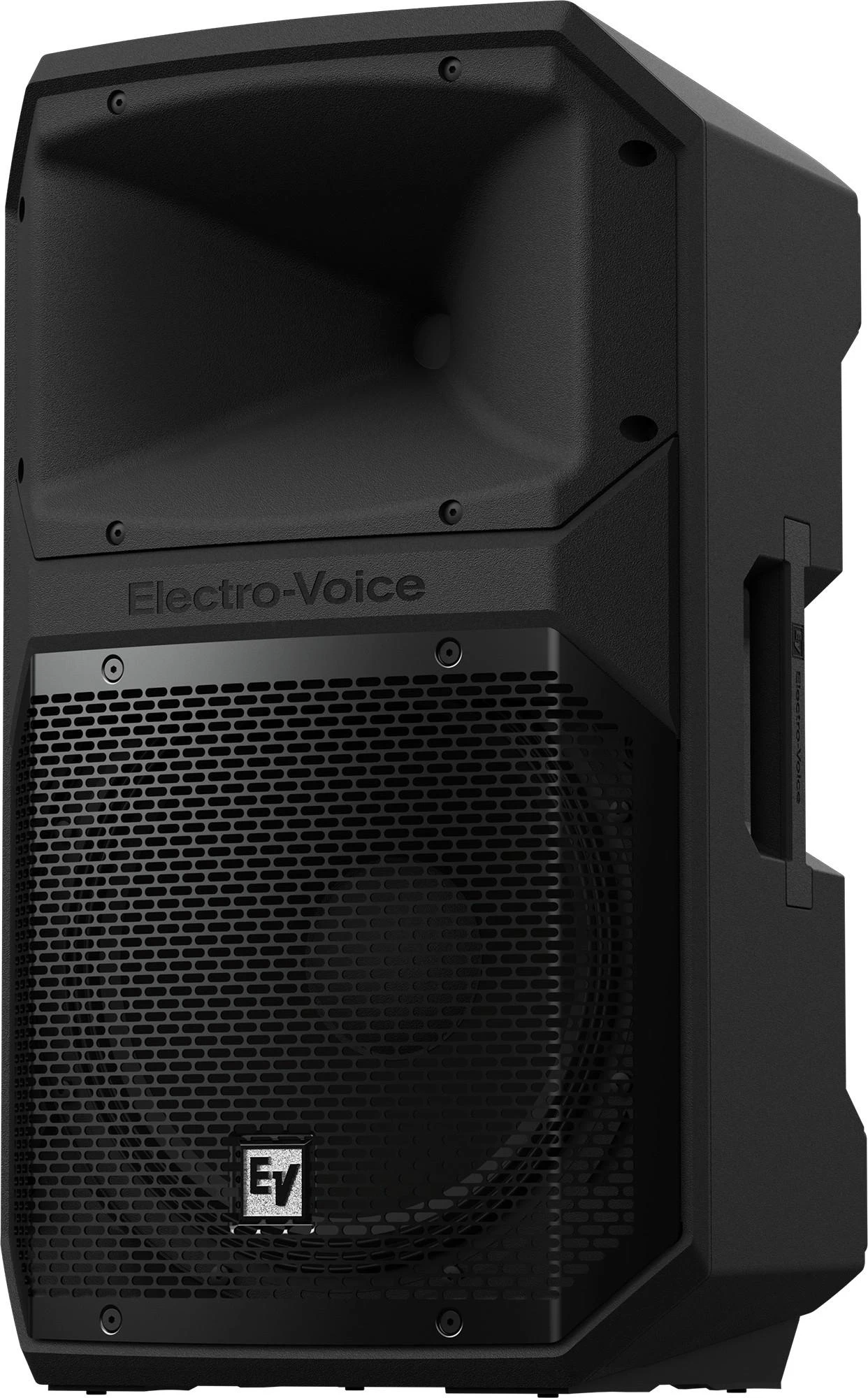

Electro Voice EVIVA 12P Active PA Speaker

The Electro Voice EVIVA 12P is a compact, 12 inch powered PA speaker designed to deliver signature Electro Voice sound quality in a portable, gig ready package. With a 1000 watt amplifier, 125 dB maximum SPL and simple, flexible connectivity, it is ideal for musicians, DJs and small venues who need reliable, professional sound that sets up in minutes.

Weighing just 12 kg and featuring ergonomic handles and a rugged composite enclosure, the EVIVA 12P is built for life on the road. Bluetooth audio streaming, selectable Music and Live voicing modes and a handy NO SUB / WITH SUB high pass filter make it quick to tailor to any event, from solo acoustic sets and band foldback to DJ parties and corporate presentations.

Portable Powerhouse for Performers and DJs

The EVIVA 12P combines a powerful 1000 watt amplifier with a 12 inch woofer and 1 inch compression driver to deliver a maximum SPL of 125 dB. This gives you plenty of headroom for louder gigs while maintaining clarity and punch. Its 90° x 60° coverage pattern ensures even sound across the audience area, so everyone hears the same detailed mix whether they are front and centre or off to the side.

Signature Electro Voice Sound

At the heart of the EVIVA family is Electro Voice’s focus on sound quality. The EVIVA 12P features patented SST (Signal Synchronised Transducers) technology and a custom high energy neodymium high frequency compression driver. Together they provide a smooth, coherent response across the 50 Hz to 20 kHz frequency range, with tight low end, articulate mids and crisp highs that flatter vocals, instruments and playback tracks alike.

Fast, Flexible Setup

The rear panel keeps things simple so you can get up and running quickly. Two XLR combo mic/line inputs handle everything from microphones and mixers to keyboards and DJ controllers, while an XLR mix output lets you daisy chain to another speaker. A single level control per channel with dual colour signal metering and peak indication makes gain staging straightforward, and Bluetooth audio streaming allows easy playback from compatible devices without extra cables.

Ready for Subwoofers and Installations

The EVIVA 12P includes a high pass filter switchable between NO SUB and WITH SUB EVIVA 18SP, making it easy to integrate with a matching subwoofer for more demanding applications. Universal 100 V to 240 V auto switching mains input ensures reliable performance in different regions. The robust composite enclosure, powder coated steel grille and anti skid feet are designed for repeated setup and teardown, while compatibility with optional wall brackets, poles, tripods and transport accessories supports both mobile and installed use.

• 1000 Watt Amplifier with 125 dB Max SPL - The high power amplifier and efficient driver combination deliver up to 125 dB of clean output, giving you enough volume and headroom for louder gigs without sacrificing clarity or dynamics.
• Selectable Music and Live Modes - Dedicated voicing presets optimise the speaker for different applications. Music mode enhances full range playback for DJs and background music, while Live mode focuses on vocal presence and instrument detail for bands and performers.
• Bluetooth Audio and Flexible I/O - Two XLR combo mic/line inputs, an XLR mix output and Bluetooth audio streaming make it easy to connect microphones, mixers, instruments and mobile devices, simplifying your setup and reducing the need for extra hardware.

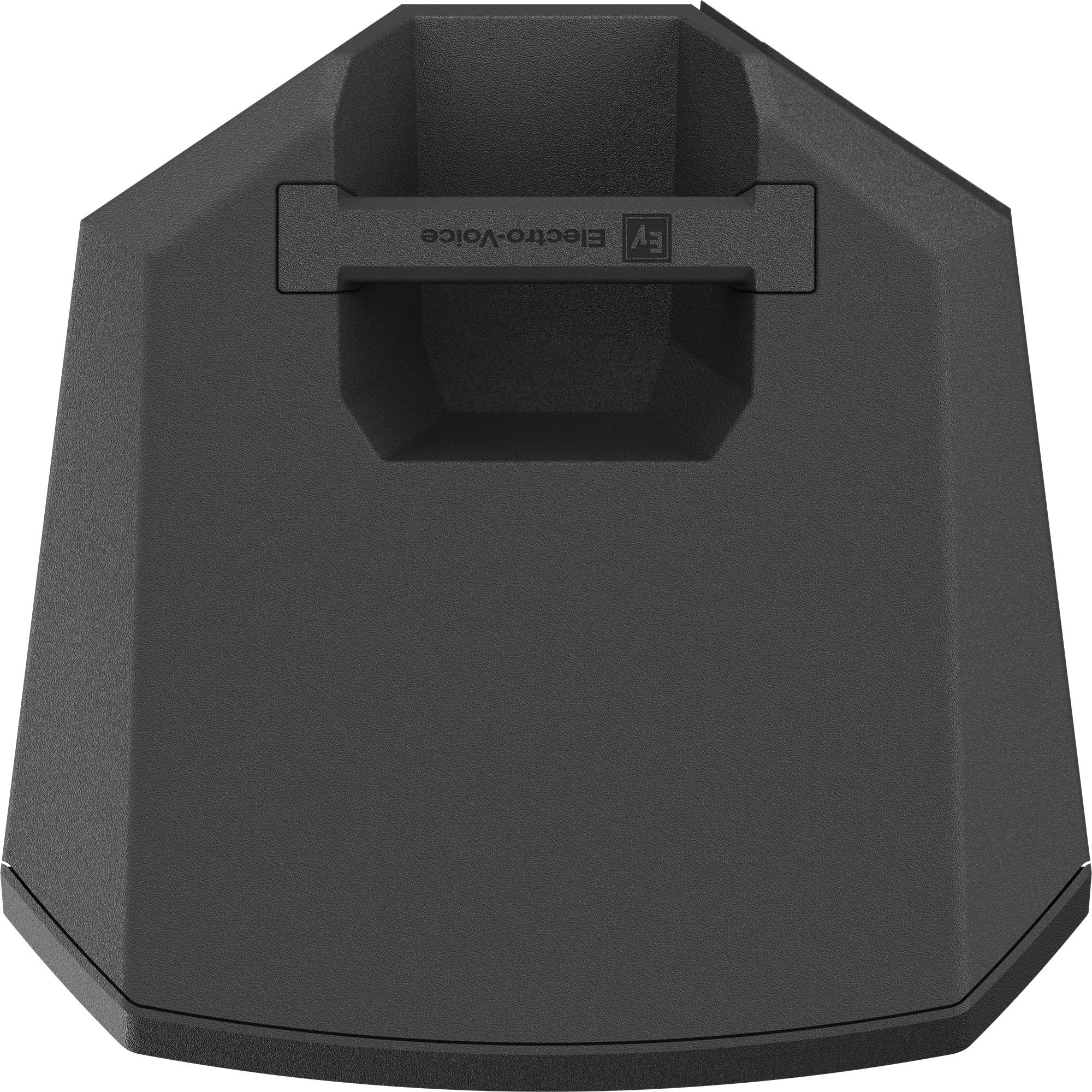

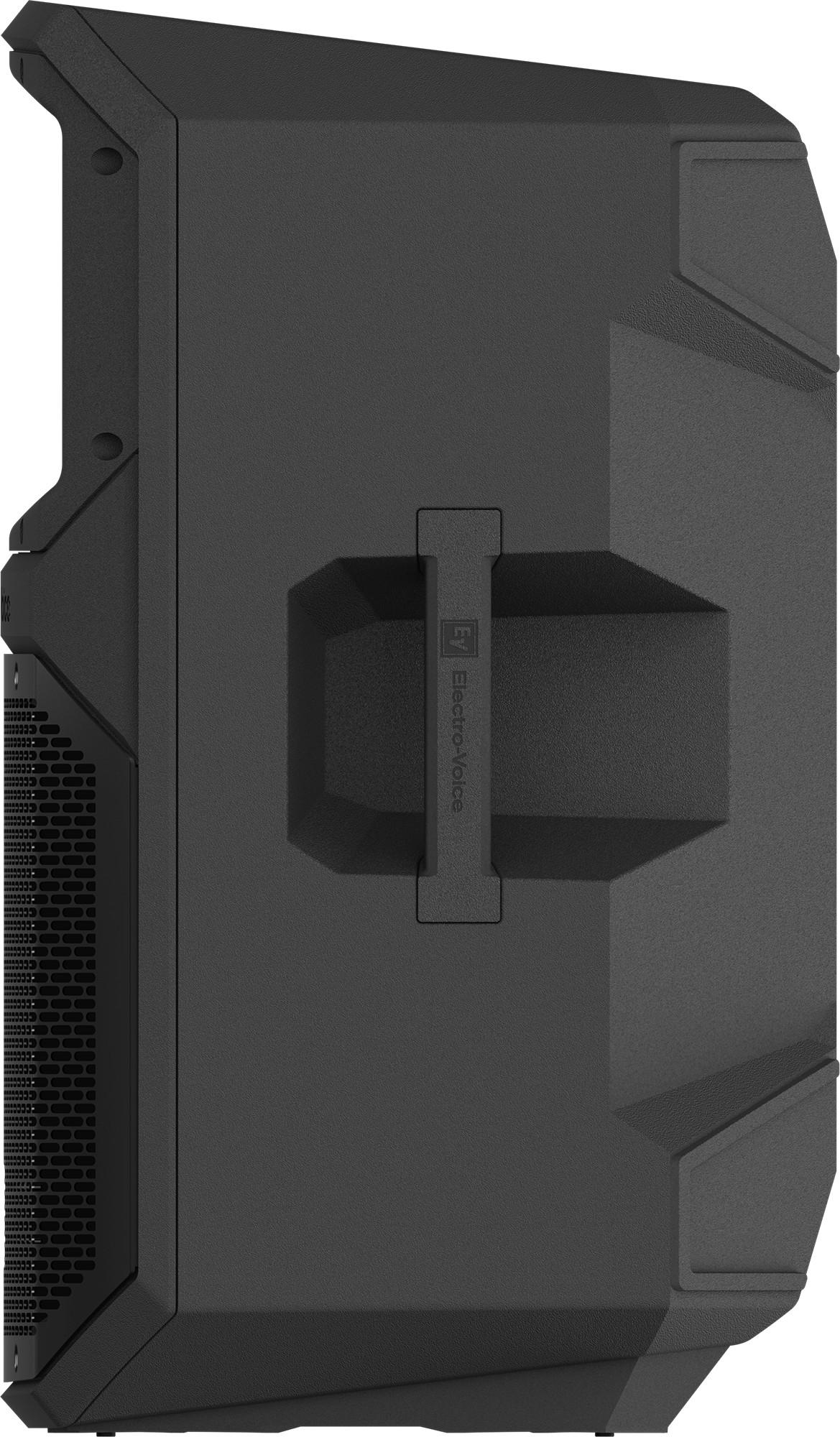

• Lightweight, Road Ready Design - Weighing only 12 kg with side and top handles, a rear grab slot and anti skid feet, the EVIVA 12P is easy to carry, position and stack. The composite enclosure and powder coated steel grille provide durability and a professional appearance on stage.

General

• Model: EVIVA 12P
• Type: 2 way powered portable loudspeaker
• Colour: Black

Acoustic Performance

• Frequency Response (−3 dB): 63 Hz to 18,000 Hz
• Frequency Range (−10 dB): 50 Hz to 20,000 Hz
• Maximum SPL (1 m): 125 dB
• Crossover Frequency: 2.2 kHz
• Coverage (H x V): 90° x 60°
• Operating Modes: Music / Live
• High Pass Filter: NO SUB / WITH SUB EVIVA 18SP

Amplifier and Power

• Amplifier Power Rating: 1000 W
• Power Consumption: 100 to 240 V~, 50 to 60 Hz, 1.0 to 0.5 A
• Mains Input: IEC with auto switching universal voltage

Transducers

• LF Driver Size: 12 in
• LF Driver Type: WECA2124H woofer
• LF Magnet Material: Ferrite
• HF Driver Size: 1 in
• HF Driver Type: DENA2504H compression driver
• HF Diaphragm Material: Titanium coated PEI
• HF Magnet Material: Neodymium
• Technology: SST (Signal Synchronised Transducers)

Connectivity

• Inputs: 2 x XLR combo mic/line inputs
• Outputs: 1 x XLR mix output
• Bluetooth: Audio streaming

Enclosure and Hardware

• Enclosure Material: Composite
• Grille: Powder coated steel, half face design
• Handles: Side and top handles, rear grab pocket
• Feet: Anti skid bottom feet

Dimensions and Weight

• Dimensions (H x W x D): 603 mm x 353 mm x 352 mm
• Dimensions (H x W x D) (inches): 23.74 in x 13.89 in x 13.86 in
• Weight: 12.0 kg
• Weight (lb): 26.5 lb
• Shipping Dimensions (H x W x D): 645 mm x 410 mm x 410 mm
• Shipping Dimensions (H x W x D) (inches): 25.39 in x 16.14 in x 16.14 in
• Shipping Weight: 15.5 kg
• Shipping Weight (lb): 34.2 lb
