Dawner Prince Eclipsa Rotary Cabinet Emulator Pedal
FREE UK Delivery
Earn 499 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: DP-ECLIPSA
You Might Also Like
Product Description
Based on the now legendary Yamaha RA-200 Rotary Speaker system, the Dawner Prince Electronics Eclipsa captures the tone, heart and soul of this long-discontinued unit and squeezes it into a premium stage-ready pedal, built for the needs of modern players.
Featuring a solid-state preamp inspired by the warm and articulate feel and sound of the Alembic F-2B preamps, the Eclipsa is the perfect solution for incorporating a slice of one of the most famed and replicated electric guitar rigs of all time. Along with controls for the preamps volume and EQ, along with slow and fast speeds, mic placement, acceleration time between fast and slow speeds and a blend for the rotary and static speakers, dialling in your ultimate rotary sound couldn't be simpler. There's even an expression pedal input for speed control on the fly.
Just like the original system, the Eclipsa is based on three independently driven rotating drivers in combination with a static 4x12 for a rotary sound unlike any other. It’s a sound that evolves as notes sustain, evoking a unique spatial character that, once experienced, is hard not to use. With full MIDI control, true bypass switching, 127 presets, and true stereo outputs, the Eclipse rotary speaker pedal is the perfect choice for fitting into any live or studio setup.

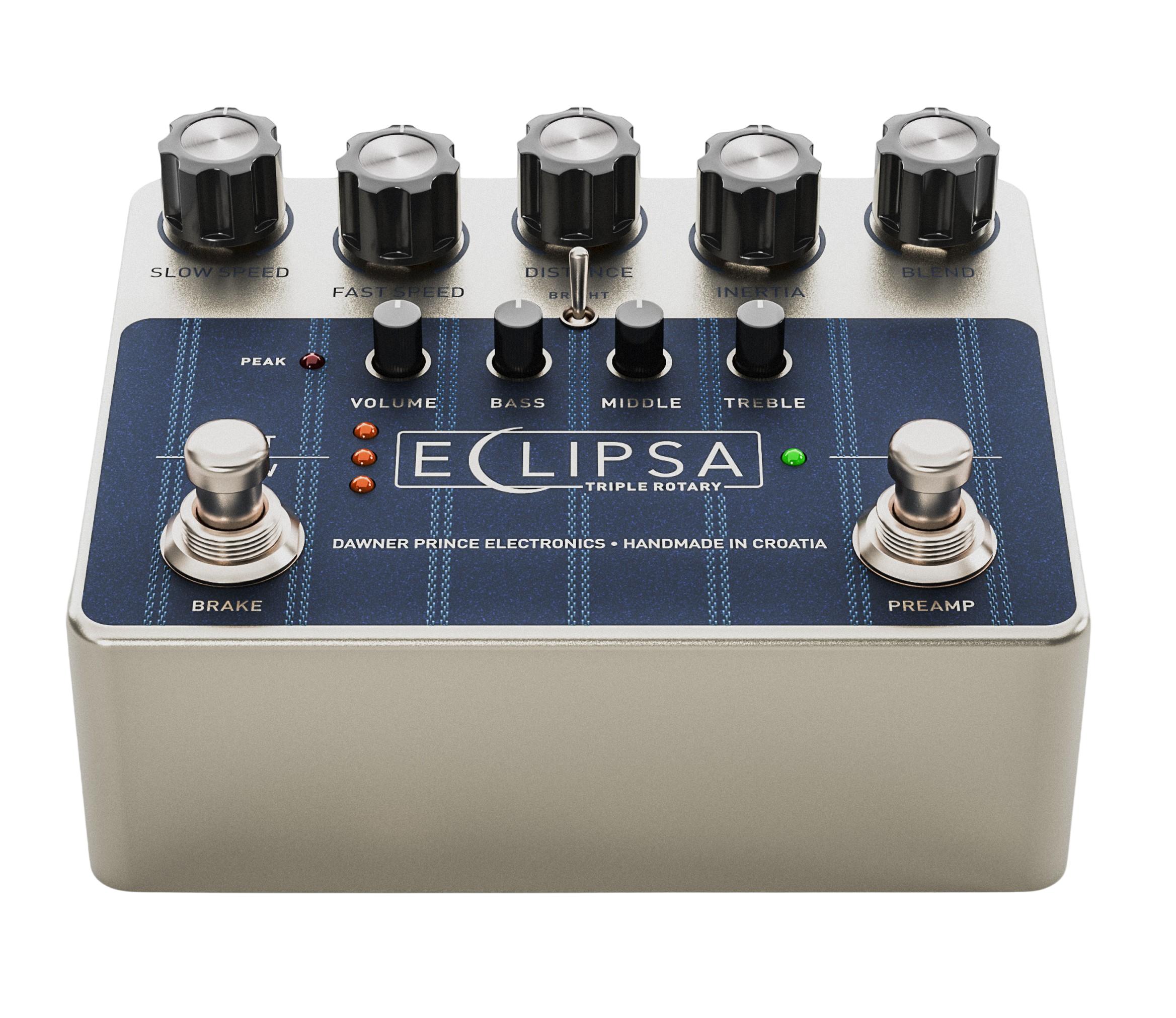

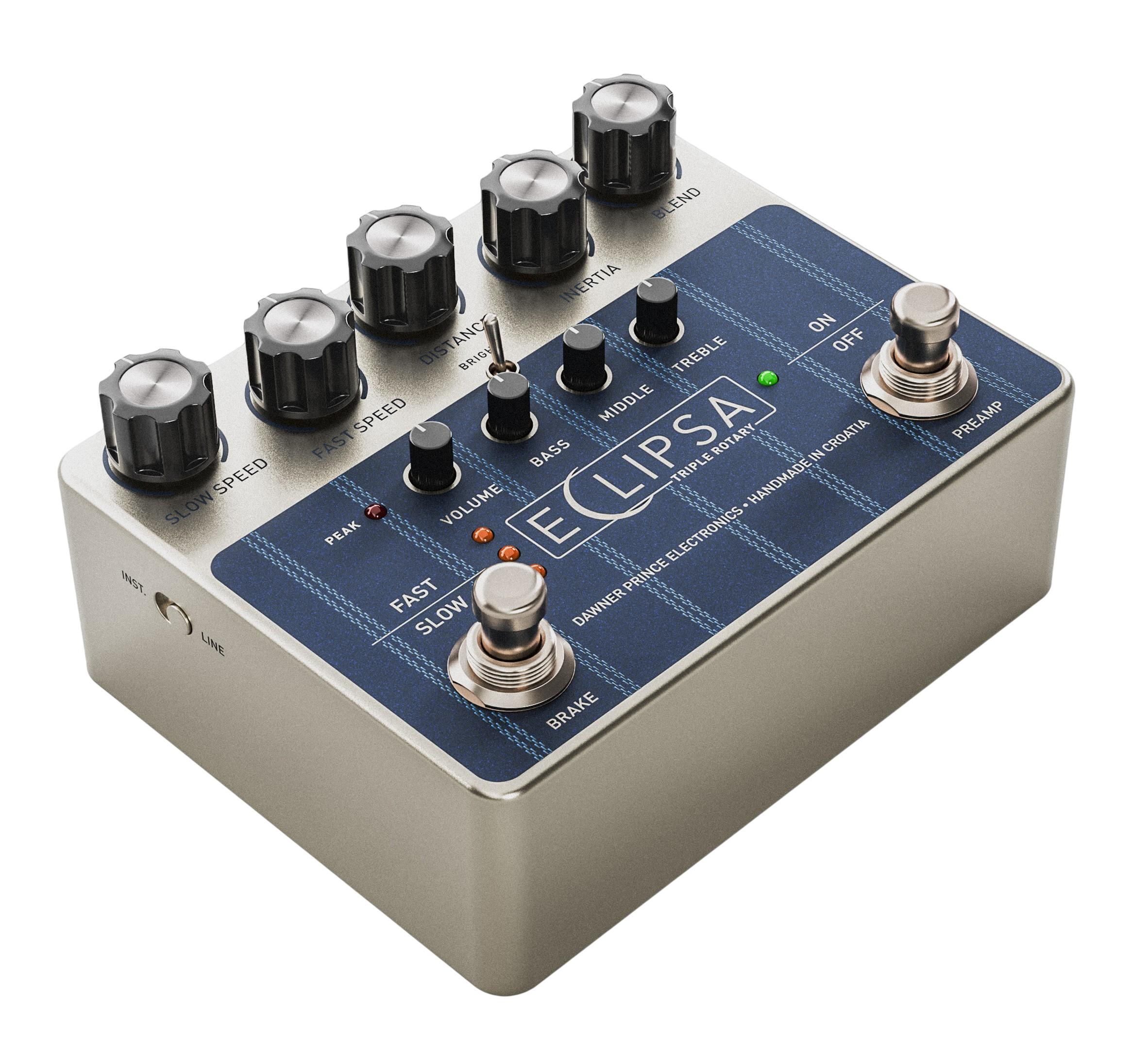

Controls and I/O
- Slow Speed - Controls rotary speed in Slow mode.
- Fast Speed - Controls rotary speed in Fast mode.
- Distance - Adjusts the virtual microphone position relative to the rotary cabinet.
- Inertia - Sets acceleration and deceleration time between speed transitions.
- Blend - Mixes the rotary cabinet signal with a static 4×12" speaker simulation.
- Volume - Sets preamp output level and influences saturation. The Peak LED indicates when clipping is approached.
- Bass - Adjusts low-frequency response with warm, musical character.
- Middle - Controls midrange presence and note definition.
- Treble - Sets high-frequency articulation and top-end clarity.
- Bright - Adds subtle high-frequency emphasis at lower Volume settings.

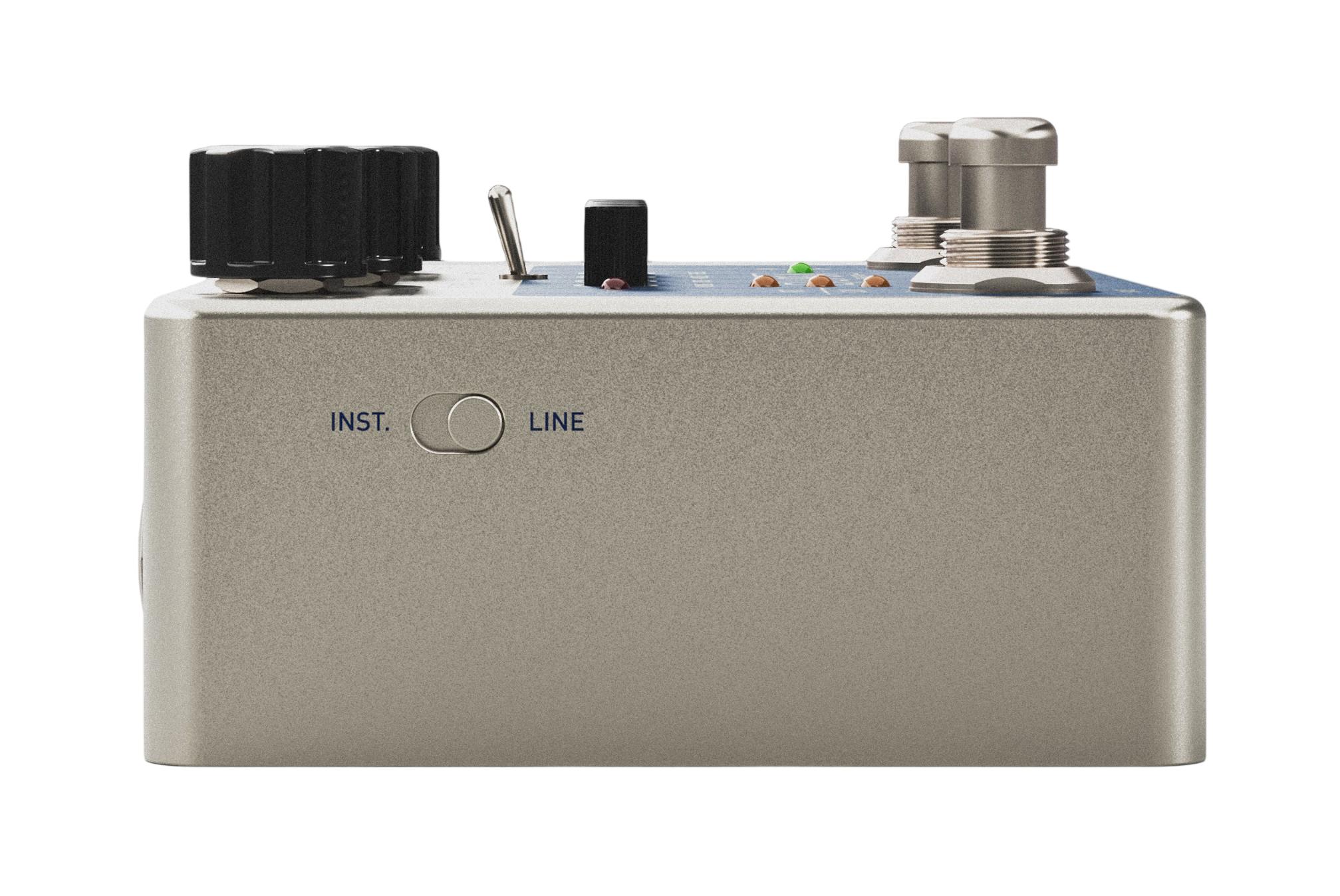

- Instrument / Line Switch - Configures the input stage for guitars, high-output pickups, synthesizers, and line-level equipment.
- True / Buffered Bypass - ON/OFF footswitch with bi-color LED. Hold to switch between True Bypass and buffered Preamp-On modes.
- Fast / Slow / Brake - Tap to switch speeds. Hold to engage Brake mode. Three LEDs indicate rotor speed and Distance settings.
- EXT IN (Expression Input) - Expression pedal input for continuous rotary speed control.
- MIDI In / Thru - Full support for Control Change parameter control and Program Change preset recall (127 presets plus Live Mode), with configurable MIDI channel assignment.
- Stereo Outputs - Left/Mono and Right outputs derived from three virtual microphone signals.
Features
- Yamaha RA-200–inspired rotary cabinet emulation
- Integrated Alembic F-2B–style preamp
- Full MIDI control + 127 presets
- Magnetic, contactless true bypass system
- Stereo outputs via three virtual microphones
- Instrument/Line input
- Low-noise design (~140 mA consumption)
- Custom CNC-machined aluminium enclosure
Specifications
- Power Input Voltage: 9V DC
- Power Input Connector: 5.5 mm / 2.1 mm barrel (center-negative)
- Power Consumption: ~140 mA
- Size: 3.58” × 4.17” × 1.57”
- Weight: 0.99 lb
