Zoom F8NPro Field Recorder

Here's what Zoom say about the F8n Pro Multitrack Field Recorder

After over 3 years of great success with the ever-popular F8n, Zoom are proud to announce a new flagship model among Zoom professional field recorders, the Zoom F8n Pro. The F-Series has already set a major benchmark with its professional-level devices available for accessible prices. The new F8n Pro maintains the winning form factor of the F8n while introducing expanded advanced features and hardware upgrades aimed at professionals. The new F8n Pro will now support 32-Bit Float Recording introduced for the first time with the popular F6. The F8n Pro features 8 discrete inputs, 10 tracks of simultaneously recording, dual A/D converters, up to 192 kHz sampling frequency, low-noise preamps with up to 75dB gain, +4dB In/Out levels, integrate advanced look-ahead hybrid limiters, Zoom’s original AutoMix™ function, accurate 0.2ppm timecode, three power options and redundant recording on 2 SD cards thus proofing its professional appeal. Furthermore, it can be used as an 32-bit float/96kHz USB audio interface with 8 inputs and 4 outputs and allows simultaneous recording on the internal SD cards and via USB. The extensive support for Ambisonics Audio and the ability to externally control the F8n Pro via the separately sold F-Control - or wirelessly via the F8n Pro Control App for Android or iOS make the F8n Pro an indispensable tool for all professional filmmakers and the new secret weapon on every set. The F8n Pro will be available in Q2 2022.

Key Features

• 32-bit float recording technology
• 8-channel/10-track field audio recorder/mixer
• Records in BWF-compliant WAV format up to 192kHz/32-bit float

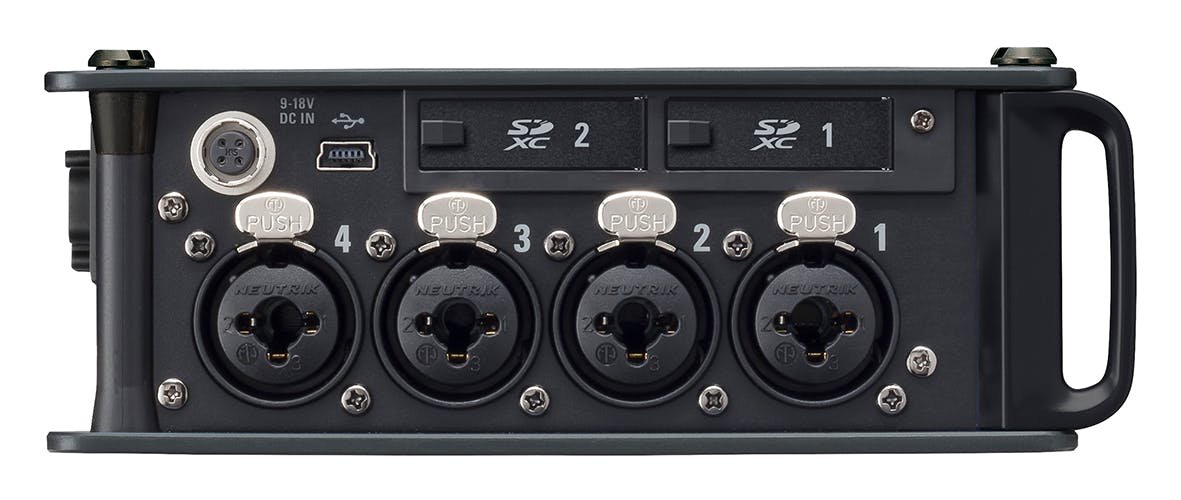

• 8 discrete inputs with locking Neutrik XLR/TRS combo connectors
• High quality mic preamps with up to 75 dB gain and less than -127 dBu EIN
• Switchable +4dB inputs with mic/line options for both XLR and TRS
• Accurate Time Code (0.2 ppm when on and up to 0.2 ppm when powered off) I/O on standard BNC connectors; dropframe/non-drop formats with Jam Sync
• Zoom AutoMix™ software
• Three different power supply options: 8x AA batteries, external DC battery pack with Hirose connector, or 12V AC adapter (AA’s and DC battery pack not included)
• High pass filter, phase invert, and mid-side decoder
• Dual mini-XLR (TA3) balanced Main Outs plus ⅛" stereo mini-jack Sub Out
• Dedicated headphone output (100 mW) with front panel volume control
• 2.4" full-colour backlit LCD with monochromatic mode
• Dual SD/SDHC/SDXC card slots, up to 1 TB each
• Use as an 8-in/4-out USB audio interface
• Free Zoom F8 Control App for iOS and Android allows wireless remote control, file renaming, and metadata entry

ZOOM’S NEW FLAGSHIP FIELD RECORDER

Filmmakers and sound professionals know the importance of sharp, clean audio in storytelling. From the click of a seatbelt to the roar of an engine, the F8n Pro’s 8 inputs capture full dynamic range using 32-bit float technology.

CREATE IMMERSIVE AUDIO

With 8 inputs and 10 tracks, the F8n Pro can capture the most complex audio, expanding your options so that you can create sonic magic in post.

EXPLOSIVE AUDIO

32-Bit Float is a game-changer. The F8n Pro uses dual A/D converters and professional-grade preamps to capture clip-free audio – without ever needing to adjust gain!

MULTIPLE FEEDS

The F8n Pro has three outputs for external devices, headphones, and camera connections. You can keep tabs on your tracks pre or post-fader, check levels, route signals to the left or right and set alert tones for battery and recording status.

Formatting Options

The F8n Pro records in BWF-compatible WAV formats up to 32-bit resolution and at sample rates up to 192 kHz.

Built-in Processing

The F8n Pro features flexible signal routing from all inputs to all outputs, phase inversion and mid-side decoding. It also provides high-pass filtering to reduce the sound of wind and other noise. Input and output delays are also available.

State-of-the-Art Timecode

Keep your tracks perfectly synced even when you power down. On or off, the F8n Pro’s Temperature Compensated Crystal Oscillator (TCXO) generates time code at 0.2 ppm accuracy.

Stay Focused With Zoom Automix™

Zoom AutoMix lets you keep your eyes on the action by automatically adjusting the levels of your mix to reduce ambient sound.

Full Metadata Entry

The track name, scene names, notes, and more can be entered directly from the unit or via the Zoom F8 Control App for iOS / Android.

SIX SECONDS OF AUDIO

The pre-record function allows you to capture up to 6 seconds of audio before you hit the RECORD button, guaranteeing you never miss a take.

RECORD AND STREAM, TOGETHER

When connected to your computer, the F8n Pro can be used as a 8-in / 4-out audio interface. Record and stream in 32-bit float / 96kHz while simultaneously recording to SD cards.

GO MOBILE

The F8 Control App (for iOS / for Android) lets you visually monitor signals, adjust levels, trigger transport controls, enter metadata and more from your Android device, iPhone or iPad via Bluetooth.

360º AUDIO

The F8n Pro’s Ambisonics mode offers precision A-to-B decoding and balanced gain linking, enabling you to capture spatial audio for VR, AR and more.

Technical Specifications

INPUT 1 - 8:

• Connectors: XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot)

INPUT SOURCE SET TO MIC (→ SETTING THE INPUT SOURCE (INPUT SOURCE))

• Input gain: +10 – +75 dB
• Input impedance: 3 kΩ or more
• Maximum input level: +4 dBu (at 0 dBFS)
• Phantom power: +24/+48 V, 10 mA maximum per channel

EQUIVALENT INPUT NOISE:

• 127 dBu or less (A-weighted, +75 dB input gain, 150 Ω input)

FREQUENCY RESPONSE

• 20 Hz – 60 kHz, +0.5 dB/−1 kHz (192 kHz sample rate)

A/D DYNAMIC RANGE

• 113 dB typ. (−60 dBFS input, A-weighted)

CROSSTALK

• −90 dB or less (between adjacent channels, 1 kHz)

MIC IN

• ZOOM mic capsule input (use disables Inputs 1/2)

SLATE MIC

• Built-in mic for voice memos can be assigned to tracks freely

OUTPUTS

MAIN OUT 1/2

• Connectors: TA3 connectors (balanced output, 2: hot)
• Output impedance: 150 Ω or less
• Reference output level: −10 dBV (normal output level) +4 dBu (line output level) 1 kHz, 600 Ω load
• Maximum output level: +10 dBV (normal output level) +24 dBu (line output level) 1 kHz, 600 Ω load

SUB OUT 1/2

• Connectors: 3.5 mm stereo mini (unbalanced output)
• Output impedance: 100 Ω or less
• Reference output level: −10 dBV (normal output level) −40 dBu (mic output level) 1 kHz, 10 kΩ load
• Maximum output level: +10 dBV (normal output level)

HEADPHONE

• Connector: 1/4 inch stereo (unbalanced output)
• Output impedance: 18 Ω or less
• Maximum output level: 100 mW + 100 mW (32 Ω load)

D/A DYNAMIC RANGE

• 105 dB typ. (−60dBFS input, A-weighted)

RECORDING MEDIA

• Dual SD card slots: SDHC cards: 4 GB – 32 GB
• SDXC cards: 64 GB – 1 TB

USB

• Connector: Mini-B

POWER CONSUMPTION

• 15 W

EXTERNAL DIMENSIONS

• 7.0 in. (W) × 5.5 in. (D) × 2.1 in. (H)

WEIGHT (INCLUDING BATTERIES)

• 1200 g
