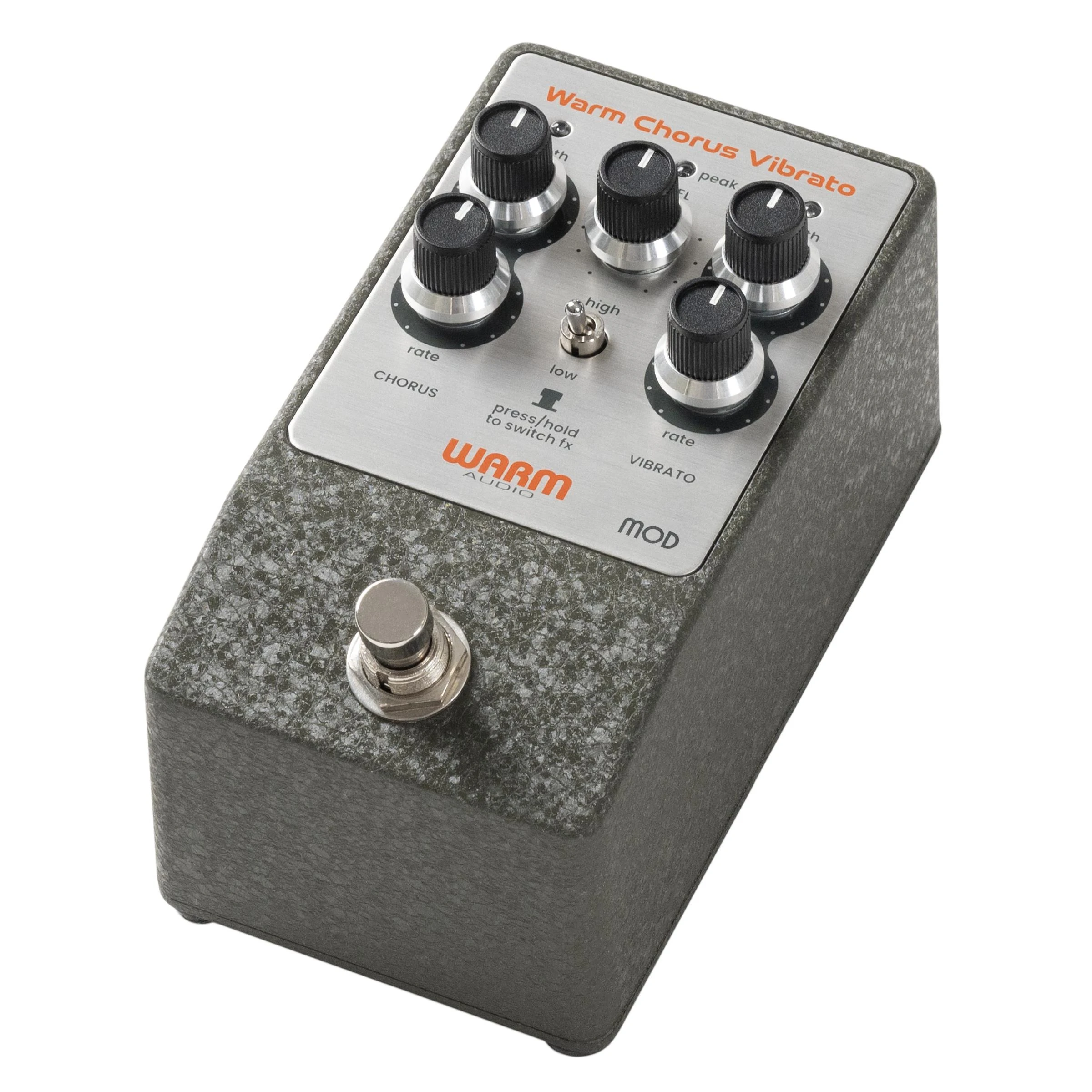

Warm Audio WA-C1 Mod Compact Chorus Vibrato Pedal
A pedalboard-friendly recreation of one of the most desirable all-analogue chorus circuits ever made. Enhanced with separate Depth and Rate controls, selectable impedance and thoughtful modern upgrades.
FREE UK Delivery
Earn 200 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose Click and Collect as your delivery option online or, during store opening hours, call our sales team on 01483 456777 for assistance with placing your order.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that stock availability can change quickly both online and in-store, so we would always recommend placing your Click and Collect order as soon as possible to reserve your item.
SKU: WA-C1-MOD
You Might Also Like
Ask anything about this product
Product Description
The Warm Audio WA-C1 Chorus Vibrato Mod brings one of the most iconic modulation pedals ever made to a modern, pedalboard-friendly format. It's packed with all-analogue goodness, delivering the rich, swirling chorus and vibrato tones that defined countless classic records, while adding a few smart upgrades for today's players.
Classic chorus, expanded
The lush Chorus mode stays true to the original sound, but separate Depth and Rate controls give you far more flexibility than vintage units ever offered. Whether you're after subtle shimmer or deep, watery modulation, the Warm Audio WA-C1 makes it easy to dial in everything from gentle movement to full-on '80s chorus magic!
Authentic vibrato & modern refinements
The Vibrato circuit remains faithful to the legendary original design too, delivering beautifully expressive pitch modulation. There's also a fully analogue preamp up front (which can be bypassed), renowned for its touch-sensitive feel and responsiveness, while a rear-panel Hi-Z switch helps optimise the pedal for guitar signals vs. keyboards — adding extra top-end clarity when needed.
Features
- Classic modulation, modern mods: This pedal faithfully recreates the world’s most celebrated all-analogue chorus and vibrato circuit. The modded WA-C1 also adds the ability to bypass the preamp, to work with setups that require meticulous gain-staging — all in a more compact, pedalboard-friendly enclosure. It preserves the single input stage with a wet/dry stereo output too, and leverages top-mounted jacks to easily slot into any board.
- Pure analogue preamp: The WA-C1 Mod has a 100% analogue preamp, matched to the renowned original, with a Level control that adds bite, depth and even some natural compression. It preserves this preamp and also allows for quick bypassing by engaging Modern mode over Vintage to manage complex gain-staging in signal chains.
- Dual DC-DC voltage converter: The whole circuit is supported internally with a dual DC-DC voltage converter, to deliver robust power even when using an external 9V power supply.
- Deep, lush chorus: The pedal provides the lush midrange depth and detail associated with proper Bucket Brigade Device (BBD) analogue chorus pedals. With a modern MN3007 BBD chip recreation and other premium components, the WA-C1 Mod is clocked to match the depth and rate of the original pedal to reproduce the sounds expected from the most sought-after vintage units.
- Rich, three-dimensional vibrato: When it’s really time to wobble, engage the Vibrato setting for added speed and bounce to your tone. Experimenting with this side yields rotary-like modulation tones perfect for funk, fusion, blues, jazz and more. WA-C1 Mod adds a flashing LED for effect monitoring on the face, showing which setting is engaged along with the rate of the modulation.
- Separate Depth & Rate controls for chorus: The WA-C1 Mod has separate Depth and Rate controls vs. the vintage ‘Intensity’ knob. On vintage pieces, this control increased only the rate as the depth was fixed. But with the WA-C1 Mod, you can go beyond the limitations of the older pedals by dialling in more subtle depth and variable rates for a larger palette of chorus tones.

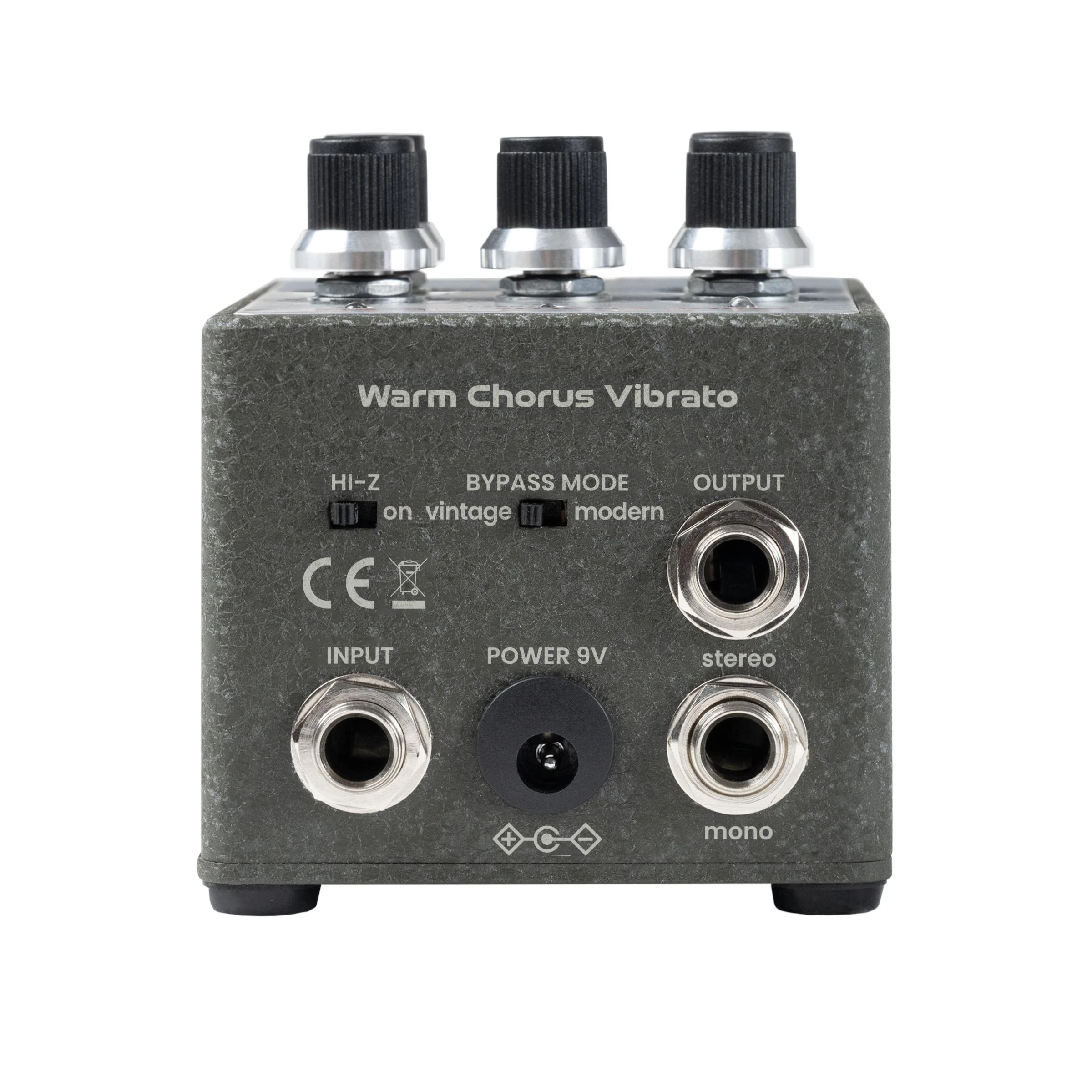

- Selectable impedance for multiple sources: The WA-C1 Mod has selectable impedance on the back panel, which lets you choose between the vintage input impedance of 50k ohm and a 1.1M Hi-Z setting better suited for passive stringed instruments to bring out clarity. This switch also works in bypass mode to maintain clarity while the pedal is not in use.
- Hand-tested in Austin, TX: Like all Warm Audio gear, the WA-C1 Mod has a 5-year warranty and is carefully hand-tested and inspected by trained technicians with a passion for making music in Austin, Texas.
Specifications
- Controls: High/Low Input Sensitivity, Preamp Level, Chorus Depth & Rate, Vibrato Depth & Rate, Effect On/Off, Chorus/Vibrato Switch, Vintage/Modern Preamp Switch, Hi-Z On/Off
- Connectors: 1/4" input and two output jacks
- Power: 800mW; 200mA at 9V with vintage-correct internal voltage operation via dual DC-DC voltage converter
- Input Sensitivity: 80 mV /1 0 mV
- Output Level: 315 mV
- Dimensions (W x L x H): 2.8 x 4.5 x 2.4 inches / 7.1 x 11.5 x 6.1 cm
- Weight: 1 lb / 0.5 kg
