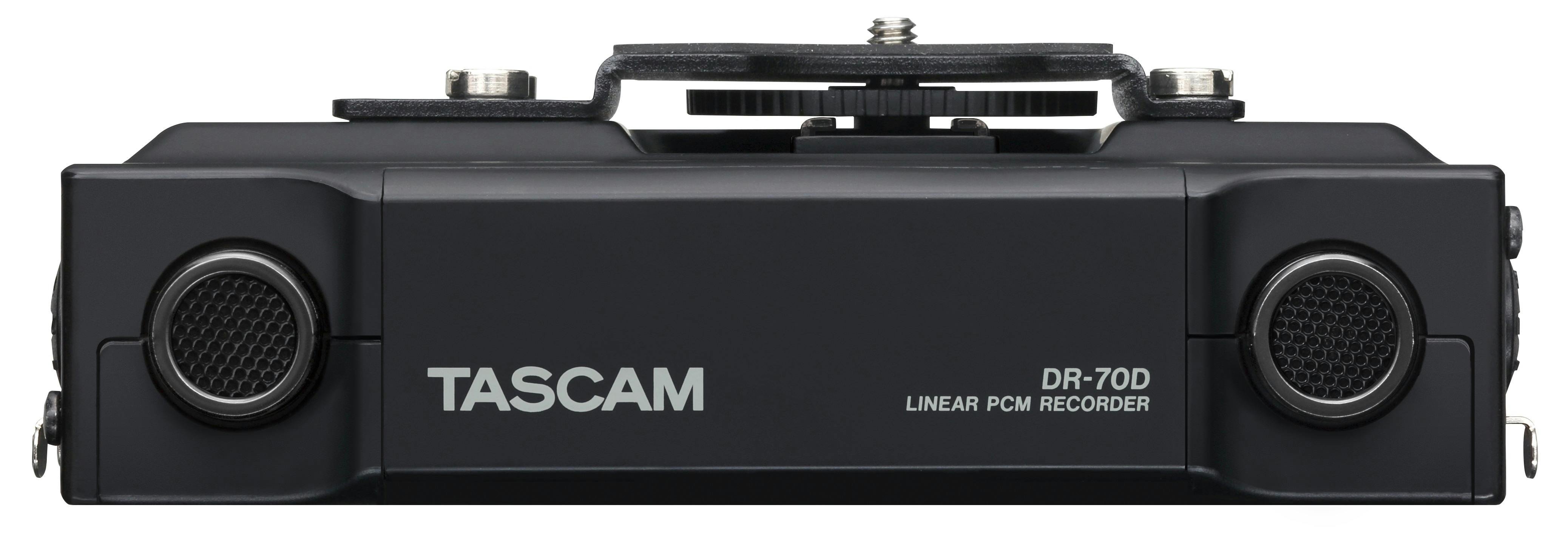

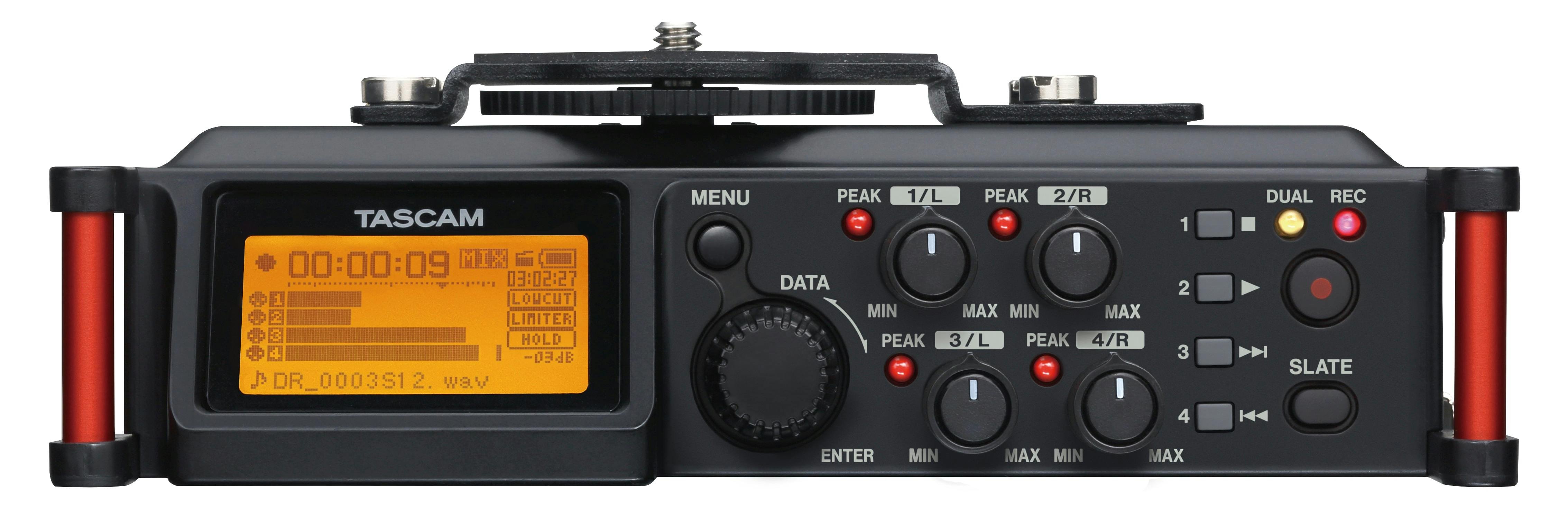

Tascam DR-70D 4 Channel Audio Recorder
FREE UK Delivery
Earn 275 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: DR70D
You might also need
Product Description
If you're a filmmaker this is something you're going to love. The DR-70D is a portable recording unit which you can mount above or below your camera and its got 2 built in microphones to capture high quality audio. Its got high quality preamps, headphone output for monitoring and a Slate tone for syncing it all up after you record.

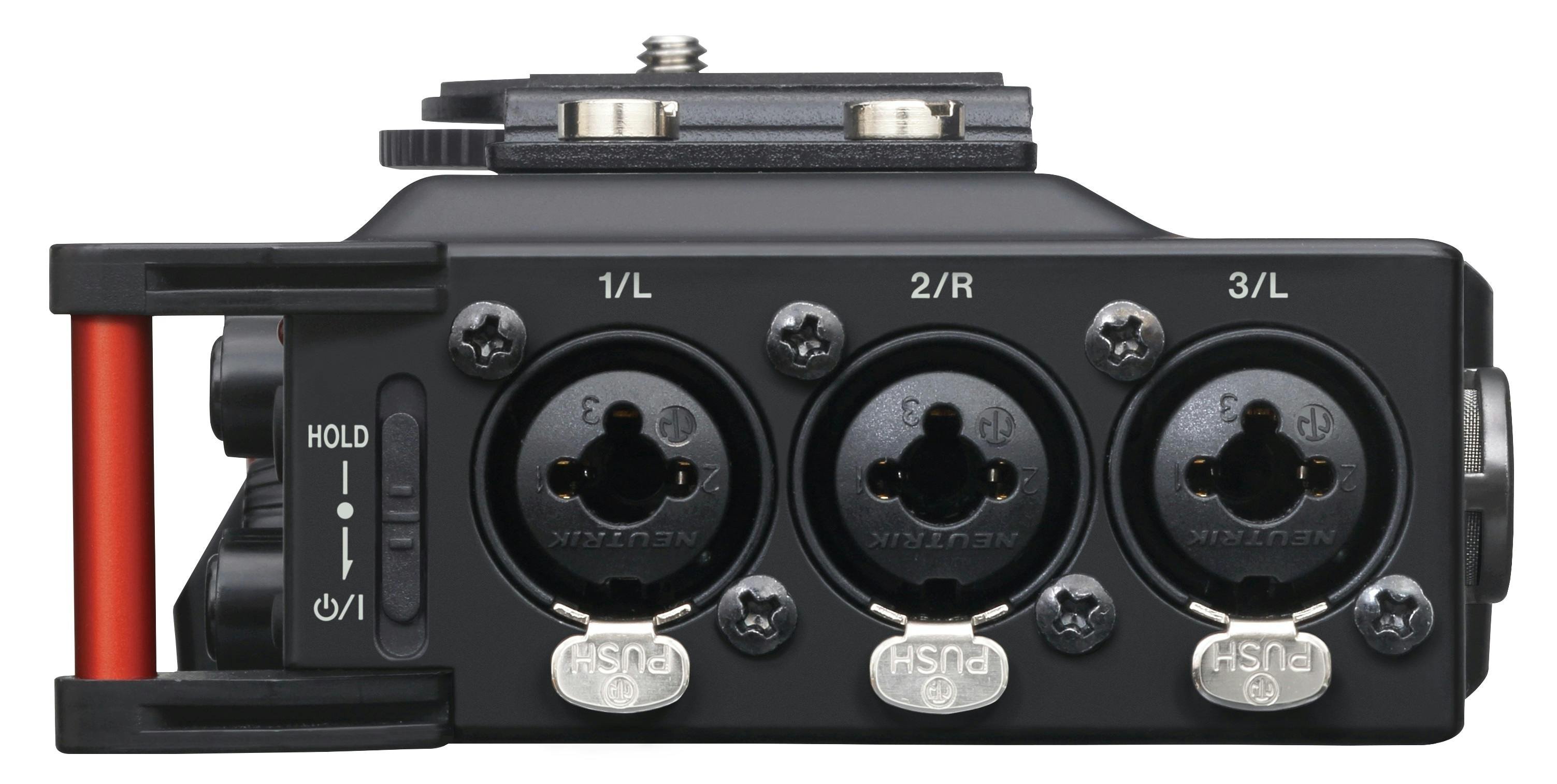

If you prefer to use your own mic's its got 4 xlr inputs with phantom power. That's great for blogs, intervioews, panel shows and busy environments where you need different inputs at different volume levels.
Portable and light
The DR-70Ds design is as compact as possible to stay out of the way while you're filming. The bottom of the unit has tripod screw threads for mounting under your camera or on a follow-focus cage. A removable camera attachment screw and hot shoe for the top of the unit are also included.
Easy Sync Sound-Video
A stereo mix of your audio is sent to the camera output for later synchronization in your editing software. Simply drop your audio and video into the multi-camera feature of most editing software and audio will be automatically synced. Alternatively, software such as Red Giant Pluraleyes can be used to automatically sync audio and video.
Specifications
- Supports SD/SDHC/SDXC cards
- Maximum number of tracks recorded simultaneously: (4)
- Recording modes: MONO, STEREO, 2MIX, DUAL MONO, DUAL ST, DUAL 2MIX
- Recording formats: 16/24-bit, 44.1k/48k/96k Hz (WAV/BWF)
- TASCAM HDDA microphone preamps provide legendary audio performance
- Input levels can be adjusted independently
- XLR/TRS inputs support +4dBu line level and phantom power (24V/48V)
- Supports mics requiring plug-in power, and mics with high output (1-2)
- CAMERA OUT jack enables audio mixed on the DR-70D to be output to the camera
- CAMERA IN jack allows the DSLR camera audio to be monitored through the DR-70D
- High-quality audio output through the line output jack that is independent of the headphones jack
- Headphone jack with 20mW+20mW maximum output
- Tripod mounting threads (bottom), camera screw attachment and a shoe mount that can be attached and removed with a coin (top)
- Handles on the front left and right sides protect the screen and can be used to attach a shoulder strap
- Transport and SLATE buttons are made of rubber to prevent handling noise during use
- HOLD switch prevents accidental operation
- 128x64-pixel graphic LCD with backlight
- High-speed transfer of files to a computer using USB 2.0
- Micro-B USB cable included
- Operates on (4) AA batteries, with an optional AC adapter (TASCAM PS-P515U) or USB cable provided with the unit (USB bus power).
- BP-6AA external battery pack (sold separately) makes operation for even longer times possible
- RC-3F footswitch or RC-10 wired remote control (both sold separately) for remote control
- Built-in mixer can be used to adjust Pan and Level to mix output of (4) channels
- Low-cut filter with five settings (40/80/120/180/220 Hz) to be used to reduce unwanted air-conditioning noise and other low-frequency sounds
- Limiter function can automatically adjust excessive input levels (stereo-linking possible for 1/L and 2/R)
- Delay function to adjust for distances between mics (+/150 ms)
- Mid-side decoding function enables the use of mid-side stereo mics
- Slate tone functions (automatic/manual)
- Selectable slate tone insertion points (recording start or recording start and finish when using the automatic slate function)
- Playback can be skipped to the slate tone insert position using the DATA dial
- File name format can be set to use a user-defined word or date
- Dual recording function allows two files to be recorded simultaneously at different levels (second file at between 1 dB and 12 dB)
- Can start a new file automatically when a maximum file size is reached to continue recording
- Track incrementing function allows a file to be split by creating a new file during recording when desired
- Resume function remembers the playback position when the unit is turned off
