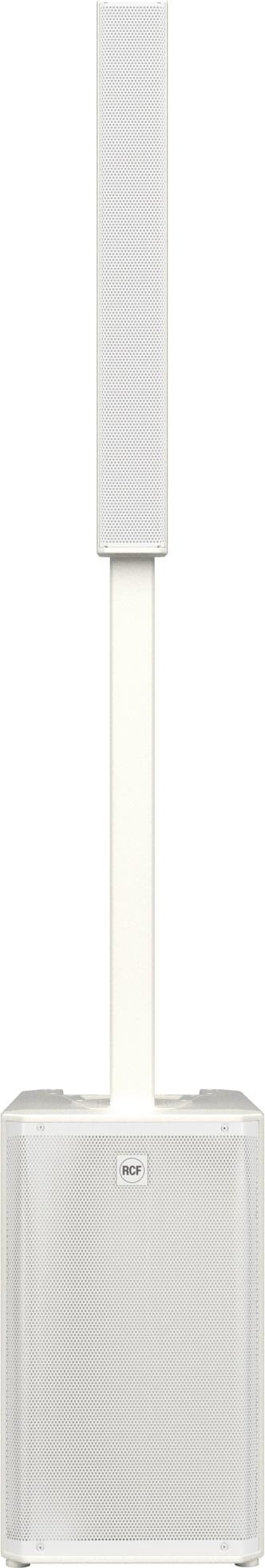

RCF EVOX JMIX9 Portable Column PA System - WHITE

The RCF EVOX JMIX9 Portable Column PA System in White combines a powerful 2100 watt active speaker array with a fully featured 8 channel digital mixer, all in a sleek, easy to transport format. With up to 130 dB of crystal clear sound, wide coverage and onboard Bluetooth audio streaming, it is an all in one solution for solo performers, small bands, DJs and presenters who want professional results without a complex rig.

At its heart, EVOX JMIX9 delivers the same punchy, articulate sound as the acclaimed EVOX J9, but adds a colour touch screen digital mixer with effects, EQ, compressors and flexible routing. You can shape your entire mix directly from the top panel or control everything wirelessly via the JMixRemote app, making it ideal for quick set ups, tight stages and events where you need to move around the room while still managing the sound.

The column design uses a 1.75 inch compression driver on a 120 degree by 40 degree True Resistive Waveguide, working together with six 3 inch full range transducers to project a smooth, even sound across the audience. A high power 12 inch bass reflex woofer in the base delivers deep, controlled low end that stays tight even at higher volumes, so speech remains intelligible and music retains impact.

Despite its impressive performance, the system remains highly portable thanks to a lightweight composite cabinet, integrated handle and quick fit pole mount. With its clean white finish, EVOX JMIX9 looks at home in weddings, corporate events, houses of worship and stylish venues where visual appearance is just as important as sound quality.

Integrated 8 Channel Digital Mixer

The onboard true stereo digital mixer gives you four mic inputs with remote controlled gain, additional line inputs and dedicated stereo inputs, so you can connect microphones, instruments, playback devices and more without needing an external desk. With 32 bit processing, 24 bit conversion and a wide dynamic range, your sources are handled with studio grade precision before they ever reach the speakers.

Touch Control And Wireless Management

A colour touch display and encoders on the top of the sub cabinet provide fast access to all mixer and system functions, including EQ, compressors, effects, routing and output levels. For even greater flexibility, the JMixRemote app lets you control the entire system wirelessly, so you can walk the room, fine tune the sound from the audience perspective and make adjustments mid show without returning to the stage.

High Output With Wide, Even Coverage

Powered by a 2100 watt Class D amplifier, EVOX JMIX9 delivers up to 130 dB max SPL while maintaining clarity and low distortion. The 1.75 inch neo compression driver and six 3 inch full range transducers work with the True Resistive Waveguide to provide a 120 degree horizontal by 40 degree vertical coverage pattern, ensuring consistent sound from front to back and side to side.

Deep, Controlled Low End

The 12 inch RCF precision woofer in a bass reflex enclosure provides solid, musical low frequencies down to 40 Hz. Internal DSP handles crossover, limiting and protection, keeping the low end tight and controlled even at high levels, which is essential for dance music, live bands and full range playback in demanding environments.

• 8 Channel True Stereo Digital Mixer With Bluetooth - Built in mixing with four mic inputs, additional line and stereo inputs plus Bluetooth audio streaming lets you plug in, mix and play without extra gear. Ideal for performers and presenters who need a compact, self contained system.
• 2100 Watt Class D Amplifier With 130 dB Max SPL - High efficiency amplification provides plenty of headroom and volume for a wide range of applications, from intimate gigs to larger events, while keeping weight down and reliability high.
• Column Array With True Resistive Waveguide - A 1.75 inch compression driver and six 3 inch full range transducers on a 120 degree by 40 degree waveguide deliver smooth, even coverage so your audience hears a consistent, intelligible mix throughout the venue.
• 12 Inch Bass Reflex Subwoofer - The integrated 12 inch woofer extends the system response down to 40 Hz, providing punchy, controlled bass that supports both speech and music without becoming boomy or indistinct.

Acoustical

• Frequency Response: 40 Hz - 20000 Hz
• Max SPL at 1 m: 130 dB
• Horizontal Coverage Angle: 120 degrees
• Vertical Coverage Angle: 40 degrees

Transducers

• Compression Driver: 1 x 0.75 inch neo, 1.75 inch voice coil
• Full Range: 6 x 3.0 inch neo, 1.0 inch voice coil
• Woofer: 1 x 12 inch, 2.5 inch voice coil

Input / Output

• Input Signal: Balanced / unbalanced
• Input Connectors: Combo XLR / Jack
• Output Connectors: XLR
• Input Sensitivity: -2 dBu / +4 dBu

Processing

• Crossover Frequencies: 200 Hz / 1800 Hz
• Protections: Thermal, RMS limiter, soft limiter
• Controls: Digital mixer controlled by touch screen and encoders
• Processing Channels: 8
• Signal Processing: 32 bit
• A/D D/A Conversion: 24 bit at 48.0 kHz
• Dynamic Range: 114 dB

Inputs

• Mic Inputs: 4
• Remote Controlled Storable Gain: Yes
• Gain Range: 0 dB - 36 dB
• Input Noise Level: -114 dBu A weighted
• Mic Inputs Impedance: 3 kohm
• Low Cut: 20 Hz - 400 Hz
• Phantom Power: +48 V
• Mono Line Inputs: 4
• Mono Line Gain Selection: 0 dB - 36 dB
• Line Input Impedance: 10 kohm
• A/D Dynamic Range: 120 dB
• Stereo Line Inputs: 2
• Stereo Line Gain Selection: 0 dB - 0 dB
• Stereo Line Input Impedance: 24 kohm

Outputs

• Main Mix Outputs: 1
• FX Send: 1
• AUX Send: 1
• AUX Output: 1
• Headphones Output: 1
• Main Out Impedance: 150 ohm
• Main Out Level: 20 dBu
• AUX Out Impedance: 150 ohm
• AUX Out Level: 20 dBu
• Headphones Out Impedance: 100 ohm
• Headphones Out Level: 20 dBm
• D/A Dynamic Range: 118 dB

Dynamics And EQ

• Compressors: RCF compressors on MIC / LINE CH1 to CH4 inputs
• Input Channels EQ: 1 semi parametric / 2 shelving
• Input EQ Description: 3 band EQ with high and low band shelving, mid band peak on input
• Main Output EQ: 8 band EQ with 6 full parametric, 1 high shelving and 12 dB per octave high pass filter on amplifier and main output
• AUX 1: Pre / post
• FX: Post
• Internal Effects: 1 send effects section
• Mastering Processors: 1 main out processor
• Main Out Types: Mix out, stereo / mono output, AUX out, headphones output

Power

• Total Power: 2100 W peak
• High Frequencies: 700 W peak
• Low Frequencies: 1400 W peak
• Cooling: Convection
• Power Connections: VDE
• Power Supply: Internal

Standard Compliance

• Safety Agency: CE compliant

Cabinet

• Cabinet Material: PP composite
• Handles: 1 top
• Pole Mount: Quick fit socket
• Grille: Steel
• Colour: White

Dimensions And Weight

• Height: 2080 mm / 81.89 inches
• Width: 350 mm / 13.78 inches
• Depth: 460 mm / 18.11 inches
• Weight: 28.8 kg / 63.49 lbs
