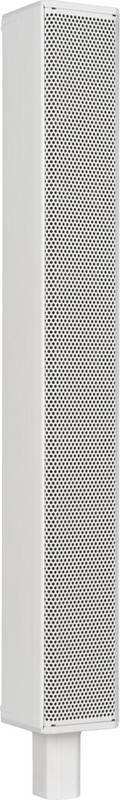

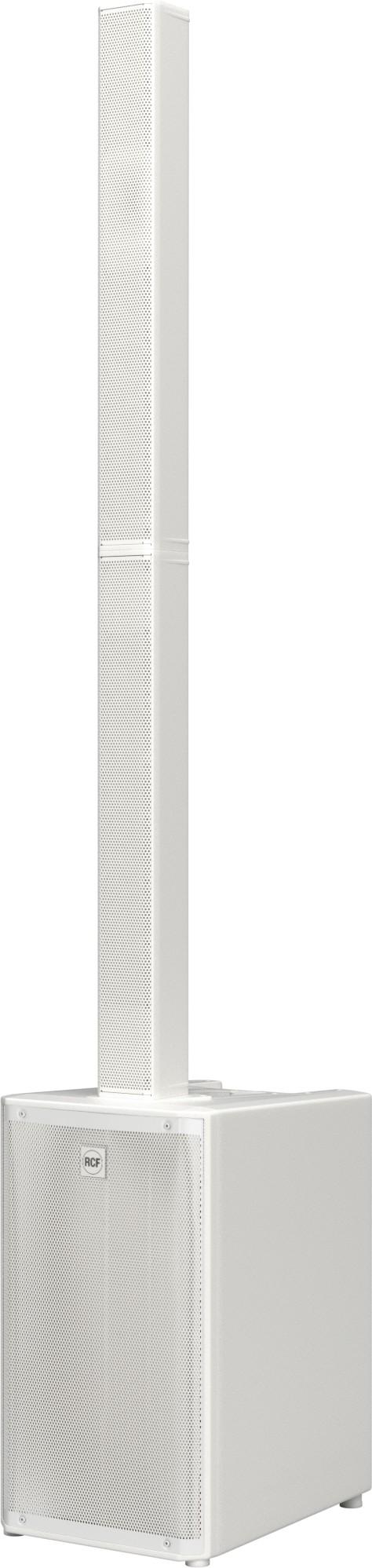

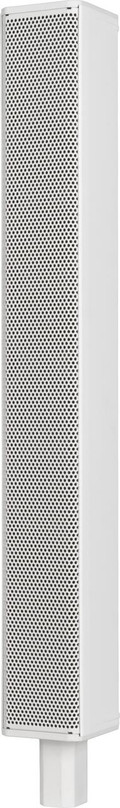

RCF EVOX J11 Portable Column PA System - WHITE
Active Three-way Portable Column Speaker
FREE UK Delivery
Earn 1499 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: 13000987
You Might Also Like
Product Description
The RCF EVOX J11 Portable Column PA System in white delivers huge, room-filling sound in a sleek, compact package that is effortless to transport and set up. Combining a powerful 3500 W Class D amplifier with a high-output 12 inch woofer and twelve 3 inch full-range drivers, it offers up to 132 dB of crystal-clear audio, making it ideal for bands, DJs, presenters and live performers who need serious performance from a minimal footprint.
With wide 120° horizontal coverage and carefully controlled 40° vertical dispersion, EVOX J11 projects your mix evenly across the audience while keeping unwanted reflections in check. Built-in DSP with easy presets lets you quickly tailor the sound for different applications, while the composite cabinet and aluminium stand mount keep the system rugged yet lightweight. Finished in a clean white, it looks as smart as it sounds in everything from weddings and corporate events to club nights and live gigs.
Powerful, Clear Sound in a Compact Format
EVOX J11 is designed to deliver maximum clarity and punch from a highly portable system. The 1.75 inch neo compression driver feeds a True Resistive Waveguide for smooth, detailed highs, while twelve 3 inch full-range neo transducers handle the critical midrange with precision. A high-power 12 inch RCF Precision woofer in a bass-reflex enclosure provides deep, controlled low end, so vocals, instruments and playback all sound full and defined at any volume.
Wide, Even Coverage
The column array is engineered for consistent coverage, with a 120° horizontal and 40° vertical dispersion pattern. This helps ensure that people at the front and back of the room hear a balanced mix, reducing hot spots and dead zones. For performers, that means less time fighting the room and more confidence that the audience is hearing exactly what they should.
Smart DSP for Different Applications
An onboard DSP section optimises the system for different scenarios with simple presets. Choose from LINEAR/LIVE, CLUB or VOICE modes to quickly adapt the tonal balance and dynamics for live bands, DJ sets or spoken word. Protection circuits including thermal, RMS and soft limiting work in the background to keep the system safe and sounding clean, even when pushed hard.
Portable, Road Ready Design
The PP composite cabinet, steel grille and aluminium stand mount give EVOX J11 a robust, road-ready build that is still easy to handle. A top-mounted handle makes carrying straightforward, and the quick-fit socket allows fast, secure mounting of the column. With a height of 2285 mm when assembled and a total weight of 29 kg, it strikes a practical balance between portability and stage presence.
Features
- 132 dB Max SPL with 3500 W Class D Power - The high-output dual-channel Class D amplifier delivers up to 3500 W peak power, providing ample headroom and up to 132 dB Max SPL. This ensures clean, undistorted sound even at high volumes, making it suitable for demanding live environments.
- Three Way Column System with Precision Transducers - A 1.75 inch neo compression driver, twelve 3 inch full-range neo drivers and a 12 inch RCF Precision woofer work together for a full-range response from 37 Hz to 20 kHz. The result is tight, punchy bass, articulate mids and smooth highs that flatter both music and speech.
- Wide 120° x 40° True Resistive Waveguide - The True Resistive Waveguide provides a controlled 120° horizontal and 40° vertical coverage pattern, spreading sound evenly across the audience area. This helps reduce the need for additional speakers and minimises problematic reflections in challenging rooms.
- Rugged Composite Cabinet with Quick Fit Mounting - The PP composite enclosure, steel grille and aluminium stand mount offer durability for regular transport and setup. A quick-fit socket and top handle make assembly and positioning fast and straightforward, helping you get from load in to soundcheck with minimal fuss.
Specifications
Acoustical
- Frequency Response: 37 Hz - 20000 Hz
- Max SPL @ 1 m: 132 dB
- Horizontal Coverage Angle: 120°
- Vertical Coverage Angle: 40°
Transducers
- Compression Driver: 1 x 0.75 inch neo, 1.75 inch voice coil
- Full Range: 12 x 3.0 inch neo, 1.0 inch voice coil
- Woofer: 1 x 12 inch, 2.5 inch voice coil
Input / Output
- Input Signal: Balanced / unbalanced
- Input Connectors: Combo XLR / Jack
- Output Connectors: XLR
- Input Sensitivity: +4 dBu
Processor
- Crossover Frequencies: 160 Hz / 1800 Hz
- Protections: Thermal, RMS limiter, soft limiter
- Controls: Volume, presets LINEAR/LIVE, CLUB, VOICE
Power
- Total Power: 3500 W peak
- High Frequencies: 1500 W peak
- Low Frequencies: 2000 W peak
- Cooling: Convection
- Connections: PowerCON TRUE1 TOP IN/OUT
Physical
- Cabinet Material: PP composite
- Grille: Steel
- Handles: 1 top
- Pole Mount / Cap: Quick fit socket
- Colour: White
- Height: 2285 mm / 89.96 inches
- Width: 400 mm / 15.75 inches
- Depth: 460 mm / 18.11 inches
- Weight: 29 kg / 63.93 lbs
