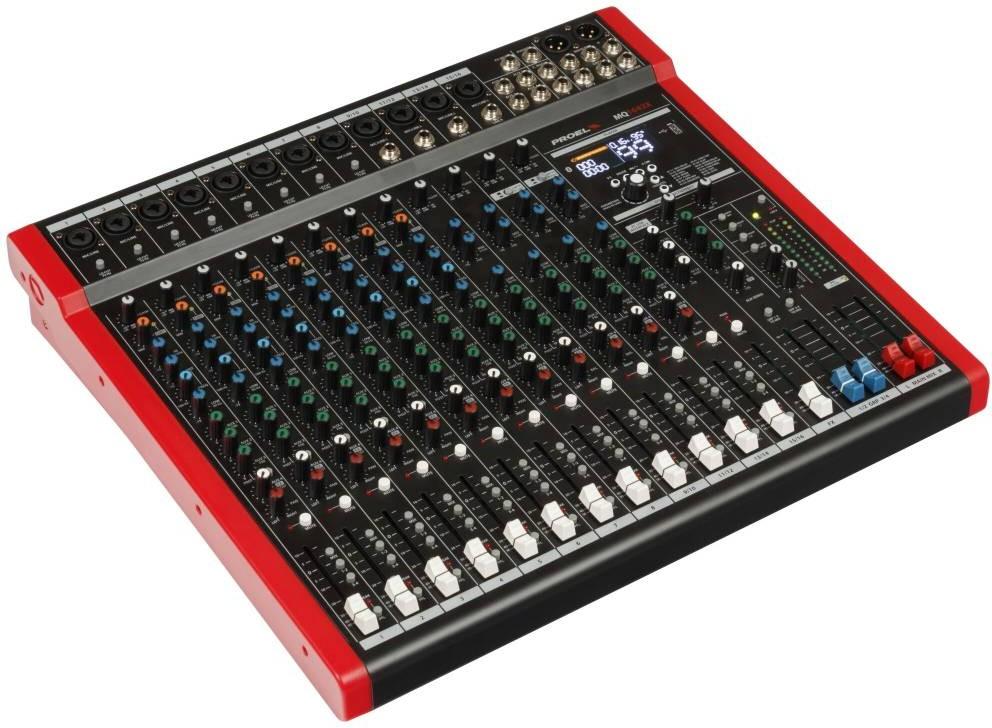

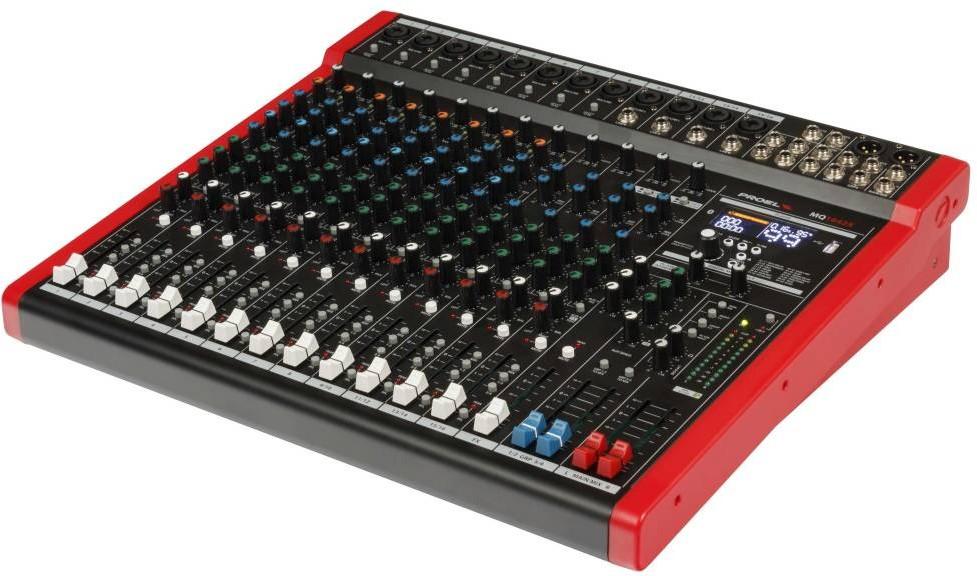

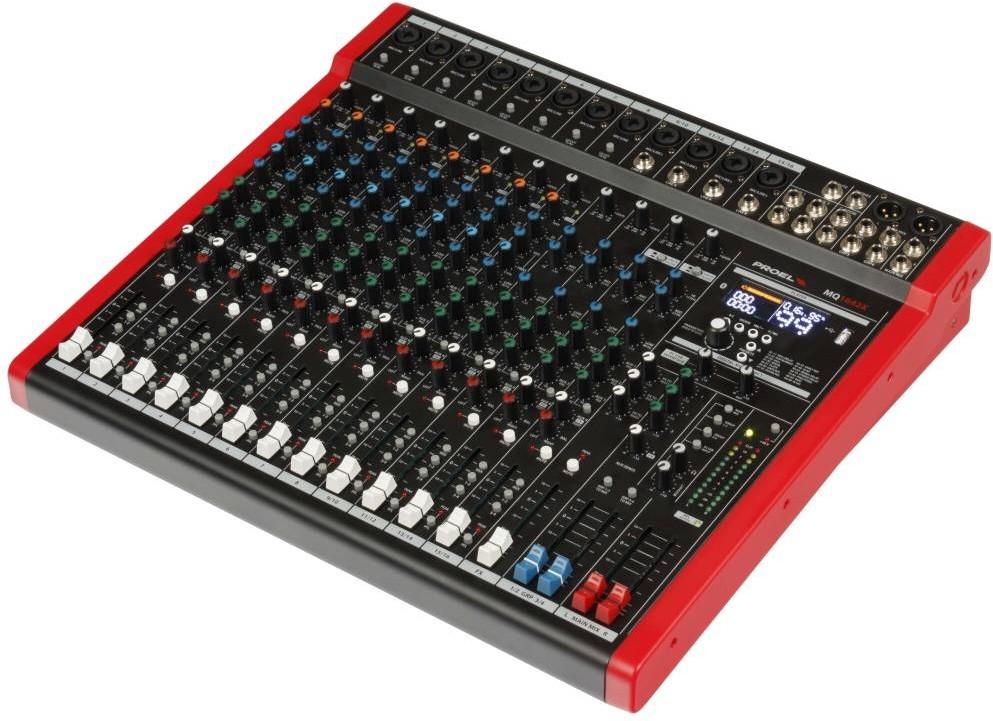

Proel MQ1642X 16 Channel Analog Mixer

The Proel MQ1642X is a compact 16-input analogue mixer designed for serious live sound, home studios and fixed installations. Packed with 12 low-noise mic preamps, one-knob compressors, flexible routing and a powerful 24-bit effects engine, it delivers professional performance in a rugged, space-saving format. With integrated Bluetooth, USB player and 2x2 USB audio interface, it also slots seamlessly into modern digital workflows.

Engineered by Proel’s Italian R&D team, the MQ1642X combines intuitive hands-on control with advanced connectivity. Mono channels feature musical 3-band EQ with sweepable mids and intelligent compression, while stereo channels handle keyboards, playback devices and submixes with ease. Add in four AUX sends, two stereo groups and balanced main outputs, and you have a versatile hub for everything from small gigs to more complex multi-source setups.

Compact Mixer, Big-System Control

Despite its streamlined footprint, the MQ1642X offers 16 total inputs and a layout that feels immediately familiar. Eight mono mic/line channels and four stereo mic/line channels give you plenty of capacity for vocals, instruments and playback sources. Professional 60 mm faders on channels, groups and main mix provide smooth, precise level control, helping you build clear, balanced mixes quickly in demanding live or studio environments.

Low-Noise Preamps and Musical EQ

The 12 mic preamps are designed for low noise and high headroom, so your microphones sound open and detailed even at higher gain settings. Mono channels feature a 3-band EQ with a sweepable mid band from 100 Hz to 8 kHz, letting you carve out space for vocals, guitars and other key sources. High and low shelving bands on both mono and stereo channels offer up to ±15 dB of adjustment, making it easy to tame harshness or add warmth where needed.

Onboard Compression and Effects

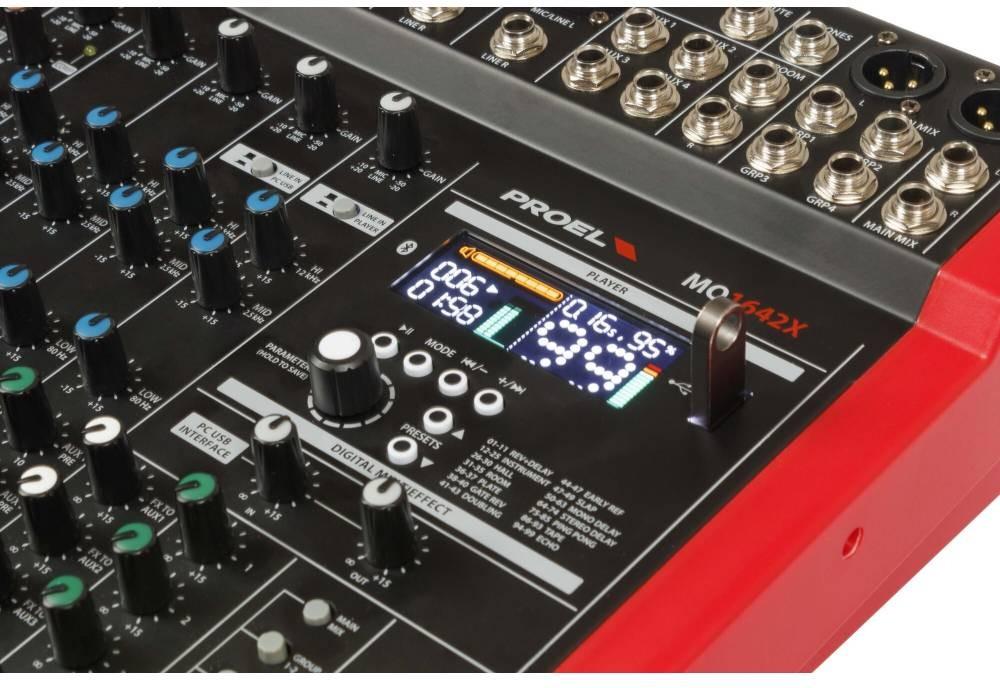

Channels 1 to 8 include one-knob FET compressors, ideal for tightening vocals, bass and other dynamic sources without needing outboard gear. A built-in 24-bit DSP provides 99 studio-style effects presets, from reverbs and delays to modulation, all controlled via an LCD display and dedicated controls. With peak indication, mute switches and footswitch muting for the effects section, you can manage your processing confidently on stage or in the studio.

Modern Connectivity and Flexible Routing

The MQ1642X integrates easily with today’s playback and recording setups. The digital section includes Bluetooth audio streaming, a USB player and a 2x2 USB audio interface with 24-bit / 48 kHz converters, allowing straightforward recording to and playback from a computer. Four AUX sends, dedicated control room and headphone outputs, plus two stereo group buses give you the routing flexibility needed for monitor mixes, external processing and sub-group control in more complex systems.

• 16-Input, 4-Bus Layout - With 8 mono mic/line channels and 4 stereo mic/line channels, the MQ1642X handles full bands, small ensembles and multi-source setups with ease. Two stereo group buses make it simple to control submixes such as drums or backing tracks from a single fader, streamlining your workflow in live and recording situations.
• 12 Low-Noise Mic Preamps with One-Knob Compressors - High-quality mic preamps on 12 channels deliver clean, detailed sound with plenty of headroom. One-knob FET compressors on channels 1 to 8 help you quickly control dynamics on key sources like vocals and bass, improving clarity and consistency without needing extra outboard gear.
• 24-Bit DSP with 99 Effects and Flexible AUX Sends - The integrated 24-bit effects processor offers 99 presets, giving you a wide choice of reverbs, delays and modulation effects for polishing your mix. Three AUX sends (plus dedicated FX routing) allow you to create monitor mixes, feed external processors or blend in effects exactly where you need them.
• Bluetooth, USB Player and 2x2 USB Audio Interface - Built-in Bluetooth, USB playback and a 2x2 USB interface make the MQ1642X a versatile hub for modern setups. You can stream backing tracks wirelessly, play audio from a USB device or record and play back via computer at 24-bit / 48 kHz, making it ideal for live performance, home recording and installations.

General

• Type: 16-input, 4-bus analogue mixer with effects and USB
• Applications: Live sound, home use, installation
• Dimensions (W x H x D): 481 x 432 x 104 mm
• Weight: 6.30 kg

Inputs & Channels

• Total Inputs: 16
• Mono Channels: 8 x MIC/LINE
• Stereo Channels: 4 x MIC/LINE
• Mic Preamps: 12 low-noise mic preamps
• Channel Compressors: 8 x FET, one-knob (channels 1 to 8)

Mono Input Channels

• Mic Input Sensitivity: from -10 dB to -50 dB
• Mic Input Impedance: 3 kOhm, balanced XLR-F
• Line Input Sensitivity: from +20 dB to -20 dB
• Line Input Impedance: 30 kOhm, balanced jack
• Lo-Cut Filter: 75 Hz, 18 dB/octave
• EQ High (shelving): ±15 dB @ 12 kHz
• EQ Mid (peaking): ±15 dB, sweepable from 100 Hz to 8 kHz
• EQ Low (shelving): ±15 dB @ 80 Hz

Stereo Input Channels

• Mic Input Sensitivity: from -10 dB to -50 dB
• Mic Input Impedance: 3 kOhm, balanced XLR-F
• Line Input Sensitivity: from +20 dB to -20 dB
• Line Input Impedance: 30 kOhm, balanced jack
• EQ High (shelving): ±15 dB @ 12 kHz
• EQ Mid (peaking): ±15 dB @ 2.5 kHz
• EQ Low (shelving): ±15 dB @ 80 Hz

Routing & Outputs

• Groups: 2 stereo group buses
• AUX Sends: 3 AUX sends plus FX send
• Main Mix Output Level: +4 dBu, balanced jack and XLR-M
• Control Room Output Level: 0 dBu, unbalanced jack
• Group Output Level: +4 dBu, balanced jack
• FX/AUX Output Level: 0 dBu, unbalanced jack
• Headphones Output: Stereo jack
• Headphones Minimum Impedance: 32 ohm
• Headphones Maximum Output Level: (2x) 193 mW

Digital Multieffect / Player

• Effects Presets: 99
• FX DSP Resolution: 24 bit
• Bluetooth: Version 5.0, audio streaming
• PC USB Interface: USB 2.0 / 3.0, Type C
• USB Player: USB 2.0 / 3.0, Type C
• A/D and D/A Converters: 24 bit / 48 kHz
• Controls: LCD, dial, peak LED, mute switch, mute footswitch

Performance

• Maximum Level (all outputs): +22 dBu
• Crosstalk (measured at 1 kHz): > 82 dBu
• Hum & Noise (unweighted): < -93 dBu
• THD + Noise (at +4 dB, 1 kHz): < 0.008 %

Power

• Mains Supply Voltage: 110 to 240 VAC (±10 %) 50 / 60 Hz
• Included Mains Cords: Europe (Schuko plug), US (NEMA 5-15P plug), UK (BS1363 plug)
• Power Consumption: 50 W
