Lewitt Connect 6 Audio Interface
DSP-powered Dual USB-C audio interface with game-changing flexibility for creators and musicians
FREE UK Delivery
Earn 215 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: CONNECT6
You might also need
Product Description

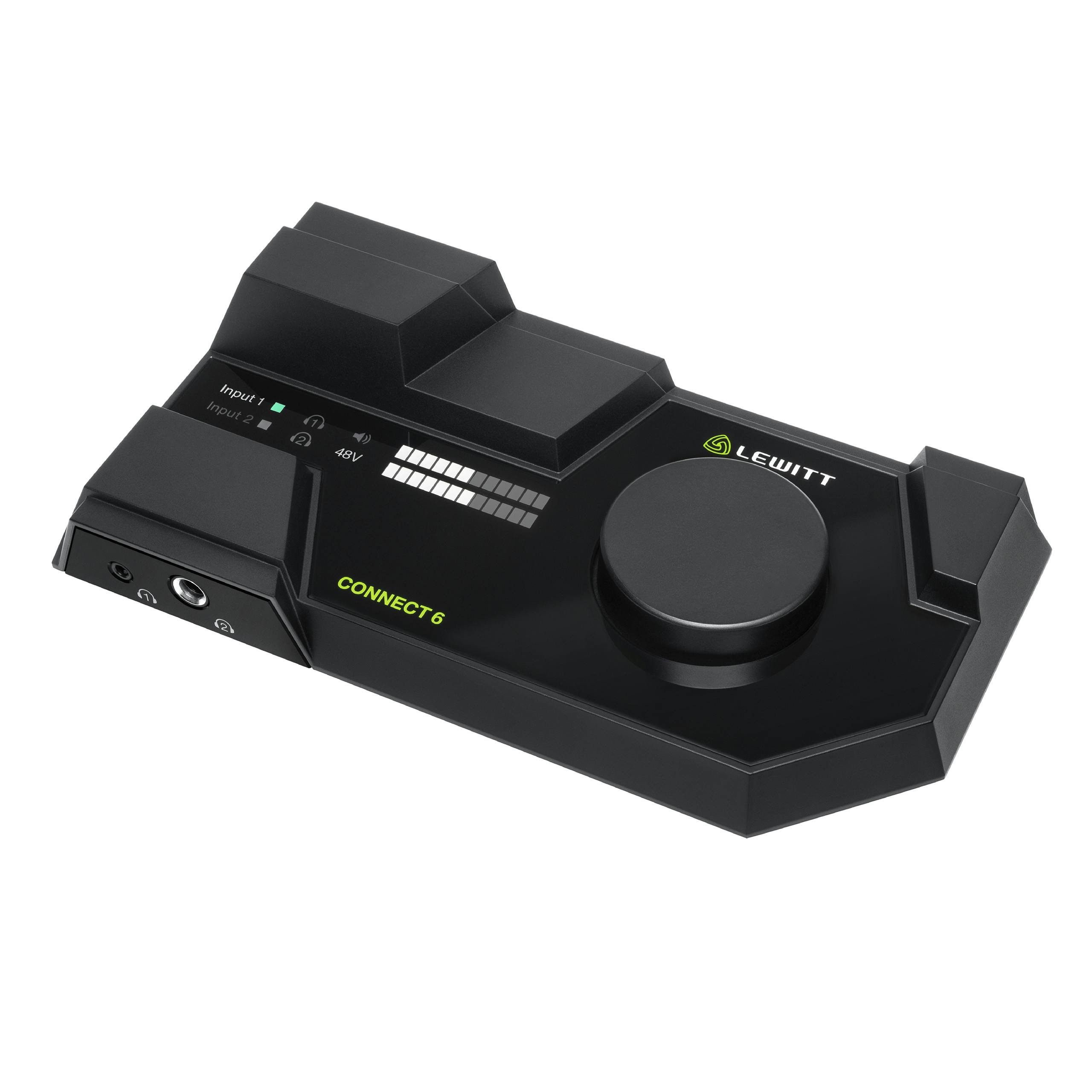

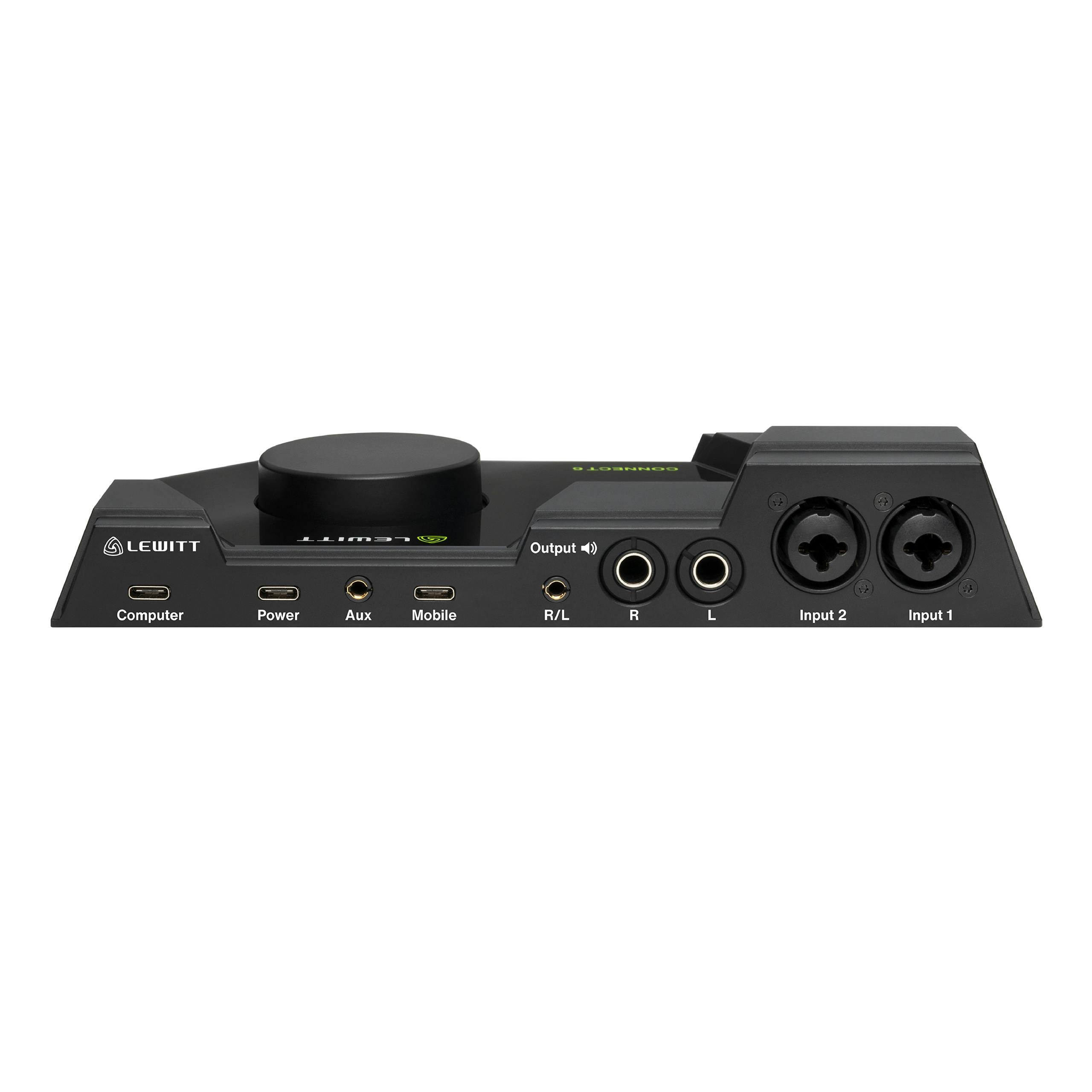

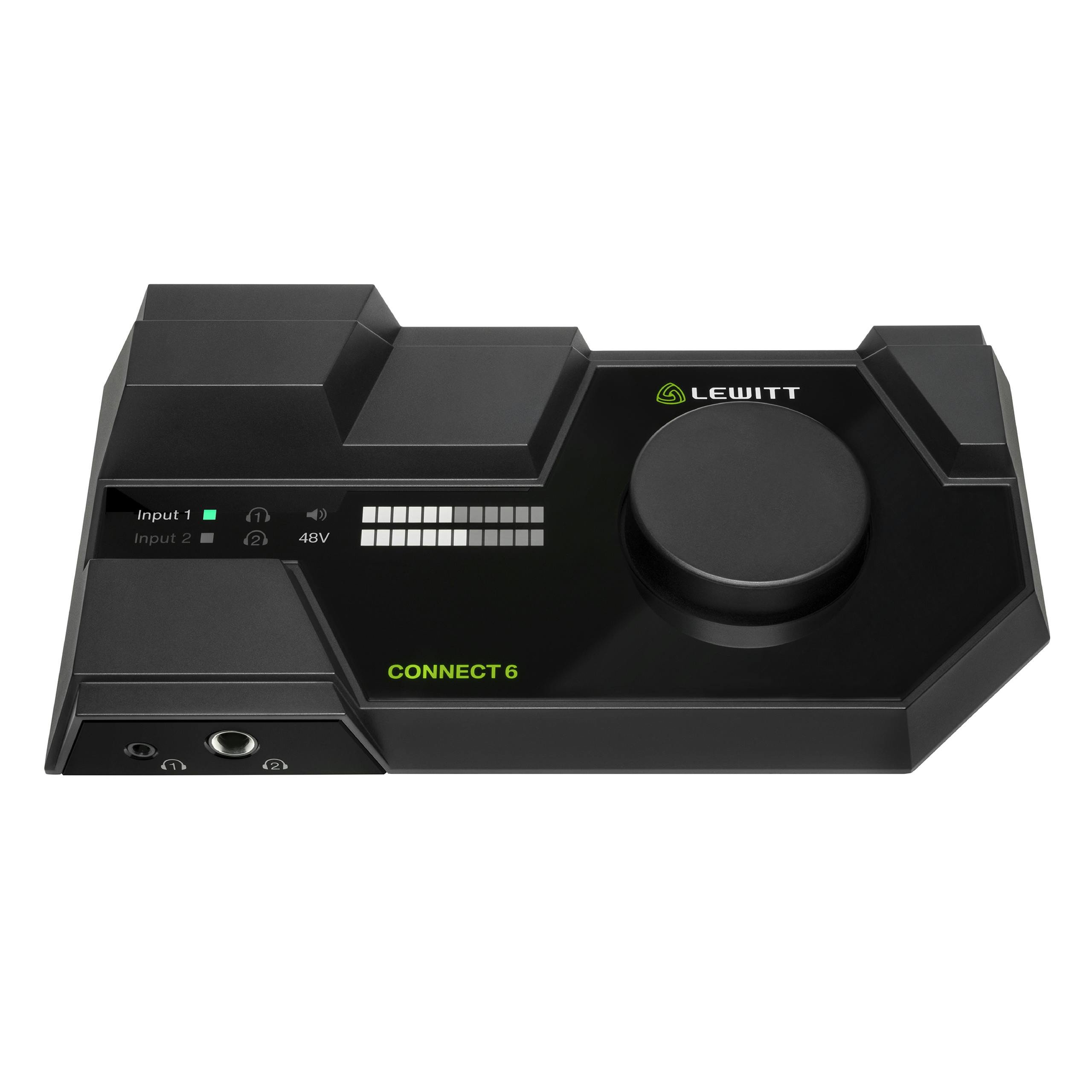

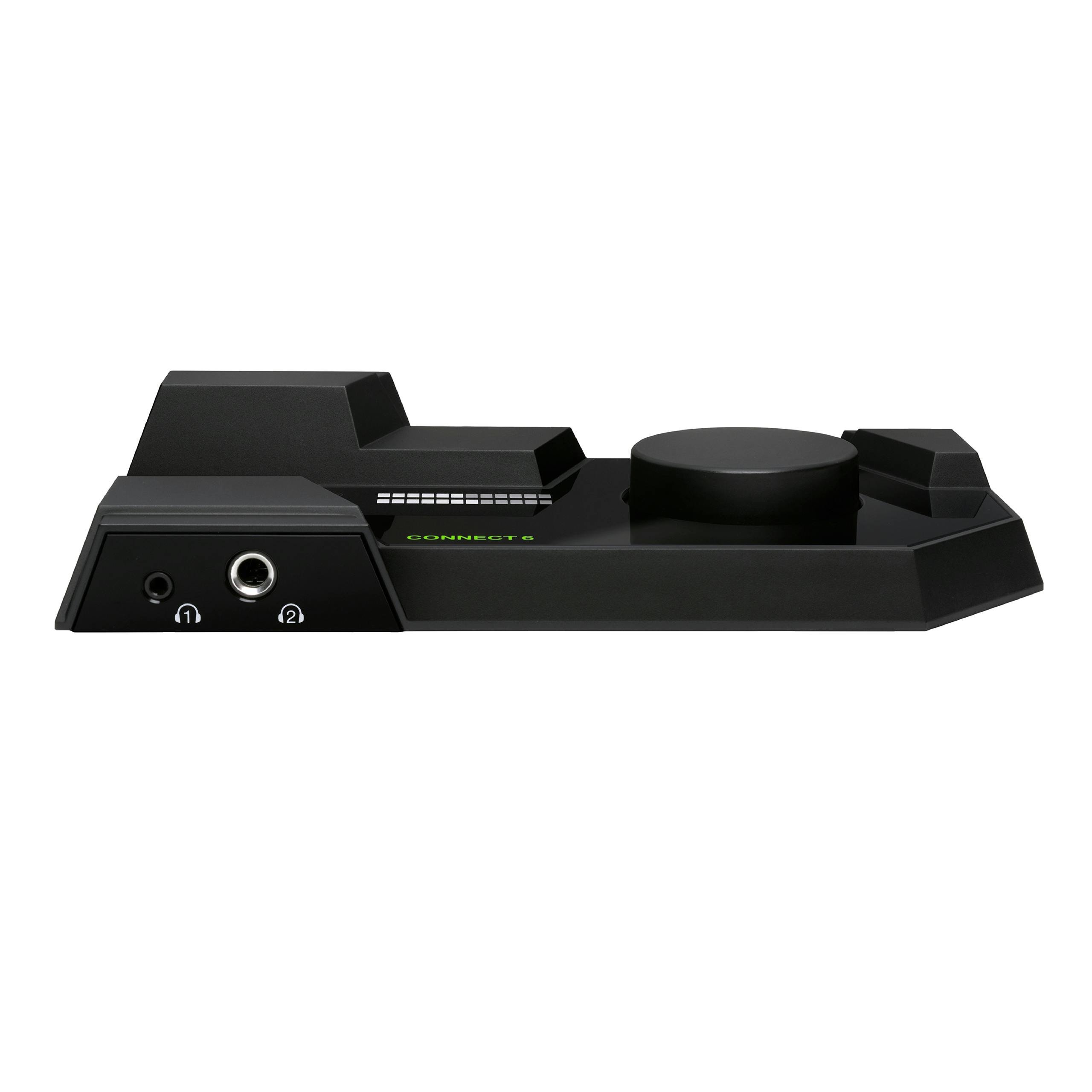

Lewitt present the CONNECT 6 Dual USB-C audio interface. Featuring extensive analogue and digital connectivity, onboard DSP and crystal-clear sounding studio-grade preamps, the CONNECT 6 offers game-changing flexibility for creators and musicians.
The included CONTROL CENTER software offers virtual channels, a mixer, loopback, and individual audio routing. You can also find your optimal settings automatically using Auto Setup. Since your audio is processed via the hardware-based DSP, your setup is highly stable and independent of your computer’s performance - everything is conveniently managed on a single device.
Key Features​
- 2 Crystal-clear studio-grade preamps with 72 dB gain and low-noise performance of -133 dBV EIN
- Auto Setup dials in optimal settings for your voice or instrument automatically
- Powerful hardware-based DSP for routing, mixing, zero-latency FX (Compressor, 4-band EQ, Expander, Maximizer) and monitoring
- 2 Independent headphone outputs powerful enough to drive any studio headphone (6.35 mm & 3.5 mm)
- Full mobile device audio integration with charging via USB-C (Apple MFI certified - Made for iPhone, iPad / Android)
- Licenses for Steinberg’s Cubase LE, Cubasis LE included
- CONTROL CENTER software for Windows and Mac
- Full iOS/Android device integration

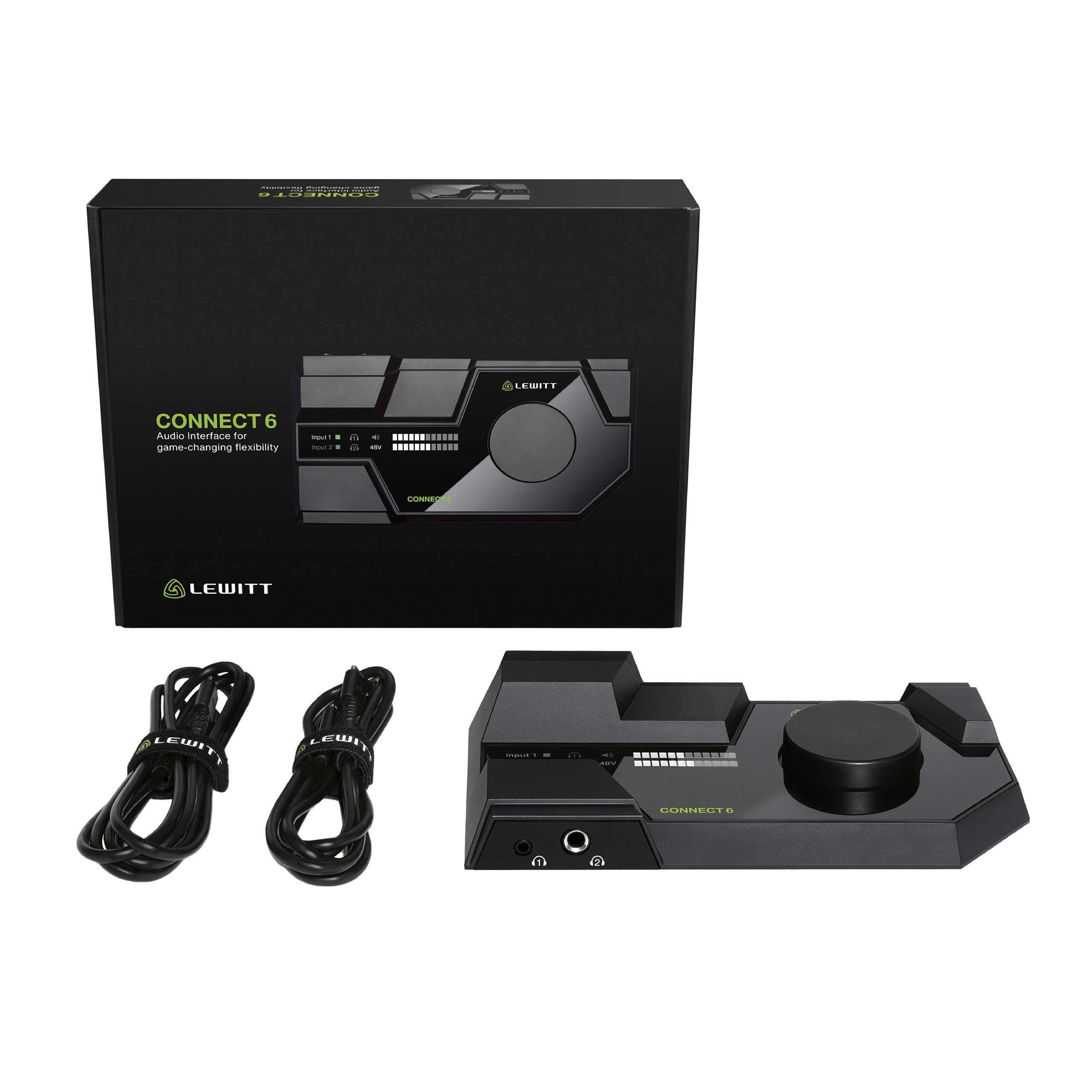

Included in the Box
- 1 CONNECT 6 audio interface
- 1 USB-C to USB-C cable
- 1 USB-C to USB-A cable
- CONTROL CENTER software
- License for Steinberg Cubase LE & Cubasis LE
Technical Specifications
Digital
- USB-C Computer Port: USB Audio Class 2 / 44.1, 48, 96 kHz / 24 bit
- USB-C Mobile Port: USB Audio Class 1 / 44.1, 48 kHz / 24 bit
- Compatible with Mac, Windows, iOS, Android
- ASIO driver - Yes
- DSP-powered – Yes
Preamps
- Connector: XLR / 6.3 mm (1/4 inch) jack combo
- Phantom power: 48 V
- Gain range: -6 dB – 72 dB
- Frequency response: 20 Hz – 20 kHz
- Equivalent input noise: -133 dBV (A-weighted)
- Total harmonic distortion + noise: 0.002%
Line out L/R
- Connector: 6.35 mm (1/4 inch) balanced jack, 3.5 mm (1/8 inch) stereo jack
- Frequency response: 20 Hz - 20 kHz
- Max output level: 13 dBV
- Total harmonic distortion + noise: 0.002%
Headphone 1 & 2
- Connector: Headphone out 1: 3.5 mm (1/8 inch) stereo jack, Headphone out 2: 6.3 mm (1/4 inch) stereo jack
- Frequency response: 20 Hz - 20 kHz
- Max output level: 6 dBV
- Total harmonic distortion + noise: 0.002%
Power requirements
- Bus powered USB C: Power + mobile device charging
- Bus powered USB A: Power + mobile device charging (depending on USB port power) / Connect external power supply to power input for optimal performance
- Recommended external power supply: USB-C PD 27W or more (not included
