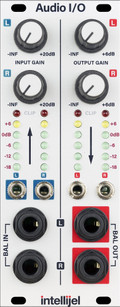

Intellijel Eurorack Audio Interface II
Gain controls, stereo inputs and outputs
FREE UK Delivery
Earn 259 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose Click and Collect as your delivery option online or, during store opening hours, call our sales team on 01483 456777 for assistance with placing your order.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that stock availability can change quickly both online and in-store, so we would always recommend placing your Click and Collect order as soon as possible to reserve your item.
SKU: IJEL-AUDIOINT2
You Might Also Like
Ask anything about this product
Product Description
The Intellijel Audio Interface II is a compact, studio-grade bridge between your Eurorack system and the balanced line-level world. With dual balanced ins and outs, precise metering and flexible rear-panel chaining, it makes it effortless to connect your modular to mixers, audio interfaces, pedals, desktop FX, drum machines and synths at proper levels with clean, controlled gain staging.
Whether you are performing live or working in the studio, Audio Interface II lets you patch in and out of your DAW and outboard gear without noise, distortion or guesswork. Dedicated gain on the inputs, calibrated attenuation on the outputs and clear LED VU metering across all channels mean you can focus on creative patching while your levels stay under control.
Balanced Line-Level I/O For Modular
Audio Interface II provides two balanced TRS 1/4 inch inputs and two balanced TRS 1/4 inch outputs, each translated cleanly to and from Eurorack levels. This allows you to integrate your modular with professional +4 dBu equipment, from audio interfaces and mixers to rackmount processors and desktop FX, without level mismatches or unwanted noise.
Gain On Inputs, Control On Outputs
The input path offers up to 20 dB of gain, so you can bring in lower-level consumer signals and boost them up to modular level for processing. On the way out, the module steps a nominal 10 Vpp Eurorack signal down to +4 dBu line level, with up to +6 dB of additional gain available. This makes it easy to hit your external gear at the right level, whether you are driving hardware a little harder or keeping things clean and conservative.
Clear Six-Stage LED VU Metering
Each of the four paths has its own six-stage analogue LED VU meter, allowing you to monitor all inputs and outputs at a glance. This visual feedback helps you avoid clipping, optimise signal-to-noise ratio and quickly spot any level issues in complex patches, making gain staging far more intuitive during both recording and performance.
Flexible Rear-Panel Chaining
Rear-mounted 3-pin CHAIN IN and CHAIN OUT connectors let you integrate Audio Interface II directly with other compatible Intellijel modules and case audio boards. You can sum additional Eurorack sources into the balanced outputs, or feed the balanced inputs straight into mixers, output modules or headphones modules without extra patch cables on the front. This keeps your system tidy and streamlines your overall audio routing.
Features
- Dual Balanced TRS Ins and Outs - Two balanced 1/4 inch input paths and two balanced 1/4 inch output paths provide a professional interface between Eurorack levels and +4 dBu line-level gear, making it simple to connect your modular to mixers, audio interfaces, pedals and external synths.
- Input Gain up to 20 dB - Each input path includes up to 20 dB of gain, allowing you to take low-level or consumer-level signals and boost them to modular level so they can be processed, modulated and shaped alongside your other Eurorack sources.
- Output Level Shift with Extra Headroom - The output section attenuates a typical 10 Vpp Eurorack signal down to +4 dBu line level, with up to +6 dB of additional gain available. This ensures you can match levels precisely to your external hardware, from clean, calibrated sends to more driven, characterful returns.
- Six-Stage LED VU Meters on All Paths - Four six-stage analogue LED VU meters give instant visual feedback on both inputs and outputs, helping you set optimal levels, avoid clipping and maintain consistent gain staging across your entire modular and studio setup.
Specifications
General
- Module Type: Eurorack audio interface
- Function: Balanced line-level to Eurorack level and Eurorack level to balanced line-level
Inputs
- 2 x Balanced TRS 1/4 inch line-level inputs
- Conversion: Balanced line level to Eurorack modular level
- Gain: Up to 20 dB input gain available
Outputs
- 2 x Balanced TRS 1/4 inch line-level outputs
- Conversion: Eurorack modular level (nominal 10 Vpp) to +4 dBu line level
- Output Gain: Up to +6 dB
Metering
- 4 x six-stage analogue LED VU meters
- Simultaneous monitoring of both input and output paths
Connectivity
- Rear 3-pin CHAIN IN connector for summing additional Eurorack audio sources to the balanced line outputs
- Rear 3-pin CHAIN OUT connector for sending level-shifted balanced line inputs to compatible modules or case audio boards
Mechanical
- Width: 10 HP
- Depth: 39 mm
Power
- Power Consumption: 75 mA @ +12 V
- Power Consumption: 70 mA @ -12 V
