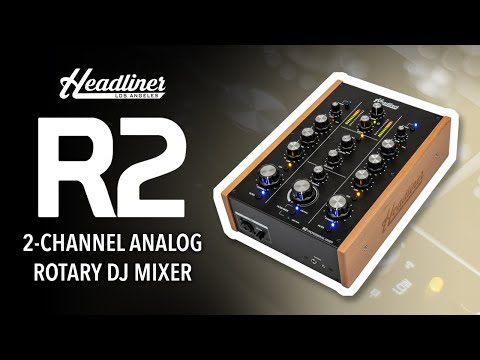

Headliner R2 Rotary DJ Mixer

The Headliner R2 is a compact 2 channel analogue rotary DJ mixer designed for DJs who want that classic warm sound and smooth rotary feel, without the boutique price tag. With genuine ALPS potentiometers, a powerful analogue filter on the master, and 3 band isolator EQs on each channel, it delivers precise control and musical response whether you are playing house, techno, funk, soul or disco.

Featuring selectable line and phono inputs on both channels, independent master and booth outputs, and a fully featured headphone section, the R2 slots easily into a home, bar or club setup. Its modular internal construction, external split rail power supply and robust metal chassis with stained wood side panels all work together to provide reliable performance and a timeless aesthetic.

Classic Rotary Feel with Modern Control

At the heart of the R2 are two stereo channels with large rotary volume controls, giving you that smooth, continuous feel that rotary mixers are known for. Each channel includes gain with peak LED, a 3 band isolator EQ, headphone cue selector and filter activation switch, so you can shape and ride your mix with finesse rather than fighting stepped faders.

Analogue Filter on the Master

The master section features an analogue filter with selectable high pass and low pass modes, plus dedicated frequency and resonance controls. This lets you sweep, sculpt and build tension in a very musical way, adding movement and character to transitions without relying on external effects.

Flexible Monitoring and Outputs

The R2 offers independent master and booth outputs, each with their own volume controls and both available on balanced XLR and unbalanced RCA connectors. A dedicated record output on RCA makes it easy to capture your sets. The headphone section includes volume, cue/master mix, split monitor and a high current amplifier with both 1/4” and 1/8” jacks, so you can monitor exactly how you like with almost any headphones.

Built to Sound and Look the Part

Genuine ALPS potentiometers, modular internal construction and an external split rail power supply connected via locking mini XLR all contribute to clean, stable audio performance. The sturdy metal enclosure with stained wood side panels gives the R2 a classic, understated look that sits perfectly alongside turntables and other vintage inspired gear.

• 2 Channel Rotary Layout with Isolator EQs - Two stereo channels with large rotary volume knobs and 3 band isolator EQs on each channel provide smooth level control and powerful tone shaping, ideal for long blends and expressive, hands on mixing.
• Master Analogue Filter with HP/LP Modes - The master channel analogue filter offers selectable high pass or low pass operation with frequency and resonance controls, letting you create sweeps, drops and transitions that feel organic and musical.
• Comprehensive Headphone and Output Options - Independent master and booth outputs on balanced XLR and unbalanced RCA, plus a separate record output and a flexible headphone cue section, give you the connectivity and monitoring you need in a wide range of setups.
• Premium Components and Classic Aesthetic - Genuine ALPS potentiometers, modular internal construction, an external split rail power supply and a robust metal chassis with stained wood side panels combine reliable performance with a timeless rotary mixer look.

General

• Type: 2 channel analogue rotary DJ mixer
• Construction: Modular internal design
• Enclosure: Sturdy metal with stained wood side panels
• Power Switch: Push button on rear panel
• Dimensions: 320 x 219 x 106 mm (12.6” x 8.6” x 4.2”)
• Weight: 2.8 kg (6.15 lbs)

Channels

• Channels: 2 stereo
• Inputs per channel: Selectable Line and Phono (RCA)
• Channel controls: Gain with peak LED, 3 band isolator EQ, headphone cue selector with LED, channel volume control, filter activation switch with LED

Master Section

• Functions: Analogue filter, headphone monitoring, output control section
• Filter type: Analogue, selectable High Pass / Low Pass
• Filter controls: Frequency, Resonance
• Level metering: Dual LED level meters for master output

Microphone

• Input: Microphone input on front panel
• Control: Level control
• Nominal input level: -50 dBu
• Frequency response: 20 Hz – 20 kHz (+/ 0.1 dB)
• THD + N: < 0.1 percent
• Input impedance: 1.2 kOhm

Line Inputs

• Nominal input level: -10 dBV (-7.8 dBu)
• Gain range: -12 dB to +12 dB
• Frequency response: 20 Hz – 20 kHz (+0/ -0.5 dB)
• THD + N: < 0.05 percent
• Input impedance: 10 kOhm

Phono Inputs

• Nominal input level: -40 dBu (@ 1 kHz)
• Gain range: -12 dB to +12 dB
• Equalisation: Active RIAA
• THD + N: < 0.05 percent
• Input impedance: 47 kOhm
• Input capacitance: 100 pF
• Preamp: Single stage phono preamp with ceramic capacitors

Main Outputs

• Master outputs: Independent Master and Booth with volume controls
• Connectors: Balanced XLR and unbalanced RCA for Master and Booth
• Additional output: Record output on unbalanced RCA
• Nominal output level (balanced): +4 dBu
• Maximum output level (balanced): +20 dBu
• Nominal output level (unbalanced): -10 dBV (-7.8 dBu)
• Maximum output level (unbalanced): +12 dBu
• Frequency response: 20 Hz – 20 kHz (+0/ -1.5 dB)
• Residual noise: < -86 dBu (Line to Master) (A weighted)
• Dynamic range: > 100 dB (A weighted)
• Crosstalk: < -65 dB
• THD + N: < 0.05 percent

Headphone Output

• Controls: Headphones volume, headphones mix (Cue/Master), split monitor switch
• Connectors: Dual 1/4” and 1/8” jacks
• Amplifier: High current headphone amplifier
• Maximum output level: 70 mA per channel into 150 Ohm
• Minimum load impedance: 32 Ohm per channel

Components and Power

• Potentiometers: Genuine ALPS
• Power supply type: External with locking mini XLR connector
• Input voltage: 100 240 V AC, 50/60 Hz
• Output voltage: +/ 15 V, 500 mA
