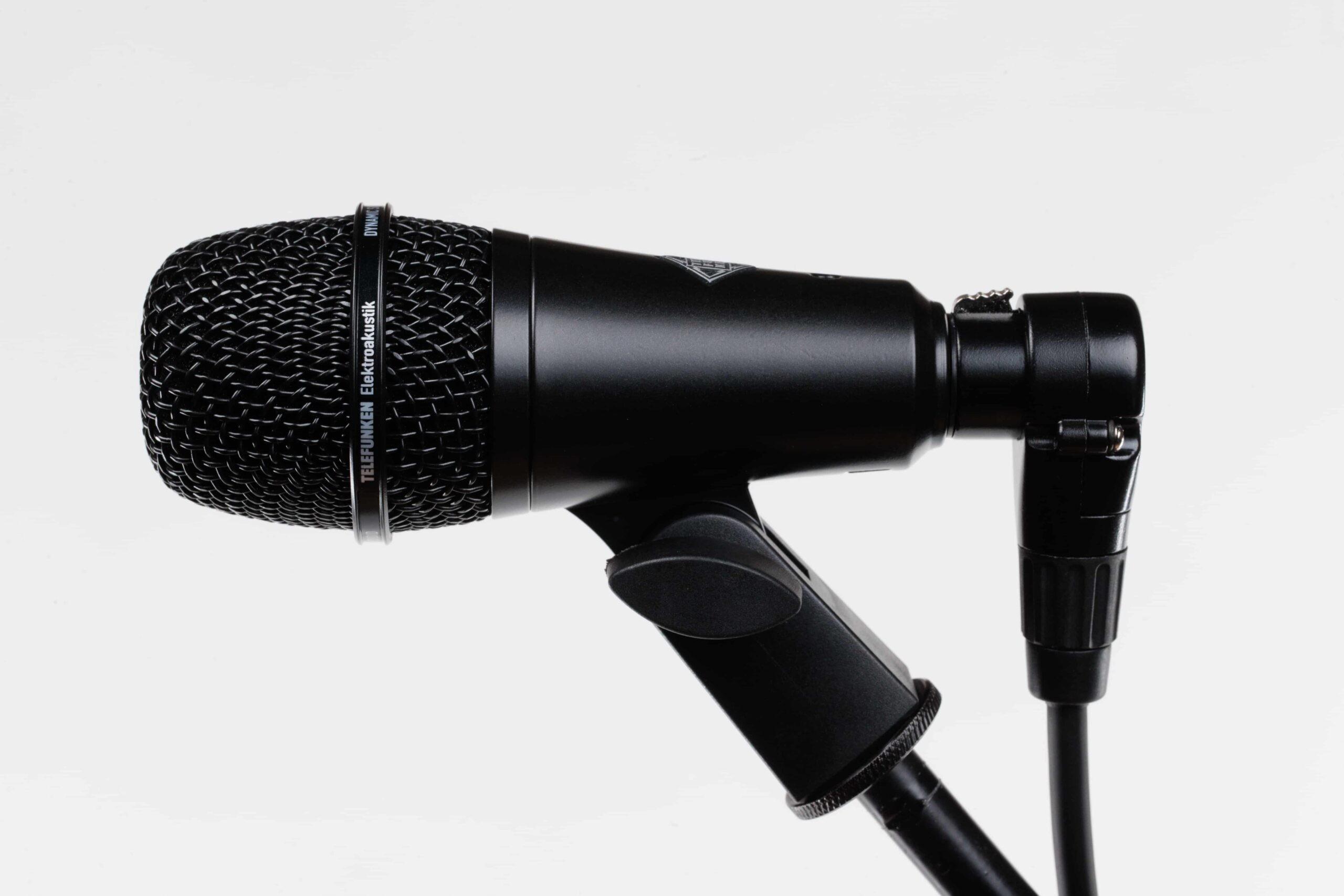

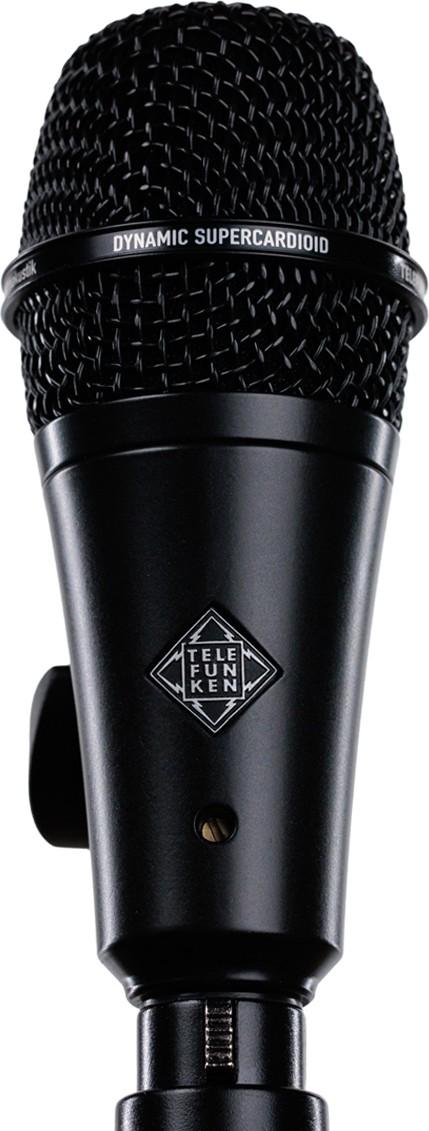

Telefunken M80-SH - Low Profile Dynamic Microphone

The Telefunken M80 SH Low Profile is a compact dynamic microphone designed for tight spaces, delivering the same detailed, condenser-like sound and high SPL handling as the classic M80 handheld. With a shorter, lighter body, integrated mount and right-angle XLR connection, it is purpose-built for drum kits, guitar amps and singing players who need premium sound without a bulky mic getting in the way.

Updated for 2026, this latest M80 SH is lighter, shorter and sleeker, with improved vibration damping and finishes matched to Telefunken’s handheld range. Its Supercardioid polar pattern offers excellent off-axis rejection and reduced proximity effect, helping you capture clear, focused sound on loud stages and in busy studio setups.

Whether you are close-miking a snare, tucking a mic in front of a cranked guitar cab or giving a drummer or keys player a high-quality vocal option, the M80 SH delivers a natural, open tone that sits easily in the mix. The custom-wound transformer and extended 50 Hz to 18 kHz frequency response provide a refined, musical character that feels more like a studio condenser, while still taking high sound pressure levels in its stride.

Designed and hand assembled in the USA, the M80 SH offers a premium, road-ready solution for engineers and performers who want Telefunken quality in a low-profile format that is easy to position and built to last.

Low Profile, High Flexibility

The compact body and built-in mount make the M80 SH ideal for tight-fit applications where a standard handheld mic would be awkward or obstructive. It tucks neatly around drum shells, guitar cabs and keyboard rigs, giving you precise placement options without cluttering the stage or getting in the performer’s way.

Condenser-Like Clarity from a Dynamic

With its extended 50 Hz to 18 kHz frequency range and subtle high-frequency lift, the M80 SH delivers a natural, open sound that feels closer to a studio condenser than a typical dynamic. Vocals, snare drums and woodwinds retain detail and presence, helping them cut through dense mixes without harshness.

Supercardioid Control on Loud Stages

The Supercardioid polar pattern offers superior off-axis rejection and minimised proximity effect, keeping unwanted spill from cymbals, amps and monitors under control. This focused pickup helps you achieve cleaner, more isolated signals, making it easier to dial in punchy drum sounds and intelligible vocals in challenging live environments.

Built for High SPL and Real-World Use

With a maximum SPL handling of 135 dB and a custom Telefunken T80 transformer, the M80 SH is ready for aggressive snare hits, loud guitar amps and powerful vocal performances. The redesigned lighter chassis and vibration-dampening technology further improve stability and reduce handling noise, giving you consistent, reliable results on stage and in the studio.

• Low Profile Design with Integrated Mount - The shortened body and built-in mount allow you to position the M80 SH precisely on drums, guitar amps and tight vocal spots, freeing up space and keeping stands and hardware to a minimum.
• Condenser-Like Sound from a Dynamic Capsule - A 25 mm moving-coil capsule and extended frequency response deliver detailed, natural audio with a subtle top-end lift, ideal for snare, vocals and woodwinds that need clarity and presence.
• Supercardioid Pattern with Excellent Rejection - The tight Supercardioid pickup pattern reduces stage bleed and room noise, helping you capture focused sources and achieve cleaner mixes, especially in loud live settings.
• High SPL Handling and Custom Transformer - Capable of handling up to 135 dB SPL and featuring Telefunken’s T80 impedance-matching transformer, the M80 SH maintains punch, detail and low distortion even with very loud sources.

General

• Type: Dynamic
• Polar Pattern: Supercardioid
• Frequency Range: 50 Hz to 18 kHz, ±3 dB
• Recommended Applications: Snare drum, singing drummers or keys players, woodwinds

Capsule & Electronics

• Capsule: 25 mm dynamic moving coil
• Transformer: Telefunken Elektroakustik T80
• Sensitivity: 1.54 mV/Pa, ±1 dB
• Output Impedance: 325 Ω
• Maximum SPL (for 1 percent THD): 135 dB

Physical

• Dimensions: 114 mm length x 48 mm diameter
• Weight: 210 g

Included Accessories

• Right-angle XLR cable
• Plastic mount
• Zip pouch
