SKU: TREXFUELTANK
No more batteries to change, no more tangled cables to trip over. The FuelTank is the perfect power supply unit for guitarists who want to focus on their performance, not their gear. Delivering 1.500 mA of power through ten DC plugs, FuelTank powers all your pedals, keeping you running on full power night after night.
With a compact design, FuelTank fits conveniently every pedalboard including the T-Rex ToneTrunk effect board. And it comes with all the cables you need to get you up and running.
Key Features
- The Only Non-Isolated Power Supply! - Non-isolated power supplies also have an efficiency advantage. The lack of isolation barriers provides direct control and monitoring of the output, which enables better performance and regulation.
- All the Cables you Need – The Fuel Tank comes complete with a collection of different cables to connect your pedals efficiently.
Pure Classic Power
Fuel Tank delivers 1.500 mA of reliable power. Two of the ten outputs provide 12-volt power with isolated ground, one DC and the other AC, for AC pedals. Each output is short-circuit protected.
- Eight 9-volt DC output plugs, all sharing the same ground.
- Giving a total of 500 mA
- One 12-volt DC output with isolated ground, giving 500 mA
- One 12-volt AC output with isolated ground, giving 500 mA
The Only Non-Isolated Power Supply
What Is a Non-Isolated Power Supply? As you may have guessed, a non-isolated power supply does not have insulation to isolate the circuit. Both the input and output share a common ground, so the current can flow between them through a single circuit.

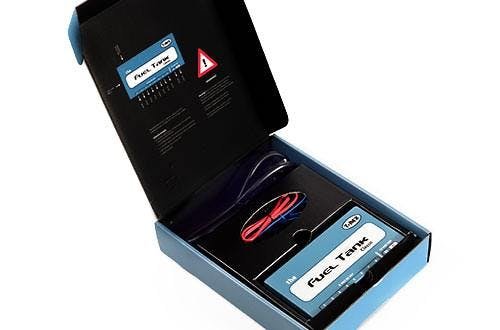

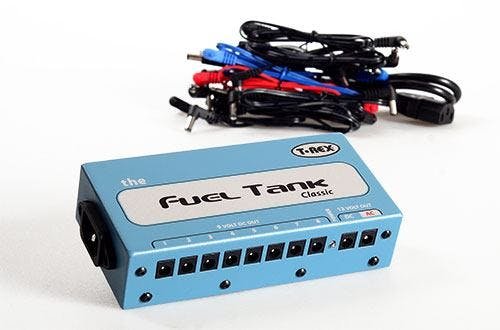

What's in the Box?
- MAINS input power plug, 3-pin standard plug
- One 5-connector link cable/daisy chain for the DC outputs
- Eight black extension cables for the DC outputs, length 25 cm
- Ten black extension cables for the DC outputs, length 50 cm
- Two red extension cables for the 12-volt AC output, 25 cm
Who are T Rex?
T Rex are based in Denmark and have been established since 1996. They are one of the original "boutique" pedal manufacturers, offering guitar and bass players a superior range of FX pedals.
Specifications
- The dimensions of the FuelTank are: L:15,8 cm H:3,8 cm W:7,6 cm
Notable Points
- Want to mount this underneath your pedalboard? Mounting Brackets that attach are sold separately.
- If you have a pedal that only accepts 18 volt, you cannot use the Classic. You need the FuelTank Chameleon or the FuelTank Junior and the yellow voltage doubler cable.
