DB Technologies ES503 - Tri amped Stereo PA System

Description

The ES503 PA system from dB Technologies is a portable, flexible PA system with a great range of features. It's a complete 3-element system which adapts to several uses, thanks to a built-in digital mixer, a OLED display user interface and a Bluetooth audio receiver.

The system can be setup in one of 3 different configurations suitable for hundreds of different occasions.

1 MONO MODE:  The two satellites are connected top-on-top (thanks to a quick and easy slide connection system) and are placed on the subwoofer through a D25mm pole.

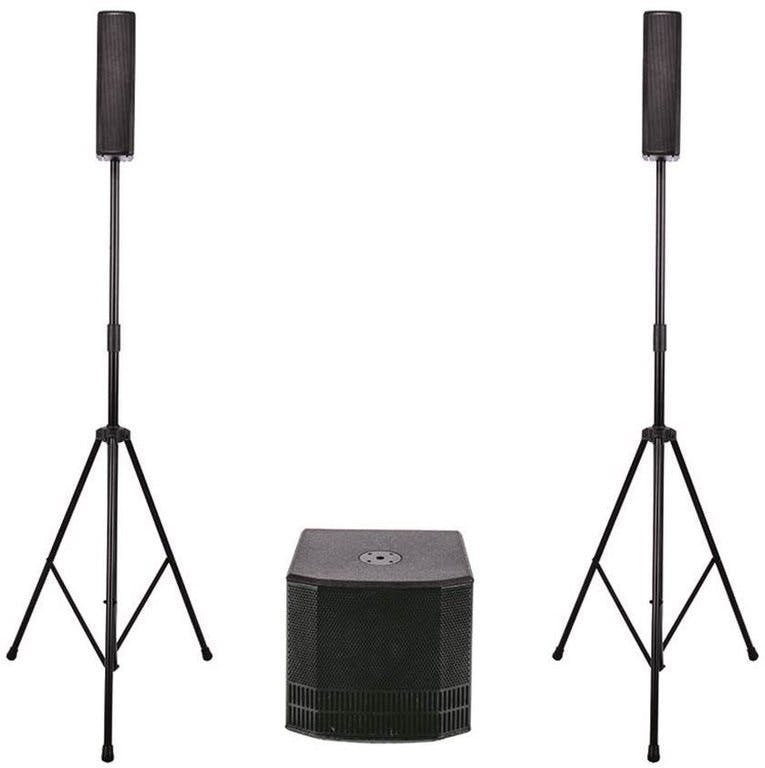

2 STEREO MODE: Each satellite is placed on a tripod
2b STEREO MODE: 1 Satellite on a pole, 1 on a tripod

3 DOUBLE COLUMN MODE: a ES503 system in mono mode becomes the master for a second ES503 feeding the signal thanks to the integrated balanced output channel. This way, both system are driven by the master’s on board mixer and any setup is guided through the master’s OLED display.

Bluetooth audio reciever

The ES503 is equipped with a three-channel mixer, and a built-in Bluetooth™ stereo module, which receives audio from devices such as mobile phones, tablets or any other audio device.

Powerful bass output

The bass-reflex subwoofer houses a 12” woofer and the amplifier module. In addition to the input connectors and controls of the user-interface, there are two Speakon outputs and a VDE power connector.

Solid Construction

The enclosure, sturdy and stylish, is made of birch plywood coated with a durable scratch-resistant black coat, which makes it truly road-ready. Two handles (one per side) help easy transport so ytou cna tkae this wherever you want to go.

Specifications

  • Speaker Type 3-amped Stereo System with two full-range tops and one subwoofer

Acoustical data

  • Frequency Response [-10dB]37 - 15.000 Hz
  • Max SPL121 dB
  • MF - HF8x 3"
  • Type MF - HFNeodymium
  • LF12"
  • Directivity95x65°

Amplifier

  • Amp TechnologyDigipro® G3
  • Amp ClassClass-D
  • Power Amp Peak1000 W

Processor

  • ControllerDSP 24 Bit/48 kHz
  • System PresetsFactory presets + User defined
  • LimiterDual Active, Peak, RMS, Thermal
  • Crossover Frequency LF-HF206 Hz

Input

  • Mic/Instrument Channel1x Combo (XLR/Jack) balanced/unbalanced input
  • Line Channels2x Combo (XLR/Jack) balanced/unbalanced inputs
  • Media Channel1x Bluetooth® built-in receiver
  • Mix Output1x XLR balanced output

Mechanics

  • Housing (Subwoofer)15mm Black Painted Birch Plywood
  • Housing (Tops)Polypropylene PP
  • Handles2x lateral side (Subwoofer)
  • Width (Top)95 mm (3.74 in)
  • Height (Top)360 mm (13.98 in)
  • Depth (Top)137 mm (5.39 in)
  • Width (Subwoofer)465 mm (18.3 in)
  • Height (Subwoofer)400 mm (15.7 in)
  • Depth (Subwoofer)430 mm (16.9 in)
  • Weight (Top)1.9Kg – 4.19lbs.
  • Weight (Subwoofer)16.4Kg – 36.16lbs.
