Intellijel 1U Dual VCA Eurorack Module
Dual / Stereo Linear Voltage Controlled Amplifier
UK delivery - from £4.99
Earn 88 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: IJEL-DUALVCA1U
You might also need
Product Description
Here's what Intellijel say about the 1U Dual VCA:
You can never have too many VCAs! Amplify, dynamics, mix, boost, AM synthesis and much more in a super compact package.

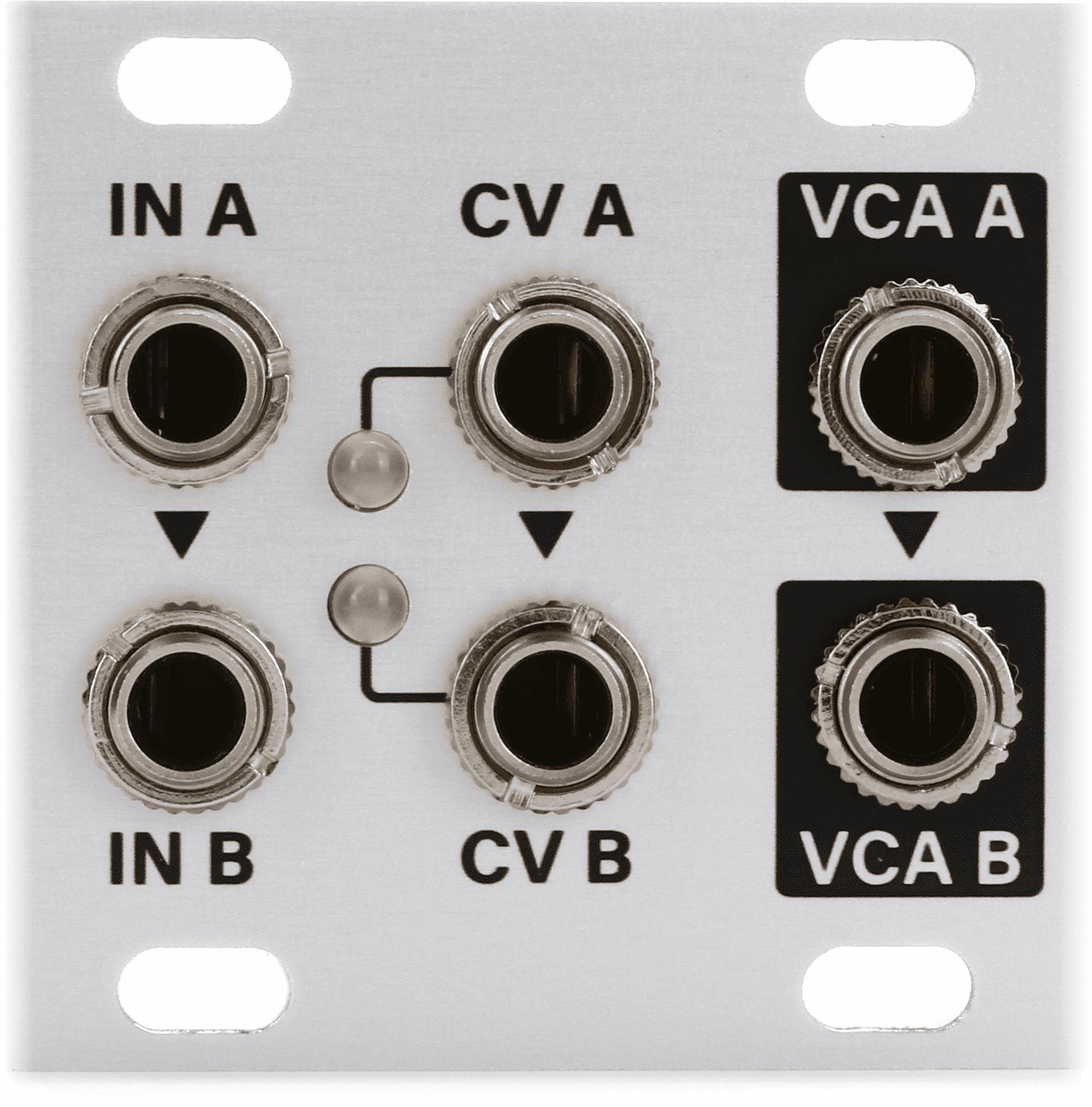

The Voltage Controlled Amplifier or “VCA” is one of the most essential and useful building blocks in a synthesis patch. The Dual VCA 1U packs two high quality, DC coupled, linear VCAs into a very compact 1U package.
The two VCAs can be used completely independently or in tandem via the handy signal normalling. The DC coupling means that the VCA can be used for the amplitude control of both control voltages (CV) and audio signals.
Some application/use examples:
- Dual, independent VCA for dynamic level control of two different audio or cv sources
- Stereo VCA (use the CV normalling where CV A normals to CV B) for processing stereo sources or CV pairs.
- CV/Audio summing (when Out A is not patched, it normals to sum with OUT B, CV A and B control the independent levels)
- Voltage/signal doubling (use input A only and the doubled voltage will appear at OUT B when a CV of +5V applied to CV A)
Key Features
- Two high quality and precise linear VCAs
- DC coupled
- LEDs to indicate CV level
- IN A normalled to IN B
- CV A normalled to CV B
- OUT A normalled to sum with OUT B
- Compact size
- Skiff / Palette friendly
