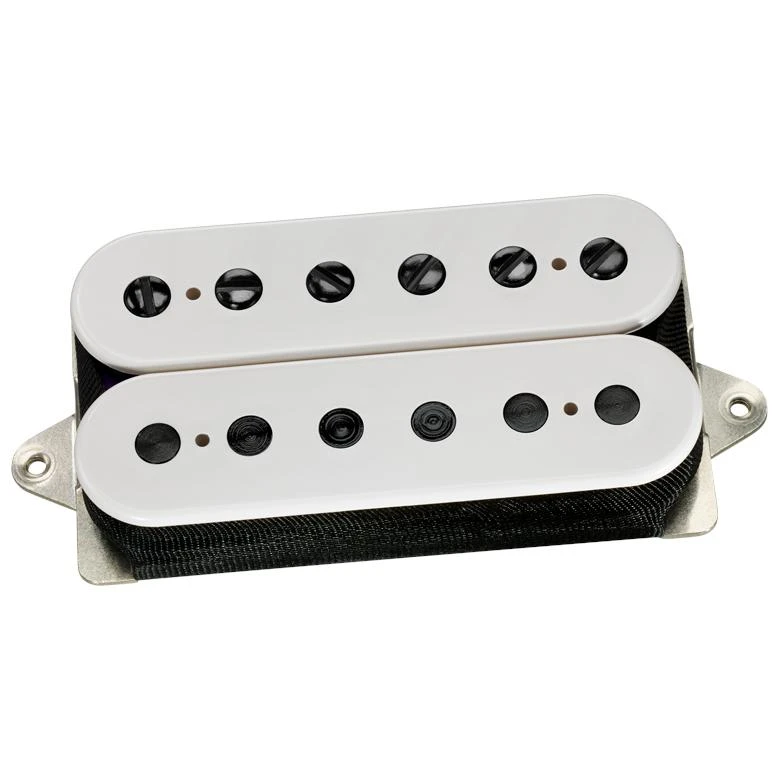

DiMarzio DP223FW PAF 36th Anniversary Bridge F-Spaced Humbucker Pickup in White
Vintage-output Alnico 5 bridge humbucker with F-spacing, warm PAF-inspired tone, articulate attack and excellent dynamic response
UK Delivery - From £2.99
Earn 109 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose Click and Collect as your delivery option online or, during store opening hours, call our sales team on 01483 456777 for assistance with placing your order.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that stock availability can change quickly both online and in-store, so we would always recommend placing your Click and Collect order as soon as possible to reserve your item.
SKU: DP223FW
You Might Also Like
Product Description
The DiMarzio DP223FW PAF 36th Anniversary Bridge humbucker captures the character of a great late 50s PAF, refined for modern reliability and consistency. Voiced using Larry DiMarzios own 1959 Les Paul as a reference, it delivers warm, articulate vintage tones with just a touch more output, making it ideal for everything from expressive blues to classic rock crunch.
This F-spaced bridge model is designed for guitars with wider string spacing at the bridge, ensuring the pole pieces line up properly under the strings. With an Alnico 5 magnet, a deliberately soft magnetic field and four conductor wiring for coil splitting, it offers a dynamic, touch-sensitive response and a wide range of usable sounds from a single pickup.
Vintage PAF Tone with Extra Punch
The DP223FW is built to recreate the feel and sound of a great vintage PAF, but with a slightly hotter output of 285 for more authority in the bridge position. The 8.60 kΩ DC resistance and carefully balanced EQ deliver a full, musical voice that stays clear under gain, giving you singing sustain and rich harmonics without getting muddy.
F Spaced for Modern Bridges
This version is F spaced, so the pole pieces are correctly aligned for guitars with wider bridge spacing, such as many tremolo equipped and modern style instruments. Proper alignment helps maintain even string-to-string balance, ensuring that chords sound cohesive and single notes remain consistent in volume across the neck.
Dynamic, Expressive Response
Using an Alnico 5 magnet with a softer magnetic pull allows the strings to vibrate more freely, enhancing sustain and touch sensitivity. The balanced 4.0 bass, 5.5 low mid, 5.5 high mid and 4.0 treble profile gives you tight lows, present mids and smooth highs that respond naturally to your picking dynamics, making it easy to move from cleaner textures to driven tones just by changing your attack.
Flexible Wiring and Reliable Construction
Four conductor wiring opens up a range of wiring options, including coil splitting for convincing single coil style sounds. Computer controlled winding with custom coated 42 gauge wire and a dedicated dipping process help ensure consistent performance, controlled microphonics and a stable, gig ready pickup that delivers the same great tone night after night.
Features
- Authentic PAF Inspired Bridge Voice - Developed using Larry DiMarzios own 1959 Les Paul as a tonal benchmark, the DP223FW offers classic late 50s humbucker character with enhanced clarity and sustain, ideal for players chasing vintage tones with modern reliability.
- F Spaced for Wider String Spacing - Designed for guitars with wider bridge spacing, the F spaced layout keeps the pole pieces directly under the strings, improving string-to-string balance and ensuring every note in a chord speaks clearly.
- Expressive Alnico 5 Magnet - The Alnico 5 magnet and intentionally soft magnetic field let the strings ring freely, increasing sustain and articulation so your playing dynamics and nuances are accurately translated.
- Four Conductor Wiring for Versatility - Multi conductor wiring supports coil splitting and other advanced wiring schemes, giving you access to both full humbucker power and leaner, single coil style tones from the same pickup.
Specifications
General
- Brand: DiMarzio
- Model: DP223FW
- Series: PAF 36th Anniversary
- Instrument: Electric Guitar
- Pickup Type: Humbucker
- Output: Vintage
- Year of Introduction: 2008
Position and Spacing
- Recommended Position: Bridge
- Alternative Position: Neck with higher output bridge pickups
- Spacing: F Spaced
- Pickup Configuration: H
Construction
- Magnet Type: Alnico 5
- DC Resistance: 8.60 kΩ
- Output: 285
- Bass: 4.0
- Low Mid: 5.5
- High Mid: 5.5
- Treble: 4.0
- Colour: White
Wiring
- Wiring: 4 conductor
- Optional Wiring: 1 conductor
- Coil Splitting: Yes
- Quick Connect: No
