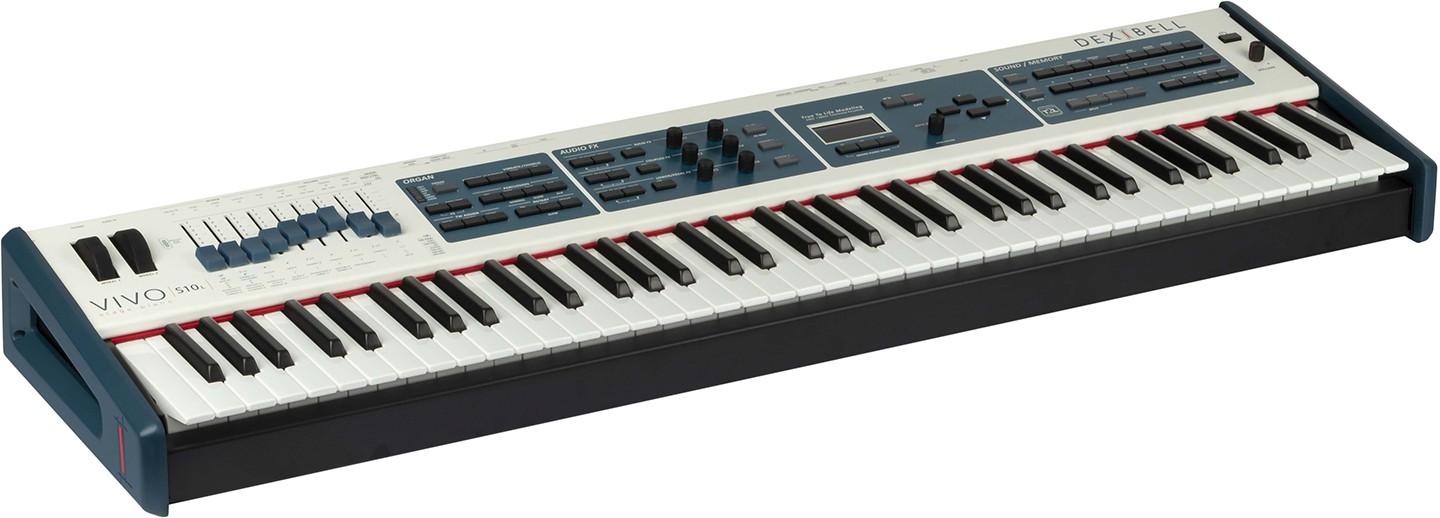

Dexibell VIVO S10L - 76 Key Digital Stage Piano

The Dexibell VIVO S10L is a powerful 76 key digital stage piano that delivers flagship VIVO performance in a lighter, more compact format. Featuring Dexibell’s Advanced T2L sound engine, unlimited polyphony and motorised drawfaders, it is designed for serious players who want premium piano, organ and synth sounds in a highly portable package.

Sharing its core technology with the top of the range VIVO S10, the S10L combines a new quad core processor, 3.2 GB of fully user changeable wave memory and ultra long, high resolution samples for a playing experience that feels remarkably close to an acoustic instrument. Add in deep effects, flexible audio routing and Bluetooth connectivity for MIDI and audio, and you have a stage piano that excels both live and in the studio.

Advanced T2L Sound Engine

At the heart of the VIVO S10L is Dexibell’s Advanced T2L (True to Life) engine, which blends high definition sampling with detailed modelling. XXL waves of up to 15 seconds on the lowest piano notes capture every nuance of the original instruments, while 24 bit, 48 kHz processing and 32 bit floating point DSP ensure pristine sound quality. The result is a responsive, organic feel that reacts naturally to your touch, from delicate pianissimo to full bodied fortissimo.

Lightweight, Gig Ready Design

With a 76 key synthesizer style keyboard and a total weight of just 12 kg, the VIVO S10L is ideal for players who want full performance power without the bulk of an 88 key weighted instrument. It is easy to transport, quick to set up and offers four keyboard parts plus four MIDI zones, making it a flexible hub for any live rig. Whether you are touring, rehearsing or working in tight spaces, the S10L keeps things practical without compromising on sound.

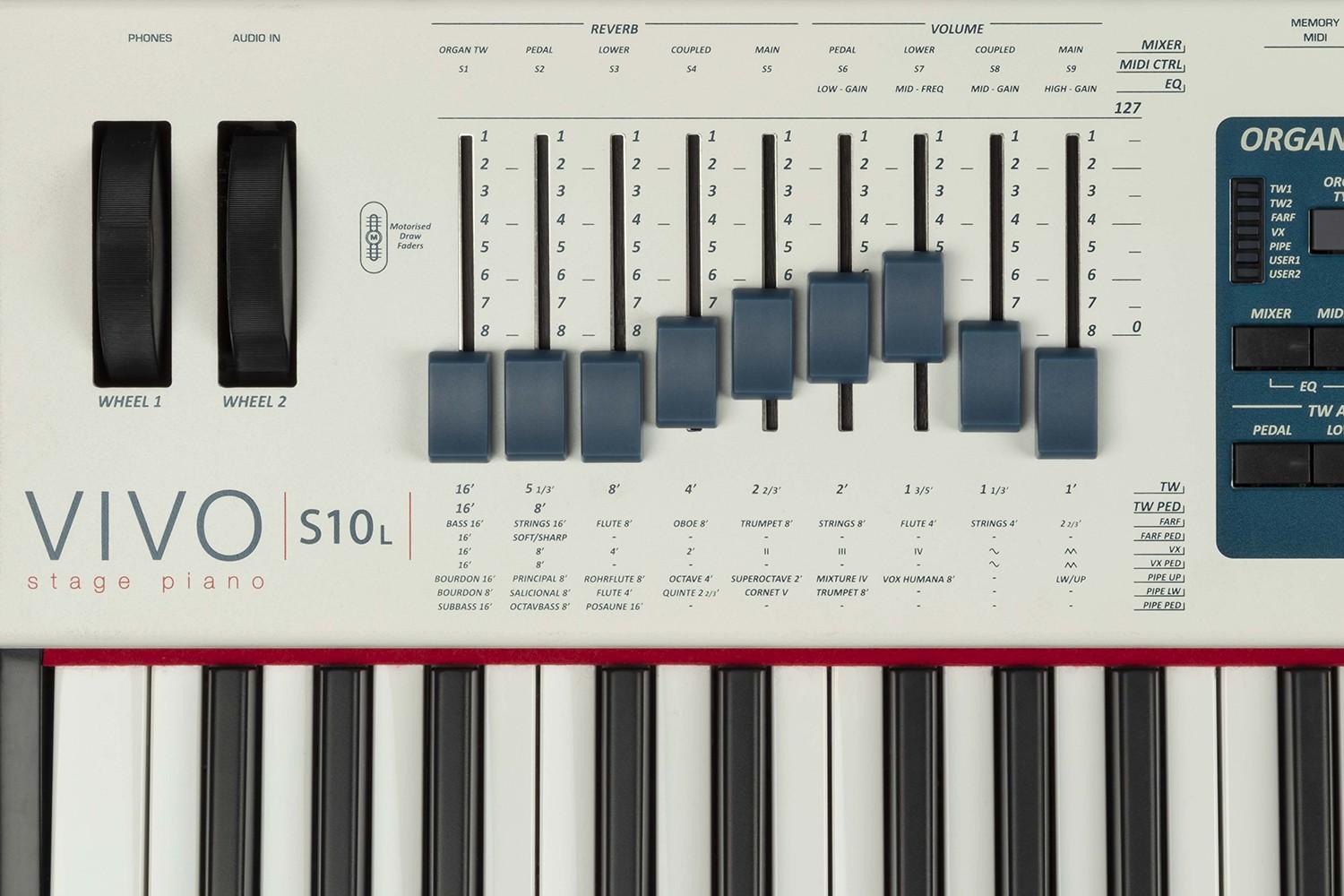

Motorised Drawfaders and Deep Control

Nine motorised drawfaders give you hands on control over tonewheel organ parameters, mixing, EQ and master keyboard functions. Because they are motorised, the faders always reflect the current state of your sound when you change presets, avoiding jumps and guesswork. Six dedicated FX encoders, dual wheels and assignable pedal inputs further enhance real time control, letting you shape your sound intuitively on stage.

Connectivity and Modern Workflow

The VIVO S10L is built to integrate seamlessly into modern setups. Balanced XLR outputs, unbalanced jack outs and independently programmable output routing make it easy to send different parts to front of house, monitors or external processors. USB to Host handles MIDI and digital audio in and out, while USB to Device supports memory and MIDI. Bluetooth MIDI and audio allow wireless control via the VIVO Editor app on iOS, and the XMURE app provides multitrack accompaniment patterns for practice or performance.

• Advanced T2L Sampling and Modelling Engine - The combination of XXL samples and detailed modelling delivers an exceptionally realistic response, with long, natural decays and expressive dynamics that make acoustic pianos, organs and other sounds feel alive under your fingers.
• 76 Key Lightweight Stage Format - A 76 key synthesizer type keyboard keeps the instrument compact and portable at only 12 kg, while still offering plenty of range for two handed playing, splits and layers on stage or in the studio.
• Motorised Drawfaders and Deep Effects - Nine motorised drawfaders, 12 independent DSP effects and a 3 band master EQ give you precise, recallable control over your sound, with seamless changes that avoid audio gaps when switching presets or effects.
• Comprehensive Connectivity with Bluetooth and USB Audio - Balanced XLR and jack outputs, multiple pedal inputs, MIDI in, out and thru, USB audio and MIDI, plus Bluetooth streaming and control, make the S10L a flexible centrepiece for live rigs, recording setups and mobile workflows.

Keyboard

• Keys: 76 keys (synthesizer type) with dynamic response
• Keyboard Mode: 4 parts (MAIN, LOWER, COUPLED, PEDAL) plus 4 MIDI zones
• Touch Sensitivity: 7 types plus fixed

Tone Generator

• Engine: Advanced T2L sampling and modelling technology
• Sampling: XXL wave size, up to 15 seconds on lower piano notes
• Sound Wave Format: 24 bit linear, 48 kHz (internal processing and DSP at 32 bit floating)
• Digital to Analogue Conversion: 24 bit linear, 48 kHz, dynamic range / S/N: 106 dB
• Maximum Polyphony: Unlimited with 320 oscillators

Sounds and Memory

• Organ Types: TW1, TW2, FARF, VX, PIPE plus User1, User2 downloadable from website
• Presets: Over 100 organ presets plus 180 sounds
• User Sounds: User downloadable from website
• Drawfaders: 9 motorised for tonewheels, mixer, EQ and master keyboard functions
• Internal Memory: 81, unlimited additional sounds loadable from USB memory
• Wave Memory: 3.2 GB, fully changeable by the user with Dexibell and Sound Font formats

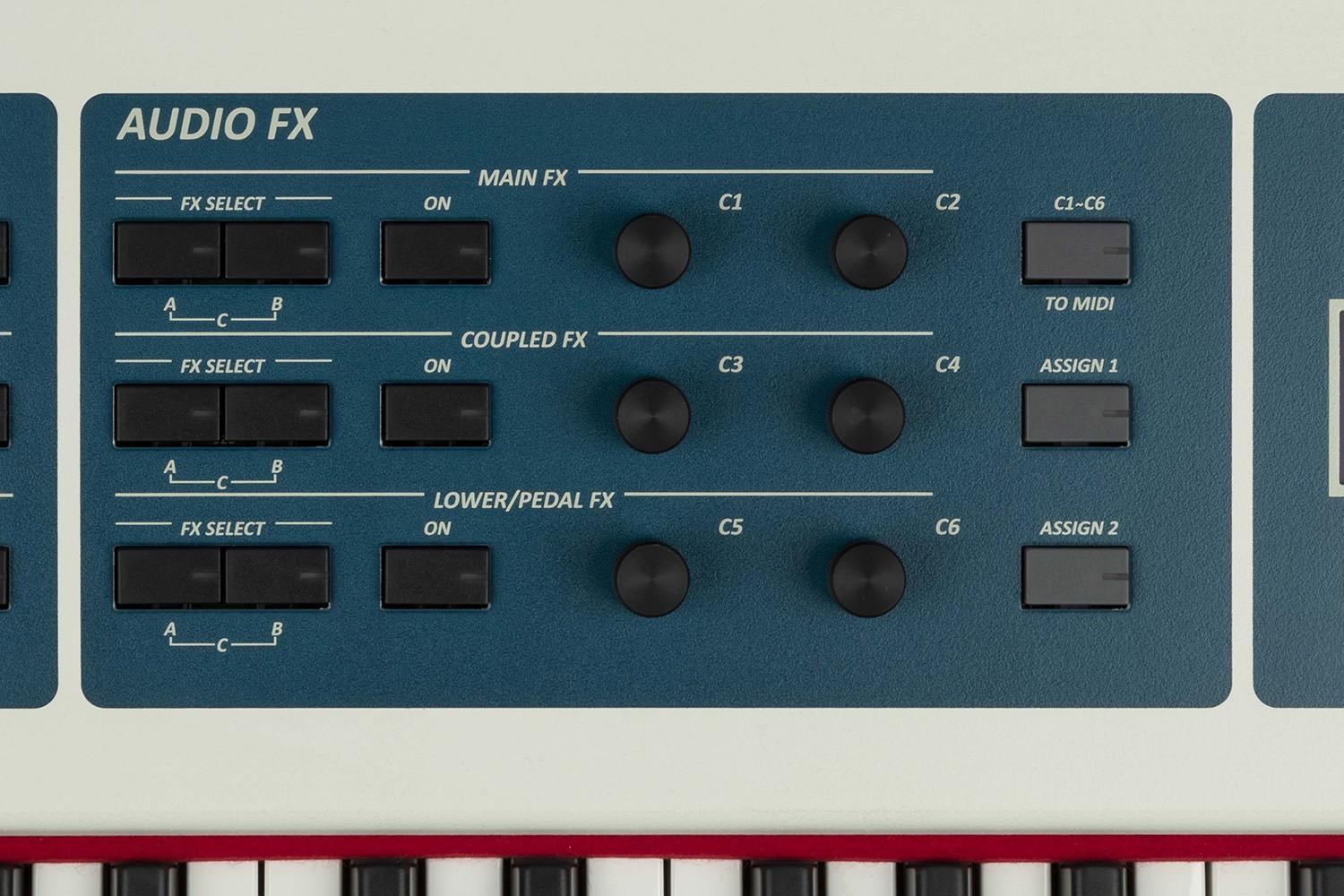

Effects and Processing

• Reverb: 24 types
• Organ Effects: Rotary, overdrive, vibrato / chorus
• DSP Effects: 12 independent DSPs with 17 types (3 x MAIN, 3 x COUPLED, 3 x LOWER, 3 x PEDAL) using seamless changes technology at effect recall
• Master Equaliser: 3 band digital EQ
• Chord Enhancer: Yes

Controls

• FX Encoders: 6
• Data Entry / Song Level Encoder: 1
• Master Volume: Knob
• Wheels: Wheel 1 and Wheel 2

Player and Recorder

• Player: .wav, .aiff, .mp3 in all formats, frequencies and bit rates
• Recorder: .wav (48 kHz, 32 bit floating) to USB memory

Tuning and Temperament

• Master Tuning: 415.4 Hz to 466.1 Hz (adjustable in 0.1 Hz steps) plus 2 presets (440 Hz, 442 Hz)
• Temperament: 9 types
• User Temperament: 3 user slots

Rhythm and Apps

• Rhythm Patterns: XMURE app for iPhone and iPad (free) with multitrack audio patterns

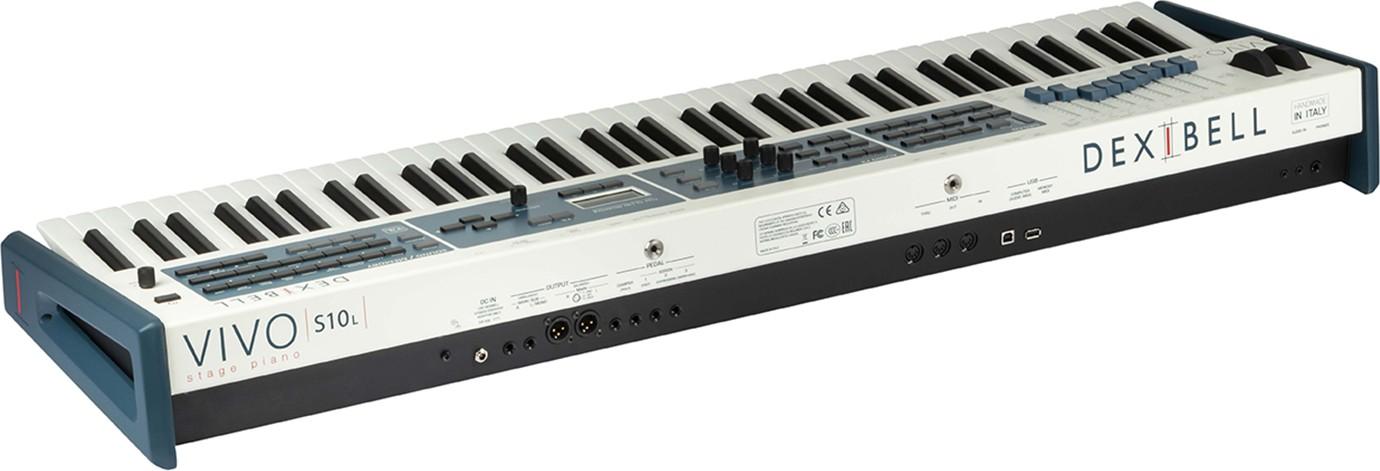

Connectors

• Main Outputs: Balanced XLR (L, R)
• Main / Sub Outputs: Unbalanced 1/4 inch jacks (L/MONO, R)
• Foot 1: Progressive damper action pedal with sympathetic resonance simulation
• Foot 2: Function assignable
• Foot 3: Expression pedal / function assignable
• Foot 4: Morphing pedal / function assignable
• MIDI: In, Out, Thru
• USB to Host: MIDI and digital audio in/out
• USB to Device: Memory and MIDI
• AUX In: 1 stereo mini jack
• Bluetooth: Streaming audio input, MIDI BLE 4.2

Display and Power

• Display: Graphic LCD 128 x 64 dots, organic LED, high contrast type
• Power Consumption (Standby): Less than 0.2 W
• Power Consumption (Maximum): 18 W
• Energy Standard: ErP Level VI for eco efficiency on standby consumption

Dimensions and Weight

• Width: 1128 mm (44.4")
• Depth: 328 mm (12.9")
• Height: 121 mm (4.7")
• Weight: 12 kg (26.4 lb)

Included Accessories

• Damper pedal
• Music stand
