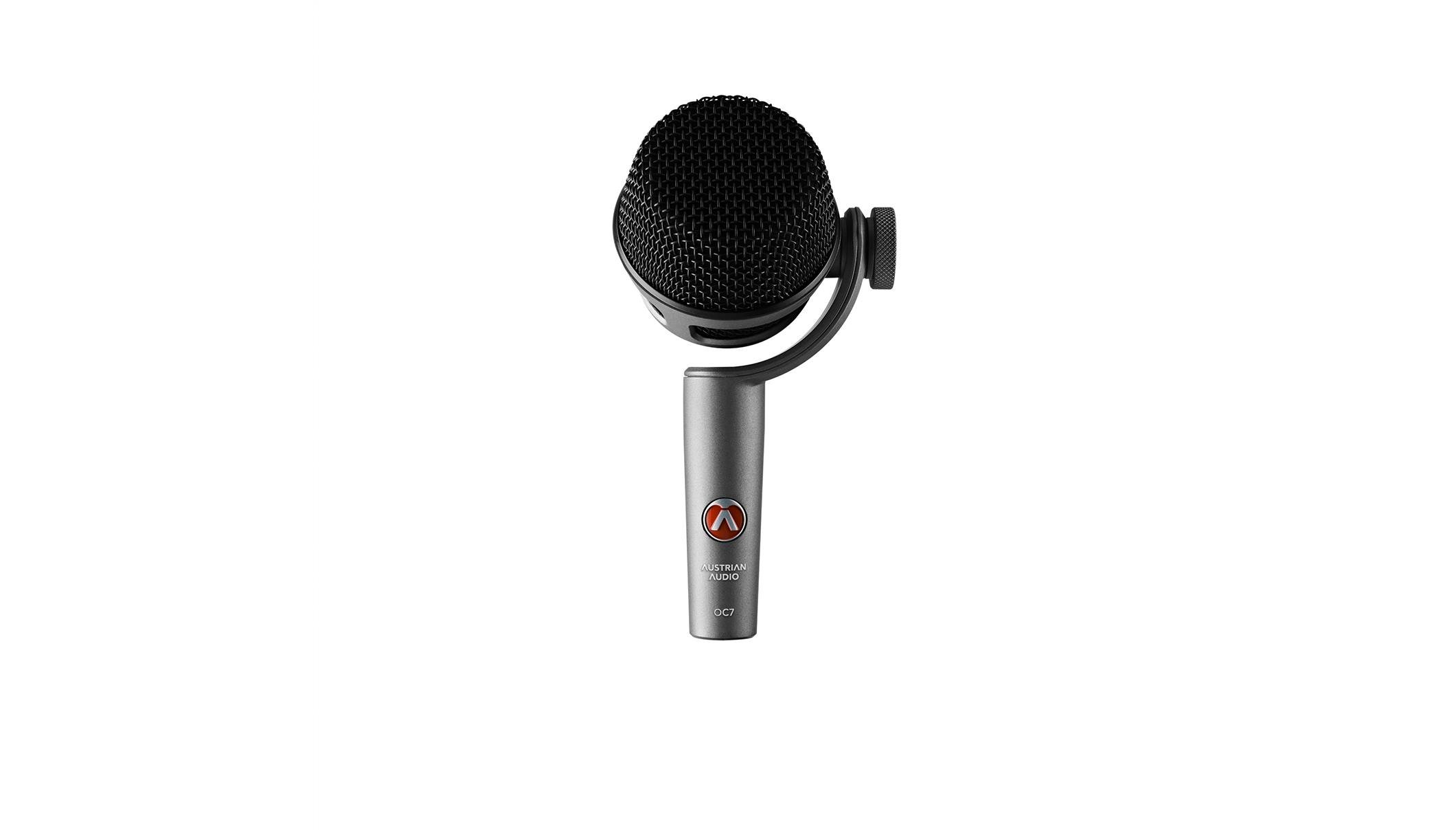

Austrian Audio OC7 True Condenser Instrument Microphone

£329.00 £355.00
Save £26.00!
1 In Stock

FREE UK Delivery

Free & Next Day delivery to most UK locations when spending over £199

Earn 329 Loyalty Points

Earn one point for every £1 you spend.
stock availability
0 at our Guildford Store
1 at our off-site Warehouse
Want to Click and Collect or try items at our Guildford Store?

The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.

The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.

Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.

If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.

Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.

If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.

Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.

SKU: AUA0039

You might also need

Product Description

Here's What Austrian Audio Say About the OC7

With the OC7, Austrian Audio releases a true condenser microphone with the popular OC sound, which is specially optimised for use on instruments.

Handmade in Vienna, Austria, each OC7 undergoes rigorous quality control before it is shipped. The heart of the new microphone is the OCC7 small diaphragm capsule, also handmade in Vienna. In-house development and manufacturing results in perfect tuning for the respective recording application.

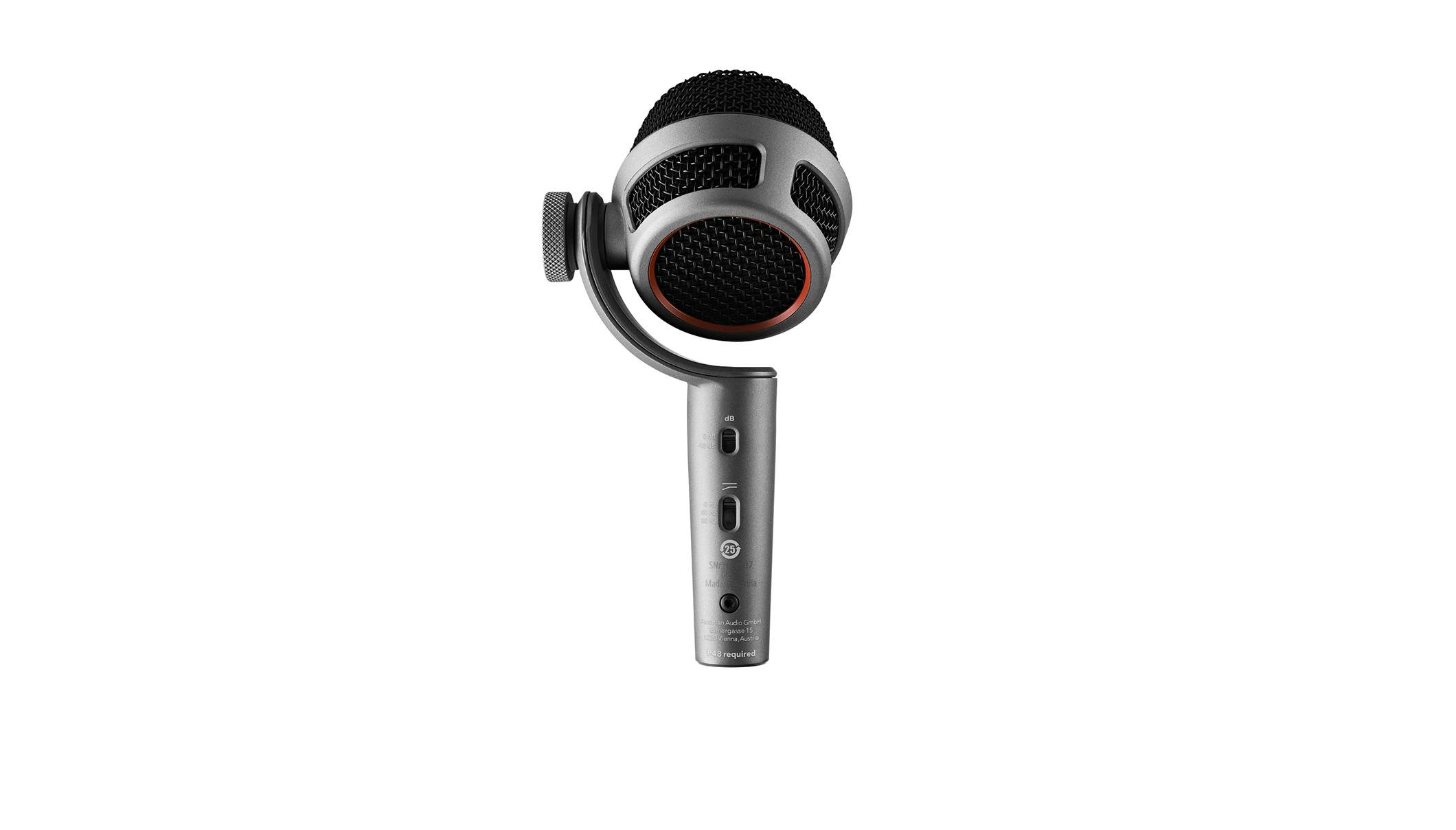

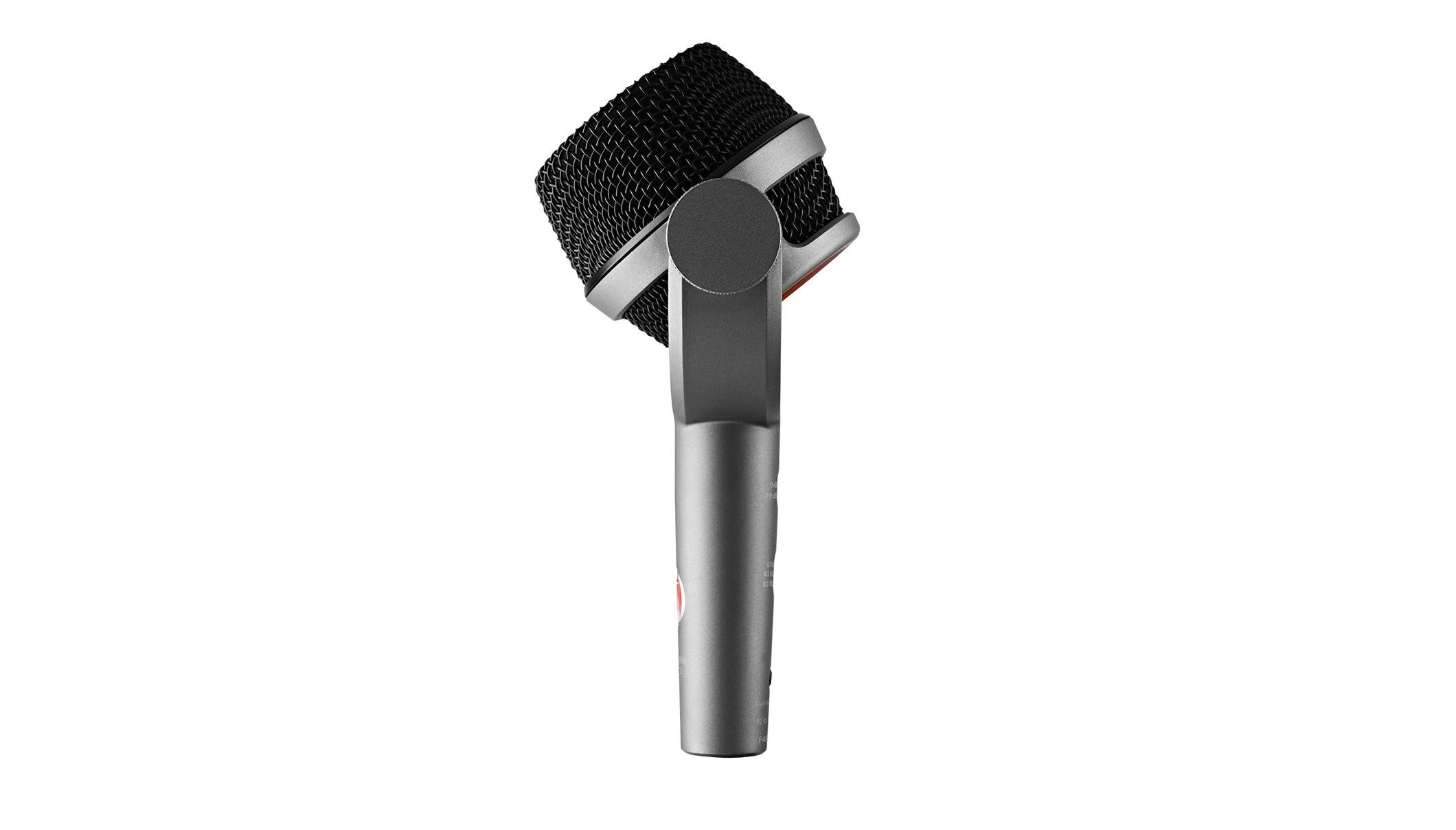

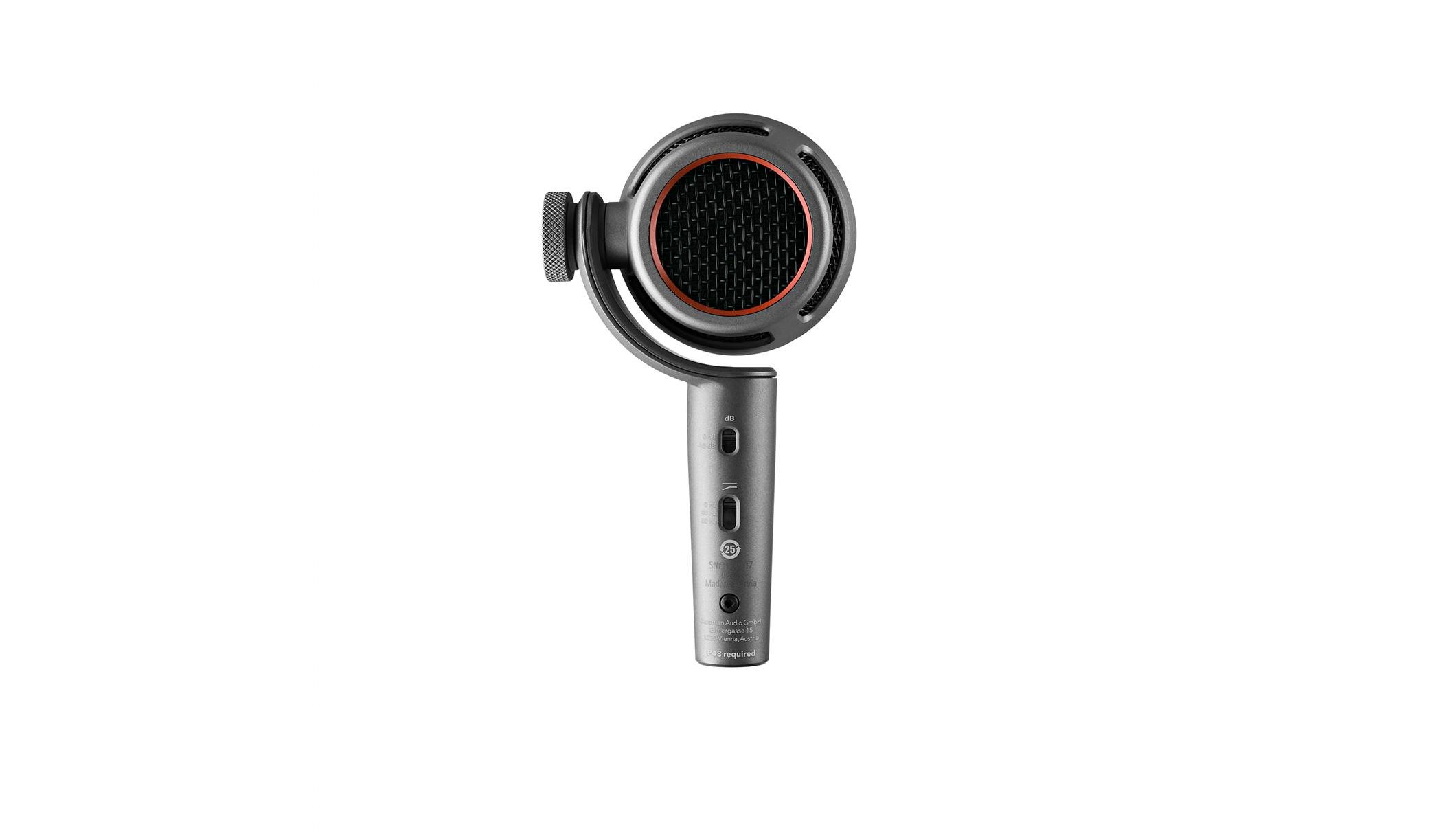

The most striking feature is the “Swivel Joint” mechanism. To simplify the positioning of the instrument microphone, Austrian Audio’s engineers have developed a suspension of the microphone basket that allows a 220° rotation in the field. This allows the microphone to be precisely aligned to the sound source or according to personal sound preferences without having to awkwardly adjust or loosen the microphone stand.

The open and transparent sound makes the OC7 a very flexible instrument microphone. It is ideally-suited for use on all instruments that have particularly lively transients, including all kinds of percussion instruments including snare drums and toms, piano, acoustic guitar but also string instruments.

Made in Vienna. Again.

Key Features

  • OCC7 condenser capsule: Handmade in Vienna. Again.
  • Innovative Swivel Joint: allows a 220° rotation of the microphone basket
  • Rugged die-cast body: ideal for the most challenging live environments
  • Directional characteristic: High Precision Cardioid Pattern
  • Switchable high pass filter: 40 Hz (2nd order), 80 Hz (2nd order)
  • Analogue pad: -10dB pad

The heart of the OC7 - OCC7 condenser capsule

The OCC7 condenser capsule was developed in Vienna and is the heart of Austrian Audio’s small diaphragm microphone series. Inspired by the legendary CK1, the newly developed capsule takes on the heritage with the benefits of the classic and the demands of today. Shaped by the past, built for the future.

The OCC7 small-diaphragm capsule with true condenser technology, developed and built in Vienna, is the heart of the microphone. The capsule’s three micron thick gold-coated polyethylene naphthalate (pen) diaphragm is much more robust than conventional Mylar alternatives.

The OCC7 has an impressive linear frequency response. The capsule can withstand extremely high sound pressure levels. Combined with very low self-noise, this results in an impressive dynamic range. It always sounds natural and open, and even at extreme volumes it is neither harsh nor sharp. The mids and highs are always silky smooth and are not overemphasised.

Each capsule is hand-built in Vienna and measured and tuned in the in-house anechoic chamber.

Specifications

  • Directional characteristic: Cardioid
  • Frequency range: 20 Hz – 20 kHz
  • Sensitivity: 10 mV/Pa
  • Equivalent noise level: 19 dB SPL (A)
  • HP Filter: 40 Hz (2nd Order), 80 Hz (2nd Order)
  • Max SPL: 154 dB SPL (>160dB SPL with pad)
  • Pad: -10 dB
  • Impedance: 275 Ω (symmetrical)
  • Load impedance: > 1 kΩ
  • Supply voltage: 48 V (< 2 mA)
  • Main Connector: XLR 3 pin
  • Dimensions: 147 x 82 x 54 mm
  • Weight: 275 g
