Product Description

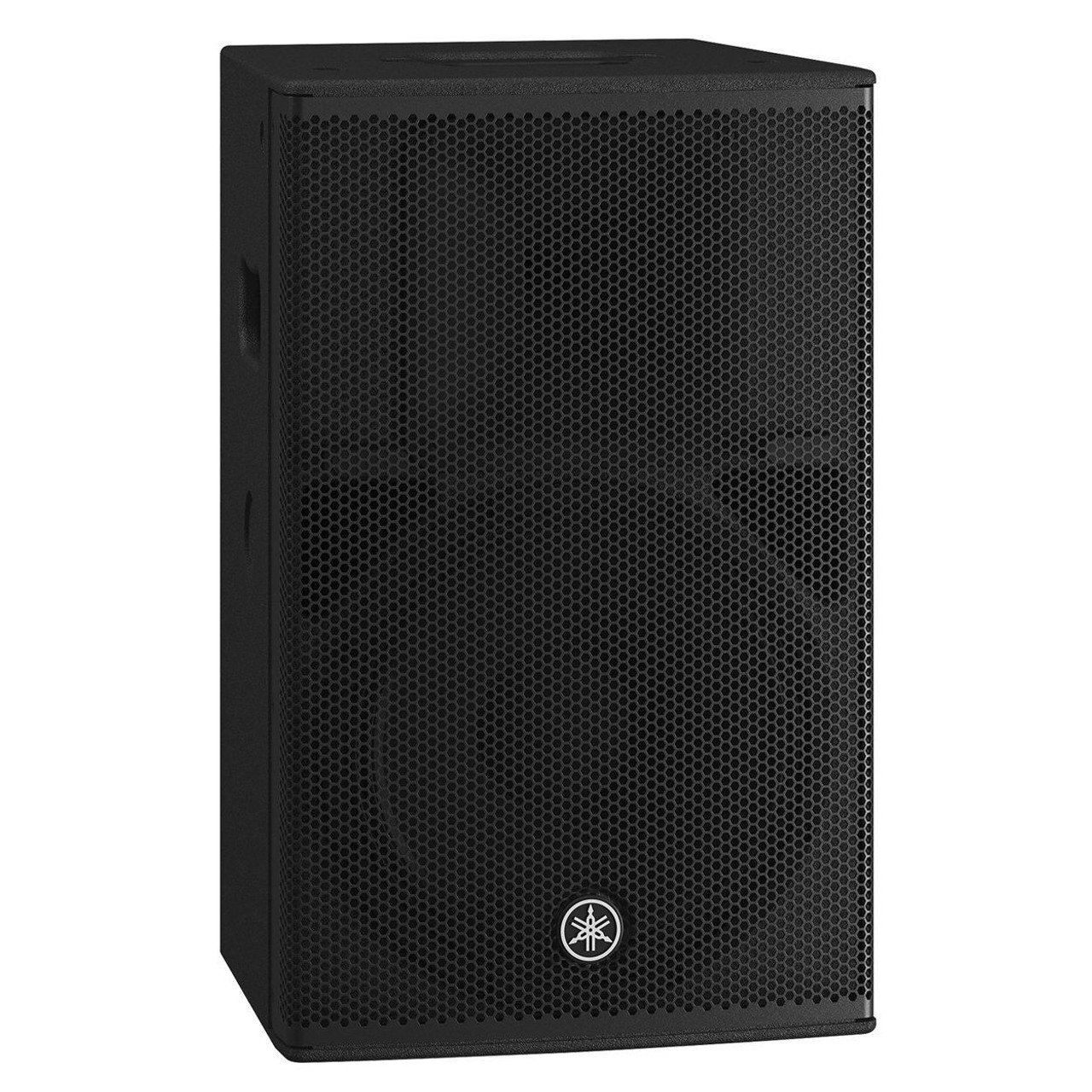

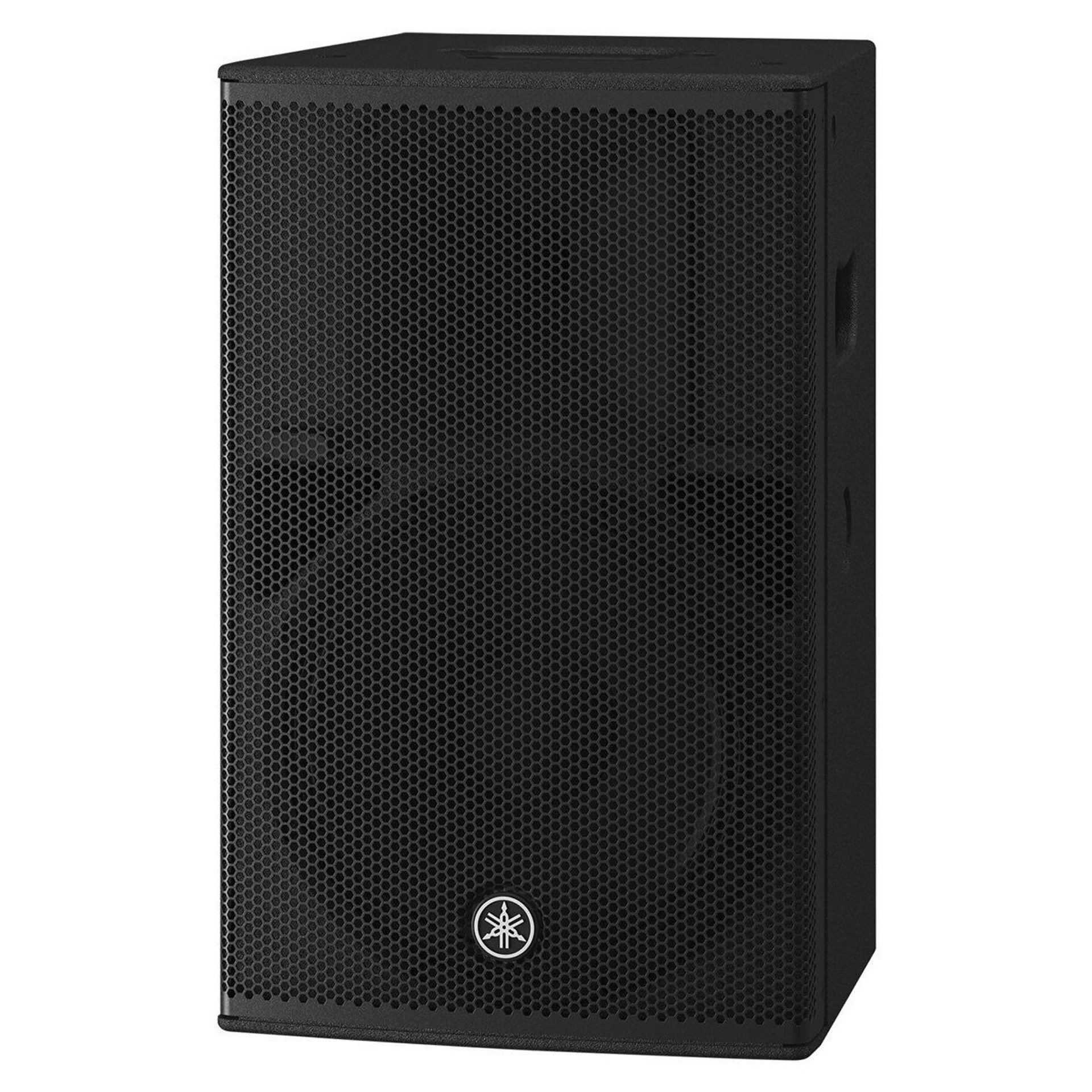

The Yamaha CHR12 is a compact, passive 12 inch PA loudspeaker designed to deliver clear, powerful sound in a tough, tour ready cabinet. Whether you are running it as a main front of house box, a utility speaker or part of a larger system, it combines carefully matched drivers with a rugged plywood enclosure to give you reliable, best in class performance night after night.
Using the same plywood construction as Yamaha’s high end CZR Series, the CHR12 keeps cabinet vibration to a minimum so more of what you hear is tight, focused audio rather than box resonance. With flexible mounting options, a rotatable horn and dedicated DSP presets available in compatible Yamaha amplifiers and processors, it is easy to integrate into everything from portable rigs to permanent installations.
Clear, Controlled Sound
The CHR12 is a 2 way design with a 12 inch woofer and 1.4 inch HF driver, carefully selected and customised to work together seamlessly. This gives you articulate mids, smooth highs and impressive low frequency response from a compact box, helping vocals, instruments and playback tracks cut through cleanly in a wide range of applications.
Road Ready Plywood Cabinet
Built from plywood rather than plastic, the CHR12 cabinet offers excellent rigidity for a cleaner sound with reduced unwanted vibration. The polyurea coating provides a robust, scratch resistant surface that stands up to regular loading, unloading and use in demanding environments.
Flexible Mounting and Coverage
The CHR12 can be installed in either a horizontal or vertical orientation, with a rotatable HF horn so you can maintain optimal coverage whichever way you mount it. Dual angle pole sockets let you choose between a straight 0 degree position or a 7 degree down tilt, helping you aim the sound where the audience actually is rather than at the back wall or ceiling.
Optimised with Yamaha DSP
When used with Yamaha DSP equipped power amplifiers or compatible signal processors, you can access dedicated tuning presets tailored specifically for the CHR12. These settings optimise crossover, EQ and protection to maximise system performance, making it quicker and easier to achieve a polished, professional sound.
Features
- 12 inch 2 Way Passive Design - A 12 inch LF driver paired with a 1.4 inch HF driver delivers full range sound with punchy lows and clear highs, ideal for use as a main PA speaker or versatile utility box in live sound and installation setups.
- Plywood Enclosure with Polyurea Coating - The rigid plywood cabinet keeps vibrations low for a tighter, more accurate sound, while the tough polyurea finish resists knocks and scratches, helping the speaker maintain its performance and appearance over time.
- Flexible Mounting Options - Horizontal or vertical installation, a rotatable HF horn, dual angle pole sockets and rigging points for eye bolts give you multiple ways to deploy the CHR12 so you can tailor coverage to different rooms and stage layouts.
- Dedicated DSP Presets - Yamaha DSP equipped amplifiers and compatible processors include speaker processor tuning specifically for the CHR12, simplifying setup and ensuring the system is voiced for clarity, consistency and protection.
Specifications
General
- Type: 2 way passive loudspeaker
- Use: Main or utility speaker
Transducers
- Low Frequency Driver: 12 inch woofer
- High Frequency Driver: 1.4 inch HF driver
Cabinet
- Enclosure Material: Plywood
- Coating: Polyurea, scratch resistant
- Mounting Orientation: Horizontal or vertical
- HF Horn: Rotatable
Mounting and Rigging
- Pole Mount: Dual angle sockets (0 degree and 7 degree down tilt)
- Rigging: Rigging points for use with eye bolts
- Bracket Compatibility: Optional UB DXRDHR12 U bracket for vertical or horizontal use
DSP and Processing
- DSP Support: Dedicated speaker processor tuning in Yamaha DSP equipped amplifiers and other compatible signal processors
