XVIVE U35C Wireless Microphone System

The XVIVE U35C is a compact 5.8 GHz wireless system designed specifically for condenser microphones and active DI boxes, giving you studio-quality sound without the hassle of XLR cables. With switchable 48V or 12V phantom power, 24-bit / 48 kHz audio and a stable range of up to 30 metres, it lets you move freely on stage, in the studio, at home or on location while keeping your favourite mic sounding exactly as it should.

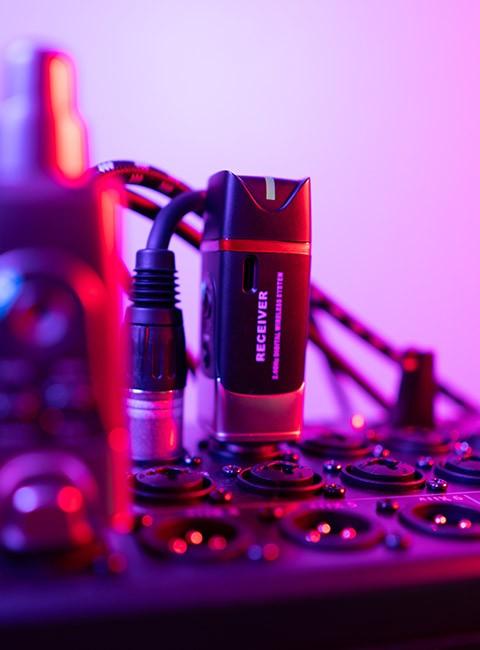

Comprising a plug-on transmitter and receiver, the U35C connects directly to your condenser microphone and mixer, interface or powered speaker, delivering low-latency, low-noise performance on the less congested 5.8 GHz band. Automatic channel scanning, internal rechargeable batteries and simple plug-and-play operation make it an easy upgrade for vocalists, presenters, engineers and content creators who want reliable wireless without a complex setup.

Wireless Freedom for Condenser Microphones

The U35C is tailored for condenser microphones and active DI boxes, supplying either 48V or 12V phantom power so your mic or DI performs exactly as intended. Just plug the transmitter into your mic, the receiver into your mixer or interface, select a channel and you are ready to go, with no extra power supplies or adaptors required.

Clear, Detailed 24-bit Digital Audio

With 24-bit / 48 kHz digital conversion, a 20 Hz to 20 kHz frequency response and 110 dB dynamic range, the U35C preserves the full character of your microphone. Vocals, acoustic instruments and spoken word all come through with clarity and detail, while low distortion and a 110 dB signal-to-noise ratio help keep your signal clean and professional.

Stable 5.8 GHz Operation with Automatic Scanning

Operating in the 5.8 GHz ISM band, the U35C avoids much of the congestion found at 2.4 GHz from Wi-Fi, Bluetooth and other everyday devices. Six switchable channels and automatic scanning help you quickly find the best available frequency, while a line-of-sight range of up to 30.48 metres gives you plenty of room to move on stage or around a venue.

Rechargeable, Portable and Easy to Use

Both the transmitter and receiver feature internal rechargeable lithium-ion batteries, providing up to 5 hours of operation. They can be charged simultaneously via the included dual USB cable and a standard 5V USB charger, and can be used while charging when needed. Compact XLR plug-on housings keep your setup tidy and portable, ideal for live sound, rehearsals, video work and mobile recording.

• 5.8 GHz True Diversity Wireless - The U35C operates on the 5.8 GHz ISM band with true diversity reception, helping to minimise dropouts and interference from crowded 2.4 GHz environments. This gives you a more stable, reliable wireless link in venues, rehearsal rooms and home setups.
• Built-in 48V / 12V Phantom Power - Switchable phantom power lets you use a wide range of condenser microphones and active DI boxes without external power supplies. This keeps your rig streamlined and makes it easy to go wireless with your existing studio and live mics.
• High-Resolution 24-bit / 48 kHz Audio - With full-range 20 Hz to 20 kHz response, 110 dB dynamic range and low 0.2 percent THD, the U35C maintains the nuance and dynamics of your performance. Your microphone sounds natural and detailed, whether you are singing, speaking or capturing instruments.
• Compact, Rechargeable Plug-on Design - The transmitter and receiver plug directly into XLR connections and run on internal lithium-ion batteries for up to 5 hours. Simple USB charging and the ability to operate while charging make the system practical for long sessions, gigs and location work.

System

• Model: U35C Complete Condenser System
• Wireless Type: 5.8 GHz ISM worldwide open band
• Bit Depth / Sample Rate: 24-bit / 48 kHz
• Switchable Channels: 6
• Simultaneous Channels: 6
• Mode: Phantom Power 48V / 12V
• Frequency Response: 20 Hz to 20 kHz (-3 dB)
• Dynamic Range: 110 dB (-3 dB)
• Signal-to-Noise Ratio: 110 dB
• Total Harmonic Distortion: 0.2 percent
• Latency: 5 ms
• Operating Range: 30.48 m / 100 ft (line-of-sight)
• Microphone Compatibility: Condenser microphones and active DI boxes

Battery

• Type: Rechargeable lithium-ion (internal)
• Battery Life: 5 hours
• Charging Time: 2.5 hours (full charge)
• Charging Voltage: 5V (USB)
• Usable While Charging: Yes

Transmitter

• Model: U35T
• Mode: Input Mic / Line (-10 dB)
• Connector: Balanced XLR (female)
• Dimensions: 31 x 29 x 98 mm
• Weight: 93 g
• Mute: Yes

Receiver

• Model: U35R
• Connector: Balanced XLR (male)
• Dimensions: 81 x 31 x 29 mm
• Weight: 92 g
