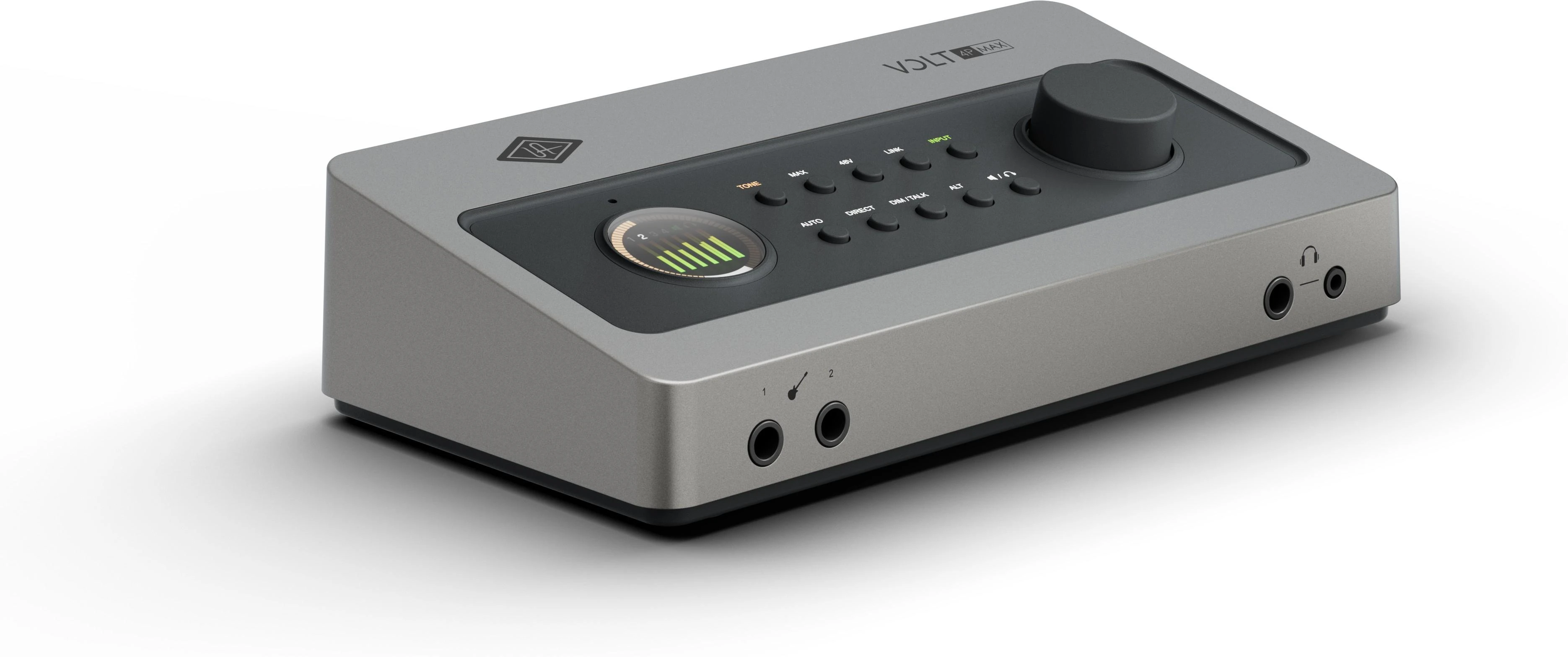

Universal Audio Volt 4P Max Audio Interface

The Universal Audio Volt 4P Max is a powerful 12-in / 6-out desktop USB audio interface designed to bring full studio polish to bands, producers and content creators. With four Tone Shaping Preamps, Max compression on every channel, a full colour Smart Display, speaker switching, talkback, loopback and an extensive UAD software bundle, it gives you a complete, modern recording hub that fits on your desk and runs over USB.

Built by the same team behind UA’s Apollo interfaces, Volt 4P Max combines best-in-class 32-bit / 192 kHz conversion with instant, characterful preamp voicings and compressor presets. Whether you are tracking a full band, producing hybrid hardware and software setups, or running multi-guest podcasts and livestreams, Volt 4P Max delivers professional sound, fast workflow and rock-solid integration with Mac, Windows and iOS.

Record-ready tone at the source

Volt 4P Max is all about getting inspiring sounds before you even open a plug-in. Each of the four mic preamps features three distinct Tone Shaping modes: Warmth, Focus and Shine. These harmonic voicings emulate classic tube, solid-state and British Class-A preamps, so your vocals, guitars, synths and drums hit your DAW already sounding like a finished record instead of a rough demo. With up to 60 dB of digitally controlled gain and independent 48 V phantom power per channel, you can confidently use everything from dynamic mics to high-end condensers.

Max compression for mix-ready tracks

Onboard Max processing lets you add punch, control and character as you record, without latency or complex routing. Six push-button compressor presets, inspired by legendary LA-2A and 1176 hardware, are tuned for sources like rap vocals, jangly acoustic guitar and bass. Paired with the three preamp modes, you get over 18 character combinations that make it easy to dial in radio-ready dynamics and tone in seconds, helping performances sit in the mix from the very first take.

Smart workflow for bands, studios and creators

With 12-in / 6-out connectivity, Volt 4P Max is built to handle larger sessions. Four mic/line inputs and two front-panel Hi-Z inputs let you track multiple musicians at once, while ADAT or S/PDIF expansion adds up to eight extra digital inputs when your setup grows. Two stereo monitor outputs with speaker switching make it simple to compare mixes on main and alternate monitors, and dual headphone outputs support collaborative sessions. The full colour Smart Display gives clear visual feedback on levels, gain reduction and settings, while Auto-Gain and Clip Protection keep your signals clean and distortion-free.

Perfect for podcasts, streaming and mobile rigs

Volt 4P Max is equally at home in content creation and broadcast-style setups. Built-in loopback lets you blend live mics and instruments with computer audio for podcasts, livestreams and performance videos, and the integrated talkback microphone makes communicating with performers straightforward. USB bus power and class-compliant operation mean you can plug straight into Mac, Windows, iPad or iPhone and start recording quickly, while the onboard USB hub helps you connect and power MIDI controllers and other peripherals without extra clutter.

Premium UAD software and LUNA included

Every Volt 4P Max comes with the UAD Volt Studio Bundle, a curated collection of over 15 UAD plug-ins and instruments plus the LUNA Digital Audio Workstation. From classic UA 610 tube preamps, Teletronix LA-2A and 1176 compressors, through tape, reverbs and delays, to premium synths and guitar amps, you get the same tools used on countless hit records. Additional third-party software from Celemony, Plugin Alliance, UJAM, Splice, UVI and Image-Line rounds out a comprehensive production toolkit so you can write, record and mix to a professional standard straight out of the box.

• Four Tone Shaping Preamps with three character modes - Capture rich, record-ready sound on every input using Warmth, Focus and Shine modes, which emulate classic tube, solid-state and British Class-A preamps. This lets you sculpt the vibe of each source at the recording stage, reducing the need for heavy processing later.
• Max compression with six musical presets - Add punch and control as you track with Max dynamics processing, featuring presets tailored for vocals, guitars and bass. Modelled on iconic LA-2A and 1176 compressors, these settings help your performances sit in the mix immediately, without complicated setup.
• 12-in / 6-out I/O with ADAT expansion and speaker switching - Record full bands and complex setups using four mic/line inputs, two Hi-Z inputs, MIDI I/O and ADAT or S/PDIF expansion for up to eight extra digital channels. Two stereo monitor outputs with Main and Alt switching make it easy to check your mix on different speaker pairs.
• Smart Display, Auto-Gain and Clip Protection - Work faster and more confidently with a bright full colour Smart Display that shows levels, routing and gain reduction at a glance. Auto-Gain sets input levels automatically, while Clip Protection catches unexpected peaks so you can focus on performance instead of metering.

General

• Product: Universal Audio Volt 4P Max
• Type: Desktop USB audio interface
• Simultaneous I/O: 12-in / 6-out
• Audio Resolution: 32-bit / 192 kHz
• Construction: Rugged desktop chassis

Analogue Inputs

• Microphone Preamps: 4 with Tone Shaping, Harmonic Saturation and Max Compression
• Mic / Line Inputs: 4 x XLR combo jacks (mic / line)
• Hi-Z Instrument Inputs: 2 x ¼” TS unbalanced (front panel, Inputs 1-2)
• Available Gain: 60 dB (digitally controlled)
• Phantom Power: +48 V, switchable per channel
• Mic Input Impedance: 2 kΩ
• Line Input Impedance: 10 kΩ
• Instrument Input Impedance: 1 MΩ
• Mic Frequency Response: 20 Hz to 20 kHz ±0.08 dB
• Line Frequency Response: 20 Hz to 20 kHz ±0.05 dB
• Instrument Frequency Response: 20 Hz to 20 kHz ±0.02 dB
• Mic Dynamic Range (A-weighted): 119 dB
• Line Dynamic Range (A-weighted): 119 dB
• Instrument Dynamic Range (A-weighted): 116 dB
• THD + Noise (1 kHz @ -1 dBFS, all analogue inputs): -108 dB (0.0004%)
• Maximum Mic Input Level: 14 dBu
• Maximum Line Input Level: 22 dBu
• Maximum Instrument Input Level: 13 dBu

Analogue Outputs

• Monitor Outputs: 2 x stereo (Main and Alt) on ¼” TRS balanced or TS unbalanced (DC coupled)
• Additional Line Outputs: Line 3-4 on ¼” TRS balanced or TS unbalanced (DC coupled)
• Monitor / Line Frequency Response: 20 Hz to 20 kHz ±0.05 dB
• Monitor / Line Dynamic Range (A-weighted): 126 dB
• Monitor / Line THD + Noise (1 kHz @ -1 dBFS): -112 dB (0.0003%)
• Maximum Output Level: 20.2 dBu
• Output Impedance: 200 Ω

Headphone Outputs

• Headphone Outputs: 2 x stereo (¼” and ⅛” TRS, DC coupled, one shared cue mix)
• Frequency Response: 20 Hz to 20 kHz ±0.08 dB
• Dynamic Range (A-weighted): 116 dB
• THD + Noise (1 kHz @ -1 dBFS into 300 Ω): -103 dB (0.0007%)
• Maximum Output Power into 32 Ω: 45 mW
• Maximum Output Power into 300 Ω: 24 mW

Digital I/O and Connectivity

• USB: 1 x USB 2.0 host port (USB-C connector)
• USB Hub Port: 1 x USB hub port for peripherals (5 VDC @ 0.5 A max)
• USB External Power Input: 1 x USB-C (requires 5 VDC @ 2 A minimum, 3 A supply included)
• Digital Input: ADAT or S/PDIF optical input
• ADAT Input Channels: 8 channels at 44.1 / 48 kHz, 4 channels at 96 kHz, 2 channels at 192 kHz (S/MUX capable)
• S/PDIF Input Channels: 2 channels at all supported sample rates
• MIDI: In and Out on ⅛” TRS Mini-Jack (MIDI Type A)
• Talkback: Built-in microphone
• Loopback: Built-in loopback for podcasting, streaming and content creation

Conversion and Performance

• Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
• Bit Depth: 32-bit
• Auto-Gain: Yes
• Clip Protection: Yes
• Full Colour Smart Display: Input, output and gain reduction metering with channel selection

Power and Controls

• Power: USB bus-powered (external 5 VDC @ 3 A supply provided with unit)
• Power Consumption (@ 5 VDC): 6.0 W typical, 9.1 W maximum
• On / Off Switch: Rear panel

Software Bundle

• Included DAW: LUNA Digital Audio Workstation
• Included UAD Plug-ins and Instruments (UAD Volt Studio Bundle): Topline Vocal Tune, UA 610 Tube Preamp & EQ Collection, Century Tube Channel Strip, Teletronix LA-2A Tube Compressor, UA 1176 Classic FET Compressor, Pure Plate Reverb, Galaxy Tape Echo, Oxide Tape Recorder, Vibe Analog Machines, PolyMAX Synth, Anthem Analog Synth, UAD Lion ‘68 Super Lead Amp, UAD Showtime ’64 Tube Amp
• Additional Software: Melodyne Essential (Celemony), Ampeg SVT-VR Classic Bass Bundle (Plugin Alliance, including Ampeg SVT-VR Classic, bx_Tuner, bx_Masterdesk_Classic), Virtual Drummer DEEP (UJAM), Virtual Bassist DANDY (UJAM), Splice INSTRUMENT, Prisma - Producer Lab (UVI), FL Studio Producer Edition (3 months free)
• Note: Included UAD Volt Studio and third-party software bundles subject to change without notice

System Requirements

• Mac: macOS 12 Monterey or newer, available USB 2.0 (or higher) port, Intel, AMD or Apple silicon processor, internet connection for software downloads
• Windows: Windows 10 64-bit or newer, available USB 2.0 (or higher) port, Intel or AMD processor, internet connection for software downloads, ASIO driver via UA Connect app
• iPad & iPhone: iPadOS / iOS 16 or newer
• DAW Compatibility: All major DAWs including Ableton Live, FL Studio, GarageBand, Logic Pro, Pro Tools and more
• iOS Connectivity: Requires Apple Lightning to USB Camera Adapter for devices with Lightning (not required for iPhone / iPad with USB-C)
