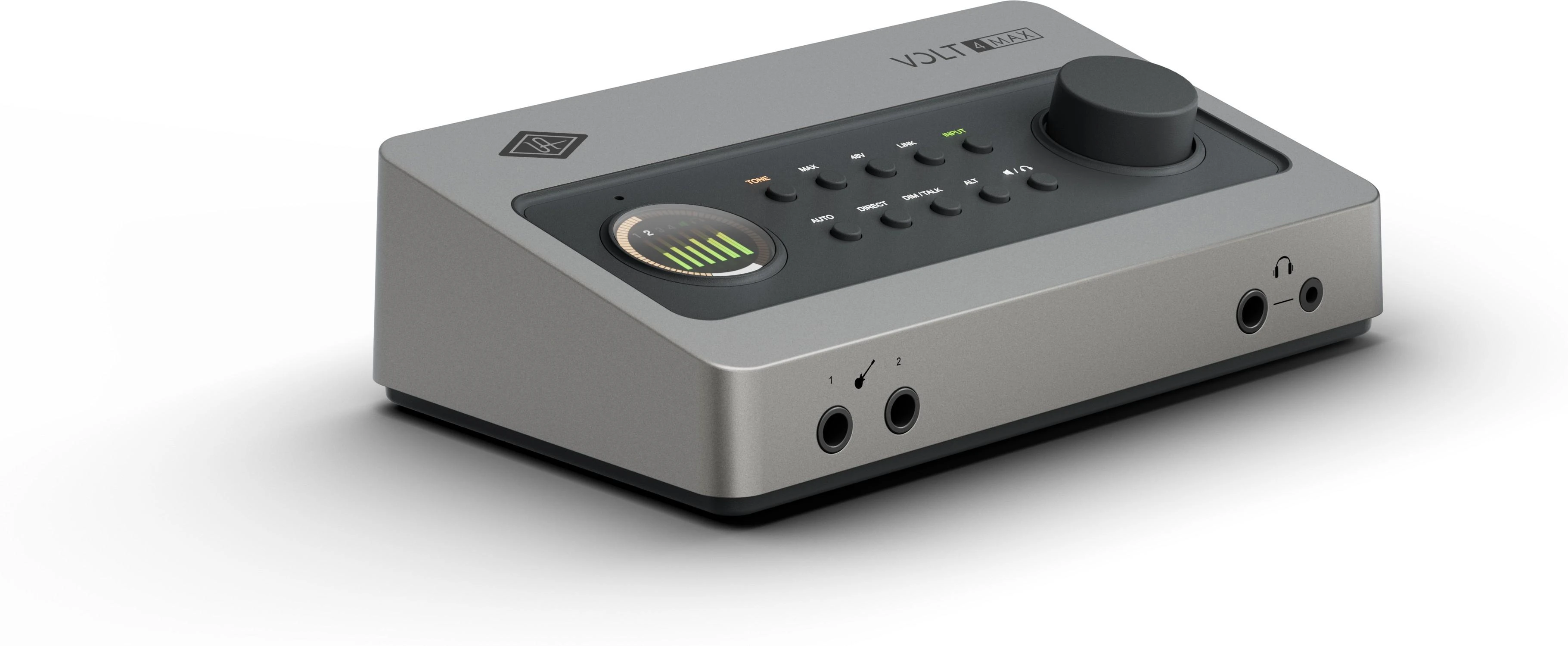

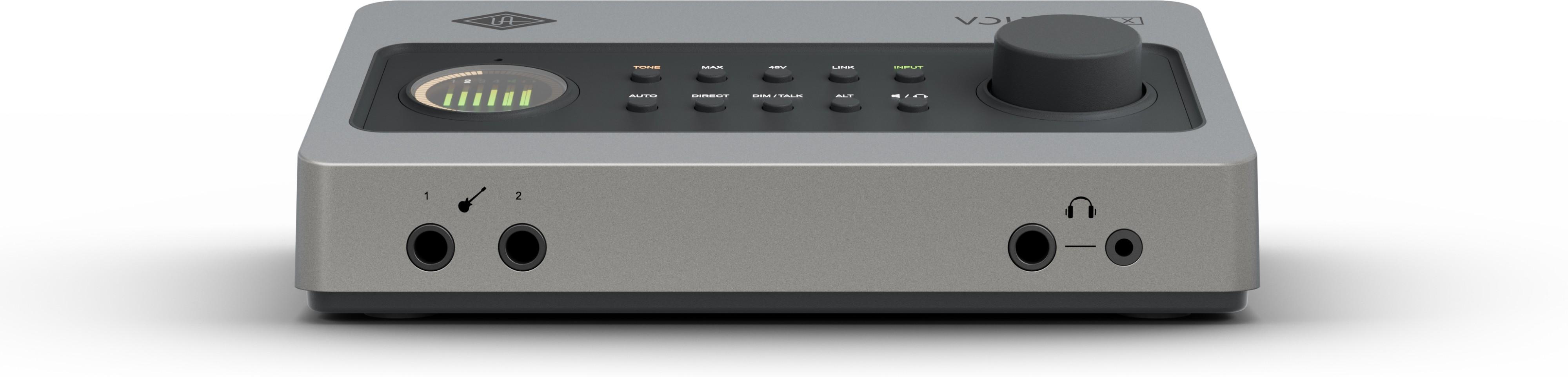

Universal Audio Volt 4 Max Audio Interface

The Universal Audio Volt 4 Max is a compact, bus-powered USB audio interface that brings genuine studio polish to any desktop setup. With two Tone Shaping Preamps, Max compression, a full-colour Smart Display, speaker switching and a generous software bundle including UAD plug-ins and the LUNA DAW, it is purpose-built to turn ideas into release-ready tracks on Mac, Windows and iOS.

Designed by the same team behind UA’s Apollo range, Volt 4 Max gives you characterful mic preamp tones, classic-style compression and pristine 32-bit / 192 kHz conversion at the push of a button. Whether you are producing, podcasting, streaming or tracking a full band via ADAT expansion, it keeps your workflow fast, your levels under control and your sound consistently professional.

Tone Shaping Preamps with Character on Tap

Volt 4 Max’s two Tone Shaping Preamps let you choose between three distinct harmonic flavours: Warmth, Focus and Shine. These modes emulate tube, solid-state and British Class-A style mic preamps, so you can dial in rich, record-ready colour at the source instead of fixing lifeless tracks later with plug-ins. Vocals, guitars, synths and spoken word all benefit from added depth, presence and polish before they even hit your DAW.

Max Compression for Effortless, Radio-Ready Dynamics

Max processing gives you onboard dynamics based on UA’s legendary LA-2A and 1176 compressors. Six push-button presets are tuned for common sources like rap vocals, jangly acoustic guitar and bass, making it easy to add punch, control and consistency while you record. Combined with the three preamp modes, you get over 18 noise-free tone and compression combinations that keep performances sitting perfectly in the mix.

Smart Display, Auto-Gain and Clip Protection

The full-colour Smart Display puts all your key information in one place, showing levels, routing and gain reduction clearly so you can work quickly and confidently. Auto-Gain sets input levels in seconds, while Clip Protection catches unexpected peaks before they ruin a take. Together, these tools let you focus on performance and creativity instead of constantly watching meters.

Expandable I/O and Built-In Talkback for Modern Studios

With 12-in / 6-out simultaneous I/O, Volt 4 Max is ready to grow with your setup. Dual mic / line / Hi-Z inputs handle vocals and instruments, additional line I/O connects outboard gear, and ADAT or S/PDIF optical input lets you add up to eight more channels when you need them. Speaker switching between main and alt monitors, two headphone outs and a built-in talkback mic make it a powerful hub for collaborative sessions, podcasts and livestreams.

Premium UAD Plug-Ins and LUNA Included

Volt 4 Max ships with the UAD Volt Studio Bundle, giving you a curated collection of UA plug-ins and instruments plus the LUNA Digital Audio Workstation. From classic tube preamps, compressors and tape machines to synths and guitar amps, you get the same tools used on countless hit records, along with a DAW designed to capture that big-studio feel on your laptop or iPad.

• Tone Shaping Preamps with Three Character Modes - Two mic preamps with Warmth, Focus and Shine modes let you add tube, solid-state and British Class-A style colour as you record. This gives your vocals and instruments a finished, musical tone straight away, reducing the need for heavy processing later.
• Max Compression with Six Ready-to-Use Presets - Onboard Max processing provides classic-style compression with presets tailored for vocals, guitar and bass. You can quickly tighten dynamics, add punch and keep levels under control, helping your tracks sound polished and consistent from the first take.
• Smart Display, Auto-Gain and Clip Protection - The full-colour Smart Display shows input levels, gain reduction and settings at a glance, while Auto-Gain sets ideal recording levels automatically. Clip Protection safeguards against sudden peaks, so you can capture confident performances without worrying about distortion.
• 12-in / 6-out Connectivity with ADAT Expansion - With dual mic / line / Hi-Z inputs, extra line I/O, ADAT or S/PDIF optical input, MIDI I/O and two headphone outputs, Volt 4 Max is a flexible centrepiece for modern studios. You can track multiple sources, integrate hardware and expand up to eight extra digital inputs as your setup grows.

General

• Product: Universal Audio Volt 4 Max
• Type: Desktop USB audio interface
• Simultaneous I/O: 12-in / 6-out
• Audio Resolution: 32-bit / 192 kHz
• Power: USB bus-powered (external 5 VDC input supported)
• Construction: Rugged desktop chassis

Analogue Inputs

• Mic Preamps: 2 with Tone Shaping and Max compression
• Available Gain: 60 dB (digitally controlled)
• Phantom Power: +48 V, switchable per channel
• Mic Inputs 1-2: XLR combo jacks (pin 2 positive)
• Mic Inputs 1-2 Frequency Response: 20 Hz to 20 kHz ±0.08 dB
• Mic Inputs 1-2 Dynamic Range (A-weighted): 119 dB
• Mic Inputs 1-2 THD + Noise (1 kHz at -1 dBFS): -110 dB (0.0003%)
• Mic Inputs 1-2 Maximum Input Level: 14 dBu
• Mic Inputs 1-2 Input Impedance: 2 kΩ
• Instrument Inputs 1-2: 1/4 inch TS unbalanced (Hi-Z)
• Instrument Inputs 1-2 Frequency Response: 20 Hz to 20 kHz ±0.02 dB
• Instrument Inputs 1-2 Dynamic Range (A-weighted): 116 dB
• Instrument Inputs 1-2 THD + Noise (1 kHz at -1 dBFS): -108 dB (0.0004%)
• Instrument Inputs 1-2 Maximum Input Level: 13 dBu
• Instrument Inputs 1-2 Input Impedance: 1 MΩ
• Line Inputs 1-2: 1/4 inch combo jack TRS balanced or TS unbalanced
• Line Inputs 1-2 Frequency Response: 20 Hz to 20 kHz ±0.05 dB
• Line Inputs 1-2 Dynamic Range (A-weighted): 119 dB
• Line Inputs 1-2 THD + Noise (1 kHz at -1 dBFS): -108 dB (0.0004%)
• Line Inputs 1-2 Maximum Input Level: 22 dBu
• Line Inputs 1-2 Input Impedance: 10 kΩ
• Line Inputs 3-4: 1/4 inch TRS balanced or TS unbalanced
• Line Inputs 3-4 Frequency Response: 20 Hz to 20 kHz ±0.05 dB
• Line Inputs 3-4 Dynamic Range (A-weighted): 119 dB
• Line Inputs 3-4 THD + Noise (1 kHz at -1 dBFS): -108 dB (0.0004%)
• Line Inputs 3-4 Maximum Input Level: 22 dBu
• Line Inputs 3-4 Input Impedance: 10 kΩ

Analogue Outputs

• Monitor Outputs: 2 stereo pairs (Main and Alt speaker switching)
• Monitor & Line 3-4 Outputs Connector Type: 1/4 inch TRS balanced or TS unbalanced (DC coupled)
• Monitor & Line 3-4 Outputs Frequency Response: 20 Hz to 20 kHz ±0.05 dB
• Monitor & Line 3-4 Outputs Dynamic Range (A-weighted): 126 dB
• Monitor & Line 3-4 Outputs THD + Noise (1 kHz at -1 dBFS): -112 dB (0.0003%)
• Monitor & Line 3-4 Outputs Maximum Output Level: 20.2 dBu
• Monitor & Line 3-4 Outputs Output Impedance: 200 Ω
• Headphone Outputs: 2 stereo (one shared cue mix)
• Headphone Outputs Connector Type: 1/4 inch and 1/8 inch TRS stereo unbalanced (DC coupled)
• Headphone Outputs Frequency Response: 20 Hz to 20 kHz ±0.08 dB
• Headphone Outputs Dynamic Range (A-weighted): 116 dB
• Headphone Outputs THD + Noise (1 kHz at -1 dBFS into 300 Ω): -103 dB (0.0007%)
• Headphone Outputs Maximum Power into 32 Ω: 45 mW
• Headphone Outputs Maximum Power into 300 Ω: 24 mW

Digital I/O and Connectivity

• USB: 1 x USB 2.0 host port (USB Type-C)
• USB Hub Port: 1 x USB hub port for peripherals (5 VDC at 0.5 A max)
• USB External Power Input: 5 VDC at 1.5 A minimum (3 A supply included)
• Digital / Optical Input: ADAT or S/PDIF optical
• ADAT In: 8 channels at 44.1 / 48 kHz
• ADAT In (S/MUX): 4 channels at 96 kHz, 2 channels at 192 kHz
• S/PDIF In: 2 channels at all supported sample rates
• MIDI: In and Out, 1/8 inch TRS mini-jack, MIDI Type A
• Talkback: Built-in microphone
• Loopback: Built-in for podcasting, streaming and content creation

Conversion and Performance

• Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
• Bit Depth: 32-bit
• Power Consumption (at 5 VDC): 5.5 W typical, 7.1 W maximum
• On / Off Switch: Rear panel

Software Bundle

• Included DAW: LUNA Digital Audio Workstation
• UAD Volt Studio Bundle Plug-Ins and Instruments:
  • Topline Vocal Tune
  • UA 610 Tube Preamp & EQ Collection
  • Century Tube Channel Strip
  • Teletronix LA-2A Tube Compressor
  • UA 1176 Classic FET Compressor
  • Pure Plate Reverb
  • Galaxy Tape Echo
  • Oxide Tape Recorder
  • Vibe Analog Machines
  • PolyMAX Synth
  • Anthem Analog Synth
  • UAD Lion ‘68 Super Lead Amp
  • UAD Showtime ‘64 Tube Amp
• Additional Software:
  • Melodyne Essential by Celemony
  • Ampeg SVT-VR Classic Bass Bundle by Plugin Alliance (Ampeg SVT-VR Classic, bx_Tuner, bx_Masterdesk_Classic)
  • Virtual Drummer DEEP by UJAM
  • Virtual Bassist DANDY by UJAM
  • Splice INSTRUMENT
  • Prisma - Producer Lab by UVI
  • FL Studio Producer Edition (3 months free)

System Requirements

• Mac: macOS 12 Monterey or newer, available USB 2.0 (or higher) port, Intel, AMD or Apple silicon processor, internet connection for software downloads
• Windows: Windows 10 64-bit or newer, available USB 2.0 (or higher) port, Intel or AMD processor, internet connection for software downloads
• iPad & iPhone: iPadOS / iOS 16 or newer
• DAW Compatibility: All major DAWs including Ableton Live, FL Studio, GarageBand, Logic Pro, Pro Tools and more
• Additional iOS Requirement: Apple Lightning to USB Camera Adapter for compatible devices
