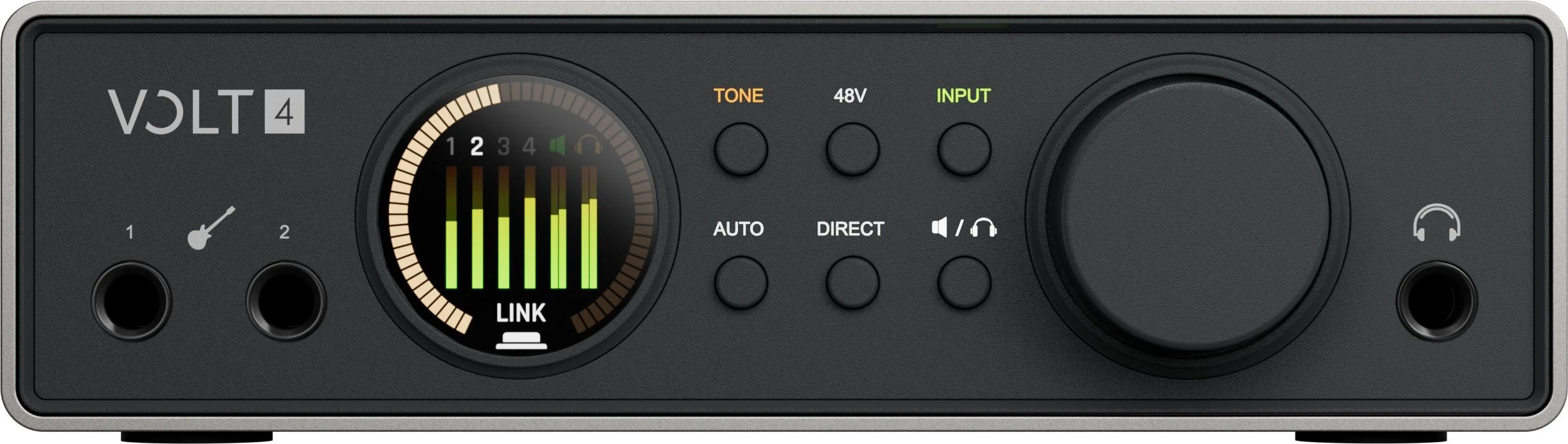

Universal Audio Volt 4 Gen 2 Audio Interface

The Universal Audio Volt 4 Gen 2 is a 12-in / 6-out USB audio interface that puts album-ready sound and smart control on your desktop or in your bag. With Tone Shaping Preamps, best-in-class 32-bit conversion, a full-colour Smart Display and powerful features like Auto-Gain, Clip Protection and loopback, it is built to take you from idea to finished track quickly and confidently on Mac, Windows, iPad or iPhone.

Designed by the same team behind UA’s flagship Apollo range, Volt 4 Gen 2 gives you the character and clarity of a pro studio in a compact, bus-powered box. Two Tone Shaping mic preamps let you switch between Warmth, Focus and Shine modes for instant tube, solid-state and British Class-A style flavours at the source, while Hi-Z inputs handle guitars and basses with ease. Add MIDI I/O, ADAT expansion and an onboard USB hub, and you have a flexible centrepiece that can grow with your setup.

Volt 4’s 32-bit / 192 kHz converters capture every nuance of your performance, backed up by loud, detailed monitor and headphone outputs so you can trust what you are hearing from tracking through to final mix. The bright Smart Display keeps levels, routing and settings clear at a glance, while Auto-Gain and Clip Protection safeguard your takes from unwanted distortion, letting you focus on the music instead of the meters.

To round it out, Volt 4 Gen 2 arrives with a serious software studio. You get over 15 UAD plug-ins and instruments, including classic compressors, reverbs, tape and amp emulations, plus UA’s LUNA Digital Audio Workstation and a curated bundle of third-party tools. Whether you are recording bands, producing electronic music, podcasting or streaming, Volt 4 Gen 2 delivers a polished, professional sound and a streamlined workflow in one rugged, portable interface.

Album-ready tone at the input

Volt 4 Gen 2’s Tone Shaping Preamps provide up to 60 dB of gain and three distinct character modes: Warmth, Focus and Shine. These modes emulate classic tube, solid-state and British Class-A style mic pres, letting you dial in rich, record-ready vocals, guitars and instruments before they even hit your DAW, saving time on plug-in chains later.

Smart Display, Auto-Gain and Clip Protection

The full-colour Smart Display puts your inputs, levels and key settings right in front of you, so you can see exactly what is happening at a glance. Auto-Gain sets your recording level in seconds, while Clip Protection catches unexpected peaks, helping you avoid ruined takes and keeping sessions flowing smoothly.

Expandable I/O for growing studios

With two mic / line inputs, two additional line inputs, two front-panel Hi-Z instrument inputs, stereo monitor outs, extra line outputs and MIDI In/Out, Volt 4 Gen 2 is ready for multi-source recording. An ADAT or S/PDIF optical input lets you add up to eight more channels of digital audio, so you can easily expand for drum kits, live bands or outboard-heavy setups as your needs grow.

Premium UAD software and LUNA DAW included

Every Volt 4 Gen 2 includes the UAD Volt Studio Bundle with over 15 UAD plug-ins and instruments, plus the LUNA Digital Audio Workstation. From Teletronix LA-2A and 1176 compressors to tape, reverb, synths and guitar amps, you get a powerful toolkit for shaping, mixing and finishing your tracks, along with additional software from leading third-party developers.

• 12-in / 6-out 32-bit USB audio interface - Capture your projects with professional 32-bit / 192 kHz audio conversion and up to 12 inputs and 6 outputs, giving you the headroom and flexibility needed for detailed, dynamic recordings and mixes.
• Tone Shaping Preamps with three character modes - Two mic preamps with up to 60 dB of gain and Warmth, Focus and Shine modes let you add tube, solid-state and British Class-A style colour at the source, so your vocals and instruments sound like a finished record from the moment you hit record.
• Smart Display with Auto-Gain and Clip Protection - The full-colour Smart Display provides clear visual feedback of inputs, levels and settings, while Auto-Gain and Clip Protection automatically optimise and safeguard your levels, helping you work faster and avoid unwanted distortion.
• ADAT expansion, MIDI I/O and onboard USB hub - Add up to eight extra channels over ADAT or S/PDIF, connect keyboards and drum machines via MIDI, and use the built-in USB hub to power and hook up external MIDI controllers, making Volt 4 Gen 2 a powerful hub for modern hybrid studios.

General

• Product: Universal Audio Volt 4 Gen 2
• Type: USB audio interface with onboard tone shaping
• Simultaneous I/O: 12-in / 6-out
• Bit Depth: 32-bit
• Supported Sample Rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192
• Computer Connectivity: USB 2.0 (USB Type-C connectors)
• Bus-powered: Yes
• On / Off Switch: Rear panel
• Construction: Stylish, rugged design

Analogue Inputs

• Microphone Preamps: 2 with Tone Shaping and 60 dB available gain
• Mic Inputs: 2 x XLR combo jacks (pin 2 positive)
• Line Inputs: 4 total (1–4 on ¼ inch combo jacks, TRS balanced or TS unbalanced)
• Hi-Z Instrument Inputs: 2 x ¼ inch TS unbalanced (front panel, inputs 1–2)
• Mic Input Frequency Response: 20 Hz to 20 kHz ±0.08 dB
• Mic Input Dynamic Range (A-weighted): 118 dB
• Mic Input THD + Noise (1 kHz @ -1 dBFS): -110 dB (0.0003 percent)
• Mic Maximum Input Level: 14 dBu
• Mic Input Impedance: 2 kΩ
• Instrument Input Frequency Response: 20 Hz to 20 kHz ±0.02 dB
• Instrument Dynamic Range (A-weighted): 116 dB
• Instrument THD + Noise (1 kHz @ -1 dBFS): -108 dB (0.0004 percent)
• Instrument Maximum Input Level: 13 dBu
• Instrument Input Impedance: 1 MΩ
• Line Input Frequency Response: 20 Hz to 20 kHz ±0.05 dB
• Line Input Dynamic Range (A-weighted): 119 dB
• Line Input THD + Noise (1 kHz @ -1 dBFS): -108 dB (0.0004 percent)
• Line Maximum Input Level: 22 dBu
• Line Input Impedance: 10 kΩ
• Available Gain (digitally controlled): 60 dB (channels 1 and 2)
• Phantom Power: +48 V, switchable per channel

Analogue Outputs

• Monitor Outputs: 1 x stereo pair (¼ inch TRS balanced, DC coupled)
• Additional Line Outputs: Line 3–4 on ¼ inch TRS balanced (DC coupled)
• Monitor / Line Outputs Frequency Response: 20 Hz to 20 kHz ±0.05 dB
• Monitor / Line Outputs Dynamic Range (A-weighted): 126 dB
• Monitor / Line Outputs THD + Noise (1 kHz @ -1 dBFS): -112 dB (0.0003 percent)
• Maximum Output Level: 20.2 dBu
• Output Impedance: 200 Ω
• Headphone Output: 1 x ¼ inch TRS stereo unbalanced (DC coupled)
• Headphone Frequency Response: 20 Hz to 20 kHz ±0.08 dB
• Headphone Dynamic Range (A-weighted): 116 dB
• Headphone THD + Noise (1 kHz @ -1 dBFS into 300 Ω): -103 dB (0.0007 percent)
• Maximum Headphone Power into 32 Ω: 45 mW
• Maximum Headphone Power into 300 Ω: 24 mW

Digital I/O

• Optical Input: ADAT or S/PDIF
• ADAT In: 8 channels at 44.1 / 48 kHz
• ADAT In (S/MUX): 4 channels at 96 kHz, 2 channels at 192 kHz
• S/PDIF In: 2 channels at all supported sample rates
• Built-in Loopback: Yes, for podcasting, streaming and content creation

MIDI

• MIDI I/O: In and Out
• Connector Type: ⅛ inch TRS mini-jack
• MIDI Standard: Type A

USB and Power

• USB Host Port: 1 x USB 2.0 (Type-C)
• USB Hub Port: 1 x USB for peripherals (supplies 5 VDC @ 0.5 A maximum)
• USB External Power Input: 1 x USB (requires 5 VDC @ 1 A minimum)
• Power Consumption (@ 5 VDC): 4.2 W typical, 5.8 W maximum
• Bus-powered Operation: Yes (requirements vary by device)

Software and Integration

• Included DAW: LUNA Digital Audio Workstation
• Included UAD Bundle: UAD Volt Studio Bundle (over 15 UAD plug-ins and instruments)
• Selected UAD Plug-ins: UA 610 Tube Preamp & EQ Collection, Century Tube Channel Strip, Teletronix LA-2A Tube Compressor, UA 1176 Classic FET Compressor, Pure Plate Reverb, Galaxy Tape Echo, Oxide Tape Recorder, Vibe Analog Machines, PolyMAX Synth, Anthem Analog Synth, UAD Lion ‘68 Super Lead Amp, UAD Showtime ’64 Tube Amp
• Additional Software: Melodyne Essential by Celemony, Ampeg SVT-VR Classic Bass Bundle by Plugin Alliance (Ampeg SVT-VR Classic, bx_Tuner, bx_Masterdesk_Classic), Virtual Drummer DEEP by UJAM, Virtual Bassist DANDY by UJAM, Splice INSTRUMENT, Prisma - Producer Lab by UVI, FL Studio Producer Edition (3 months free)
• Integration: Full integration with UAD Console app and LUNA, including session recall and low-latency cue mixes

System Requirements

• Mac: macOS 12 Monterey or newer, available USB 2.0 (or higher) port, Intel, AMD or Apple silicon processor
• Windows: Windows 10 64-bit or newer, available USB 2.0 (or higher) port, Intel or AMD processor, ASIO driver via UA Connect app
• iPad / iPhone: iPadOS / iOS 16 or newer
• Connectivity: USB cable (included)
• Additional iOS Requirement: Apple Lightning to USB Camera Adapter for compatible devices
• Internet: Required for software downloads
• DAW Compatibility: All major DAWs including Ableton Live, FL Studio, GarageBand, Logic Pro, Pro Tools and more
