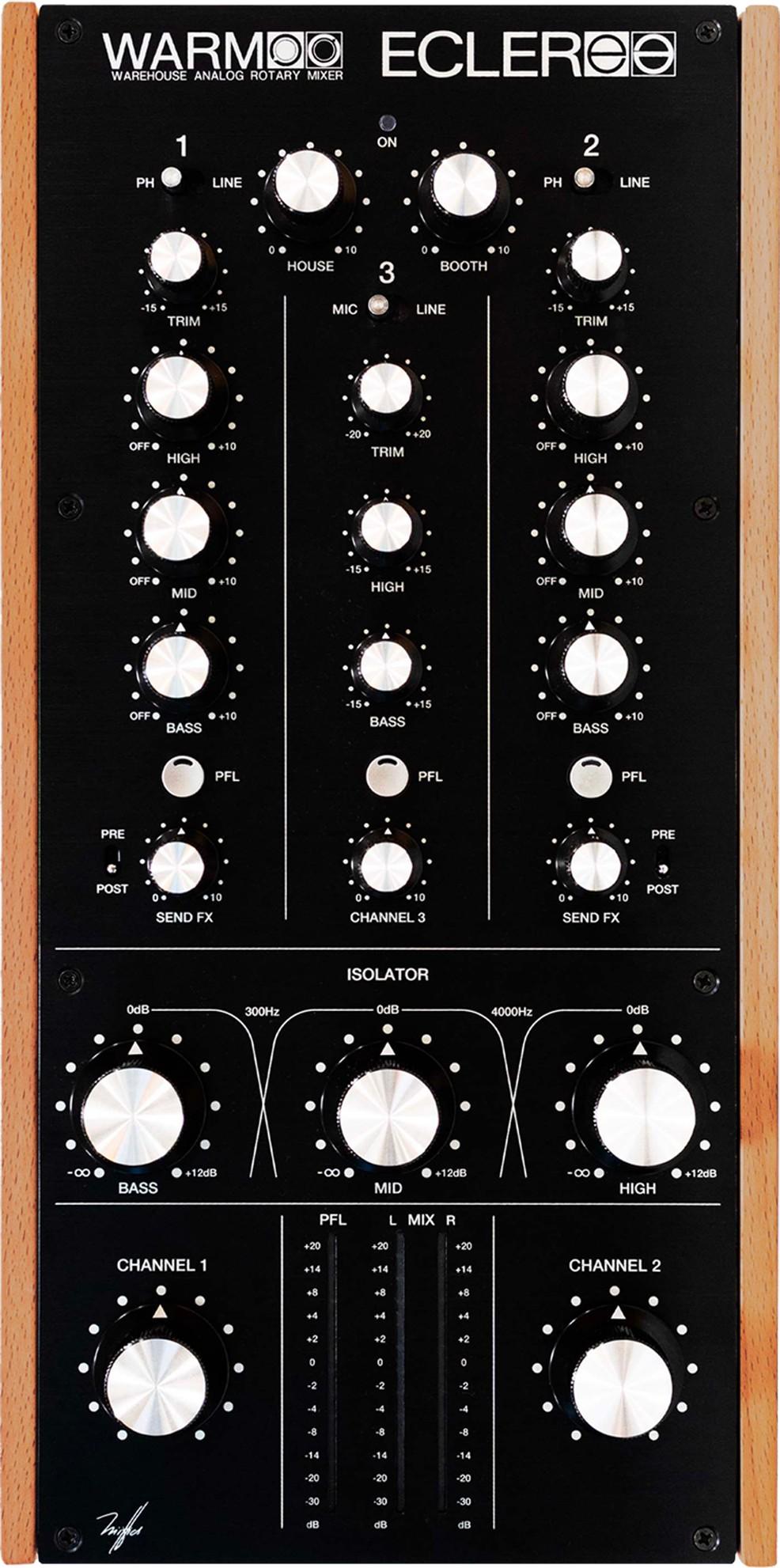

Ecler WARM2 - 2 Channel Analog Rotary Mixer

The Ecler WARM2 is a professional two channel analogue rotary DJ mixer, designed and built in Barcelona for DJs who want that classic, musical feel with modern reliability. With two phono/line channels, a dedicated micro/line channel, a powerful 4th order isolator and a super compact footprint, it delivers a warm yet crystal clear analogue sound that is perfect for intimate bars, audiophile listening rooms and focused club booths.

Inspired by the legendary Warehouse in Chicago and the rotary mixers that helped shape early house music, WARM2 puts Ecler engineering and Alps Blue Velvet potentiometers at your fingertips. Smooth rotary level control, musical EQ and a flexible FX send make it ideal for deep, evolving blends and expressive, hands on performances.

Classic Rotary Feel, Modern Analogue Sound

WARM2 captures the smooth, continuous control that made rotary mixers a favourite of DJs like Frankie Knuckles, Joe Claussell and Louie Vega. The high quality analogue signal path and Alps Blue Velvet potentiometers give you precise, tactile control over your levels, so you can ride blends for minutes, tease elements in and out and keep dancers locked in without harsh jumps in volume.

Powerful 4th Order Isolator

At the heart of WARM2 is a three band isolator with 24 dB per octave slopes at 300 Hz and 4 kHz, offering full cut and up to +12 dB of boost. This lets you surgically remove frequencies to reshape tracks, add drama to breakdowns, highlight riffs or create rhythmic tremolo style effects by working the knobs. It is a performance tool that encourages creativity and makes even familiar records feel new again.

Flexible 2+1 Channel Layout

The two main channels each handle phono or line sources, while the additional micro/line channel gives you extra flexibility for a microphone, drum machine, sampler or another line level device. With dedicated EQ on every channel, you can keep your main mix tight while still having a separate channel ready for hosting, live elements or layering extra textures into your set.

Compact, Portable and Built to Last

With a width of just 18.5 cm, WARM2 is one of the narrowest rotary mixers available, making it easy to fit into tight booths or portable rigs. Despite its small footprint it feels premium, with a solid aluminium knob design, screen printed faceplate with selective anodising and included wooden side panels. It is a rugged, elegant centrepiece for DJs who value both sound and aesthetics.

• Two Channel Rotary Layout with Extra Micro/Line Channel - The 2+1 configuration gives you two fully featured phono/line channels for your decks or players, plus a dedicated micro/line channel for vocals or extra gear. This keeps your main mix clean while still giving you room for announcements, live instruments or additional sound sources.
• Three Band Isolator with 4th Order Slopes - The inbuilt isolator operates at 300 Hz and 4 kHz with 24 dB per octave slopes and a range of minus infinity to plus 12 dB. You can completely kill lows, mids or highs or push them forward in the mix, opening up expressive ways to build tension, reshape grooves and control the energy on the dancefloor.
• Alps Blue Velvet Potentiometers - Premium Alps Blue Velvet pots provide ultra smooth, precise control over levels and EQ. This translates into more accurate blends, finer gain staging and a more musical response to every touch, ideal for long, subtle transitions and detailed performance mixing.

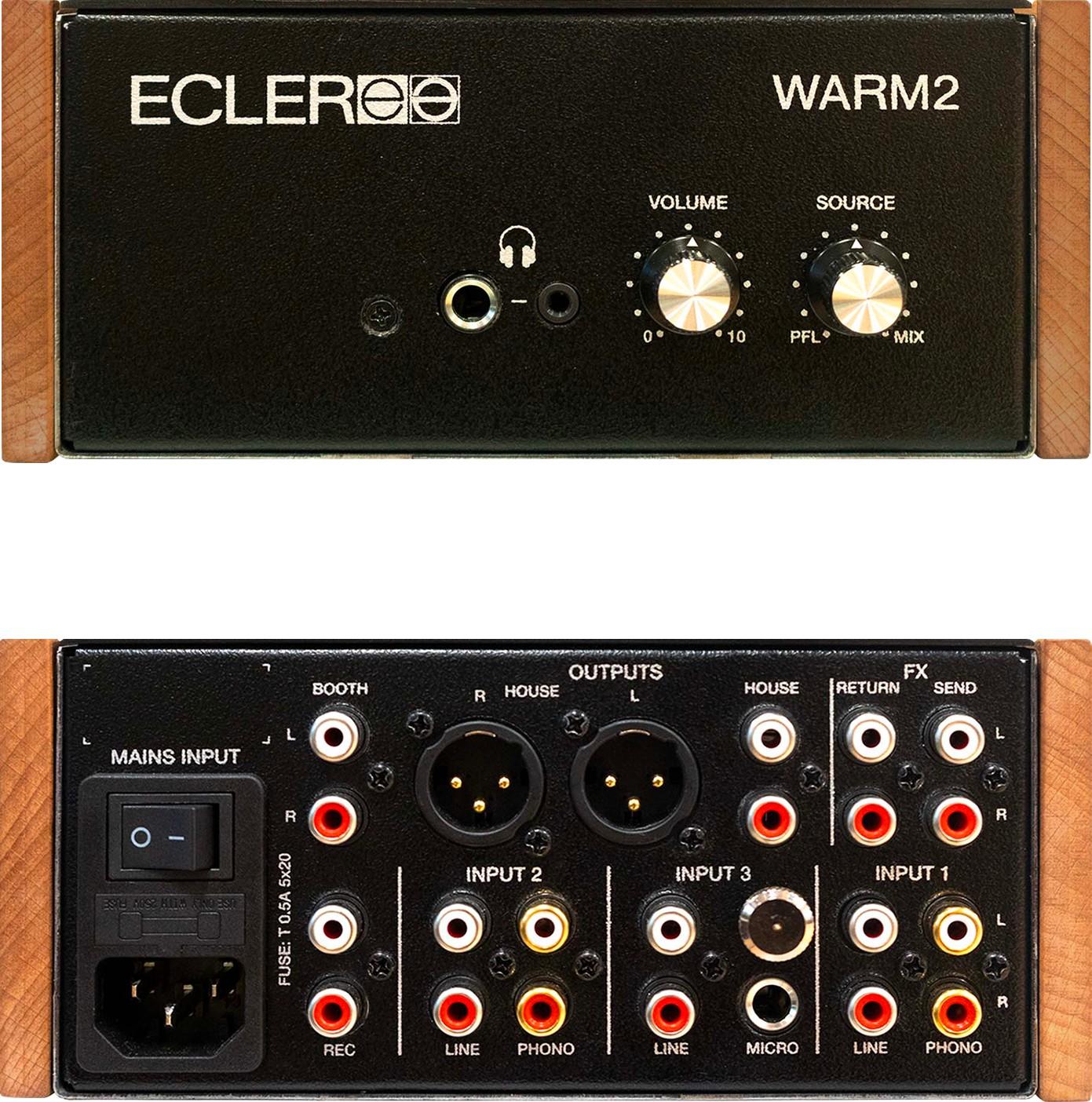

• Comprehensive Connectivity in a Narrow Format - Despite its compact 18.5 cm width, WARM2 offers balanced and unbalanced master outputs, a dedicated booth output, separate record and FX send/return on RCA, plus both 6.3 mm and 3.5 mm headphone outputs. It slots easily into existing setups while giving you the routing options needed for club, bar or home use.

General

• Type: Two channel analogue rotary DJ mixer with additional micro/line channel
• Design: Analogue circuitry, rotary level controls
• Origin: Designed and manufactured by Ecler in Barcelona
• Maximum output without distortion: 21 dBV (23 dBu)
• Isolator: Three band, 4th order (24 dB per octave), 300 Hz and 4 kHz, minus infinity to plus 12 dB

Inputs

• Mixing channels: 2 main channels plus 1 micro/line channel
• Micro input: 1 x 6.3 mm balanced TRS jack (MICRO 3)
• Phono inputs: 2 x stereo RCA (PHONO 1 2)
• Line inputs: 3 x stereo RCA (LINE 1 2 3)
• FX return: 1 x stereo RCA
• Input sensitivity / impedance LINE: 0 dBV / 50 kΩ
• Input sensitivity / impedance PHONO: minus 40 dBV / 50 kΩ
• Input sensitivity / impedance MICRO: minus 50 dBV / greater than 1 kΩ
• Input sensitivity / impedance FX RETURN: 0 dBV / greater than 6 kΩ

Outputs

• Master output (HOUSE, balanced): Stereo XLR
• Master output (HOUSE, unbalanced): Stereo RCA
• Booth output: Stereo RCA
• Record output: Stereo RCA
• FX send: Stereo RCA
• Headphone outputs: 6.3 mm stereo jack and 3.5 mm stereo mini jack

Controls and Processing

• Main channels EQ: Three band full cut EQ
• Micro/line channel EQ: Two band full cut EQ
• Channel trim: Available on main channels
• FX send control: Per channel
• FX pre/post fader selector: Yes
• Isolator bands: Low, mid, high with full cut and up to plus 12 dB boost

Construction

• Knobs: Mechanised from a solid block of aluminium, no visible screw, Ecler unique design
• Potentiometers: Alps Blue Velvet
• Faceplate: Screen printed by selective anodising
• Side panels: Wooden side panels included
• Format: Narrow, portable chassis (width 18.5 cm)
