Studio Electronics Modstar SEM Oberheim Eurorack 12dB Filter
Modular Filter Based on the SEM Oberheim Model
FREE UK Delivery
Earn 229 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: FILTERSEM
You might also need
Product Description
Sensei Caswell: "Our SEM is known as a 'Voltage Controlled State Variable Filter' because it provides simultaneous high pass, low pass, and band pass outputs, all with a 12 dB/oct slope. The notch is the inverse of the bandpass, achieved by summing the Low Pass and high pass outputs. This version is a combination of the original SEM filter and the newer design from the OBX, along with improvements by SE. It has a modest current draw, evenly from the plus and minus rails."
You may have already heard of the SEM Filter from the Studio Electronics Boomstar Desktop Range; this favourite has been transformed to fit into their new modular series for eurorack systems. Created by synth design guru Tom Oberheim this 12dB filter can be warm, smooth and subtle or fat and punchy, adding real character to your synth patch.
Specifications
Potentiometer Potential
Three attenuverter and four attenuation pots control the FREQUENCY, RESONANCE, FREQ CV 1, RESO CV, LP HP, INPUT and OUTPUT, delivering smooth, detailed, and complex expression.
Switch it Up
FULL and HALF strength filter frequency keyboard/voltage tracking, and BP / LP-HP modes.
Patch it Up
Seven patch points: 1 V/O, FREQ CV 1, FREQ CV 2, RESO CV, INPUT, BP LP-HP, and OUTPUT direct the deepest manipulation.

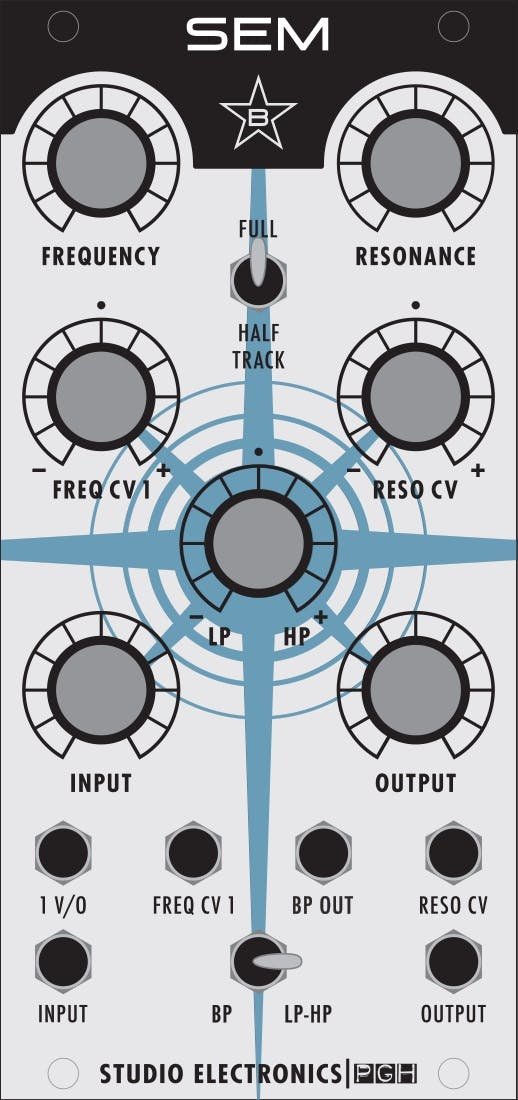

All Controls and Patch Points
FREQUENCY – Adjusts the frequency, or cut-off of the filter.
RESONANCE – Adjusts the resonance of the filter.
FULL HALF TRACK – Switch between full and half keyboard/voltage tracking.
FREQ CV 1 – Frequency control voltage 1 input attenuverter.
RESO CV – Resonance control voltage input attenuverter.
LP HP – Low Pass / High Pass attenuverter.
INPUT – Adjusts the audio input.
OUTPUT – Adjusts the audio output.
1 V/O – One volt per octave control voltage input.
FREQ CV 1 – Frequency control voltage 1 input.
BP OUT – Band Pass Output. No cable patched, BP passes through the mains.
RESO CV – Resonance control voltage input.
INPUT – Audio input.
BP LP-HP – Switch between Band Pass and Low Pass - High Pass modes.
OUTPUT – Audio output.
Vitals
Size - 12hp
Depth - 39.7mm with ribbon cable attached
Power Usage - 23mA, 23mA (+12 / -12)
