Strymon
Strymon PCH X1 Active DI Isolator
A phantom powered, transformer isolated active DI built for pristine sound with flexible connectivity — all in a compact, bulletproof chassis.
FREE UK Delivery
Earn 200 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose Click and Collect as your delivery option online or, during store opening hours, call our sales team on 01483 456777 for assistance with placing your order.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that stock availability can change quickly both online and in-store, so we would always recommend placing your Click and Collect order as soon as possible to reserve your item.
SKU: PCH-X1
You Might Also Like
Ask anything about this product
Product Description
When you stick most “premium” DI boxes on a proper analyser, the results can be… eye‑opening. Plenty of units that promise studio‑grade magic actually fall apart where it matters most — especially down low, or when you look at total harmonic distortion. Strip away the tech talk and it’s simple: a lot of DI boxes just don’t treat your sound with the respect it deserves.
The Strymon PCH X1 is a totally different beast. This phantom‑powered, transformer‑isolated active DI has been built with one thing at the top of the list: absolutely pristine audio. Whatever you feed into it — bass, keys, guitars, synths, you name it — the X1 handles your signal with total confidence. While other DI boxes can squash or smear low frequencies, the PCH X1 stays ruler‑flat from a ridiculous 10Hz all the way up to 80kHz, within half a dB.
Built to survive the real world
But the X1 isn’t just about great tone, it’s built for real‑world use too. The 3 mm extruded aluminium chassis feels utterly bombproof, ready for life on loud stages, quiet studios and everything in between. It’s compact enough to fit anywhere and tough enough to survive the gig bag life.
Custom transformers, smart tools, zero nonsense
Each channel runs through a custom transformer to keep ground loops at bay and give you proper galvanic isolation. You also get a ground lift per channel and a three‑position high‑pass filter — 80Hz for tidying up rumble and 240Hz when you really need to carve out space in a busy mix.
Flexible routing for any setup

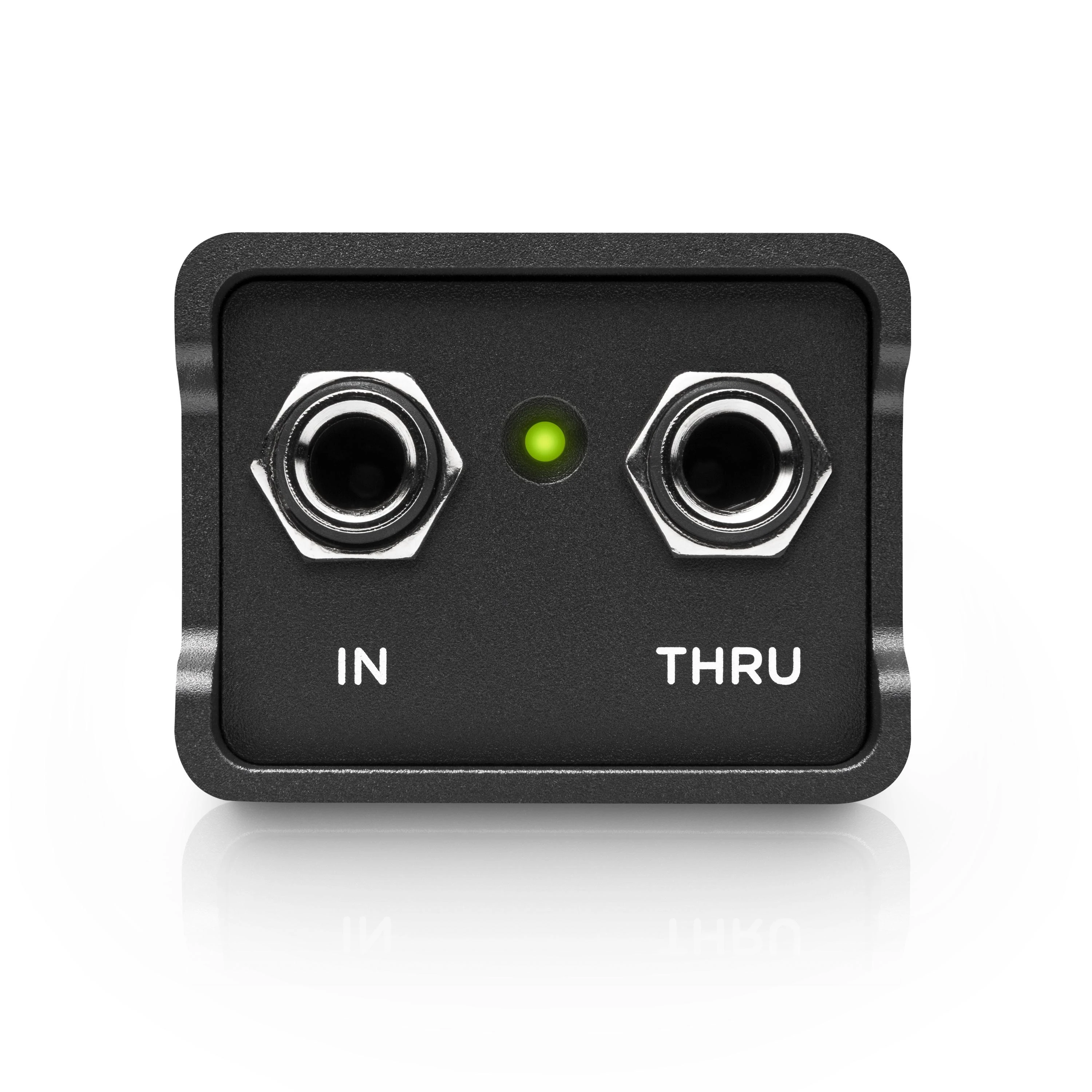

And for flexible routing, the X1 includes a non‑buffered Thru out alongside the balanced XLR. Perfect if you want to feed an onstage amp or monitor while sending a pristine balanced signal to front of house or your interface.
Features
- Custom audio transformer per channel.
- Runs on phantom power (each channel requires power).
- Ground Lift Switch per channel.
- Three-position high pass filter on each input.
- Defeatable Sum feature merges the Left and Right inputs and sends them to the Left outputs.
- Extremely flat frequency response.
- Extremely low total harmonic distortion (THD).
- Thick 3 mm extruded aluminium shell with 5 mm ribs for bulletproof protection.
- Shell awning design protects switches while allowing easy access.
- High-quality, long-life jacks and switches.
Specifications
- Input Impedance: 2 MΩ
- Max Input Level: +20.5dBu
- XLR Out Output Impedance: 100 Ω
- Gain Relative to Inputs: -20dB
- Maximum Output Level: +0.5dBu
- Noise Floor: -123 dBu (10-22kHz no A-Weight)
Frequency Response
- +/- 0.25dB, 20Hz - 30kHz (13.6KΩ load, HPF off)
- +/- 0.5dB, 10Hz - 80kHz (13.6KΩ load, HPF off)
- +/- 0.5dB, 20Hz - 20kHz (600Ω load, HPF off)
THD+N
- 1kHz: 0.0007% (-10dBu out)
- 100Hz: 0.0035% (-10dBu out)
- 50Hz: 0.0125% (-10dBu out)
Thru
- Gain Relative to Inputs: +0dB
- Output Impedance: 0Ω
Power Requirements
- 5mA @ +48VDC (per channel)
Dimensions
- Length: 3.66″ (93 mm)
- Width: 1.97″ (50 mm)
- Height: 1.54″ (39 mm)
